What Is a UASB Reactor and Why Design Parameters Matter
UASB reactor design parameters size an upflow anaerobic sludge blanket by Vup, HRT, OLR, H/D ratio, sludge bed height, and GSS geometry. Typical high-rate industrial bands are Vup 0.5–1.0 m/h, HRT 4–12 h, and OLR 10–20 kg COD/m³·d at pH 6.0–8.0 and 20–38°C. COD removal in a cited trial fell from 82% at 28°C to 48% at 10°C.
A UASB is an upflow anaerobic sludge blanket reactor: wastewater rises through granular biomass while a gas–solid–liquid (GSS) separator splits biogas, sludge, and clarified liquor. It digests moderate-to-high COD industrial effluent at shorter HRT than conventional digesters (S4, MDPI Water, 2025-02). Six values govern drawings: upflow velocity (Vup), hydraulic retention time (HRT), organic loading rate (OLR), height-to-diameter ratio (H/D), sludge bed height, and GSS geometry.
The operating envelope is narrower than most aerobic trains. Methanogens need pH 6.0–8.0 (S4) and mesophilic temperatures of 20–38°C. Peer-reviewed data show COD removal of 82% at 28°C, 72% at 20°C, 70% at 14°C, and 48% at 10°C (S1, IWA Publishing, 2004). Most plants we size for food and starch effluent run near the lower end of the high-rate Vup band to protect granules. Treat this page as a check card when scoring vendor proposals against internal benchmarks.
UASB Reactor Design Parameters at a Glance
UASB reactor design parameters for industrial duty concentrate on eight bands before any drawing review. Values below are typical industrial ranges from the cited sources, with remaining bands reflecting standard granular-bed high-rate practice.
| Parameter | Typical Range | Design Driver | Effect on Performance |
|---|---|---|---|
| Upflow velocity (Vup) | 0.5–1.0 m/h for soluble industrial wastewater; up to ~1.5 m/h with recycle | Granule settling velocity, hydraulic load | Exceeding ~1.0 m/h risks washout of 1–2 mm granules |
| Hydraulic retention time (HRT) | 4–12 h (high-rate industrial); 8–24 h (low-strength or domestic) | Influent COD, temperature, granule activity | HRT is the primary operational lever on microbial degradation (S4) |
| Organic loading rate (OLR) | 10–20 kg COD/m³·d (high-rate); 2–6 kg COD/m³·d (low/medium strength) | Influent COD × flow / reactor volume | Exceeding design OLR drives volatile fatty acid accumulation and pH crash |
| Reactor H/D ratio | 2:1 to 6:1 | Upflow contact time, gas disengagement volume | Taller reactors improve biogas separation but increase civil costs |
| Sludge bed height | 1–4 m | Granule inventory, expected biomass yield | Defines the active biological volume at the base of the reactor |
| GSS separator aperture | Aperture angle 45–60°; retention of 1–2 mm granules | Peak biogas flux, weir loading | Mis-sized GSS is the leading cause of granule loss and effluent TSS |
| pH | 6.0–8.0 (S4) | Methanogen activity, VFA/alkalinity balance | Below 6.0: methanogen inhibition; above 8.0: free ammonia toxicity in protein-rich streams |
| Temperature | 20–38°C mesophilic; 82% COD removal at 28°C, 48% at 10°C (S1) | Reactor heating duty, climate | COD removal is approximately linear with temperature in the 10–28°C window |
Footnote: All bands vary with wastewater strength, granulation maturity, and the degree of upstream suspended-solids removal.
What Are Typical UASB Design Values?
Typical UASB design values for soluble industrial wastewater are Vup 0.5–1.0 m/h, HRT 4–12 h, and OLR 10–20 kg COD/m³·d at 20–38°C and pH 6.0–8.0. Low-strength or cooler streams more often use HRT 8–24 h and OLR 2–6 kg COD/m³·d. Recycle can push superficial velocity toward ~1.5 m/h while holding organic load. Always pair Vup and HRT on the same datasheet: for fixed volume, halving HRT doubles Vup.
Procurement teams should demand analogous reference plants, not extrapolated municipal curves. When the feed is esterification process wastewater, compare the vendor envelope against published parameters for upflow anaerobic sludge blanket uasb reactor for esterification process waste water treatment before locking civil height.

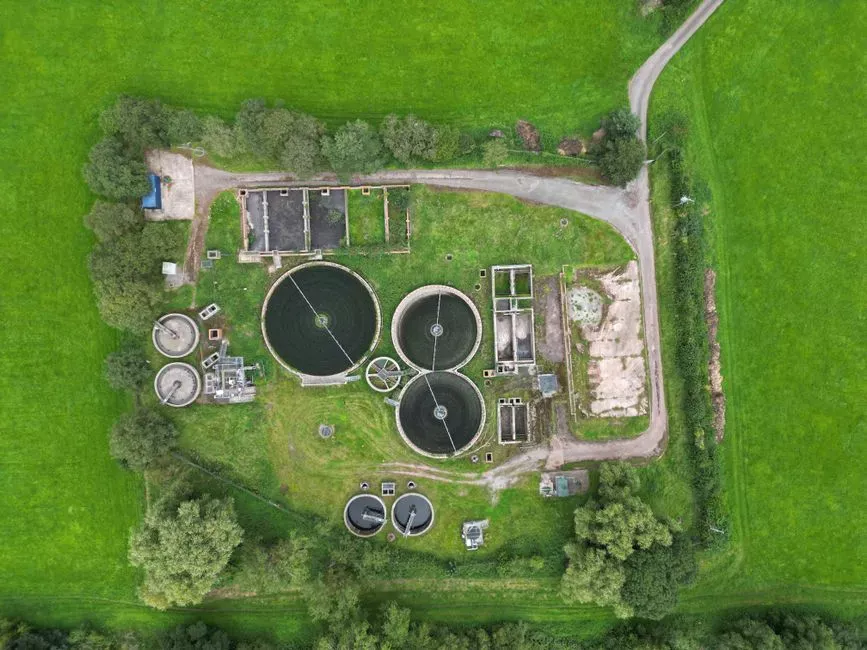

Upflow Velocity and Hydraulic Retention Time
Vup is superficial upflow velocity in m/h: influent flow divided by reactor cross-sectional area. HRT is liquid volume divided by influent flow, in hours, and remains the dominant lever on microbial degradation in a single UASB (S4, MDPI Water, 2025-02). The two are coupled. Specify both together when scoring proposals.
Higher Vup improves contact and shrinks footprint, yet raises drag on granules. Near the terminal settling velocity of 1–2 mm granules—typically ~1.0 m/h in clean water—washout accelerates and effluent TSS climbs. Lower Vup protects the blanket but cuts capacity per cubic metre. High-rate soluble industrial duty usually sits at 0.5–1.0 m/h with 4–12 h HRT; low-strength or cooler streams favor 8–24 h HRT.
Effluent recirculation decouples Vup from organic loading. Blending clarified effluent with raw feed can hold Vup near 0.6 m/h at the target OLR—common in breweries and starch plants where COD is high but granule retention is critical. Field start-ups that skip recycle on sticky high-COD feeds often lose the top of the bed within weeks.
Organic Loading Rate and Wastewater Strength Envelopes
OLR is the mass of COD applied per cubic metre of reactor volume per day and is the figure vendors quote most often. The equation OLR = (influent COD × Q) / V_reactor shows why strength matters: doubling COD at fixed flow and volume doubles OLR.
Industrial envelopes fall into three bands. Low-strength streams use the lower OLR band and tolerate longer HRT. Medium-strength streams sit mid-band and are the canonical UASB duty. High-strength streams need the high-rate OLR envelope with recycle, or a two-stage anaerobic layout. Full-scale sugarcane vinasse reactors show clear temporal shifts in the microbial community as substrate adapts (S4).
Exceeding design OLR is the usual failure path. Volatile fatty acids outpace methanogenesis, alkalinity drops, pH falls below 6.0, and methanogens stall. Ask vendors for analogous wastewater references rather than municipal extrapolations. For process narrative beyond sizing numbers, see how a UASB reactor works.
Reactor Geometry: H/D Ratio, Sludge Bed Height, and Liquid Height
UASB reactors are tall by design. Height-to-diameter ratios of 2:1 to 6:1 are typical, with taller profiles chosen for high-rate soluble streams that need longer upflow contact and gas disengagement volume. Above about 1,000 m³ working volume, parallel reactors are standard so sludge discharge and maintenance stay redundant.
Three vertical zones are sized separately. The sludge bed holds the densest 1–4 m of granules where most COD conversion occurs. The blanket above carries less dense flocculent and partially granulated sludge. The upper clear zone houses the GSS and buffers gas–liquid separation. Civil cost rises with headroom, so geometry usually follows plot constraints rather than the maximum H/D.
Liquid height above the bed must leave room for the GSS skirt and a calm settling layer; crowding that zone is a common drawing error on compact plots. When headroom is capped, designers widen diameter, accept a lower H/D, and confirm Vup still stays inside the 0.5–1.0 m/h soluble-industrial band.
Keep granule inventory visible on the operating log: bed height, Vup, and effluent TSS move together when the GSS is near its limit. Operators who only track COD often miss washout until the bed is already thin.
Three-Phase (GSS) Separator Design
The gas–solid–liquid (GSS) separator enables high-rate UASB duty. It deflects biogas into a collection dome, returns entrained sludge down the skirt, and discharges clarified effluent over a weir. Standard practice uses a deflection hood at 45–60°, a dome sized for peak biogas flux, return skirts, and a weir loaded below about 1.5 m³/m·h to retain 1–2 mm granules.
GSS geometry separates a high-rate UASB from early anaerobic contact tanks. Too steep an aperture or an overloaded weir scours granules into the effluent. An undersized gas dome re-entrains sludge and fluidizes the bed. Check dimensions against design biogas yield, typically 0.3–0.4 m³ biogas per kg COD removed at full conversion. Most plants we commission fail first at the weir, not at the sludge bed height.
Temperature, pH, and Nutrient Controls
Temperature is the most measurable UASB performance driver. The IWA classical-versus-hybrid dataset at four temperatures shows 82% COD removal at 28°C, 72% at 20°C, 70% at 14°C, and 48% at 10°C (S1, IWA Publishing, 2004). Roughly 30 percentage points disappear across an 18°C drop, with most loss below 14°C. Operation below 20°C needs heating, recycle buffering, or downstream polishing.
The effective pH window for methanogens is 6.0–8.0 (S4). Below 6.0, acidogens dominate and VFAs accumulate. Above 8.0, free ammonia toxicity rises in protein-rich slaughterhouse or dairy streams. Nutrient balance still matters: a COD:N:P ratio near 300:5:1 remains a common anaerobic rule of thumb.
Pre-Treatment, Sludge Handling, and the Downstream Train
UASB reactors tolerate suspended solids poorly. Documented full-scale operation without adequate pre-treatment reported sludge production reaching 70% of influent COD as suspended solids, with discharge about every 100 days and measurable methanogenic imbalance after each extraction (S5, IJESD, 2010). Well-screened industrial units more often withdraw every 3 to 6 months based on bed height; anything coarser than fine screening shortens discharge intervals and erodes stability.
The usual upstream train starts with a rotary mechanical bar screen for coarse solids, then grit removal and equalization. Anaerobic effluent rarely meets residual COD, color, and nutrient limits alone. An MBR membrane bioreactor system is a common polishing pair, while a dissolved air flotation system often sits upstream to strip emulsified fats and solids. Sludge withdrawn from the UASB needs thickening and dewatering; a plate and frame filter press is a standard biosolids step. Treat the UASB as the anaerobic core of an anaerobic–aerobic train, not a stand-alone compliance unit.
How Should Engineers Match UASB Design to Wastewater Type?
Engineers should match UASB design to wastewater type by strength band first, then by temperature and solids load. Use the framework below to evaluate vendor proposals. The HRT and OLR bands are relative; derive actual numbers from pilot data or analogous reference plants for the specific wastewater.
| Wastewater Type | Recommended HRT Band | Recommended OLR Band | Recommended Post-Treatment |
|---|---|---|---|
| Low-strength domestic or dilute industrial | Long HRT | Low OLR | Polishing filter or constructed wetland; rarely needs MBR |
| Medium-strength food & beverage, starch, pulp & paper primary effluent | Medium HRT | Medium OLR | Aerobic polishing (MBR or SBR) for residual COD and ammonia |
| High-strength vinasse, chemical concentrates | Short HRT with high recycle ratio | High OLR | Two-stage anaerobic upstream, or aerobic polishing sized for high residual COD |
This decision framework is anchored to the temperature curve and pH envelope previously cited (S1, S4). Starch and food streams usually sit in the medium band with DAF ahead of the reactor when FOG is present. Concentrated cooker drains may need high-rate OLR with recycle. For a broader cross-technology view, the COD removal technology comparison is a useful complement; engineers sizing downstream clarifiers should also review the secondary clarifier engineering guide.
Cost drivers that move the civil and mechanical package are reactor height, stainless versus coated-carbon internals, heating duty below 20°C, recycle pumping for Vup control, and the polishing step sized for residual COD. A vendor drawing that quotes only OLR without Vup, HRT, and GSS weir loading is incomplete for procurement review. Most plants we size for brewery and starch duty lock Vup first, then back-calculate volume from the target HRT and confirm OLR still sits inside the strength envelope.
Selection Checklist and Next Step
Who this is for: plant engineers and EPC teams sizing or vetting granular-bed UASB units on industrial COD streams. Who should look elsewhere: sites needing only aerobic polishing, or feeds dominated by inert TSS with no anaerobic energy case. Before you buy, confirm these seven items against pilot or reference data.
- Influent COD, temperature, and pH at the 10th and 90th percentiles
- Target Vup and HRT stated together on one datasheet
- OLR band matched to wastewater strength, with recycle ratio if high-COD
- Sludge bed height 1–4 m and H/D between 2:1 and 6:1
- GSS aperture 45–60° and weir loading below ~1.5 m³/m·h
- Upstream screening, grit, and FOG removal sized for continuous duty
- Downstream polishing duty for residual COD, nutrients, and color
If your lab sheet and hydraulic load are ready, send them through our UASB design review request so the envelope can be checked against the bands above.
Frequently Asked Questions
What is the typical COD removal efficiency of a UASB reactor?
Typical mesophilic UASB COD removal in the cited comparative trial reached 82% at 28°C and fell to 72% at 20°C, 70% at 14°C, and 48% at 10°C (S1, IWA Publishing, 2004). Removal tracks temperature closely in the 10–28°C window. Plants operating below 20°C usually need heating, longer HRT, or aerobic polishing to hold the same effluent COD. Quote removal with the temperature and wastewater class attached, not as a single brand claim.
What are the typical upflow velocity and HRT values for a UASB reactor?
Superficial upflow velocity for soluble industrial wastewater is typically 0.5–1.0 m/h, and may approach ~1.5 m/h with effluent recycle. HRT is commonly 4–12 h on high-rate industrial duty and 8–24 h on low-strength or domestic feeds. Holding Vup near granule settling velocity protects the 1–2 mm bed. Always report Vup and HRT together because fixed volume couples the two values.
How does temperature affect COD removal in a UASB reactor?
Temperature governs methanogenic kinetics: the same comparative dataset loses about 30 percentage points of COD removal from 28°C to 10°C, with the steepest drop below 14°C (S1). Mesophilic duty of 20–38°C is the practical design window. Below 20°C, designers add heat, raise HRT, or size downstream polishing. Psychrophilic operation is possible but needs more volume and sludge inventory for the same load.
What is the function of the three-phase (GSS) separator in a UASB?
The GSS separator captures biogas, returns entrained granules, and releases clarified effluent over a weir so high solids retention time can coexist with short HRT. Deflection hoods at 45–60° and weir loads below about 1.5 m³/m·h help retain 1–2 mm granules. Undersized domes re-entrain sludge; overloaded weirs drive effluent TSS. Mis-sized GSS hardware remains the leading mechanical cause of bed loss.
What pre-treatment is required before a UASB reactor?
Fine screening, grit removal, and FOG control are required before a UASB because inert solids displace active granules and force frequent sludge pulls. One documented plant without adequate pre-treatment produced sludge equal to 70% of influent COD as suspended solids and discharged about every 100 days (S5, IJESD, 2010). Pair screening with equalization and, where fats dominate, upstream DAF. pH control inside 6.0–8.0 protects methanogens during load swings.
