How to Size MBBR for Paint Booth Curtain Water: 2026 Engineering Guide

Why Paint Booth Curtain Water Breaks Conventional MBBR Designs

Paint booth curtain water is the bleed-off from the recirculating water curtain that captures overspray in automotive, tier-1 components, and furniture/appliance paint lines. A single booth typically discharges 5–20 m³/d of curtain water on an intermittent 8–16 hr/day, 5–7 days/week schedule, with periodic cleaning dumps. Most academic MBBR literature treats municipal, laundry, or greywater streams (Kusuma et al., 2017, Tanjungpura University, S1; Smitha & Ramaswamy, 2017, IJSR, S2) and ignores the specific hostility of paint overspray.

The curtain water envelope is dominated by waterborne and solvent-borne paint solids, isoparaffin/acrylic/PU overspray, and oil-in-water emulsion. Expect COD 800–6,000 mg/L; BOD₅ 200–1,800 mg/L — a BOD₅/COD ratio of only 0.20–0.35 because pigments, resins, and isocyanates are largely non-biodegradable; TSS 200–1,500 mg/L; oil & grease 50–300 mg/L; pH 7.5–9.5 from alkaline booth detackifiers. The Kaldnes K1 20% fill that works for surfactant-rich laundry wastewater (S1) understates the F/M sensitivity of paint streams by roughly 1.5–2×, because defoamer residues and zinc stearate strip biofilm faster than linear alkylbenzene sulfonate.

Three paint-specific failure modes explain why a generic MBBR spec sheet fails: floating paint skins blind coarse-bubble diffusers within days if the curtain water is fed raw; zinc stearate and silicone defoamers partition into the biofilm and slough it within 72–96 hr; and solvent micro-emulsions from solvent-borne booth operations lyse nitrifiers below 15 °C winter tank temperature, common in unheated paint shops. None of these failure modes appear in the top-ranking academic MBBR studies, and they are the reason a paint-specific sizing method is required.

Pre-Treatment Train: Coagulation, DAF, and pH Equalization

MBBR sizing assumes the influent has already been de-oiled, de-pigmented, and pH-stabilized; without this gate, no carrier geometry survives. The pre-treatment train runs in five sequential steps:

1. Coarse screening with a rotary bar screen on the curtain water intake to capture cured paint skins, masking tape, and booth rags. A 2–5 mm aperture prevents rag fouling of the DAF.
2. pH equalization to 6.5–8.0 to neutralize the alkaline detackifier carryover and protect coagulant chemistry.
3. Coagulant dosing via a PLC-controlled coagulant and pH dosing system, typically 50–150 mg/L polyaluminum chloride (PAC) plus 1–3 mg/L anionic polyacrylamide. The floc agglomerates pigment and breaks oil-in-water emulsion.
4. Dissolved air flotation in a paint-specific DAF for curtain water pre-treatment (ZSQ series, 4–300 m³/h) operating at surface loading 5–10 m/h, micro-bubble size 30–60 μm, air-to-solids ratio 0.02–0.05.
5. Equalization basin sized for 8–24 hr HRT with gentle mechanical mixing (low-shaft-tip-speed mixers, <1.5 m/s) to dampen batch booth dumps without re-emulsifying paint oils.

Under typical paint conditions, the DAF removes 70–90% TSS and 80–95% oil & grease. The post-DAF envelope that the MBBR must be sized against is therefore COD 250–1,200 mg/L, TSS <80 mg/L, and oil & grease <25 mg/L — a fundamentally different stream than the raw curtain water entering the screen. Treating this clarified stream as the MBBR influent is the single most common engineering mistake in paint-shop wastewater design; sizing against raw COD inflates tank volume by 2–3× and produces a carrier bed that fouls within 30 days. The equalization basin downstream of the DAF further stabilizes the feed so the MBBR sees a near-continuous BOD₅ between 200 and 500 mg/L regardless of whether the booth is spraying waterborne basecoat or solvent-borne clearcoat.

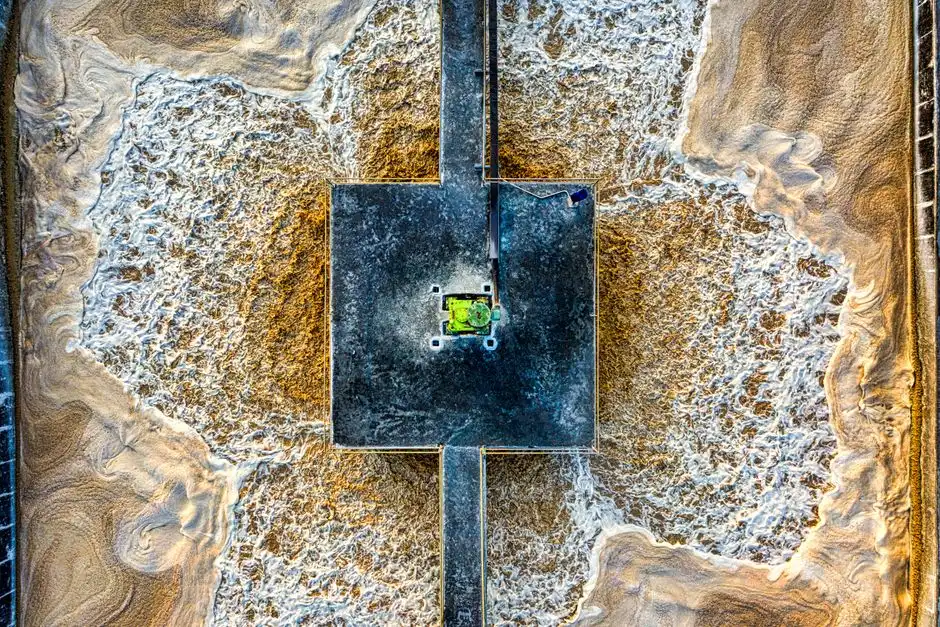

MBBR Sizing Math: From F/M Ratio to Tank Volume

The defensible calculation chain has six steps. Worked example: a single medium paint line discharging 50 m³/d of post-DAF curtain water.

1. Daily flow Q (m³/d) = booth recirculation bleed (typically 5–10% of recirculated flow) plus cleaning dumps. Example: Q = 50 m³/d.
2. BOD load = Q × influent BOD₅ (post-DAF, typically 200–500 mg/L). For the example: 50 m³/d × 350 mg/L = 17.5 kg BOD/d.
3. Choose F/M 0.15–0.30 kg BOD/kg VSS·d. Paint wastewater sits at the conservative end (0.15–0.20) because of resin toxicity and zinc stearate inhibition. Media inventory = BOD load ÷ (F/M × attached biomass 3,500–5,000 g VSS/m² carrier). At F/M 0.18, 17.5 kg BOD/d requires roughly 9,700 m² of protected carrier surface.
4. Media volume = media inventory ÷ carrier protected surface area. Kaldnes K1 ≈ 500 m²/m³, K3 ≈ 800 m²/m³, Mutag BioChip ≈ 3,000 m²/m³. At K3, this is ~12 m³ of media; at Mutag, ~3.2 m³ — the trade-off is tank size vs. media cost.
5. Tank volume V = media volume ÷ fill fraction. For paint streams use 30–40% fill, higher than the 20% used in the laundry study (S1) because paint oils clog thin biofilm layers and require deeper fluidization.
6. HRT = V ÷ Q. Design for 8–14 hr, lower than the 15 hr municipal benchmark in S2 because post-DAF BOD is more biodegradable. The 50 m³/d example yields roughly 16–20 m³ total tank volume split across two stages, or HRT ~10 hr.

Two-Stage Aerobic Configuration and Carrier Selection

Staging two MBBR reactors in series is the paint-industry default. Stage 1 is a roughing reactor run at F/M 0.25–0.30, absorbing shock loads, color bodies, and the bulk of BOD; Stage 2 is a polishing reactor at F/M 0.10–0.15 polishing residual COD and partial nitrification. The split-load arrangement protects Stage 2 biofilm from the resin and solvent micro-emulsion slugs that would otherwise lyse nitrifiers in a single-stage design.

Carrier selection is dictated by the stream, not by catalog availability. HDPE carriers with specific gravity 0.94–0.97 and protected surface area ≥500 m²/m³ are mandatory. Thin K1-style carriers risk fouling when COD > 3,000 mg/L pre-DAF; thicker K3 (800 m²/m³) or Mutag 21Chip geometries are preferred for high-strength swings. Aeration uses coarse-bubble diffusers at 40–60 Nm³ air/m²·h to keep carriers fully fluidized; DO setpoint 2.0–3.5 mg/L.

Temperature derating is the most commonly missed engineering step. Below 15 °C — typical winter in unheated paint shops — BOD removal rate drops by roughly 1.5–2× per 10 °C decrease (van't Hoff–Arrhenius approximation, θ ≈ 1.05–1.07). The winter footprint must therefore increase 30–50% or the carrier specific area must rise to compensate; failing to derate produces an effluent that passes in summer and fails in January. Backwash is the operational lever: every 7–14 days, isolate one stage, drain, and air-scour at 80 Nm³ air/m²·h for 20–30 minutes to slough paint-laden biofilm before it accumulates to the point of carrier blinding.

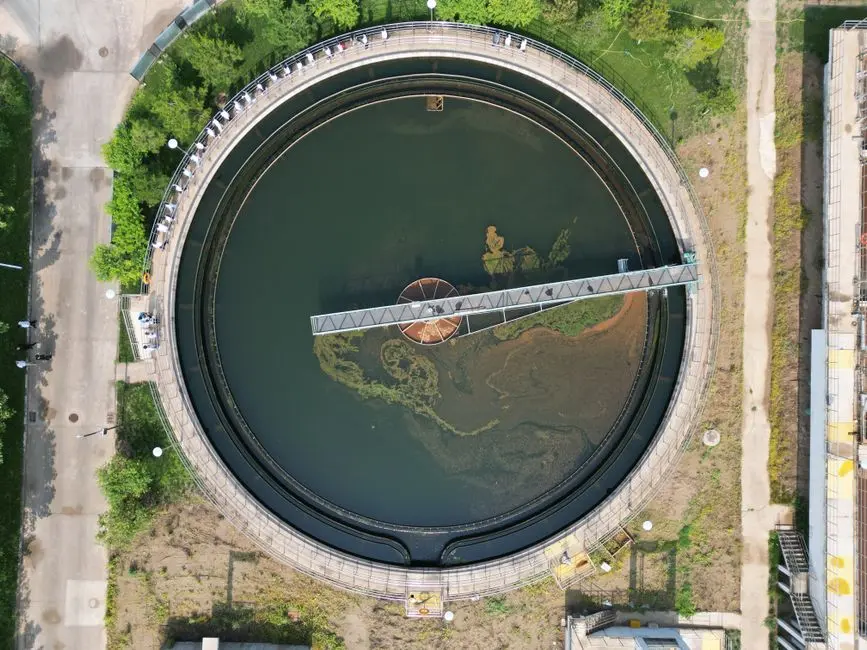

Footprint, CAPEX/OPEX Bands, and Sludge Handling

Translating sizing math into plant-floor numbers: footprint rule of thumb is 0.35–0.50 m² per m³/d for the MBBR train alone (excluding pre-treatment). The 50 m³/d worked example yields 18–25 m² total MBBR footprint, which fits inside an existing paint-shop service bay alongside the DAF skidded unit.

CAPEX bands for 2026 (EPC scope, paint-water MBBR): USD 250–450 per m³/d for tanks, carriers, and blowers; USD 120–200 per m³/d for the upstream DAF, giving a total of USD 370–650 per m³/d for the integrated train. OPEX bands for the MBBR stage alone: aeration 0.35–0.45 kWh/m³, chemical dosing USD 0.10–0.25/m³, sludge hauling USD 0.05–0.15/m³ — total OPEX USD 0.40–0.90/m³ treated.

Waste paint sludge from the DAF plus wasted MBBR biofilm is hazardous in most jurisdictions; in the US, solvent-borne paint sludge falls under EPA RCRA K-listed waste codes and must be disposed through a licensed hauler. Dewater to <65% moisture using a plate-and-frame filter press for paint sludge dewatering before transport; the filter press typically achieves 55–65% dryness on DAF float without polymer conditioning beyond what is already dosed upstream.

Engineering Sizing Checklist and 2026 Compliance Notes

Copy-pasteable sizing checklist for the spec memo:

• Influent characterization report — 5 consecutive day composite, COD/BOD₅/TSS/oil & grease/pH/temperature
• Bench-scale MBBR treatability — 14-day run on site composite, monitor F/M response and biofilm sloughing
• DAF jar tests — optimize PAC and APAM dose for ≥80% oil & grease removal
• Two-stage tank layout — Stage 1 roughing (F/M 0.25–0.30), Stage 2 polishing (F/M 0.10–0.15)
• DO/aeration control philosophy — 2.0–3.5 mg/L DO, 40–60 Nm³ air/m²·h, winter-derated blower VFD curve
• Sludge disposal pathway — RCRA K-listed if solvent-borne, dewater to <65% moisture, licensed hauler

2026 compliance framing: China GB 8978-1996 second-class discharge limits apply to paint shops discharging to municipal sewer; EU Industrial Emissions Directive 2010/75/EU BAT-AEL for surface treatment sets COD <500 mg/L for direct discharge in most member states; US EPA 40 CFR 433 metal finishing benchmarks apply to automotive components plants. The MBBR train described here typically achieves COD 150–400 mg/L and BOD₅ <30 mg/L at the worked example's loadings, which clears the typical discharge envelope in all three jurisdictions.

Common commissioning pitfalls: under-sized equalization (causes Stage 1 F/M spikes >0.40), foam control using antifoam instead of swapping the defoamer carrier (zinc stearate must be removed at source, not masked), missing DO probe on Stage 2 (allows anoxic zones and nitrifier die-off). One-line decision rule: if post-DAF BOD₅/COD < 0.15, MBBR alone will not meet discharge — switch to MBR or add Fenton oxidation upstream.

Frequently Asked Questions

What HRT should an MBBR have for paint booth curtain water?

Design for 8–14 hours total across two stages, with 4–7 hours per stage. This is lower than the 15-hour municipal benchmark in S2 because post-DAF BOD is more biodegradable, but the two-stage split is essential to protect Stage 2 biofilm from resin and solvent slugs. For a deeper look at staged reactor logic, see this staged aerobic MBBR configuration for textile finishing rinse.

Why is F/M ratio set lower for paint streams than for municipal MBBR?

Paint streams contain zinc stearate defoamer and solvent micro-emulsions that inhibit nitrifiers and stress heterotrophs; operating at F/M 0.15–0.20 (vs. 0.20–0.30 municipal) keeps the biofilm metabolically stable and reduces shock-load sloughing. This is consistent with the conservative end of F/M ranges reported across MBBR field installations.

Can MBBR handle paint booth curtain water without DAF pre-treatment?

No. Raw curtain water at TSS 200–1,500 mg/L and oil & grease up to 300 mg/L will blind diffusers and foul carriers within 30 days. A paint-specific DAF for curtain water pre-treatment at surface loading 5–10 m/h must precede the MBBR, dropping TSS to <80 mg/L and oil & grease to <25 mg/L before biological treatment. For plants with ammonia-bearing rinses mixed into the curtain water, see also this guide on ammonia drain pre-treatment before MBBR.
