Why Labor Is the Biggest Lever in Wastewater Opex
Labor typically consumes 25–40% of total operating cost at an industrial WWTP, more than any other controllable line item when energy prices are normalized. For context, a 50 m³/h electroplating facility runs $0.45–$2.80/m³ in total Opex (per the 2026 Electroplating Wastewater Plant Operating Cost: 2026 OPEX Breakdown), and labor is consistently the largest share. The RCM wastewater case study quantified the opportunity directly: "staff optimization has lowered labor costs around 50 percent" as part of a 60% total cost reduction (RCM case data, 2025). A $4.2M/year plant where 38% sits in operator salaries is not a headcount problem; it is an automation-decision problem wearing a HR disguise.
The mental reframing matters. Plant managers who enter a CapEx cycle asking "who can we lay off?" lose. The ones who ask "which operator tasks can be redesigned out of the process?" keep the institutional knowledge and recover the labor budget. In most jurisdictions, the move from "operator-present" to "operator-on-call" is a regulatory-accepted design choice once online instrumentation, automated reporting, and a documented on-call response contract are written into the operating permit. The compliance risk is procedural, not technical, and it is solvable with paperwork the same week the equipment is ordered.
Benchmark: Operator-Hours per m³ Treated by Plant Type
Operator-hour intensity varies by an order of magnitude across process configurations, and that variance is the foundation of any labor-reduction business case. The table below synthesizes 2026 field data for two-shift staffing baselines; 24/7 plants scale proportionally, and unmanned packaged plants scale down toward the bottom of each range.
| Process Type | Operator-Hours per m³ Treated | Typical Capacity Range | Staffing Outcome (50 m³/h reference) |
|---|---|---|---|
| Conventional Activated Sludge | 0.40–0.50 | 50–5,000 m³/day | 6–8 FTE on three shifts |
| Sequencing Batch Reactor (SBR) | 0.30–0.35 | 20–2,000 m³/day | 4–6 FTE |
| Moving Bed Biofilm Reactor (MBBR) | 0.20–0.25 | 30–3,000 m³/day | 3–4 FTE |
| Packaged MBR (with PLC + auto-dosing) | 0.08–0.12 | 10–2,000 m³/day | 1–2 FTE |
| Fully Unmanned WSZ-class Packaged Plant | 0.02–0.05 | 1–80 m³/h | ~0.5 FTE (compliance rounds only) |
The ZS-MBR series covers 10–2,000 m³/day and the JY integrated MBR line covers 10–200 m³/h, both designed for PLC-integrated operation. For smaller flows, a packaged WSZ underground treatment plant is rated for 1–80 m³/h and is specified as "fully automated with no operator required" — the design end-state on the labor axis (ZS spec sheets, 2026). A defensible benchmark for a CFO conversation: a conventional 50 m³/h plant running 6 FTE at $45/hr loaded lands at roughly $1.1M/year in operator cost before benefits overhead; moving that same plant to a packaged MBR with remote monitoring cuts the line to roughly $180K–$250K/year, freeing 4–5 FTE worth of work that can be redeployed to other shifts or sites rather than eliminated outright.
Five Automation Levers That Actually Reduce Labor
Each lever removes a specific bundle of operator tasks. The order below is cost-ascending, so a plant with limited capital can start at Lever 1 and still see measurable savings.

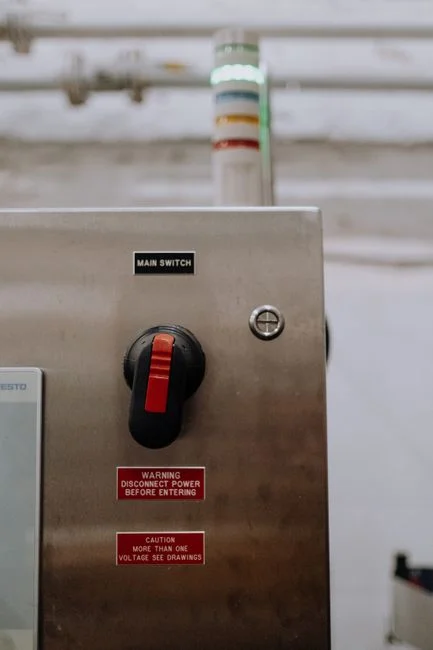

Lever 1 — PLC + local HMI. Replaces manual valve sequencing, hand-logged round sheets, and shift-handover verbal briefings with a single operator interface. Typical CAPEX runs $15K–$60K for a 50 m³/h plant; payback at industrial loaded labor rates is 6–10 months (Zhongsheng field data, 2026). The PLC is also the foundation that Levers 2 through 5 plug into, so it is rarely optional.
Lever 2 — Automatic chemical dosing. A PLC-controlled automatic chemical dosing skid eliminates 1–2 hours per shift of manual jar-testing, pump calibration, and feed-rate adjustment. On a three-shift plant, that is 6–12 operator-hours per day recovered without changing process chemistry.
Lever 3 — Packaged MBR replacement of clarifier + media filtration. MBR eliminates secondary clarifiers, sludge-return pumping, scum skimming, and backwash cycles — three of the highest-labor unit operations in a conventional plant. A high-efficiency sedimentation tank deployed as a partial upgrade cuts coagulant consumption up to 30% and reduces sludge-handling labor in proportion (Zhongsheng field data, 2026). For greenfield sites or full retrofits, an integrated MBR membrane bioreactor system collapses four unit processes into one skid.
Lever 4 — Online instrumentation. Online ammonia, nitrate, TSS, and pH analyzers reduce grab-sampling labor from approximately 2 hours per day toward zero, and they provide the data record automated compliance reports require. The Online Ammonia Analyzer Cost in 2026: CAPEX, OPEX & Buyer's Guide details probe CAPEX of $8K–$45K depending on range and reagent-free vs reagent-based chemistry. The cost is in probe maintenance, not the probe itself.

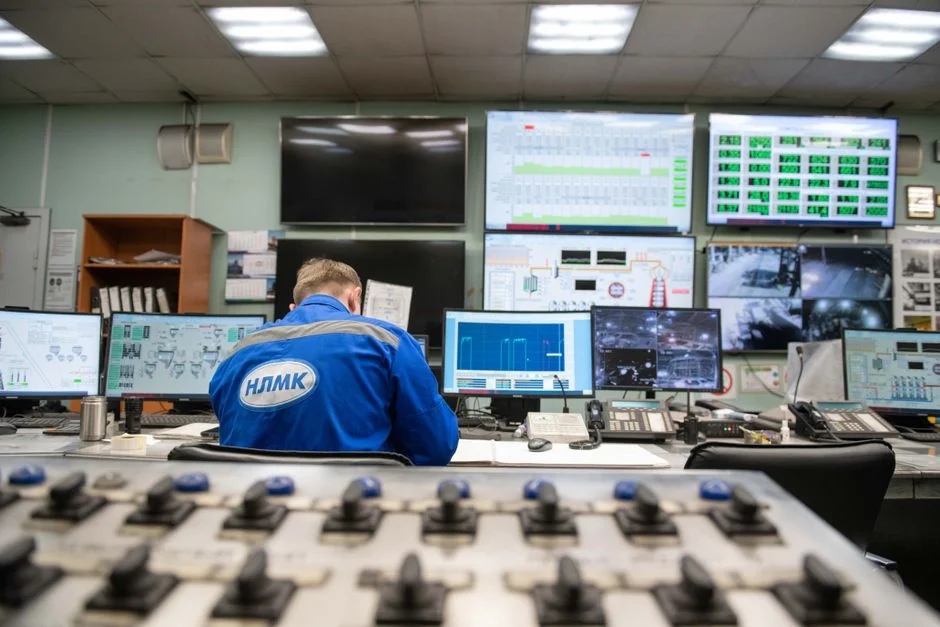

Lever 5 — Remote SCADA + digital twin. Reclassifies the plant as unmanned between daily rounds. The Remote Monitoring System Cost for Wastewater Plants: 2026 Pricing Guide puts hardware at $4K–$95K depending on telemetry depth and redundancy. The digital water market is expanding at 11.9–12.15% CAGR (industry analyst consensus, 2025), which is a useful proxy for vendor maturity: the tooling is no longer custom integration.
The Labor-Savings Payback Matrix
The matrix below is the artifact a procurement manager can screenshot straight into a CapEx justification deck. Labor savings are anchored to a loaded rate of $35–$65/hr — the 2026 US/EU industrial band for operator + benefits + supervision (BLS occupational data, 2025; EU industrial survey aggregates, 2025).
| Lever | Typical CAPEX (50 m³/h plant) | Annual Labor Hours Saved | Annual $ Saved (at $35–$65/hr) | Payback (months) |
|---|---|---|---|---|
| 1. PLC + local HMI | $15K–$60K | 1,800–2,400 | $63K–$156K | 6–10 |
| 2. Auto chemical dosing | $12K–$45K | 2,200–4,400 | $77K–$286K | 3–8 |
| 3. MBR / high-efficiency sedimentation retrofit | $90K–$180K | 3,600–5,200 | $126K–$338K | 7–14 |
| 4. Online instrumentation suite | $25K–$110K | 600–900 | $21K–$59K | 14–36 |
| 5. Remote SCADA + cloud / digital twin | $4K–$95K | 2,800–4,200 | $98K–$273K | 1–6 |
The blended finding for a 50 m³/h plant deploying all five levers: $180K–$340K CAPEX against $220K–$410K in year-one labor savings, full payback in 9–16 months. Labor reduction compounds with maintenance reduction on MBR-style plants: the Filter Press Maintenance Cost: 2026 OPEX Breakdown & Optimization Guide documents $3,200–$18,500/year in avoidable filter-press spend that overlaps with the same operational redesign. DAF maintenance runs $0.012–$0.065/m³ and Fenton maintenance $0.04–$0.22/m³ (per the DAF System Maintenance Cost in 2026: Full OPEX Breakdown) — both fall when upstream automation stabilizes feed chemistry.
Avoiding the Three Labor-Optimization Traps
Equipment alone does not deliver labor savings. Three failure modes consume most of the automation budgets that fail to hit their business case.
Trap 1 — buying automation without retraining staff. A PLC delivered to an operator who has never programmed one becomes a $50K paperweight. Include 40–120 hours of structured training in the CapEx line item, and write the SOP revision into the same project plan as the equipment purchase.
Trap 2 — underestimating sensor maintenance labor. An online ammonia probe still requires 2–4 hours per month of calibration, membrane cleaning, and reagent refill. Budget it. Plants that skip this line end up with sensors that drift, alarms that get ignored, and a compliance exposure that lands back on labor hours.
Trap 3 — assuming "unmanned" means "zero labor." Unmanned plants still require 0.5–1.0 FTE for compliance sampling, monthly calibration, regulatory reporting, and the on-call response contract. State this explicitly in the CapEx memo so the CFO does not over-promise the board. The compliance framework is laid out in the Environmental Compliance Wastewater Plant 2025 Standards & Solutions briefing.
90-Day Implementation Checklist
- Days 1–30 — baseline and benchmark. Build a current operator-hour accounting split by task, then benchmark each line against the operator-hours-per-m³ table above. Flag tasks as "automatable" (valve sequencing, logbook, jar testing, grab sampling) versus "judgment-required" (process troubleshooting, permit liaison, sludge haul-off decisions).
- Days 31–60 — issue RFQs for the two highest-payback levers. For most plants these are Lever 1 (PLC + HMI) and Lever 2 (auto-dosing). Pull the Zhongsheng product specs for sizing against the baseline flow and load data collected in month one.
- Days 61–90 — pilot remote monitoring, retrain, set KPIs. Stand up remote monitoring on the highest-risk stream first, run the SOP retraining in parallel with commissioning, and set explicit KPIs for shift-handover reduction and grab-sample frequency. Review against the payback matrix at day 90.
Frequently Asked Questions
What is a realistic percentage of labor-cost reduction from wastewater plant automation? 30–60% at most industrial sites, with the highest reductions on small (under 200 m³/day) plants that move to packaged MBR plus remote SCADA. The RCM wastewater case study documented labor costs roughly 50% lower after staff optimization (RCM case data, 2025).
How many operators are needed to run a 50 m³/h wastewater plant in 2026? 6–8 FTE for conventional activated sludge across three shifts, 1–2 FTE for a packaged MBR with auto-dosing, and approximately 0.5 FTE for an unmanned remote-monitored station that retains compliance sampling and on-call coverage.
What is the cheapest automation upgrade with the fastest payback? PLC plus local HMI replacing manual valve sequencing, typically 6–10 months payback at industrial loaded labor rates of $35–$65/hr.
Does an unmanned wastewater plant meet EPA / EU discharge compliance? Yes, provided online instrumentation, automated reporting, and on-call response contracts are documented in the operating permit. The compliance risk is procedural — paperwork and audit trail — not technical.
How does packaged MBR reduce labor compared to conventional activated sludge? MBR eliminates the secondary clarifier, sludge-return pumping, and most media filtration, which are the three highest-labor unit processes in a conventional plant. The labor-hour delta is visible directly in the benchmark table — 0.40–0.50 man-h/m³ falls to 0.08–0.12 man-h/m³.
