Chip Fab Wastewater Treatment Plant: 2026 Engineering Specs, Zero-Fouling Design & $5M–$50M CAPEX Breakdown

A 5 MGD chip fab wastewater treatment plant in 2026 requires a multi-stage system designed to manage complex contaminants like TMAH (10–100 mg/L), fluoride (50–300 mg/L), and trace metals at parts-per-billion levels. Typical CAPEX for such a facility ranges from $12M–$45M, with zero-liquid discharge (ZLD) designs potentially adding 20–30% to overall costs. Essential equipment includes dissolved air flotation (DAF) for high-efficiency solids removal (achieving 95%+ efficiency), advanced membrane bioreactors (MBR) for robust biological treatment (featuring 0.1 μm filtration), and industrial reverse osmosis (RO) systems capable of 90% water reclaim. projects funded under the CHIPS Act must adhere strictly to EPA NPDES limits and meet specific local water reuse targets, such as those mandated by California Title 22.

Why Chip Fab Wastewater Starves Biological Treatment Systems

Semiconductor fab wastewater consistently presents Biochemical Oxygen Demand (BOD) levels below 50 mg/L, falling significantly short of the 200–300 mg/L typically required to sustain conventional biological treatment systems. This nutrient deficiency leads directly to biomass starvation, compromising microbial activity and causing process failure in traditional activated sludge plants. Without adequate organic loading, the microbial populations essential for breaking down pollutants cannot thrive, resulting in poor effluent quality and potential permit violations.

Beyond low BOD, tetramethylammonium hydroxide (TMAH), a common developer and etchant, is present in concentrations ranging from 10–100 mg/L in semiconductor fab wastewater. TMAH is highly toxic to many microbial species, further inhibiting biological activity, and it causes severe membrane fouling in MBR systems, reducing flux by as much as 50% in 30 days without proper pre-oxidation protocols. The presence of TMAH necessitates specialized pre-treatment to protect downstream biological processes and membrane integrity.

Extreme pH swings, often fluctuating from 2 to 12 due to distinct acid (e.g., Sulfuric Acid-Hydrogen Peroxide Mixture, SPM) and alkaline (e.g., Ammonium Hydroxide-Hydrogen Peroxide Mixture, APM) waste streams, are lethal to biological cultures within hours if not precisely managed. Automated chemical dosing systems are critical for stabilizing influent pH to a narrow optimal range (typically 6.5–8.5) before it reaches the biological reactor, preventing catastrophic system upsets and ensuring consistent treatment performance. These rapid and wide pH variations are unique to semiconductor manufacturing, demanding robust pH control infrastructure.

The increasing complexity of advanced manufacturing nodes exacerbates these challenges; a 3nm fab in Arizona, for instance, reported 30% higher wastewater volume per wafer compared to 10nm nodes, overwhelming its 2018-designed MBR system. This surge in volume, coupled with evolving contaminant profiles, underscores the need for adaptable and highly specialized MBR design for etching wastewater with 99.9% TMAH removal and robust RO design for wafer cleaning wastewater with zero-fouling protocols in modern chip fab wastewater treatment plants.

Step-by-Step Treatment Train for Chip Fab Wastewater: From Influent to UPW Reclaim

An effective chip fab wastewater treatment plant employs a multi-stage process to transform complex industrial effluent into high-purity water suitable for UPW reclaim, typically achieving 90% recovery. The initial stage, Pre-treatment, focuses on robust solids removal, with dissolved air flotation (DAF) systems achieving over 95% efficiency for influent TSS concentrations up to 500 mg/L. DAF systems, like the ZSQ Series DAF system for chip fab TSS removal, utilize micro-bubbles (typically <100 μm) to lift suspended solids, oils, and greases to the surface for skimming, a method demonstrably more effective than conventional sedimentation for fine particle capture.

Following primary solids removal, Chemical Pre-treatment is essential for breaking down recalcitrant organics and specific contaminants. Advanced oxidation processes (AOPs), such as ozone or Fenton’s reagent, are applied to reduce TMAH and other complex organic compounds, achieving 70–80% Chemical Oxygen Demand (COD) reduction prior to biological treatment. This critical step extends MBR membrane life from an average of 3 years to 5 years by minimizing organic loading and preventing biological fouling. An PLC-controlled dosing system for pH stabilization and TMAH oxidation ensures precise chemical application.

The core of the biological treatment stage is the Membrane Bioreactor (MBR), featuring 0.1 μm PVDF membranes that deliver over 99.9% TMAH removal and produce a high-quality effluent suitable for downstream RO. Integrated MBR systems, such as an integrated MBR system for 99.9% TMAH removal, offer superior effluent quality compared to conventional activated sludge, with options for flat-sheet or hollow-fiber membranes. Flat-sheet membranes (e.g., DF Series) are often preferred for their robustness and ease of cleaning in challenging industrial applications, while hollow-fiber external cross-flow systems can offer higher packing density but may be more susceptible to fouling if pre-treatment is inadequate.

Membrane Polishing through reverse osmosis (RO) is the final step for achieving 90% water reclaim, producing permeate that meets ultra-pure water (UPW) standards. Prior to RO, anti-scaling pretreatment, such as ion exchange for silica removal, is vital to protect the delicate polyamide membranes. Modern 3nm fabs, with their higher water quality demands, frequently require specialized low-fouling polyamide RO membranes to maintain flux and recovery rates. An RO system for 90% water reclaim in semiconductor fabs is engineered with specific pre-treatment to maximize efficiency and longevity.

For facilities pursuing Zero-Liquid Discharge (ZLD) goals, evaporation crystallization systems manage the concentrated RO brine. This typically adds $5M–$15M to the CAPEX for a 5 MGD fab. Mechanical Vapor Recompression (MVR) evaporators are generally more energy-efficient than multi-effect evaporation (MEE) systems, making them a preferred choice for long-term operational cost savings in ZLD applications.

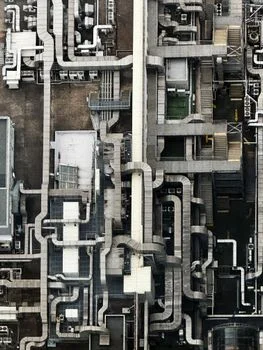

Zero-Fouling Reactor Design: How to Prevent TMAH and Silica Scaling in MBR/RO Systems

Effective pre-oxidation with ozone or UV/H₂O₂ demonstrably reduces TMAH concentrations to below 1 mg/L before MBR treatment, extending membrane life by up to 40% (Carollo 2024). For influent TMAH levels of 100 mg/L, ozone dosing rates of 5–10 mg/L are typically required, effectively breaking down the organic compound and preventing its polymerization on membrane surfaces. This proactive approach is crucial for maintaining stable flux and minimizing the frequency of chemical cleaning in both MBR and subsequent RO stages.

Silica scaling is a primary operational challenge for RO systems in chip fabs; concentrations exceeding 20 mg/L can reduce RO recovery rates from 90% to as low as 70%. To mitigate this, robust silica removal via ion exchange or lime softening is implemented to reduce silica levels to below 10 mg/L before the RO stage. This prevents the formation of hard, crystalline silica scales that are difficult to remove and can cause irreversible membrane damage. An automatic chemical dosing system for anti-scalants further safeguards RO membranes.

For MBR fouling prevention, the choice between submerged aeration and external cross-flow systems significantly impacts energy consumption and operational stability. Submerged aeration systems, often utilized in DF Series MBR modules, provide continuous scouring of the membrane surface, leading to lower energy costs (approximately 0.3 kWh/m³). In contrast, external cross-flow systems require higher pumping energy (around 1.2 kWh/m³) to maintain sufficient cross-flow velocity, which can lead to higher operational expenses if not optimized for specific wastewater characteristics. Careful MBR module selection is critical for long-term performance.

Standardized RO cleaning protocols are vital for extending membrane lifespan and ensuring consistent water quality. For 3nm fabs with more complex wastewater profiles, Clean-In-Place (CIP) frequency typically occurs every 30 days, whereas 10nm fabs may extend this to 90 days. Chemical selection is specific to the foulant: citric acid is effective for silica and metal hydroxide scales, while caustic soda (NaOH) is used for organic fouling. A 2025 fab in Texas successfully reduced RO cleaning frequency from weekly to monthly by implementing an advanced pre-oxidation step, resulting in annual OPEX savings of approximately $250K.

CAPEX and OPEX Breakdown: How Much Does a Chip Fab Wastewater Plant Cost in 2026?

The total CAPEX for a 5 MGD chip fab wastewater treatment plant typically ranges from $12M–$45M, while larger 20 MGD facilities can incur costs between $25M–$100M. These figures vary significantly based on the level of automation, specific contaminant profiles, and the target water reclaim percentage. Initial investment for a DAF system for chip fab TSS removal is typically $1M–$3M, while the biological treatment stage with an integrated MBR system for 99.9% TMAH removal can range from $5M–$15M. The final polishing stage, including an RO system for 90% water reclaim in semiconductor fabs, usually accounts for $3M–$10M. Implementing zero-liquid discharge (ZLD) technologies, such as evaporation crystallizers, adds a substantial $5M–$20M to the overall CAPEX.

Node technology significantly impacts CAPEX; 3nm fabs, due to their higher wastewater volumes and more stringent contaminant removal requirements, demand 20–30% higher CAPEX compared to 10nm fabs. This increase is driven by the need for more advanced pre-treatment, higher-grade membranes, and increased redundancy in critical systems.

Operational expenditure (OPEX) for chip fab wastewater treatment plants is primarily driven by three factors: membrane replacement, energy consumption, and chemical dosing. Annual membrane replacement costs for MBR and RO systems typically range from $50K–$200K. Energy costs, encompassing pumping, aeration, and RO high-pressure pumps, average $0.50–$1.50/m³ of treated water. Chemical dosing for pH adjustment, oxidation, anti-scalants, and cleaning contributes an additional $0.20–$0.80/m³. These costs fluctuate based on influent quality, system efficiency, and local utility rates.

The CHIPS Act provides significant financial incentives for semiconductor manufacturing, including up to 30% tax credits for water reuse systems under IRS Section 48C. To qualify, projects typically need to demonstrate a water reclaim rate of 50% or higher, making investments in advanced treatment technologies economically attractive and aligning with sustainability goals. These incentives can substantially reduce the net CAPEX for new or upgraded industrial wastewater treatment in Estado de México and other regions.

CHIPS Act and EPA Compliance: Permit Limits, Reporting, and Zero-Risk Checklist

Meeting EPA NPDES permit limits for semiconductor fabs is non-negotiable, with typical effluent standards requiring COD ≤100 mg/L, TSS ≤30 mg/L, fluoride ≤4 mg/L, and TMAH ≤1 mg/L. These limits can vary by state and local jurisdiction; for instance, California Title 22 imposes additional requirements for water reuse applications, demanding stringent pathogen and trace contaminant removal. Compliance with these diverse regulations is paramount to avoid substantial fines and operational shutdowns.

The CHIPS Act introduces specific operational requirements for wastewater management, emphasizing collaboration and proactive communication between fabs and local Water Resource Recovery Facilities (WRRFs). This includes mandatory monthly fab-WRRF meetings to forecast potential chemical changes or process adjustments that could impact wastewater quality. fabs are required to provide 48-hour notice for any anticipated wastewater excursions; failure to comply with these reporting requirements can trigger fines ranging from $50K–$200K per incident.

Aggressive water reuse targets are becoming standard for new fabs, with many states like Arizona and Texas mandating 50–80% reclaim rates. Advanced treatment processes, particularly reverse osmosis (RO), enable the production of permeate that consistently meets ultra-pure water (UPW) standards, often achieving less than 1 μg/L Total Organic Carbon (TOC). This high-quality reclaimed water can be directly integrated back into fab processes, significantly reducing reliance on fresh water sources and enhancing operational resilience.

Zero-Risk Compliance Checklist for Chip Fab Wastewater Treatment:

1. Verify MBR effluent consistently meets or exceeds NPDES limits before RO treatment.
2. Document pre-treatment protocols for TMAH and silica, including dosing rates and removal efficiencies.
3. Maintain accurate records of all influent and effluent parameters, including daily flow rates and contaminant concentrations.
4. Schedule and document monthly meetings with the local WRRF, as mandated by the CHIPS Act.
5. Establish a 48-hour notification protocol for all potential wastewater excursions, including chemical spills or process upsets.
6. Conduct regular calibration and maintenance of all online monitoring equipment (pH, ORP, flow, TOC).
7. Implement a robust membrane cleaning schedule for MBR and RO systems, tailored to fab-specific fouling potential.
8. Ensure ZLD systems (if applicable) are operating efficiently and managing brine concentrate according to permit.
9. Perform annual third-party audits of the wastewater treatment system to identify compliance gaps.
10. Train operational staff on all permit requirements, emergency response procedures, and reporting protocols.

Frequently Asked Questions

What is the biggest challenge in treating chip fab wastewater?

The primary challenge stems from the unique combination of low BOD, high concentrations of toxic compounds like TMAH (10-100 mg/L), extreme pH swings (2 to 12), and trace metals at ppb levels. This complex matrix overwhelms conventional biological systems and necessitates specialized multi-stage treatment trains, including advanced oxidation and membrane filtration, to prevent biological starvation and membrane fouling.

How does the CHIPS Act impact wastewater treatment for new fabs?

The CHIPS Act offers significant incentives, such as up to 30% tax credits for water reuse systems, encouraging fabs to adopt ZLD and high-reclaim technologies. It also imposes strict compliance requirements, including mandatory monthly meetings with local WRRFs and a 48-hour notification protocol for wastewater excursions, with fines of $50K–$200K for non-compliance, emphasizing proactive management.

What is the typical water reclaim rate for a modern chip fab?

Modern chip fabs, especially those in water-stressed regions, target water reclaim rates between 50% and 80%. Advanced systems combining MBR and RO technologies can achieve 90% water recovery, producing permeate that meets ultra-pure water (UPW) standards (e.g., <1 μg/L TOC), which can be directly reused in manufacturing processes, significantly reducing fresh water demand.

What are the key components of a zero-fouling reactor design for MBR/RO?

Zero-fouling design relies on robust pre-treatment, including oxidation (e.g., ozone, UV/H₂O₂) to reduce TMAH to <1 mg/L and silica removal (e.g., ion exchange) to <10 mg/L before RO. Additionally, submerged aeration in MBRs (0.3 kWh/m³) and precise chemical cleaning protocols (e.g., citric acid for silica, NaOH for organics) are crucial for maintaining membrane flux and extending membrane lifespan by over 40%.
