Why Single-Stage CaF₂ Precipitation Fails: The Equilibrium Solubility Trap
Single-stage CaF₂ precipitation typically plateaus at 95–98% fluoride removal efficiency, frequently leaving 20–50 mg/L of residual fluoride in the effluent, which exceeds the stringent fluoride discharge limits EPA mandates for many industrial sectors, particularly semiconductor manufacturing. This performance gap is governed by the fundamental equilibrium solubility of calcium fluoride. The solubility product constant (Ksp) of CaF₂ is approximately 3.9 × 10⁻¹¹, which theoretically limits residual fluoride to around 8 mg/L at a neutral pH of 7. However, in real-world industrial applications, factors such as increased ionic strength and the presence of competitive ions like sulfate and phosphate prevent systems from achieving this theoretical minimum. These interfering ions can form soluble complexes or compete for calcium ions, thus inhibiting complete CaF₂ precipitation.
A critical case study illustrates this limitation: a semiconductor fabrication plant in Taiwan with an influent fluoride concentration of 800 mg/L F⁻ was operating a single-stage precipitation system. Despite using a stoichiometric dose of calcium hydroxide, the system consistently achieved only 96% fluoride removal, resulting in an effluent of approximately 32 mg/L F⁻. This failed to meet the target discharge limit of 15 mg/L. The challenge was compounded by the presence of significant phosphate levels (around 50 mg/L PO₄³⁻) in the wastewater, which further reduced precipitation efficiency by forming soluble calcium-phosphate complexes.
The equilibrium solubility of CaF₂ is also sensitive to operating conditions. While precipitation is generally favored at lower temperatures, industrial plants often operate within a range of 20–40°C. At higher temperatures, CaF₂ solubility can increase, leading to higher residual fluoride concentrations. Similarly, increased ionic strength, common in industrial wastewater from dissolved salts, significantly elevates CaF₂ solubility. For instance, the residual fluoride concentration at pH 7 can increase from approximately 8 mg/L in deionized water to over 20 mg/L in a wastewater stream with an ionic strength of 0.1 M NaCl.
| Temperature (°C) | Ionic Strength (M NaCl) | Estimated Residual Fluoride (mg/L) at pH 7 |
|---|---|---|
| 20 | 0.01 | 9.5 |
| 20 | 0.1 | 18.2 |
| 20 | 0.5 | 35.5 |
| 40 | 0.01 | 11.8 |
| 40 | 0.1 | 22.5 |
| 40 | 0.5 | 45.1 |
Two-Stage Precipitation Process: Engineering Specs and Reaction Kinetics
To overcome the limitations of single-stage precipitation and achieve the stringent fluoride discharge limits EPA set, a two-stage process is engineered. This approach leverages different chemical conditions to maximize fluoride removal and address co-contaminants. The first stage focuses on forming insoluble calcium fluoride (CaF₂), while the second stage targets residual fluoride and other problematic ions like phosphate by forming hydroxyapatite.
Stage 1: Calcium Fluoride Precipitation
- Reaction: HF + Ca(OH)₂ → CaF₂(s) + H₂O
- pH Range: 6–8. This slightly acidic to neutral pH is optimal for maximizing CaF₂ precipitation while minimizing the dissolution of Ca(OH)₂.
- Calcium Source: Calcium hydroxide (Ca(OH)₂) is typically preferred due to its cost-effectiveness and reactivity.
- Stoichiometric Ratio: 1.5–2.0 times the stoichiometric requirement of Ca(OH)₂ is dosed. This excess helps to overcome ionic interference and drive the precipitation reaction to completion. A precise dosing is crucial, which can be achieved with a PLC-controlled automatic chemical dosing system for precise pH and stoichiometric control in HF wastewater treatment.
- Reaction Time: 10–30 minutes are typically required to allow for complete dissolution of the calcium source and subsequent CaF₂ formation.
- Mixing Intensity: A mixing energy input (G value) of 500–1000 s⁻¹ is maintained in the precipitation tank to ensure good contact between reactants and promote uniform particle growth.
- Settling Time: After precipitation, a quiescent settling period of 1–2 hours allows the CaF₂ particles to aggregate and settle.
Stage 2: Hydroxyapatite Precipitation for Residual Fluoride and Phosphate Removal
- Reaction: 5Ca²⁺ + 3PO₄³⁻ + OH⁻ → Ca₅(PO₄)₃OH(s)
- pH Range: 10–12. At this elevated pH, residual fluoride ions are captured and co-precipitated with calcium and phosphate as hydroxyapatite, a stable mineral. This stage is critical for polishing effluent to meet ultra-low fluoride limits, often required for water reuse in semiconductor applications or to meet even stricter discharge standards than the EPA's 15 mg/L.
- Calcium Source: Additional Ca(OH)₂ is often added to maintain the elevated pH and provide the necessary Ca²⁺ ions for hydroxyapatite formation.
- Reaction Time: 30–60 minutes are usually sufficient for this secondary precipitation.
The precipitated solids from both stages primarily consist of CaF₂ with occluded or adsorbed impurities. The CaF₂ particles formed in the first stage are typically in the range of 5–20 μm. This particle size distribution, combined with appropriate flocculation in the sedimentation tank, results in sludge with settling velocities greater than 0.5 m/h. This enhanced settling velocity is crucial for efficient solid-liquid separation in industrial clarifiers and for subsequent dewatering processes, ensuring manageable calcium fluoride sludge dewatering.
| Process Step | Key Parameters | Typical Influent (F⁻ mg/L) | Typical Effluent (F⁻ mg/L) | Equipment |
|---|---|---|---|---|
| Influent pH Adjustment | pH 6–8 | 800–1500 | 800–1500 | Mixing Tank |
| Stage 1 Precipitation (CaF₂) | pH 6–8, Ca(OH)₂ (1.5–2.0× Stoich.) | 800–1500 | 20–50 | Precipitation Tank, Automatic Chemical Dosing System |
| Flocculation | Flocculant addition | 20–50 | 20–50 | Flocculation Tank |
| Sedimentation | Settling Velocity >0.5 m/h | 20–50 | 20–50 | Clarifier/Thickener |
| Stage 2 Precipitation (Hydroxyapatite) | pH 10–12, Additional Ca(OH)₂ | 20–50 | < 10 (Target: < 15) | Precipitation Tank |
| Polishing (Optional) | NF/RO for < 2 mg/L | < 10 | < 2 | Reverse Osmosis System |
Calcium Source Comparison: Ca(OH)₂ vs. CaCl₂ vs. CaCO₃ for Cost and Efficiency
Selecting the appropriate calcium source for hydrofluoric acid wastewater treatment is a critical decision influenced by cost, reaction kinetics, sludge characteristics, and the specific wastewater composition. While all three calcium compounds can precipitate fluoride, their practical application in industrial settings varies significantly.
- Calcium Hydroxide (Ca(OH)₂, Slaked Lime): This is the most commonly used reagent for HF wastewater treatment. It offers the lowest cost, typically ranging from $0.15 to $0.30 per kilogram. Ca(OH)₂ reacts readily with HF to form CaF₂. However, its reaction kinetics can be slower compared to other sources, often requiring longer reaction times (30–60 minutes) to ensure complete precipitation. The use of Ca(OH)₂ also tends to produce a larger volume of sludge, estimated to be 5–10% more solids by weight compared to CaCl₂. This makes it an excellent choice for batch processes or low-to-medium flow rate applications (e.g., <50 m³/h) where space for larger tanks and sludge handling equipment is available.
- Calcium Chloride (CaCl₂): CaCl₂ offers faster reaction kinetics, often achieving effective precipitation within 5–15 minutes. It also tends to produce a lower sludge volume and a denser precipitate, which can simplify solid-liquid separation and dewatering. The main drawback of CaCl₂ is its significantly higher cost, typically ranging from $0.80 to $1.50 per kilogram, which is 3–5 times that of Ca(OH)₂. Due to its cost, CaCl₂ is often reserved for high-flow rate systems (>100 m³/h) where space is limited, or where rapid treatment is paramount to meet tight discharge schedules. Its use also introduces chloride ions into the wastewater, which may be a concern for certain downstream processes or discharge limits.
- Calcium Carbonate (CaCO₃, Limestone): CaCO₃ is the cheapest calcium source, with costs as low as $0.10 to $0.20 per kilogram. However, its utility in HF wastewater treatment is severely limited. CaCO₃ is only sparingly soluble in neutral or alkaline water. To dissolve CaCO₃ and release Ca²⁺ ions for precipitation, the pH must be lowered to below 5. Most HF wastewater streams are acidic (pH 1–3), but achieving the precise pH for dissolution and then adjusting for precipitation without over-acidifying or under-alkalizing the system is complex and energy-intensive. Therefore, CaCO₃ is generally unsuitable for direct application in typical HF wastewater treatment unless integrated into more complex multi-stage processes or for mixed acid streams where pH adjustment is already a significant consideration.
| Calcium Source | Approximate Cost ($/kg) | Typical Reaction Time (min) | Sludge Volume (m³/kg F⁻ removed) | Suitability for High-Flow (>100 m³/h) | Primary Advantage | Primary Disadvantage |
|---|---|---|---|---|---|---|
| Ca(OH)₂ | 0.15–0.30 | 30–60 | Higher (e.g., 0.15–0.25) | No | Cost-effectiveness | Slower kinetics, higher sludge volume |
| CaCl₂ | 0.80–1.50 | 5–15 | Lower (e.g., 0.10–0.18) | Yes | Fast kinetics, lower sludge volume | High cost |
| CaCO₃ | 0.10–0.20 | N/A (requires dissolution) | Variable | No | Lowest cost | Requires low pH for dissolution, complex application |
Pretreatment and Post-Treatment: Polishing for Ultra-Low Fluoride Limits
Achieving ultra-low fluoride concentrations, often below 2 mg/L for semiconductor water reuse or for compliance with the most stringent environmental regulations, necessitates careful consideration of both pretreatment and post-treatment steps. While two-stage precipitation is highly effective, specific contaminants can interfere with its performance or the purity of recovered materials, and residual fluoride may still exceed reuse standards.
Pretreatment: Phosphate Removal
- Phosphate ions (PO₄³⁻) are a common co-contaminant in industrial wastewater, particularly from cleaning agents used in semiconductor and chemical processing. In the two-stage precipitation process, phosphate can react with calcium ions to form hydroxyapatite (Ca₅(PO₄)₃OH). While this is utilized in the second stage to remove residual fluoride, excessive phosphate in the influent can lead to the formation of large volumes of hydroxyapatite sludge, reducing the overall efficiency of CaF₂ precipitation and complicating sludge dewatering.
- To mitigate this, a dedicated phosphate removal step is often integrated before the primary CaF₂ precipitation. This typically involves dosing ferric chloride (FeCl₃) or aluminum sulfate (alum) at a pH range of 6–7. These coagulants react with phosphate to form insoluble ferric phosphate or aluminum phosphate precipitates, which can then be removed via sedimentation or filtration. Dosing rates for FeCl₃ typically range from 50–200 mg/L, depending on influent phosphate concentration.
Post-Treatment: Nanofiltration (NF) and Reverse Osmosis (RO)
- For applications demanding ultra-low fluoride levels (<2 mg/L) or for direct water reuse within a facility, advanced membrane separation technologies like Nanofiltration (NF) and Reverse Osmosis (RO) are indispensable. Following the two-stage chemical precipitation, residual fluoride ions, along with dissolved salts and other trace contaminants, can be effectively removed by these membranes.
- NF membranes, such as those with low-fouling characteristics (e.g., NF270), can achieve approximately 95% fluoride rejection, reducing fluoride levels from around 10 mg/L down to 0.5 mg/L. RO membranes offer even higher rejection rates, typically exceeding 99%, capable of reducing fluoride concentrations to below 0.1 mg/L. The choice between NF and RO depends on the target effluent quality and the presence of other dissolved solids that need to be removed.
- These membrane processes typically operate with recovery rates of 70–90%, meaning a significant portion of the treated water can be recycled, drastically reducing freshwater consumption and wastewater discharge volumes. A semiconductor fab in Singapore, for instance, implemented a two-stage precipitation process followed by an ultra-pure RO system for post-treatment polishing to achieve <2 mg/L fluoride for semiconductor reuse. This system achieved a 30% reduction in their overall freshwater intake and a substantial decrease in wastewater discharge costs.
CaF₂ Recovery: Sludge Dewatering, Purity, and Economic Viability
The precipitated calcium fluoride (CaF₂) sludge generated from HF wastewater treatment represents a valuable resource that can be recovered and reused, particularly in the fluorochemical industry. However, realizing this economic potential hinges on effective sludge dewatering and achieving the requisite purity standards.
Sludge Dewatering
- The CaF₂ sludge from the two-stage precipitation process typically has a solids content of 3–5% w/w. To make it suitable for transport, sale, or further processing, dewatering is essential. Mechanical dewatering methods are employed to significantly increase the solids concentration.
- Plate-and-frame filter presses are highly effective for this purpose, capable of achieving cake solids content of 30–40% w/w. These systems operate by pumping the sludge into a series of recessed plates, where pressure forces water out through filter cloths. The dewatering cycle typically takes 2–4 hours, and the resulting cake thickness is usually between 20–30 mm. A robust high-efficiency plate-and-frame filter press for dewatering CaF₂ sludge to 30–40% solids content is a cornerstone of efficient CaF₂ recovery.
- Other dewatering technologies, such as screw presses, can also be used, though they generally achieve lower solids content (20–30% w/w) and may be more suited for lower-volume applications or as a primary dewatering step.
Purity Requirements
- The market for recovered CaF₂ is segmented by purity. Ceramic-grade CaF₂, used in the production of ceramics and glazes, requires a purity exceeding 97%. Metallurgical grade CaF₂, used as a flux in steelmaking, typically requires a purity of 90% or higher.
- Impurities commonly found in the sludge include silica (SiO₂), iron oxides (Fe₂O₃), and residual phosphates (P₂O₅). These impurities often originate from the raw water, reagents, or the pretreatment steps. For instance, if phosphate removal during pretreatment is insufficient, residual phosphates can lead to hydroxyapatite formation, contaminating the CaF₂ precipitate. Careful control of pretreatment and precipitation parameters is crucial to minimize these contaminants and meet market specifications.
Economic Viability
- The economic benefits of CaF₂ recovery are twofold: reducing the cost of hazardous waste disposal and generating revenue from the sale of a recovered material. As noted, the two-stage process can reduce overall reagent costs by up to 40% compared to single-stage methods due to higher efficiency and potential for reuse.
- The market price for recovered CaF₂ varies by grade and regional demand, but ceramic-grade material can command prices of $50–$150 per ton. For a facility treating 50 m³/h of wastewater with an influent fluoride concentration of 800 mg/L and achieving 99.9% recovery, the annual volume of recovered CaF₂ can be substantial. A simplified payback period calculation for the capital investment in dewatering equipment (e.g., a filter press) would consider the avoided disposal costs, the revenue from CaF₂ sales, and the operational expenses of the dewatering equipment. For such a system, the payback period can often be as short as 18–24 months.
| Dewatering Method | Typical Solids Content (%) | Cycle Time (h) | Cake Thickness (mm) | Market Grade | Typical Purity (%) | Estimated Value ($/ton) |
|---|---|---|---|---|---|---|
| Plate-and-Frame Filter Press | 30–40 | 2–4 | 20–30 | Ceramic | >97 | 50–150 |
| Plate-and-Frame Filter Press | 30–40 | 2–4 | 20–30 | Metallurgical | >90 | 20–60 |
| Screw Press | 20–30 | Continuous | N/A | Metallurgical | >90 | 20–60 |
Case Study: 99.99% Fluoride Removal at a Semiconductor Fab in South Korea
A leading semiconductor manufacturing facility in South Korea faced significant challenges in complying with the national fluoride discharge limit of 10 mg/L. Their existing single-stage calcium fluoride precipitation system, treating a wastewater stream with an average influent fluoride concentration of 1200 mg/L, was consistently producing effluent with 30–50 mg/L of fluoride. This not only risked regulatory penalties but also limited their ability to expand operations.
Problem: The single-stage precipitation process was insufficient to meet stringent regulatory requirements, leading to compliance failures and potential environmental liabilities. The influent contained not only high fluoride but also significant levels of phosphate and dissolved salts, contributing to precipitation inefficiency and sludge handling difficulties.
Solution: Zhongsheng Environmental engineered and implemented a robust two-stage precipitation system. The system incorporated:
- Stage 1: High-efficiency CaF₂ precipitation using calcium hydroxide (Ca(OH)₂) dosed at approximately 1.8 times the stoichiometric requirement to ensure complete fluoride removal. The pH was meticulously controlled within the 6–8 range using an advanced dosing control system.
- Stage 2: A secondary precipitation stage operating at pH 10–12 to capture any residual fluoride and co-precipitate remaining phosphate as hydroxyapatite. This stage was crucial for achieving the ultra-low effluent targets.
- Sludge Dewatering: A state-of-the-art plate-and-frame filter press for dewatering CaF₂ sludge to 30–40% solids content was installed. This ensured that the generated CaF₂ sludge was dewatered to a handleable cake, facilitating its off-site sale.
Results: The implemented two-stage system delivered exceptional performance:
- Fluoride Removal: Effluent fluoride concentrations consistently measured below 10 mg/L, achieving an overall removal efficiency of 99.99%. This met and exceeded the South Korean regulatory standards.
- Sludge Characteristics: The precipitated CaF₂ sludge exhibited improved settling velocities, averaging 0.6 m/h, which significantly enhanced the efficiency of the clarifier.
- CaF₂ Recovery and Purity: The dewatered CaF₂ sludge achieved a purity of 96%. This high purity allowed the facility to sell the recovered CaF₂ to a local fluorochemical producer for $80 per ton, turning a waste stream into a revenue source.
- Cost Savings: The improved efficiency and recovery of CaF₂ resulted in a 45% reduction in annual reagent costs and avoided significant hazardous waste disposal fees.
- Economic Performance: The total capital expenditure (CapEx) for the system was approximately $250,000. The operational expenditure (Opex), including chemicals and energy, averaged $0.80 per cubic meter of treated wastewater. The payback period for the investment was calculated to be just 18 months, driven by reagent savings and CaF₂ sales revenue.

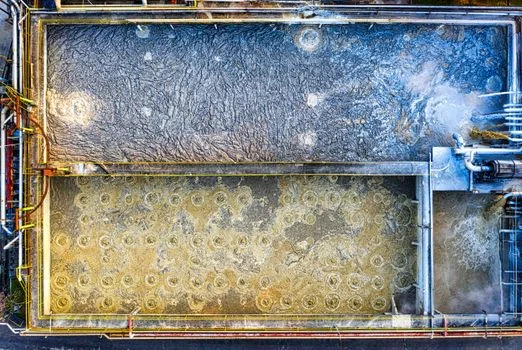

Frequently Asked Questions
What is the optimal pH for CaF₂ precipitation?
The optimal pH for the first stage of CaF₂ precipitation is generally between 6 and 8. This range maximizes the formation of insoluble calcium fluoride while minimizing the dissolution of the calcium source and potential interference from other ions. The second stage, designed to remove residual fluoride and phosphate, operates at a higher pH of 10–12 to facilitate hydroxyapatite formation. It is generally advisable to avoid pH values significantly above 12, as this can lead to the formation of excess calcium hydroxide sludge, increasing operational costs and complicating solid-liquid separation.
How much calcium is needed to remove 1 kg of fluoride?
The theoretical stoichiometric requirement for calcium hydroxide (Ca(OH)₂) to remove 1 kg of fluoride (F⁻) is approximately 1.47 kg. However, in practical industrial applications, a slight excess of 1.5 to 2.0 times the stoichiometric dose is typically employed. This excess dosing helps to ensure complete precipitation by overcoming kinetic limitations, ionic interference from other dissolved species, and to maintain the desired pH for optimal reaction kinetics and precipitation efficiency. Overdosing should be avoided as it increases reagent costs and sludge volume.
Can CaF₂ sludge be reused in fluorochemical production?
Yes, CaF₂ sludge can be reused in fluorochemical production, provided it meets specific purity requirements. Ceramic-grade CaF₂ typically requires purity exceeding 97%, while metallurgical grade needs to be above 90%. Impurities such as silica, iron oxides, and phosphates can affect the quality of the final fluorochemical product. Therefore, effective pretreatment to remove interfering substances like phosphates and careful control of the precipitation process are critical to ensure the recovered CaF₂ meets market specifications. This is an important aspect of CaF₂ recovery economics.
What are the alternatives to calcium precipitation for HF wastewater?
While calcium precipitation is the most common and cost-effective method for treating high-concentration HF wastewater (typically >500 mg/L fluoride), other alternatives exist for specific scenarios. These include adsorption using activated alumina or specialized ion-exchange resins, which can achieve very low fluoride levels but are generally more expensive for high flow rates. Membrane filtration technologies like nanofiltration (NF) and reverse osmosis (RO) are primarily used as polishing steps for ultra-low fluoride removal or water reuse, rather than primary treatment for high concentrations. A broader engineering guide on fluoride wastewater treatment via chemical precipitation discusses these options in more detail.
How does temperature affect CaF₂ precipitation?
Temperature has a moderate effect on CaF₂ precipitation. Higher temperatures, generally between 30–40°C, can slightly increase the solubility of CaF₂, potentially leading to marginally higher residual fluoride concentrations. However, higher temperatures also tend to improve reaction kinetics and enhance particle settling velocities, which can be beneficial for solid-liquid separation. Most industrial HF wastewater treatment systems operate effectively at ambient temperatures (20–30°C), balancing solubility considerations with energy costs and operational simplicity. For applications requiring extremely low fluoride limits, post-treatment polishing methods are more critical than precise temperature control of the precipitation stage.
