Display panel etching wastewater requires specialized treatment to remove copper (50–500 mg/L), nickel (20–200 mg/L), and fluoride (100–1,500 mg/L) to meet EPA 40 CFR Part 433 and EU Industrial Emissions Directive 2010/75/EU limits. Zero Liquid Discharge (ZLD) systems achieve 99.9% heavy metal recovery and >95% water reuse, but CapEx ranges from $2.5M–$8M for a 100 m³/h plant, depending on membrane selection (RO vs. FO) and sludge dewatering technology. Pre-treatment with DAF systems removes 92–97% of suspended solids, protecting downstream ion exchange and electrocoagulation units.
Why Display Panel Etching Wastewater Demands Specialized Treatment
A TFT-LCD manufacturing facility recently faced significant fines and production halts due to copper and nickel discharge exceedances, highlighting the critical need for specialized display panel etching wastewater treatment. Unlike generic industrial wastewater, etching effluents from display panel manufacturing contain unique chemical compositions that render conventional biological treatment ineffective. The etching processes for Thin-Film Transistor Liquid Crystal Displays (TFT-LCD) and Organic Light-Emitting Diodes (OLED) utilize distinct chemistries, leading to varied contaminant profiles that demand tailored solutions.
TFT-LCD manufacturing typically employs acidic copper etchants, such as copper chloride (CuCl₂) and sulfuric acid (H₂SO₄), resulting in wastewater with pH levels often between 2–4. This stream is characterized by copper concentrations ranging from 50–500 mg/L and nickel from 20–200 mg/L, with fluoride generally lower at 100–300 mg/L. In contrast, OLED etching processes frequently use alkaline etchants like tetramethylammonium hydroxide (TMAH) and potassium hydroxide (KOH). These processes generate wastewater that is highly alkaline (pH 9–12) and contains significantly higher fluoride content, often between 1,000–1,500 mg/L, alongside similar heavy metal concentrations. Both types of wastewater present high Chemical Oxygen Demand (COD) typically between 500–2,000 mg/L and Total Suspended Solids (TSS) from 200–800 mg/L.
Conventional biological treatment systems, effective for many organic waste streams, consistently fail when applied to display panel etching wastewater. The high salinity, often reaching 5,000–10,000 mg/L Total Dissolved Solids (TDS), and the presence of heavy metals like copper and nickel, severely inhibit microbial activity. These conditions lead to poor COD removal and negligible heavy metal reduction, making biological processes unsuitable as primary treatment. Achieving more than 95% water recovery, as often claimed by generic systems, is impossible without advanced physical-chemical and membrane processes for these specific waste streams.
The compliance challenge is stringent and global. The US EPA 40 CFR Part 433 sets strict effluent limits for electroplating and metal finishing, which often apply to etching operations, limiting copper to 3.38 mg/L and nickel to 2.38 mg/L. The EU Industrial Emissions Directive 2010/75/EU increasingly mandates Zero Liquid Discharge (ZLD) for industries generating hazardous waste streams, especially those with high heavy metal and fluoride concentrations. These regulations necessitate robust, multi-stage treatment systems capable of achieving ultra-low discharge limits or complete elimination of liquid discharge.
| Parameter | TFT-LCD Etching Wastewater | OLED Etching Wastewater |
|---|---|---|
| Primary Etchants | Acidic (CuCl₂, H₂SO₄) | Alkaline (TMAH, KOH) |
| Typical pH Range | 2–4 | 9–12 |
| Copper (mg/L) | 50–500 | 50–400 |
| Nickel (mg/L) | 20–200 | 20–150 |
| Fluoride (mg/L) | 100–300 | 1,000–1,500 |
| COD (mg/L) | 500–1,500 | 800–2,000 |
| TSS (mg/L) | 200–600 | 300–800 |
| TDS (mg/L) | 5,000–8,000 | 7,000–10,000 |
Step-by-Step Treatment Process for Copper, Nickel, and Fluoride Removal
Effective display panel etching wastewater treatment necessitates a multi-stage physical-chemical process designed for high removal efficiencies of heavy metals and fluoride, culminating in Zero Liquid Discharge (ZLD) for maximum water reuse and compliance. Each stage is engineered to address specific contaminants and protect downstream technologies, ensuring robust and reliable operation.
The initial stage involves robust pre-treatment to remove large solids and suspended matter. Rotary mechanical bar screens (GX Series) are deployed to remove approximately 95% of solids larger than 1 mm. This fine screening for etching wastewater is crucial for protecting subsequent units from clogging and abrasion. Following screening, DAF systems for etching wastewater pre-treatment (Zhongsheng ZSQ Series) achieve 92–97% TSS removal. Operating at 4–6 bar saturation pressure, these DAF units effectively remove fine suspended solids, oils, and greases, significantly reducing the fouling potential for downstream membrane systems like RO or FO. Chemcut's corrosion-resistant materials are essential for DAF components in these acidic or alkaline environments.
After solid-liquid separation, pH adjustment is critical, particularly for fluoride precipitation. Lime (Ca(OH)₂) dosing raises the wastewater pH to 10–11, facilitating the precipitation of fluoride as calcium fluoride (CaF₂). This step achieves 95–98% fluoride removal efficiency, reducing concentrations from 1,000 mg/L to below 50 mg/L, a crucial step for subsequent heavy metal removal and water recovery. For optimal fluoride removal in display panel etching wastewater, precise pH control via automated chemical dosing for pH adjustment is essential.
Heavy metal removal follows, typically employing a combination of electrocoagulation (EC) and ion exchange. Electrocoagulation (EC) is highly effective, removing over 99% of dissolved copper and nickel. Operating at current densities between 0.5–1.5 A/dm², EC destabilizes metal ions and suspended solids, forming larger flocs that are easily removed. For further polishing, especially to meet stringent discharge limits or ZLD requirements, ion exchange resins are utilized. These resins can reduce copper and nickel concentrations to below 0.5 mg/L, making the effluent suitable for membrane treatment or direct reuse. For more details on heavy metal recovery in display panel manufacturing, refer to our article on heavy metal recovery in display panel manufacturing.
The final stage integrates ZLD technologies for maximum water recovery and minimal waste. Forward Osmosis (FO) or Reverse Osmosis (RO) systems concentrate the treated wastewater brine to 10–15% TDS, recovering over 95% of the water for reuse. FO is particularly advantageous for high-salinity streams as it operates at lower pressures, reducing energy consumption and membrane fouling. The concentrated brine is then directed to an evaporator or crystallizer for further volume reduction and salt recovery. The resulting sludge, rich in precipitated heavy metals and calcium fluoride, undergoes sludge dewatering for heavy metal recovery using a plate-and-frame filter press. These presses achieve a high solids capture rate of 98%, producing a dewatered cake with 30–40% solids content, significantly reducing hazardous waste volume and preparing it for off-site metal recovery or disposal. For more on fluoride removal in display panel etching wastewater, see our dedicated article fluoride removal in display panel etching wastewater.
| Treatment Stage | Primary Function | Key Technology | Typical Removal Efficiency | Effluent Target (mg/L) |
|---|---|---|---|---|
| Pre-treatment (Coarse) | Large solids removal | Rotary Mechanical Bar Screen (GX Series) | 95% of >1mm solids | N/A |
| Pre-treatment (Fine) | Suspended solids, oils/grease | Dissolved Air Flotation (ZSQ Series) | 92–97% TSS | TSS <50 |
| pH Adjustment | Fluoride precipitation | Lime Dosing & Mixing | 95–98% Fluoride | Fluoride <50 |
| Heavy Metal Removal | Dissolved copper/nickel | Electrocoagulation (EC) | >99% Copper/Nickel | Copper <1.0, Nickel <1.0 |
| Polishing | Trace heavy metals | Ion Exchange | >99.5% Copper/Nickel | Copper <0.5, Nickel <0.5 |
| Water Recovery | Brine concentration, water reuse | Forward Osmosis (FO) / Reverse Osmosis (RO) | >95% Water Recovery | Water for Reuse (<50 TDS) |
| Sludge Dewatering | Solid volume reduction | Plate-and-Frame Filter Press | 98% Solids Capture | Sludge Cake (30-40% solids) |
ZLD vs. Conventional Treatment: Cost, Compliance, and Metal Recovery Comparison
The decision between Zero Liquid Discharge (ZLD) and conventional treatment systems for display panel etching wastewater involves a complex evaluation of capital expenditure (CapEx), operational expenditure (OPEX), regulatory compliance, and the potential for metal recovery. ZLD systems, while initially more costly, offer significant long-term benefits in terms of environmental performance and economic return.
CapEx for a ZLD system designed for a 100 m³/h display panel manufacturing plant typically ranges from $2.5M–$8M, depending on the complexity of the influent, choice of membrane technology (RO vs. FO), and the extent of evaporator/crystallizer integration. This contrasts sharply with conventional treatment systems (e.g., DAF + chemical precipitation + clarification), which usually have a CapEx of $800K–$2M for the same capacity. The higher upfront investment for ZLD is primarily due to advanced membrane units, evaporators, and crystallizers required for complete liquid elimination.
Operational expenditure (OPEX) for ZLD systems is generally higher, with energy costs estimated at $0.8–$1.5/m³ of treated wastewater, compared to $0.3–$0.6/m³ for conventional systems. This difference is largely attributable to the energy demands of membrane filtration and thermal evaporation. However, ZLD systems offer a substantial offset through valuable heavy metal recovery. With 99.9% recovery of copper and nickel, a 100 m³/h plant can generate $1.2M–$3M per year from the sale of recovered metals. Copper sludge, for instance, can fetch $6–$8/kg, while nickel can command $12–$15/kg (2025 market rates), turning a waste stream into a revenue source. Conventional systems, with 80–90% metal recovery, offer significantly lower economic returns from this aspect.
Compliance risk is a critical differentiator. ZLD systems eliminate liquid discharge entirely, thereby removing the need for ongoing discharge permits and the associated risk of regulatory penalties. Environmental Protection Agency (EPA) violations, for example, can incur fines ranging from $50K–$200K per year, in addition to reputational damage and potential production halts. Conventional systems, while meeting current discharge limits, require continuous monitoring and remain vulnerable to stricter future regulations or accidental exceedances. ZLD offers a future-proof solution against evolving environmental standards.
The metal recovery ROI is significantly more compelling with ZLD. By achieving 99.9% recovery of copper and nickel, ZLD systems maximize the economic value of the waste stream. The high purity of recovered metals from dedicated ZLD processes also enhances their marketability and value. In contrast, conventional systems, which rely on chemical precipitation, typically achieve lower recovery rates (80–90%) and often produce mixed hydroxide sludges that are more challenging and less profitable to recycle. The ability to recover high-value metals not only helps offset ZLD operational costs but also positions the facility as a more sustainable and resource-efficient operation.
| Feature | Zero Liquid Discharge (ZLD) System | Conventional Treatment System |
|---|---|---|
| CapEx (100 m³/h plant) | $2.5M–$8M | $800K–$2M |
| OPEX (per m³) | $0.8–$1.5 (higher energy) | $0.3–$0.6 (lower energy) |
| Heavy Metal Recovery Rate | 99.9% (Copper, Nickel) | 80–90% (Copper, Nickel) |
| Water Reuse Rate | >95% | 0–50% (depending on polishing) |
| Compliance Risk | Eliminates discharge permits, zero penalties | Requires ongoing monitoring, risk of penalties ($50K–$200K/year EPA) |
| Metal Recovery ROI (Annual) | $1.2M–$3M/year (Copper $6–$8/kg, Nickel $12–$15/kg) | Significantly lower, less pure sludge |
| Waste Byproduct | Solid salt cake, dewatered metal sludge | Liquid effluent, mixed hydroxide sludge |
Global Compliance Standards for Display Panel Etching Wastewater
Adhering to global compliance standards is non-negotiable for display panel manufacturers, as regulations dictate effluent quality, discharge volumes, and often mandate specific treatment technologies like ZLD for hazardous waste streams. These standards vary significantly by region, requiring careful consideration in system design and operation.
In the United States, the EPA 40 CFR Part 433, applicable to metal finishing point source categories, sets stringent limits for direct and indirect dischargers. For facilities discharging to navigable waters, the daily maximum effluent limits are typically 3.38 mg/L for copper and 2.38 mg/L for nickel. Fluoride limits are often addressed under general industrial wastewater regulations, with typical discharge concentrations needing to be below 4 mg/L. These limits are comparable to those for electroplating rinse water, emphasizing the need for advanced treatment.
The European Union's Industrial Emissions Directive 2010/75/EU promotes the use of Best Available Techniques (BAT) to prevent and control pollution. For hazardous waste streams, such as those with high concentrations of heavy metals and fluoride from display panel etching, the directive increasingly mandates Zero Liquid Discharge (ZLD) to minimize environmental impact. This is particularly relevant for streams exceeding 1,000 mg/L fluoride, where the environmental risk justifies complete elimination of liquid discharge.
China's GB 21900-2008 standard for discharge limits of water pollutants from electroplating industry is also highly relevant. It sets Class I limits for new facilities and specific processes, requiring copper concentrations to be less than 0.5 mg/L and nickel less than 1 mg/L. While Class II allows slightly higher limits for existing facilities, new display panel manufacturing plants are increasingly required to implement ZLD technologies to meet the most stringent Class I standards and minimize environmental footprint.
Japan's Water Pollution Control Law establishes national effluent standards, including a fluoride limit of less than 8 mg/L and a copper limit of less than 3 mg/L. Additionally, local prefectures often impose even stricter limits. For example, the Tokyo Metropolitan Government has a fluoride limit of less than 5 mg/L, demonstrating the need for regional-specific compliance strategies that may exceed national mandates. Understanding these varied global standards is paramount for designing a compliant and sustainable display panel etching wastewater treatment system.

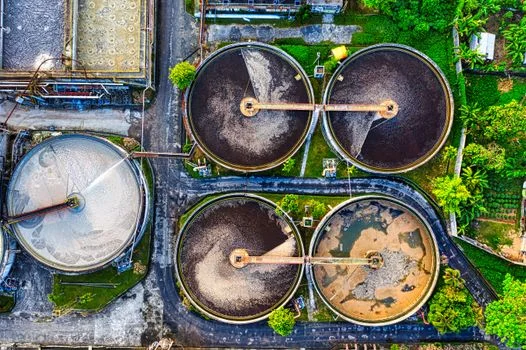

Common Pitfalls and How to Avoid Them
Designing and operating an effective display panel etching wastewater treatment system, particularly a ZLD system, involves navigating several common pitfalls that can lead to operational inefficiencies, increased costs, or compliance failures. Proactive design and monitoring are key to avoiding these issues.
Membrane fouling is a pervasive problem, often caused by inadequate pre-treatment of the wastewater. Residual suspended solids, organic matter, and scaling ions can rapidly foul RO or FO membranes, reducing flux, increasing energy consumption, and shortening membrane lifespan. To avoid this, robust pre-treatment with DAF systems is essential, targeting an inline turbidity of less than 5 NTU before membrane stages. Additionally, precise anti-scalant dosing, often with a dedicated automated chemical dosing for pH adjustment, prevents mineral precipitation on membrane surfaces, ensuring the >95% water recovery rates are maintained.
pH instability during fluoride precipitation is another critical challenge. Achieving optimal calcium fluoride formation requires maintaining a precise pH range of 10–11. Fluctuations can lead to incomplete fluoride removal or excessive lime consumption. The solution lies in implementing an automatic lime dosing system equipped with real-time pH probes and a Programmable Logic Controller (PLC) for feedback control. This ensures consistent pH levels, maximizing precipitation efficiency and minimizing chemical usage.
Sludge disposal is a significant operational and financial consideration. The dewatered sludge from display panel etching wastewater, containing concentrated heavy metals (copper, nickel) and calcium fluoride, is classified as hazardous waste. Direct landfilling is costly and environmentally unsustainable. The optimal solution is to partner with licensed recyclers and metal refiners. These specialists can recover valuable copper and nickel, transforming a disposal cost into a potential revenue stream, while responsibly managing the remaining fluoride-rich solids. This is a key aspect of heavy metal recovery in display panel manufacturing.
Finally, ZLD energy costs can be substantial, particularly with thermal evaporation. While RO is energy-intensive, Forward Osmosis (FO) systems can reduce energy use by 30–50% compared to conventional RO for high-salinity brines. A hybrid FO-RO system, where FO acts as a pre-concentrator for RO or evaporator, offers an optimal balance of efficiency and cost-effectiveness. This strategy significantly lowers the overall OPEX for ZLD, making it a more economically viable long-term solution.
Frequently Asked Questions
Addressing common inquiries helps environmental engineers and procurement managers make informed decisions regarding display panel etching wastewater treatment.
What are the primary challenges in treating display panel etching wastewater?
The main challenges stem from high concentrations of heavy metals (copper 50–500 mg/L, nickel 20–200 mg/L), high fluoride content (100–1,500 mg/L), extreme pH variations (2–4 or 9–12), and elevated salinity (5,000–10,000 mg/L TDS). These parameters collectively inhibit biological treatment and necessitate advanced physical-chemical and membrane processes for effective contaminant removal and compliance.
Can conventional biological treatment systems handle display panel etching wastewater?
No, conventional biological treatment systems are largely ineffective for display panel etching wastewater. The high concentrations of heavy metals are toxic to microorganisms, and the elevated salinity inhibits microbial activity. Such systems typically fail to meet stringent discharge limits for copper, nickel, and fluoride, making them unsuitable as primary treatment options for these complex industrial effluents.
What is the role of Forward Osmosis (FO) in ZLD for display panel applications?
Forward Osmosis (FO) plays a crucial role in ZLD systems by efficiently concentrating high-salinity brines at lower operating pressures compared to Reverse Osmosis (RO). This reduces energy consumption by 30–50% and minimizes membrane fouling, especially with complex industrial effluents. FO can act as a pre-concentrator, extending the lifespan of subsequent RO membranes or reducing the load on thermal evaporators, thereby optimizing overall ZLD efficiency.
How are heavy metals recovered from display panel etching wastewater?
Heavy metals like copper and nickel are recovered through a multi-stage process. Electrocoagulation (EC) effectively removes over 99% of dissolved metals, followed by ion exchange for polishing to achieve ultra-low concentrations (<0.5 mg/L). The concentrated metal sludge from these processes is then dewatered using a plate-and-frame filter press, producing a solid cake that can be sent to licensed recyclers for valuable metal reclamation, turning a waste into a resource.
What are the key regulatory drivers for ZLD implementation in display panel manufacturing?
Key regulatory drivers include stringent effluent limits for heavy metals (e.g., EPA 40 CFR Part 433, China GB 21900-2008 Class I) and fluoride, coupled with directives like the EU Industrial Emissions Directive 2010/75/EU, which increasingly mandate ZLD for hazardous waste streams. These regulations aim to minimize environmental impact, reduce water consumption, and prevent pollution, making ZLD a proactive strategy for long-term compliance and sustainability.
