Display panel manufacturers generate nickel-laden wastewater from etching, rinsing, and chemical mechanical polishing (CMP) processes, with influent concentrations ranging from 10–500 mg/L—far exceeding China’s GB 21900-2008 limit of 0.5 mg/L. A 2025-compliant treatment system combines chemical precipitation (99.9% nickel removal at pH 8.5), dissolved air flotation (DAF) for sludge separation, and optional zero liquid discharge (ZLD) for water reuse. CAPEX for a 50 m³/h system starts at $250,000, with OPEX of $0.60–$1.20/m³ depending on chemical dosing and sludge disposal costs.

Why Display Panel Plants Face Unique Nickel Wastewater Challenges

Nickel contamination in display panel manufacturing is primarily concentrated in the Array and Cell processes, where nickel-based alloys are used for thin-film transistor (TFT) electrode formation and gate metallization. Unlike generic metal finishing, display panel wastewater contains high concentrations of complexing agents and colloidal silica from CMP slurries, which can inhibit standard hydroxide precipitation. Typical influent concentrations for nickel in TFT-LCD and OLED plants range from 10 mg/L in rinse water to over 500 mg/L in spent etching baths (Zhongsheng field data, 2025).

Compliance requirements for the electronics industry are significantly more stringent than for general industrial discharge. For instance, China’s GB 21900-2008 Table 3 standards mandate a nickel limit of 0.1 mg/L for plants located in environmentally sensitive regions like the Taihu Lake basin, compared to the 1.0 mg/L standard often applied to general electroplating. Similarly, the EU Industrial Emissions Directive (2010/75/EU) requires new facilities to achieve 0.1 mg/L nickel discharge via Best Available Techniques (BAT).

In 2024, a major OLED plant in Shenzhen faced a 14-day production shutdown and fines exceeding $100,000 after its effluent nickel levels fluctuated between 0.6 and 0.8 mg/L. The failure was attributed to the interference of TMAH wastewater treatment in electronics manufacturing, where organic amines acted as ligands, keeping nickel ions in solution despite pH adjustment. display panel plants are massive water consumers, using 50–100 m³ of ultrapure water (UPW) per 1,000 m² of panel produced. This high consumption, coupled with rising municipal water costs, is driving the adoption of Zero Liquid Discharge (ZLD) systems that recover 90% of process water.

Nickel Wastewater Treatment Process: Engineering Specs for Display Panel Plants

Effective nickel removal in display panel plants requires a multi-stage approach to overcome the chelating effects of organic additives and the stabilizing effect of CMP silica. The first engineering priority is the selection of a heavy metal capturing agent. While traditional sodium hydroxide (NaOH) can precipitate free nickel ions as Ni(OH)₂, it often fails to reach limits below 0.5 mg/L when chelators are present. Advanced systems utilize Diethyldithiocarbamate (DTC) or TMT-15, which form highly stable, insoluble organometallic complexes. The reaction Ni²⁺ + DTC → Ni(DTC)₂ occurs rapidly, typically requiring a dosing rate of 200–300 g/m³ for an influent concentration of 100 mg/L Ni (Zhongsheng lab tests, 2025).

The second stage involves precise pH control. While the theoretical minimum solubility of nickel hydroxide occurs at pH 10.5, real-world display panel wastewater often requires a pH range of 8.5 ± 0.2 when using organic precipitants. Operating at pH >9.0 can actually lead to the redissolution of certain amphoteric metal complexes and increase chemical consumption unnecessarily. A PLC-controlled chemical dosing for pH adjustment and nickel precipitation is essential to maintain this narrow window, consuming approximately 0.5–1.0 kg of NaOH per m³ of wastewater treated.

Solid-liquid separation is best achieved through a DAF system for nickel sludge separation. DAF is preferred over gravity clarifiers in display panel plants because the nickel-DTC flocs are often light and prone to floating if air bubbles are entrained. Engineering specs for the DAF unit should include a microbubble size of 30–50 μm and a hydraulic loading rate of 8–12 m/h. Anionic polyacrylamide (PAM) at a dose of 5–10 g/m³ is added to promote flocculation before the DAF inlet. For plants pursuing water reuse, the DAF effluent is passed through a multi-media filter and then into an RO system for ZLD and water reuse in display panel plants. This configuration achieves 80–90% water recovery, though it requires careful management of RO concentrate, which may require evaporation.

Treatment Technology Comparison: Chemical Precipitation vs. Electrocoagulation vs. Membrane Filtration

Selecting the optimal technology depends on the plant's daily flow rate and the specific nickel species present. Chemical precipitation remains the industry standard for high-flow display panel plants (>50 m³/h) due to its reliability and relatively low CAPEX. However, it generates significant volumes of hazardous nickel hydroxide sludge, which costs between $100 and $300 per ton for disposal in industrial hubs like Gyeonggi-do or Jiangsu. For a 50 m³/h system, CAPEX typically sits at $250,000 with an OPEX of $0.80–$1.20/m³.

Electrocoagulation (EC) is an emerging alternative for smaller-scale touchscreen or specialized OLED lines (<20 m³/h). EC uses sacrificial iron or aluminum electrodes to generate coagulants in situ, eliminating the need for bulk liquid chemical storage. This process can reduce chemical costs by up to 40% and produces 30% less sludge volume compared to traditional precipitation. The primary drawback is the requirement for electrode replacement every 3–6 months and higher energy consumption. For a 20 m³/h system, CAPEX is approximately $180,000 with an OPEX of $0.50–$0.90/m³.

Membrane-based systems, specifically Nanofiltration (NF) and Reverse Osmosis (RO), are rarely used as primary treatment for nickel but are critical for ZLD integration. These systems provide a physical barrier, ensuring effluent nickel levels stay below 0.01 mg/L. However, direct membrane filtration of raw nickel wastewater is prone to rapid fouling from CMP silica. Therefore, a hybrid approach—precipitation followed by RO—is the most robust solution for display panel manufacturers. A 100 m³/h hybrid system capable of 90% water recovery requires a CAPEX of approximately $1.2M but offers the fastest ROI through water savings and risk mitigation.

*Note: Electrocoagulation CAPEX scaled for 20 m³/h equivalent.

Compliance and Discharge Limits: Global Standards for Nickel in Display Panel Wastewater

Regulatory frameworks for nickel discharge are tightening globally, particularly in regions where display panel manufacturing is clustered. In China, the "Emission Standard of Pollutants for Electroplating" (GB 21900-2008) serves as the primary benchmark. While the general limit is 0.5 mg/L, the "Special Emission Limit" for sensitive water bodies is 0.1 mg/L. This standard is strictly enforced via real-time online monitoring systems. Industrial-grade nickel sensors, typically costing between $92 and $140, are integrated into the final discharge weir to provide continuous data to local environmental bureaus.

In the United States, display panel plants often fall under the PCB electroplating wastewater treatment methods and general metal finishing standards (40 CFR Part 433). The EPA sets a daily maximum of 2.38 mg/L and a monthly average of 1.0 mg/L. However, local permits in states like California or Oregon frequently impose much stricter limits, often mirroring the 0.1 mg/L standard seen in Asia. South Korea’s Water Quality and Aquatic Ecosystem Conservation Act similarly sets a 0.5 mg/L baseline, but local ordinances in high-tech corridors often mandate 0.1 mg/L to protect local watersheds.

To ensure 24/7 compliance, modern plants utilize automated buffering systems. These systems detect influent spikes—common during etching bath dumps—and divert high-concentration streams to an equalization tank. This prevents "shock loading" of the precipitation stage, which is the leading cause of nickel discharge violations. Automated dosing systems linked to these sensors adjust reagent flow in real-time, ensuring that even under fluctuating loads, the final effluent remains within legal limits.

Cost Breakdown: CAPEX, OPEX, and ROI for Nickel Wastewater Systems

For a display panel plant processing 50 m³/h of nickel-laden wastewater, the total investment is divided into equipment CAPEX, civil engineering, and ongoing operational costs. A standard chemical precipitation system requires approximately $250,000 for equipment (tanks, mixers, DAF, dosing skids). Civil works, including foundation and piping, typically add $50,000–$100,000, while PLC-based automation adds another $30,000–$80,000 depending on the level of integration with the plant's SCADA system.

Operational costs are dominated by chemical reagents and sludge disposal. DTC-based capturing agents are more expensive than simple lime or caustic soda, contributing roughly $0.40/m³ to the OPEX. Sludge disposal is the second largest variable; a plant treating 100 mg/L Ni will produce approximately 20 kg of wet sludge per m³ of water. At a disposal cost of $200/ton, this adds $0.20/m³ to the treatment cost. Energy consumption for pumps and DAF compressors is relatively low, typically $0.05–$0.10/m³.

The ROI for these systems is often realized through risk avoidance and resource recovery. In China, a single nickel violation can result in fines of $15,000 to $75,000, not including the cost of potential production halts. ZLD systems that recover nickel-free water save approximately $0.80/m³ in raw water procurement and discharge fees. In some cases, the nickel-rich sludge can be sold to specialized recyclers if the nickel content is high enough (>10% dry weight), offsetting 10–20% of the annual OPEX. A case study of a 100 m³/h facility in Taiwan demonstrated a 2.2-year payback period by combining water reuse savings with the elimination of regulatory fines.

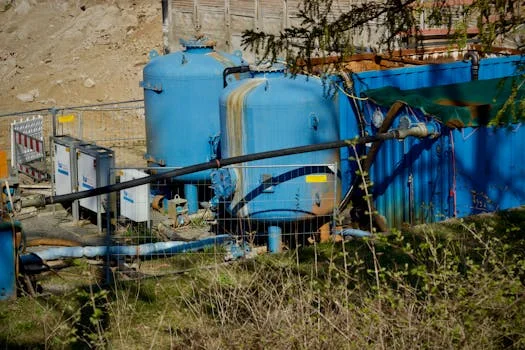

Frequently Asked Questions

What is the most cost-effective nickel removal method for a 10 m³/h display panel plant?
Electrocoagulation is generally the most cost-effective for small-scale operations. It has a lower CAPEX (approx. $90,000 for 10 m³/h) and reduces chemical handling and sludge volume, making it ideal for facilities with limited space or lower flow rates.

Can nickel wastewater be reused in display panel manufacturing?
Yes, but only after ZLD treatment. Raw treated effluent, while low in nickel, still contains high TDS and residual chemicals. Passing this water through an RO system produces high-quality permeate that can be reused for non-critical rinsing or cooling tower makeup, reducing freshwater intake by 80%.

What are the signs of inefficient nickel precipitation?
The most common signs are effluent nickel levels exceeding 0.5 mg/L, excessive chemical consumption (>300 g/m³), or the production of "pin-floc" that does not settle or float properly. These issues usually point to pH drift, interference from CMP silica, or the presence of strong chelating agents like EDTA.

How often should nickel sensors be calibrated?
Nickel sensors used for discharge compliance should be calibrated weekly using a 1 mg/L standard solution. Any drift greater than 5% requires immediate recalibration. Most industrial sensors have a lifespan of 6–12 months depending on the corrosivity of the wastewater.

What are the alternatives to chemical precipitation for nickel removal?
Ion exchange (IX) is an alternative often used for polishing or for very low-flow, high-purity applications. While IX can achieve extremely low nickel levels, it is rarely used as a primary treatment in large display panel plants due to the high cost of resin regeneration and the complexity of treating the resulting regenerant brine.
