PCB HF wastewater treatment requires specialized systems to remove fluoride (target <10 mg/L) and heavy metals (Cu²⁺, Pb²⁺, Ni²⁺) while meeting stringent discharge limits. In 2025, engineered solutions like calcium precipitation (95–99% fluoride removal at pH 10–12) and reverse osmosis (90–98% rejection) dominate, with zero liquid discharge (ZLD) systems reducing hauling costs by 60–80%. Compliance with EPA and China GB 21900-2008 standards demands tailored chemical dosing and membrane configurations—this guide provides the exact specs.
Why PCB HF Wastewater Treatment Fails: A Compliance Nightmare
PCB manufacturing plants face significant financial penalties for fluoride and heavy metal discharge violations, with EPA fines reaching $250K for single exceedances in 2023 for some industrial facilities. These penalties, combined with escalating hauling costs and potential production shutdowns, underscore the critical need for robust PCB HF wastewater treatment systems. Common failure points in existing systems often stem from inadequate understanding of the wastewater's complex chemistry. pH swings are a primary culprit, destabilizing precipitation reactions and leading to soluble fluoride or heavy metal exceedances. the presence of complexing agents like EDTA and ammonia (NH₄⁺), frequently found in PCB electroplating solutions, can bind heavy metals, preventing their effective removal through conventional precipitation. Membrane fouling from high organic loads or silica scaling also compromises the efficiency of advanced treatment stages, leading to reduced permeate quality and increased operational expenses. The financial implications of non-compliance are substantial. Hauling untreated or partially treated wastewater typically costs $0.50–$2.00 per gallon, quickly accumulating to millions annually for larger facilities. In contrast, investing in a comprehensive ZLD treatment system, while carrying an initial capital expenditure (CAPEX) of $1.2M–$5M for typical PCB plant capacities, offers long-term savings by eliminating hauling and enabling water reuse.
PCB HF Wastewater Characteristics: What’s Really in Your Stream?
PCB HF wastewater treatment - PCB HF Wastewater Characteristics: What’s Really in Your Stream?
PCB HF wastewater streams are characterized by a complex matrix of heavy metals, fluorine compounds, and challenging organic complexing agents, requiring precise identification for effective treatment. Understanding the specific composition of a plant's wastewater is the foundational step in designing a compliant and cost-efficient treatment system. PCB manufacturing processes, including etching, plating, and cleaning, generate diverse wastewater types. Broadly, these can be categorized into four main streams based on their primary pollutants: heavy metals (e.g., Cu²⁺, Pb²⁺, Ni²⁺), fluorine (F⁻), complexed metals (e.g., Cu-EDTA, Ni-ammonia), and acid/alkali streams (containing CN⁻, NH₄⁺, or high/low pH).
Typical concentration ranges for key pollutants in mixed PCB HF wastewater include fluoride at 50–500 mg/L, copper at 30–200 mg/L, and a pH range spanning from 2 to 12. Other significant contaminants can include nickel (10–100 mg/L), lead (1–50 mg/L), and various organic compounds from resists and cleaners. The presence of complexing agents like EDTA (ethylenediaminetetraacetic acid) and ammonia is particularly problematic, as these ligands form strong, soluble complexes with heavy metals, inhibiting their precipitation. For instance, Cu-EDTA complexes remain stable even at high pH values where free copper ions would readily precipitate. Effective treatment of these complexed streams requires a pre-treatment step, such as advanced oxidation (e.g., Fenton’s reagent, UV/H₂O₂), to break down the metal-ligand bonds before conventional precipitation or ion exchange can be applied. This diagnostic approach ensures that treatment methods are specifically tailored to the unique challenges of the wastewater matrix, preventing costly trial-and-error failures.
Wastewater Type
Key Pollutants
Typical Concentration Range
pH Range
Heavy Metals
Cu²⁺, Pb²⁺, Ni²⁺ (non-complexed)
Cu: 30–200 mg/L, Pb: 1–50 mg/L, Ni: 10–100 mg/L
5–9
Fluorine
F⁻ (from HF etching)
50–500 mg/L
2–4
Complex Metals
Cu-EDTA, Ni-Ammonia complexes
Cu: 50–300 mg/L, Ni: 20–150 mg/L
6–11
Acid/Alkali
Strong acids/bases, CN⁻, NH₄⁺
Varies widely based on process
2–12
Fluoride Removal Methods: Engineering Specs for 99% Compliance
Achieving 99% fluoride removal in PCB HF wastewater typically involves a combination of calcium precipitation, ion exchange, reverse osmosis, or electrocoagulation, each with distinct engineering parameters. The selection depends on influent fluoride concentration, desired effluent quality, and overall system complexity.
Calcium Precipitation: This is the most common and cost-effective method for high fluoride concentrations. It achieves 95–99% fluoride removal, targeting effluent levels below 10 mg/L. The optimal pH range for calcium fluoride (CaF₂) precipitation is 10–12, typically achieved using Ca(OH)₂ (lime) or CaCl₂. The Ca(OH)₂ dosing guideline is 1.5–2.5 times the stoichiometric ratio, ensuring sufficient calcium ions are available to react with fluoride and account for CaF₂ solubility. For an influent of 200 mg/L F⁻, this translates to approximately 195–325 mg/L of Ca(OH)₂. Efficient mixing and adequate retention time (30–60 minutes) are crucial for floc formation and settling. The resulting CaF₂ sludge requires dewatering.
Ion Exchange (IX): For polishing or lower fluoride concentrations, ion exchange can achieve 90–95% removal. Strong base anion (SBA) resins, specifically those with selective fluoride affinity, are used. Resin capacity typically ranges from 1.2–2.0 eq/L. When the resin is exhausted, it is regenerated with a 10% NaOH solution, which displaces the adsorbed fluoride ions. The spent regenerant, a concentrated fluoride brine, requires further treatment or off-site disposal. Pretreatment to remove suspended solids and heavy metals is essential to prevent resin fouling.
Reverse Osmosis (RO): RO systems offer high-efficiency separation, achieving 90–98% fluoride rejection. However, RO membranes are susceptible to scaling and fouling, particularly from calcium fluoride, silica, and organic compounds present in PCB wastewater. Therefore, robust pretreatment, including microfiltration (MF) or ultrafiltration (UF), pH adjustment, and antiscalant dosing, is mandatory before the RO stage. VSEP benchmarks for high-solids wastewater demonstrate that specialized vibratory RO systems can mitigate fouling risks, extending membrane life and reducing cleaning frequency. The permeate from RO is high-quality water suitable for reuse, while the concentrate requires further treatment or disposal. For precise control over chemical additions in these processes, an automatic chemical dosing system is essential for maintaining optimal pH and chemical concentrations.
Electrocoagulation (EC): EC can achieve 85–95% fluoride removal, alongside heavy metals and suspended solids. Aluminum or iron electrodes are typically used, generating coagulants in situ. Energy consumption ranges from 0.5–1.5 kWh/m³, and electrode lifespan is generally 3–5 years, depending on current density and wastewater characteristics. While effective, EC can produce higher volumes of sludge compared to chemical precipitation, and electrode replacement is a recurring operational cost.
Heavy Metal Removal: How to Meet Cu²⁺, Pb²⁺, and Ni²⁺ Limits
PCB HF wastewater treatment - Heavy Metal Removal: How to Meet Cu²⁺, Pb²⁺, and Ni²⁺ Limits
Meeting stringent discharge limits for heavy metals like Cu²⁺, Pb²⁺, and Ni²⁺ in PCB HF wastewater often necessitates advanced precipitation or ion exchange processes, achieving over 90% removal efficiency. The specific method depends on the metal species, concentration, and the presence of complexing agents.
Sulfide Precipitation: This method is highly effective for removing copper (Cu²⁺) and other heavy metals, achieving over 99% Cu²⁺ removal at an optimal pH of 8–9. Sodium sulfide (Na₂S) or sodium hydrosulfide (NaHS) is dosed at 1.1–1.3 times the stoichiometric ratio to form highly insoluble metal sulfides (e.g., CuS). Sulfide precipitation is superior to hydroxide precipitation for metals like copper, lead, and nickel because metal sulfides have significantly lower solubility products, allowing for lower effluent concentrations. The process requires careful pH control and good mixing to prevent H₂S gas formation, especially at lower pH values. The resulting metal sulfide sludge is dense and easily dewatered.
Ferric Hydroxide Co-precipitation: Lead (Pb²⁺) removal, along with arsenic and chromium, can be effectively achieved through ferric hydroxide co-precipitation, yielding 95% Pb²⁺ removal at a pH of 7–8. Ferric chloride (FeCl₃) is typically dosed at 50–100 mg/L as Fe³⁺, forming insoluble ferric hydroxide flocs that adsorb or co-precipitate lead ions. This method is often integrated with clarification and filtration stages.
Ion Exchange (IX): For nickel (Ni²⁺) and polishing other heavy metals to very low limits, ion exchange is a preferred method, offering 90–98% Ni²⁺ removal. Weak acid cation (WAC) or strong acid cation (SAC) resins are employed, with WAC resins being particularly effective for divalent metals in slightly acidic to neutral pH ranges. Resin capacity for nickel typically ranges from 1.0–1.8 eq/L. Regeneration is performed using a 5% sulfuric acid (H₂SO₄) solution, which strips the adsorbed metal ions from the resin. Like fluoride IX, robust pretreatment to remove suspended solids and other precipitants is crucial to prevent resin fouling and maintain efficiency.
Complexing agents like EDTA, which form stable chelates with heavy metals, pose a significant challenge to these precipitation and ion exchange methods. Before conventional treatment can be effective, these metal-ligand bonds must be broken. Pre-oxidation using strong oxidants such as Fenton’s reagent (H₂O₂ + Fe²⁺), ozone (O₃), or UV/H₂O₂ is required. Fenton’s reagent, for example, generates highly reactive hydroxyl radicals that effectively degrade organic complexing agents, releasing the bound heavy metals into their ionic form, making them amenable to subsequent precipitation or ion exchange. Following heavy metal precipitation, high-efficiency sludge dewatering for PCB wastewater treatment is achieved using an industrial plate and frame filter press.
Target Metal
Method
Removal Efficiency (%)
Optimal pH
Dosing/Capacity
Notes
Cu²⁺
Sulfide Precipitation
>99%
8–9
Na₂S: 1.1–1.3x stoichiometric
Produces dense metal sulfide sludge, lower solubility than hydroxides.
Pb²⁺
Ferric Hydroxide Co-precipitation
95%
7–8
FeCl₃: 50–100 mg/L (as Fe³⁺)
Effective for co-precipitating other contaminants like As.
Essential for complexed streams before precipitation/IX.
Treatment Technology Comparison: Which System Fits Your PCB Plant?
Selecting the optimal PCB HF wastewater treatment system requires a comprehensive evaluation of capital expenditure (CAPEX), operational expenditure (OPEX), footprint, and compliance certainty across various technologies. Each method presents a unique balance of these factors, making the choice highly dependent on a plant's specific wastewater profile, discharge regulations, and financial objectives.
For instance, conventional calcium precipitation offers a relatively low CAPEX but incurs higher OPEX due to significant sludge disposal costs and chemical consumption. Ion exchange, while effective for polishing and specific metal removal, has moderate CAPEX and OPEX, but its regenerant brine requires careful management. Reverse osmosis (RO) systems, including advanced industrial RO water purification, boast high removal efficiencies and enable water reuse, leading to lower OPEX from reduced water consumption and hauling. However, they demand a higher initial CAPEX and robust pretreatment to prevent membrane fouling. Electrocoagulation sits in the middle, offering good pollutant removal but with recurring electrode replacement costs and energy consumption. Zero Liquid Discharge (ZLD) systems, which often integrate multiple technologies like RO, evaporators, and crystallizers, represent the highest CAPEX but offer the lowest long-term OPEX by eliminating discharge and maximizing water recovery, providing the highest level of compliance assurance and sustainability for electroplating wastewater treatment specs for PCB plants and CMP wastewater treatment for PCB and semiconductor plants.
Technology
Fluoride Removal (%)
Heavy Metal Removal (%)
CAPEX ($/m³)
OPEX ($/m³)
Footprint (m²/100 m³/day)
Calcium Precipitation
95–99%
85–95% (hydroxide)
$200–$500
$1.50–$3.00
50–80
Ion Exchange
90–95%
90–98%
$400–$800
$2.00–$4.00
30–60
Reverse Osmosis (RO)
90–98% rejection
95–99% rejection
$800–$1,500
$1.00–$2.50
40–70
Electrocoagulation
85–95%
85–95%
$300–$700
$2.50–$4.50
60–90
Zero Liquid Discharge (ZLD)
>99%
>99%
$2,000–$4,000
$5.00–$15.00
100–200
Note: CAPEX and OPEX values are indicative and can vary significantly based on system capacity, specific wastewater characteristics, and regional costs. ZLD OPEX includes energy for evaporation/crystallization but excludes hauling costs.

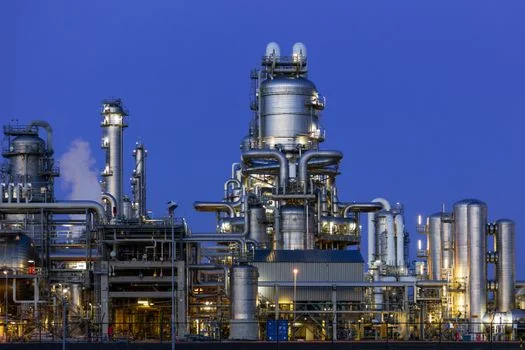

Zero Liquid Discharge (ZLD) for PCB HF Wastewater: Cost Breakdown and ROI
PCB HF wastewater treatment - Zero Liquid Discharge (ZLD) for PCB HF Wastewater: Cost Breakdown and ROI
Implementing Zero Liquid Discharge (ZLD) systems for PCB HF wastewater streams can reduce hauling costs by 60–80%, offering a compelling return on investment (ROI) within 3–7 years for high-volume operations. ZLD systems are designed to recover nearly all wastewater for reuse, eliminating liquid discharge entirely and minimizing solid waste volume.
The capital expenditure (CAPEX) for a ZLD system treating 100–500 m³/day of PCB HF wastewater typically ranges from $3M–$8M in 2025. This investment includes primary treatment (precipitation, clarification), advanced membrane filtration (e.g., industrial RO systems), thermal evaporators (e.g., mechanical vapor recompression), and crystallizers to process the final brine into a manageable solid waste. The specific cost depends on the complexity of the influent, desired recovery rate, and chosen technologies.
Operational expenditure (OPEX) for ZLD systems typically falls between $5–$15/m³, covering energy consumption (primarily for evaporators), chemical reagents, membrane cleaning, and maintenance. This contrasts sharply with the $20–$50/m³ cost of hauling untreated or partially treated wastewater. For a plant hauling over 200 m³/day, the 60–80% savings in hauling costs alone can drive a rapid ROI. An ROI calculation for a ZLD system often shows a payback period of 3–7 years, primarily driven by avoided hauling costs, reduced freshwater intake (due to water reuse), and mitigated regulatory compliance risks.
Risk mitigation in ZLD systems is paramount. This includes designing redundancy in evaporators and pumps to ensure continuous operation, establishing rigorous membrane cleaning protocols to prevent fouling and extend lifespan, and implementing efficient sludge drying mechanisms to minimize the volume and hazardous nature of the final solid waste for disposal. These measures ensure the ZLD system not only meets discharge goals but also operates reliably and economically over its lifespan.
Category
CAPEX Range (100-500 m³/day)
OPEX Range ($/m³)
Savings/Benefits
Payback Period
Notes
Initial Investment (CAPEX)
$3M–$8M
N/A
Long-term operational savings, compliance
N/A
Includes RO, evaporators, crystallizers, pre-treatment.
Operating Costs (OPEX)
N/A
$5–$15
Significant reduction vs. hauling
N/A
Energy (60-70%), chemicals (15-20%), maintenance (10-15%).
Hauling Costs (Avoided)
N/A
$20–$50
60–80% reduction in disposal costs
N/A
Primary driver for ZLD ROI.
Water Reuse (Savings)
N/A
$0.50–$2.00 (freshwater)
Reduced freshwater intake, sustainable operations
N/A
Depends on local water costs.
ROI & Payback
N/A
N/A
Eliminates discharge, ensures compliance
3–7 years
For plants hauling >200 m³/day, strong regulatory pressure.
Frequently Asked Questions
What are the primary challenges in treating PCB HF wastewater?
The primary challenges include high concentrations of fluoride and heavy metals, the presence of complexing agents like EDTA that bind metals, wide pH variations, and high organic loads, all of which necessitate multi-stage, specialized treatment processes to meet stringent discharge limits.
What is the typical fluoride discharge limit for PCB plants?
Typical fluoride discharge limits for PCB plants are often below 10 mg/L, as mandated by regulations such as China GB 21900-2008 and various EPA state permits, requiring highly efficient removal technologies.
How do complexing agents like EDTA affect heavy metal removal?
Complexing agents like EDTA form stable, soluble complexes with heavy metals, preventing their precipitation with conventional methods, thus requiring pre-treatment such as Fenton's reagent oxidation to break these bonds before effective removal can occur.
Is Zero Liquid Discharge (ZLD) economically viable for all PCB plants?
ZLD systems become economically viable for PCB plants that generate significant volumes of wastewater (typically >200 m³/day) and face high hauling costs or stringent discharge regulations, offering a payback period often within 3-7 years through avoided disposal costs and water reuse.
What is the role of pH control in PCB HF wastewater treatment?
Precise pH control is critical in PCB HF wastewater treatment as it directly impacts the efficiency of calcium fluoride precipitation (optimal pH 10-12) and heavy metal hydroxide/sulfide precipitation (typically pH 7-9), ensuring effective removal and compliance.
