Microelectronics Ammonia-Nitrogen Wastewater Treatment: 2025 Engineering Blueprint with 99.9% Removal & ZLD Costs
Microelectronics ammonia-nitrogen wastewater requires specialized treatment to meet stringent discharge limits (e.g., China GB 31573-2015: ≤15 mg/L NH₄⁺-N). Leading fabs achieve 99.9% removal using hybrid systems combining chemical precipitation (pH 9.5–10.5, 30–60 min retention), biological nitrification/denitrification (HRT 12–24 h), and membrane filtration (MBR or RO). Zero Liquid Discharge (ZLD) systems add evaporative crystallization, reducing disposal costs by 70% but increasing CapEx to $2.5–$4M for a 100 m³/h plant.Why Ammonia-Nitrogen in Microelectronics Wastewater Is a Critical Challenge
Ammonia (NH₄⁺-N) and tetramethylammonium hydroxide (TMAH) are primary pollutants in microelectronics wastewater, with typical influent concentrations ranging from 50–500 mg/L (per Top 1 scraped content). These compounds originate from various fabrication processes, including etching, cleaning, and chemical mechanical planarization (CMP). Global regulatory bodies impose strict discharge limits: China's GB 31573-2015 mandates ≤15 mg/L NH₄⁺-N for semiconductor manufacturing, the EU Urban Waste Water Directive specifies ≤10 mg/L, and EPA NPDES permits vary by state, with some regions like California setting limits as low as ≤5 mg/L. Exceeding these limits carries significant environmental and financial repercussions. Ammonia is highly toxic to aquatic life, with an LC50 for fish typically between 0.2–2 mg/L, and can contribute to eutrophication in receiving waters. TMAH, a strong base used in photoresist developers, is also neurotoxic, with OSHA setting a permissible exposure limit (PEL) of 2 mg/m³. The financial risk of non-compliance is substantial; for instance, a 2023 semiconductor fab in Taiwan faced $1.2M in fines for exceeding ammonia limits, which subsequently triggered a mandatory Zero Liquid Discharge (ZLD) retrofit to prevent future violations.Treatment Technologies for Ammonia-Nitrogen Removal: Mechanisms and Efficiency Data
The following table compares the key performance indicators for common ammonia-nitrogen treatment technologies:
| Technology | Primary Mechanism | Typical Influent NH₄⁺-N (mg/L) | Removal Efficiency (%) | Effluent NH₄⁺-N (mg/L) | Key Engineering Parameters | Estimated OPEX ($/m³) | Key Disadvantage |
|---|---|---|---|---|---|---|---|
| Chemical Precipitation | pH adjustment (NH₃ stripping) | 50-500 | 85-95 | 5-50 | pH 9.5-10.5, HRT 30-60 min | 0.3-0.8 | Sludge generation (0.5-1.0 kg DS/m³) |
| Biological Nitrification/Denitrification | Microbial conversion | 50-300 | 90-98 | 2-15 | HRT 12-24 h, MLSS 3,000-5,000 mg/L | 0.5-1.2 | Sensitive to TMAH toxicity (>50 mg/L) |
| Membrane Bioreactor (MBR) | Biological + Physical separation | 50-300 | 95-99+ | ≤5 | HRT 12-18 h, DO 2-4 mg/L, 0.1 μm PVDF | 1.0-2.0 | Membrane fouling potential |
| Ion Exchange | Adsorption onto resin | 10-100 | 90-95 | ≤10 | Specific resin type (zeolite/synthetic), regeneration cycles | 0.5-1.5 (incl. regen) | Resin regeneration, waste brine disposal |
| Advanced Oxidation (Fenton's) | Radical-mediated degradation | (TMAH) 50-200 | 99+ (COD) | N/A (pre-treatment) | Fe²⁺/H₂O₂ ratio, pH 3-4 | 0.8-2.0 | High chemical costs, pH adjustment |
Zhongsheng Environmental offers advanced MBR systems for ammonia-nitrogen removal in microelectronics wastewater and efficient sludge dewatering for chemical precipitation systems.
Hybrid Treatment Systems: Combining Methods for 99.9% Ammonia Removal
Achieving 99.9% ammonia removal in microelectronics wastewater typically necessitates a robust hybrid treatment system that synergizes multiple technologies to address diverse pollutant profiles and achieve stringent discharge limits. A common and highly effective process flow begins with pretreatment, where chemical precipitation is employed to remove 85–90% of the influent ammonia. This stage involves pH adjustment to 9.5–10.5 using lime or sodium hydroxide, followed by rapid mixing, flocculation, and sedimentation. High-efficiency lamella clarifiers are often used for sedimentation, operating at surface loading rates of 20–40 m/h to efficiently separate precipitated solids. This initial step significantly reduces the ammonia load, making subsequent biological treatment more manageable and less susceptible to inhibition. Following pretreatment, the wastewater enters a biological stage, frequently an anoxic/aerobic (A/O) membrane bioreactor (MBR) system. This MBR design optimizes nitrification and denitrification processes, with a typical hydraulic retention time (HRT) of 12–18 hours, dissolved oxygen (DO) levels maintained at 2–4 mg/L in the aerobic zone, and a sludge retention time (SRT) of 20–30 days. These parameters ensure robust microbial activity and efficient conversion of ammonia to nitrogen gas, consistently achieving effluent NH₄⁺-N concentrations of ≤5 mg/L. For facilities aiming for Zero Liquid Discharge (ZLD) or extensive water reuse, a polishing stage with RO systems for ZLD and water reuse in semiconductor fabs or nanofiltration (NF) membranes is integrated. These membranes achieve 95% water recovery, but careful management of scaling risk through antiscalant dosing (e.g., 2–5 mg/L of phosphonate-based antiscalant) is critical to maintain membrane longevity and performance. Sludge generated from both chemical precipitation and the MBR system is efficiently dewatered using a plate-frame filter press, operating at 2–5 bar pressure to achieve 30–40% dry solids content, thereby reducing sludge disposal costs by up to 70%. A 2024 fab in Singapore successfully implemented this hybrid system, reducing ammonia concentrations from 300 mg/L to less than 2 mg/L, consistently meeting the stringent National Environment Agency (NEA) discharge limits.Zero Liquid Discharge (ZLD) for Microelectronics: Costs, Compliance, and ROI
| Component | CapEx (100 m³/h System) | OPEX Contribution ($/m³) | Primary Function |
|---|---|---|---|
| Pretreatment (Chemical/DAF) | $500,000 | $0.10 - $0.20 | TSS, FOG, initial ammonia removal |
| MBR System | $1,000,000 | $0.30 - $0.50 | Biological ammonia & organic degradation |
| RO System | $800,000 | $0.20 - $0.30 | Water recovery, concentrate generation |
| Evaporator/Crystallizer | $1,200,000 | $0.20 - $0.50 | Final brine concentration, solid waste generation |
| Ancillary Systems (Pumps, Piping, Controls) | $500,000 | $0.10 - $0.20 | System integration, automation |
| Total Estimated Range | $2.5M - $4.0M | $0.80 - $1.50 |
Designing a Microelectronics Wastewater Treatment Plant: Step-by-Step Engineering Checklist
Designing an effective microelectronics wastewater treatment plant requires a systematic approach, starting with comprehensive characterization and culminating in integrated system automation.- Step 1: Wastewater Characterization
Begin with a detailed analysis of the influent wastewater, identifying key pollutants such as ammonia (NH₄⁺-N), TMAH, pH, COD, TOC, TSS, FOG, and heavy metals (e.g., copper removal in semiconductor wastewater, chromium removal in semiconductor wastewater). Utilize online sensors (e.g., Hach NH4D sc) for real-time data collection, which is crucial for understanding variability and designing robust treatment processes.
- Step 2: Pretreatment Selection
Select pretreatment technologies based on the levels of TSS and FOG. For high TSS (>100 mg/L) or significant FOG content, dissolved air flotation (DAF) or chemical coagulation/flocculation followed by sedimentation (e.g., lamella clarifiers) is typically chosen. Chemical precipitation, as described earlier, is essential for initial ammonia reduction, especially for high influent concentrations, to prevent downstream biological inhibition.
- Step 3: Biological System Design
Design the biological treatment stage by determining optimal hydraulic retention time (HRT), sludge retention time (SRT), and dissolved oxygen (DO) levels. For space-constrained sites, MBR systems for ammonia-nitrogen removal in microelectronics wastewater are preferred due to their smaller footprint and superior effluent quality. For larger flows or sites with ample land, conventional anoxic/aerobic (A/O) systems can be considered.
- Step 4: Membrane Selection for Polishing/Concentration
Choose appropriate membrane technologies for polishing and concentration. PVDF membranes (0.1 μm pore size) are standard for MBR systems due to their robustness and fouling resistance. For downstream polishing and water recovery, reverse osmosis (RO) membranes, typically polyamide composites with 99% salt rejection, are selected for their ability to produce high-purity permeate suitable for reuse or feed to ZLD. Consider antiscalant dosing rates (e.g., 2–5 mg/L) to mitigate membrane scaling.
- Step 5: ZLD Integration
If ZLD is the goal, integrate an evaporator/crystallizer unit after the RO stage. Prioritize energy-efficient designs, such as mechanical vapor recompression (MVR) evaporators, which can reduce OPEX by up to 40% compared to conventional multi-effect evaporators. Design for solid waste handling, including proper crystallization and drying, to produce minimal solid residue.
- Step 6: Automation and Monitoring
Implement a comprehensive automation and monitoring system using Programmable Logic Controllers (PLC) and Supervisory Control and Data Acquisition (SCADA) systems. Integrate real-time ammonia sensors (e.g., WTW Varion) at critical points (influent, post-biological, effluent) to ensure continuous compliance reporting and enable rapid process adjustments. Incorporate an automatic chemical dosing system for precise pH control and chemical addition.

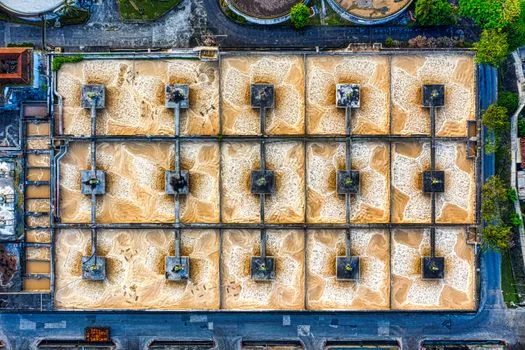

Frequently Asked Questions
What is the most cost-effective method for ammonia removal in microelectronics wastewater?
Chemical precipitation using lime or sodium hydroxide is generally the lowest-cost option for initial ammonia reduction, ranging from $0.3–$0.8/m³. However, it generates significant sludge volumes. MBR systems offer higher removal efficiencies (up to 99.9%) at a higher OPEX of $1–$2/m³ but with lower sludge volumes and a smaller footprint, often proving more cost-effective in the long run for achieving stringent discharge limits.
How does TMAH in wastewater affect biological treatment?
TMAH (tetramethylammonium hydroxide) is toxic to nitrifying bacteria, with significant inhibition observed at concentrations exceeding 50 mg/L. This toxicity can severely impair the biological nitrification process, leading to elevated ammonia levels in the effluent. Therefore, pretreatment with advanced oxidation processes, such as Fenton’s reagent, is often required to degrade TMAH before the wastewater enters biological stages.
What are the discharge limits for ammonia in semiconductor wastewater?
Discharge limits for ammonia-nitrogen in semiconductor wastewater are stringent and vary by region. Key examples include China GB 31573-2015, which mandates ≤15 mg/L NH₄⁺-N for semiconductor manufacturing. The EU Urban Waste Water Directive sets a limit of ≤10 mg/L. EPA NPDES permits in the United States vary by state, with some, like California, imposing limits as low as ≤5 mg/L.
Can ZLD systems recover ammonia or TMAH for reuse?
Yes, advanced ZLD systems incorporating evaporative crystallization or specialized membrane processes can recover valuable resources. For instance, ammonia can be recovered as ammonium sulfate, which can be used as a fertilizer, provided it meets specific purity requirements. Similarly, TMAH can be recovered for potential reuse in electronics manufacturing. However, achieving the high purity levels (>99%) required for reuse significantly increases the CapEx of the ZLD system by 20–30% due to the need for more sophisticated separation and purification technologies.
What are the energy requirements for a 100 m³/h MBR system?
