Advanced packaging wastewater ZLD systems achieve 99%+ water recovery and zero liquid discharge by integrating dissolved air flotation (DAF), membrane bioreactors (MBR), reverse osmosis (RO), and crystallizers. For example, a 2024 case study in Florida demonstrated 98.5% TSS removal and 95% COD reduction using a hybrid DAF-MBR-RO-crystallizer system, with crystallizer sludge solidified for landfill disposal. These systems meet EPA and EU ZLD mandates while reducing freshwater intake by up to 80%.
Why Packaging Plants Need Zero Liquid Discharge (ZLD) in 2025
EPA 2024 effluent guidelines for packaging facilities (40 CFR Part 430, Subpart J) require Total Suspended Solids (TSS) levels below 30 mg/L and Chemical Oxygen Demand (COD) under 125 mg/L to maintain discharge permits. For manufacturers using high-salinity inks and adhesives, meeting these standards through traditional discharge methods is becoming technologically and economically unfeasible. The European Union’s Industrial Emissions Directive (2010/75/EU) has further tightened the screws, mandating ZLD for any packaging effluent with Total Dissolved Solids (TDS) exceeding 5,000 mg/L.
Water scarcity is no longer a localized issue; it is a direct operational cost. Packaging plants in water-stressed regions, such as California or parts of India, are facing freshwater tariff increases of 20–40% in 2025, according to World Bank data. These rising costs, combined with the risk of production halts due to water quotas, make ZLD an insurance policy for business continuity.
The financial consequences of non-compliance are severe. In 2023, a packaging facility in Texas was fined $1.2 million by the EPA for consistent violations of TSS limits and improper handling of pigment-heavy effluent. Beyond the fine, the plant was forced to suspend operations for 45 days to overhaul its treatment infrastructure. Implementing ZLD cost breakdown and case study for industrial wastewater models shows that the CAPEX of such a system is often lower than the cumulative cost of multi-year fines and lost production time.
ZLD Fundamentals: How Advanced Packaging Wastewater Systems Work
Zero Liquid Discharge (ZLD) is a closed-loop engineering process that eliminates liquid waste by concentrating dissolved solids into a manageable dry form while recovering up to 99% of process water. In the context of packaging manufacturing—where wastewater is laden with surfactants, pigments, and starch-based adhesives—ZLD functions like a high-precision multi-stage filter that progressively narrows the waste stream until only solids remain.
The process begins with pre-treatment, typically using Dissolved Air Flotation (DAF) to remove bulk solids and oils. This is followed by a biological stage, such as a Membrane Bioreactor (MBR), which breaks down organic compounds. The "heart" of the recovery process is Reverse Osmosis (RO), which separates pure water from the brine. The final, and most energy-intensive, stage involves thermal treatment where crystallizers or evaporators turn the concentrated brine into solid salt crystals. According to Veolia 2024 technical specs, forced circulation crystallizers concentrate brine to 30% solids before cooling them into a crystalline state for disposal.
While highly effective, ZLD systems are not without engineering challenges. They typically consume 15–25 kWh/m³ of energy, largely driven by the thermal evaporation phase. the high concentration of calcium and sulfates in packaging wastewater creates a high risk of scaling and membrane fouling. Mitigating these risks requires precise chemical dosing and the use of hybrid ZLD system design for high-salinity wastewater to balance the load between membrane and thermal components.
Hybrid ZLD System Design for Packaging Wastewater: Step-by-Step Engineering
A hybrid ZLD architecture for packaging effluent utilizes a sequential treatment train of DAF, MBR, and RO to reduce the thermal load on the crystallizer by up to 90%. This design ensures that only the most concentrated waste reaches the evaporator, significantly lowering the total energy footprint of the plant. Each stage is engineered to handle specific contaminants common in flexographic printing and corrugated box production.
Stage 1: Primary Clarification (DAF)
The process starts with ZSQ Series DAF systems for packaging wastewater pre-treatment. These units use micro-bubbles to float TSS and fats/oils/grease (FOG) to the surface. For packaging effluent, DAF typically achieves 90–95% removal efficiency at flow rates of 10–50 m³/h, providing a clear stream for the sensitive membranes downstream.
Stage 2: Biological Treatment (MBR)
To handle the high COD/BOD loads from starches and glues, DF Series flat-sheet MBR modules for COD/BOD reduction are employed. These modules operate at a membrane flux of 15–25 LMH (liters per square meter per hour) with a 0.1 μm filtration rating, ensuring 95% removal of organic contaminants.
Stage 3: Desalination (RO)
The high-recovery RO systems for TDS reduction in ZLD treat the MBR permeate. Operating at pressures of 15–25 bar, these systems achieve 90–95% salt rejection. The goal here is to recover 75–85% of the water as high-quality permeate for reuse in cooling towers or boiler feed.
Stage 4: Thermal Concentration (Crystallizer)
The RO reject is sent to a forced circulation crystallizer. This unit concentrates the remaining brine into a 30% solids slurry. The resulting sludge is typically stabilized with cement or gypsum to meet EPA Subtitle D requirements for landfill disposal.
| Treatment Stage | Target Contaminant | Removal/Rejection Rate | Engineering Specification |
|---|---|---|---|
| DAF (ZSQ Series) | TSS, Pigments, FOG | 90–95% | 10–50 m³/h capacity |
| MBR (DF Series) | COD, BOD, Organics | 95% | 15–25 LMH Flux; 0.1 μm |
| Reverse Osmosis | TDS, Chlorides | 90–98% | 15–25 bar operating pressure |
| Crystallizer | Concentrated Brine | 99%+ Recovery | 20–25 kWh/m³ energy use |
ZLD Technology Comparison: Crystallizers vs. Evaporators vs. Membrane Systems
Selecting between crystallizers, evaporators, and membrane systems for packaging ZLD depends primarily on the Total Dissolved Solids (TDS) concentration, with thermal technologies required for streams exceeding 40,000 mg/L. While membrane systems like RO are the most cost-effective, they cannot reach zero liquid discharge on their own because they produce a concentrated brine stream that still requires disposal.
Crystallizers are the "gold standard" for true ZLD. They are designed to handle high-TDS effluent (>10,000 mg/L) and produce a dry solid. However, they carry the highest CAPEX, often ranging from $1.5M to $3M for a 50 m³/h system. Evaporators, specifically Mechanical Vapor Recompression (MVR) types, offer a middle ground with lower CAPEX ($800K–$2M) but higher OPEX due to the latent heat requirements of evaporation. They are ideal for medium-TDS streams (5,000–10,000 mg/L) but may still leave a concentrated liquid that requires further drying.
The most efficient approach for 2025 is the hybrid system. By using RO to concentrate the wastewater as much as possible before it hits the crystallizer, plants can reduce the size and energy consumption of the thermal unit. Data from Florida power plant case studies shows that hybrid systems can achieve 99% recovery with a balanced OPEX of $0.60–$1.00/m³.
| Technology | Optimal TDS Range | Typical CAPEX (50 m³/h) | Typical OPEX ($/m³) | Primary Advantage |
|---|---|---|---|---|
| RO/NF Membrane | < 5,000 mg/L | $300K – $600K | $0.20 – $0.50 | Lowest energy consumption |
| MVR Evaporator | 5,000 – 15,000 mg/L | $800K – $2M | $0.80 – $1.50 | Efficient volume reduction |
| Thermal Crystallizer | > 15,000 mg/L | $1.5M – $3M | $0.50 – $1.20 | True zero liquid discharge |
| Hybrid (RO + Cryst.) | Variable | $2M – $4M | $0.60 – $1.00 | Best ROI / Water Recovery |
Packaging Wastewater ZLD Cost Breakdown: CAPEX, OPEX & ROI Calculator
The total capital expenditure (CAPEX) for a 50 m³/h hybrid ZLD system in the packaging industry ranges from $2.5 million to $4.5 million, depending on the complexity of the brine concentration stage. While the initial investment is significant, the business case is built on three pillars: water savings, avoided regulatory fines, and potential product recovery. In some packaging applications, pigments and starch can be recovered from the sludge and reused, though this is site-specific.
Operating expenditure (OPEX) is dominated by energy and chemicals. Energy for a hybrid system typically costs $0.40/m³, while chemicals for pre-treatment and antiscalants add another $0.15/m³. Membrane replacement, a critical recurring cost, should be budgeted at $0.10/m³, assuming a 3–5 year membrane lifespan. Sludge disposal, often overlooked, costs approximately $0.20/m³, depending on the distance to a compliant landfill.
ROI calculations for ZLD often show a payback period of 3–7 years. For a plant paying $2.00/m³ for freshwater and facing $200,000 in annual discharge fees, the savings from 99% water recovery and zero discharge can exceed $500,000 per year. Financing options like EPA WIFIA loans or green bonds can further improve the net present value (NPV) of the project by providing low-interest capital for sustainability-linked upgrades.
| Cost Component | Estimated CAPEX | Estimated OPEX (per m³) |
|---|---|---|
| DAF & Pre-treatment | $150,000 | $0.15 (Chemicals) |
| MBR System | $400,000 | $0.05 (Aeration) |
| RO System | $300,000 | $0.10 (Membranes) |
| Crystallizer Unit | $1,200,000 | $0.40 (Energy) |
| Automation & Install | $500,000 | $0.05 (Labor) |
| Total | $2,550,000 | $0.75 – $0.95 / m³ |
ZLD Implementation Checklist: 6 Steps to Zero Liquid Discharge
Deploying an advanced packaging wastewater ZLD system requires a structured 6-step roadmap, beginning with high-resolution wastewater characterization and concluding with 30-day performance validation. Skipping a pilot phase or failing to properly characterize the "worst-case" effluent can lead to catastrophic membrane scaling or crystallizer failure during full-scale operation.
- Wastewater Characterization: Conduct a 24-hour composite sampling to measure TSS, COD, TDS, pH, and specific heavy metals. Use online sensors like the Hach UVAS sc to track organic load fluctuations.
- Pilot Testing: Run a 3–6 month pilot study using a scaled-down version of the hybrid system. This is critical for optimizing PLC-controlled chemical dosing for ZLD pre-treatment, specifically coagulants like ferric chloride (50–200 mg/L).
- Permitting and Compliance: Secure EPA NPDES or local equivalent permits. This process can take 6–12 months, so it must begin during the pilot phase.
- Equipment Procurement: Order long-lead items. Crystallizers typically have a lead time of 8–12 months, while DAF and MBR units range from 4–6 months.
- Installation and Commissioning: Allow 4–8 weeks for physical installation. This phase must include intensive operator training on PLC controls and emergency shutdown procedures for the thermal units.
- Performance Validation: Conduct a 30-day continuous monitoring period to ensure the system meets all TSS, COD, and TDS recovery targets before final handover.

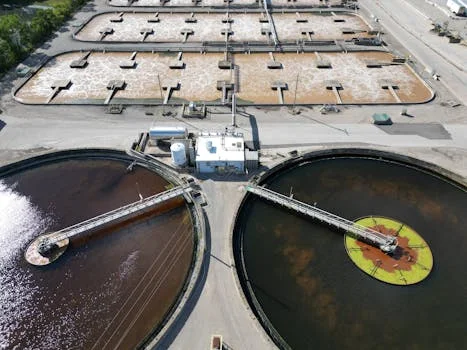

Frequently Asked Questions
What is the biggest challenge in packaging wastewater ZLD?
Scaling in crystallizers due to high calcium and sulfate levels is the primary challenge. This is mitigated through the use of high-performance antiscalants (e.g., 5–10 mg/L polyacrylic acid) or a softening pre-treatment stage to remove hardness before the brine reaches the thermal stage.
How much energy does a ZLD system use?
Stand-alone thermal crystallizers use 15–25 kWh/m³. However, hybrid RO-crystallizer systems can reduce this to 8–12 kWh/m³ by removing the bulk of the water through high-efficiency membranes first.
Can ZLD systems recover reusable water?
Yes. The RO permeate from a ZLD system typically has a TDS of less than 500 mg/L, meeting EPA standards for reuse as cooling tower makeup, boiler feed, or general process water within the packaging plant.
What are the disposal options for ZLD sludge?
The solid waste is typically sent to a landfill (EPA Subtitle D). In some regions, it can be used for cement kiln co-processing or processed for salt recovery (e.g., NaCl) for use in the chlor-alkali industry.
How long does a ZLD system last?
With proper maintenance, crystallizers and evaporators have a service life of 20+ years. Membranes (RO/NF/MBR) are considered consumables and generally require replacement every 3 to 5 years depending on fouling rates.
