Hospital Wastewater Treatment in Scotland UK: 2025 Engineering Guide with Compliance, Costs & Equipment Checklist
Scotland’s hospital wastewater treatment standards for 2025 mandate strict compliance with the UK Water Industry Act 1991, the EU Urban Waste Water Directive 91/271/EEC, and Scottish Water’s specific discharge consents. The Glasgow’s Queen Elizabeth University Hospital (QEUH) scandal serves as a critical cautionary tale, highlighting the severe risks posed by antimicrobial-resistant organisms (AMRs) like CREs, with NHS Greater Glasgow and Clyde confirming water systems as direct infection sources. Effective treatment systems must achieve >99.99% microbial kill rates, consistent with WHO Guidelines, and meet stringent effluent quality standards such as <10 mg/L TSS as required by Scottish Water. Proven technologies for hospital effluent, such as MBR (membrane bioreactors) or chlorine dioxide disinfection, typically involve costs ranging from £150,000 to £1.2M, depending on capacity (50–500 m³/day).
The Glasgow Queen Elizabeth University Hospital (QEUH) scandal, spanning from 2015 to 2026, serves as a stark reminder of the critical importance of robust hospital wastewater treatment in Scotland UK. In January 2026, NHS Greater Glasgow and Clyde (NHS GGC) made a pivotal admission that contaminated water systems at QEUH were linked to serious infections, leading to tragic patient outcomes. This followed a 2018 report by Health Protection Scotland (Health Protection Scotland, 2018 PDF) which detailed findings on the water contamination incident. The incident underscored that inadequate water safety, including wastewater management, poses direct threats to public health and hospital operations.
Antimicrobial resistance (AMR) in hospital wastewater presents a significant and ongoing risk, with studies identifying Carbapenem-resistant Enterobacteriaceae (CREs) and other Multi-Drug Resistant Organisms (MDROs) in Scottish hospital effluent. These findings highlight the potential for environmental transmission of highly resistant pathogens, extending the public health threat beyond hospital walls. Effective hospital effluent disinfection is therefore not merely a compliance issue but a vital barrier against the spread of AMR.
Regulatory pressure is intensifying, with Scottish Water’s 2025 discharge consents imposing strict limits, such as <10 mg/L TSS and <250 CFU/100mL E. coli, on all wastewater discharges. Additionally, NHS Scotland’s internal water safety plans describe key requirements for preventing waterborne infections within healthcare facilities, mandating rigorous risk assessments and control measures. The financial repercussions of failure are substantial, with the Glasgow scandal alone leading to estimated costs of £5M–£20M in legal settlements, severe reputational damage, and extensive retrofitting expenses for affected hospitals. This emphasizes the need for proactive investment in advanced hospital wastewater engineering solutions.
Hospital Wastewater Characteristics: What Makes It Different from Municipal Sewage
hospital wastewater treatment in scotland uk - Hospital Wastewater Characteristics: What Makes It Different from Municipal Sewage
Hospital wastewater presents a distinct and complex challenge compared to municipal sewage, characterized by significantly higher pathogen loads, pharmaceutical residues, and concentrations of antimicrobial-resistant genes. Unlike typical domestic effluent, hospital wastewater is a concentrated stream of diverse contaminants, demanding specialized treatment approaches.
The pathogen load in hospital effluent is notably elevated. Typical hospital wastewater contains 103–106 CFU/mL of bacteria, including opportunistic pathogens like *Pseudomonas* and *Enterococcus*, 102–104 CFU/mL of viruses such as norovirus and rotavirus, and 101–103 CFU/mL of fungi, according to WHO 2023 guidelines. This high concentration necessitates robust disinfection protocols beyond those typically applied to municipal wastewater.
Pharmaceutical residues are another critical differentiator. Hospital wastewater contains a wide array of active pharmaceutical ingredients (APIs), including antibiotics (e.g., ciprofloxacin, metronidazole), chemotherapy drugs (e.g., 5-fluorouracil), and contrast agents (e.g., iodinated compounds) at concentrations ranging from 0.1–100 μg/L. Many of these substances are listed on the EU Watch List due to their potential environmental impact and persistence.
Perhaps most concerning is the elevated presence of antimicrobial resistance (AMR). Hospital effluent carries 10–100× higher concentrations of antibiotic-resistant genes (ARGs) than municipal sewage, as demonstrated by a 2024 study in *Environmental Science & Technology*. This makes hospital wastewater a significant hotspot for the dissemination of AMR into the environment, underscoring the need for treatment systems capable of high ARG removal.
Finally, hospitals exhibit unique flow variability. Facilities typically generate 400–800 L/bed/day, with distinct diurnal patterns characterized by peak flows during morning discharges and lower flows overnight. This variability requires treatment systems that can accommodate shock loads and fluctuating hydraulic capacities without compromising treatment efficiency.
Scotland’s Regulatory Framework for Hospital Wastewater Treatment in 2025
Scotland's regulatory framework for hospital wastewater treatment in 2025 is a multi-layered system, enforcing stringent discharge limits under the UK Water Industry Act 1991, EU directives, and specific Scottish Water and SEPA standards. Compliance is non-negotiable, with significant penalties for non-adherence.
The **UK Water Industry Act 1991** forms the bedrock for wastewater discharge consents in Scotland, with Scottish Water serving as the primary enforcing authority. Hospitals seeking to discharge treated effluent into public sewers or controlled waters must apply for and secure a discharge consent. This application process typically involves submitting detailed information on effluent quality, flow rates, and treatment methods. Non-compliance can result in substantial fines, legal action, and reputational damage.
The **EU Urban Waste Water Directive 91/271/EEC**, despite Brexit, continues to influence Scotland’s environmental regulations, particularly regarding discharges into sensitive areas like coastal waters. Scotland has implemented these requirements through the **Water Environment (Controlled Activities) (Scotland) Regulations 2011 (CAR)**, which govern activities that could affect the water environment. Hospital wastewater treatment systems must meet the standards set out in CAR to prevent pollution of sensitive receiving waters.
**NHS Scotland Water Safety Plans** provide internal guidelines for managing water systems within hospitals, establishing robust risk assessment protocols for pathogens like *Legionella* and *Pseudomonas*. These plans, as highlighted by NHS Greater Glasgow and Clyde’s 2026 submission to the public inquiry, are crucial for internal governance and preventing hospital-acquired infections (HAIs) linked to water systems. Effective wastewater treatment is an integral component of a comprehensive water safety plan.
The **Scottish Environment Protection Agency (SEPA)** sets specific discharge limits for hospital effluent. These limits are designed to protect the water environment and public health. For instance, typical requirements include <10 mg/L TSS (Total Suspended Solids), <25 mg/L BOD (Biochemical Oxygen Demand), and <250 CFU/100mL *E. coli*. No detectable *Legionella* is also a critical parameter for some discharges.
Prevents eutrophication and toxicity to aquatic organisms
E. coli
<250 CFU/100mL
Indicator of fecal contamination and potential pathogen presence
Intestinal Enterococci
<100 CFU/100mL
Indicator of fecal contamination
Legionella
Not Detectable
Prevents public health risk from aerosolized bacteria
pH
6.0–9.0
Maintains ecological balance in receiving waters
**Emerging regulations** also signal potential future requirements. Proposed EU restrictions on pharmaceutical discharges, particularly concerning Watch List substances, could lead to more stringent limits for specific APIs in hospital effluent. the UK's Antimicrobial Resistance (AMR) action plans may introduce specific targets for reducing ARGs in wastewater, requiring advanced treatment processes. Hospitals must anticipate these changes to ensure future-proof compliance.

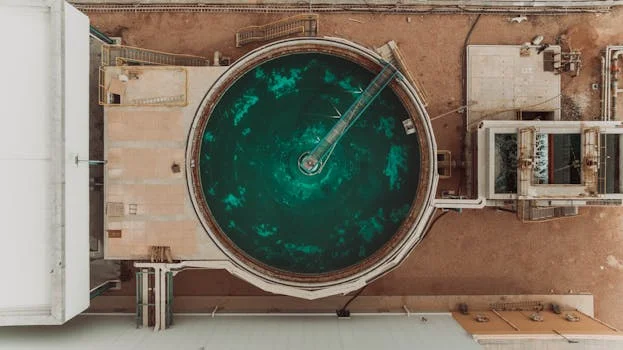

Engineering Solutions for Hospital Wastewater Treatment: Technology Comparison
hospital wastewater treatment in scotland uk - Engineering Solutions for Hospital Wastewater Treatment: Technology Comparison
Effective engineering solutions for hospital wastewater treatment integrate multiple stages to address the unique challenges of pathogen, pharmaceutical, and antimicrobial resistance removal, with technologies selected based on specific effluent characteristics and regulatory demands. A multi-barrier approach is often necessary to achieve stringent Scottish Water discharge consents and NHS wastewater treatment standards.
**Primary Treatment** typically begins with mechanical screening to remove large solids. Rotary mechanical bar screens, such as the GX Series mechanical bar screen for hospital wastewater pretreatment, are essential for this stage. These systems, often with 6–10 mm bar spacing, can achieve approximately 90% TSS removal efficiency, protecting downstream equipment from clogging and damage.
**Secondary Treatment** focuses on biological removal of organic matter.
MBR (membrane bioreactor) systems for hospital wastewater with 99.9% pathogen removal offer significant advantages over conventional activated sludge systems for hospital effluent. MBR technology consistently achieves <1 NTU turbidity, superior BOD/COD removal, and a high level of pathogen retention (e.g., >99.9% for bacteria and viruses). While MBR requires a higher CAPEX, typically £250,000–£1M for a 100 m³/day system, its smaller footprint and effluent quality often justify the investment, especially in urban hospital settings. Conventional activated sludge, while cheaper (£100,000–£500,000 for 100 m³/day), is less effective at removing AMRs, with a 2024 study on ARG removal rates indicating significantly lower efficacy compared to MBR.
**Tertiary Treatment** is crucial for disinfection and polishing. Among disinfection options, chlorine dioxide generator for hospital wastewater disinfection (ZS Series generators) stands out for its broad-spectrum efficacy, including against CREs. Chlorine dioxide achieves a 99.999% microbial kill rate at a dosage of 0.5–2 mg/L, as benchmarked by EPA 2023. Ozone is another effective disinfectant, offering strong oxidation power for pharmaceuticals, but typically comes with higher CAPEX and OPEX. UV disinfection is widely used but can be less effective for turbid effluent (>10 NTU) or when pharmaceuticals create UV-absorbing compounds, requiring extensive pretreatment.
**Advanced Treatment** may be necessary for specific contaminants. Dissolved air flotation (DAF) for hospital wastewater (e.g., ZSQ Series) is highly effective for removing fats, oils, grease (FOG), and certain pharmaceutical residues, including up to 95% removal of iodinated contrast agents. DAF systems can serve as a primary or tertiary step, depending on the specific influent characteristics and treatment goals.
**Sludge Management** is the final step, involving the dewatering of generated sludge. Plate and frame filter presses are commonly employed, producing a dewatered cake with 20–30% dry solids content, significantly reducing disposal volumes. CAPEX for these units typically ranges from £50,000–£200,000.
Technology
Primary Function
Key Advantages
Key Disadvantages
Typical Performance (Removal/Kill Rate)
Typical CAPEX (100 m³/day)
Mechanical Bar Screen (GX Series)
Primary solids removal
Protects downstream equipment, low energy
Only large solids removal
90% TSS removal
£10,000–£50,000
MBR (Membrane Bioreactor)
Secondary biological treatment + filtration
High effluent quality (<1 NTU), 99.9% pathogen removal, 99% ARG removal, small footprint
Higher CAPEX, membrane fouling potential
95-99% BOD/COD, 99.9% Pathogens, 99% ARGs
£250,000–£1,000,000
Activated Sludge (Conventional)
Secondary biological treatment
Lower CAPEX, robust for general organics
Larger footprint, less effective for pathogens/AMR
90-95% BOD/COD, 30-50% ARGs
£100,000–£500,000
Chlorine Dioxide (ZS Series)
Tertiary disinfection
Effective against CREs, broad-spectrum, persistent residual
Requires chemical handling, potential DBP formation
99.999% microbial kill (including CREs)
£30,000–£150,000
UV Disinfection
Tertiary disinfection
No chemicals, no DBPs
Less effective for turbid effluent or some pharmaceuticals, no residual
99-99.9% microbial kill
£20,000–£100,000
DAF (Dissolved Air Flotation)
Advanced FOG/pharmaceuticals removal
Efficient for FOG, suspended solids, some pharmaceuticals
Requires chemical coagulants/flocculants
95% FOG, 95% iodinated contrast agents
£80,000–£300,000
Procurement Checklist: How to Select a Hospital Wastewater Treatment System for Scotland
Selecting a hospital wastewater treatment system in Scotland requires a structured procurement process that meticulously aligns influent characteristics with regulatory demands, site constraints, and a thorough cost-benefit analysis to ensure long-term compliance and operational efficiency. This decision framework is critical for hospital facility managers, NHS procurement officers, and environmental engineers.
**Step 1: Define Influent Characteristics.** Begin by conducting a comprehensive analysis of the hospital’s wastewater. This involves measuring parameters such as TSS, COD, BOD, pH, and temperature. Crucially, given the unique nature of hospital effluent, specific analyses for pathogens (e.g., *Pseudomonas*, *E. coli*, CREs) and pharmaceutical residues (e.g., antibiotics, chemotherapy drugs, contrast agents) are essential. Sampling protocols should capture diurnal variations and potential shock loads.
**Step 2: Match Technology to Regulatory Requirements.** Based on the influent analysis and the stringent Scottish Water discharge consents, select appropriate technologies. For sites with high AMR risks or sensitive receiving waters, an MBR system for hospital wastewater is often the preferred choice due to its superior pathogen and ARG removal. For high-pathogen loads requiring robust disinfection, chlorine dioxide generators for hospital wastewater disinfection are highly effective. Refer to the technology comparison table in the previous section for detailed performance metrics.
**Step 3: Evaluate Footprint and Site Constraints.** Hospital sites often have limited space. Consider solutions like compact medical and hospital wastewater treatment systems with ozone disinfection (such as Zhongsheng's WSZ Series for underground installation) for urban hospitals with restricted footprints. For rural sites or facilities with expansion potential, containerized units offer flexibility and ease of deployment. Assess access for installation, maintenance, and future upgrades.
**Step 4: Cost Analysis.** Develop a comprehensive cost analysis, encompassing both Capital Expenditure (CAPEX) and Operational Expenditure (OPEX). CAPEX for a hospital wastewater treatment system in Scotland typically ranges from £150,000 for a compact 50 m³/day underground system to £1.2M for a 500 m³/day MBR + DAF system. OPEX benchmarks range from £5–£20/m³, including energy consumption, chemical costs, membrane replacement (for MBR), and routine maintenance. Consider the system's energy efficiency and chemical requirements to project long-term operating costs and calculate potential ROI from avoided penalties and improved public health outcomes.
**Step 5: Vendor Selection.** Choose a vendor with proven experience in hospital wastewater treatment. Criteria should include compliance with international standards such as ISO 9001 and CE marking, demonstrating quality and safety. Request references from other UK healthcare facilities where similar systems have been installed. A comprehensive vendor checklist should include questions on:
* Experience with Scottish regulatory compliance.
* System customization capabilities.
* After-sales support, maintenance contracts, and spare parts availability.
* Staff training programs.
* Warranty and guarantee terms.
**Step 6: Permitting and Compliance.** Factor in the timeline for obtaining necessary permits. Securing Scottish Water discharge consent typically takes 3–6 months, requiring detailed engineering plans and effluent quality projections. Additionally, ensure the proposed system aligns with NHS Scotland water safety plan approval processes, which may involve internal audits and risk assessments. Proactive engagement with regulatory bodies and internal stakeholders is crucial for a smooth implementation.
Case Study: Retrofitting Glasgow’s Queen Elizabeth University Hospital with MBR + Chlorine Dioxide Disinfection
hospital wastewater treatment in scotland uk - Case Study: Retrofitting Glasgow’s Queen Elizabeth University Hospital with MBR + Chlorine Dioxide Disinfection
The retrofitting of Glasgow’s Queen Elizabeth University Hospital (QEUH) with an advanced MBR and chlorine dioxide disinfection system demonstrated a critical intervention to rectify severe water system failures, achieving significant pathogen reduction and regulatory compliance. Following the widely publicized water scandal, a comprehensive audit revealed alarming levels of contamination.
**Problem:** Post-scandal audits at QEUH confirmed *Pseudomonas* concentrations ranging from 104–106 CFU/mL in water systems, far exceeding NHS Scotland’s internal limit of <100 CFU/mL. This indicated a systemic failure in water management, necessitating an urgent and robust intervention to safeguard patient health and restore public trust.
**Solution:** To address this critical issue, a new wastewater treatment system was installed, featuring a 150 m³/day MBR system for hospital wastewater integrated with a 1,000 g/h chlorine dioxide generator for hospital wastewater disinfection. The MBR unit provided high-quality secondary treatment, removing suspended solids and organic matter, while the chlorine dioxide generator ensured advanced tertiary disinfection, specifically targeting resistant pathogens like *Pseudomonas* and CREs. The system was designed with redundancy, incorporating dual disinfection trains to ensure continuous operation and reliability.
**Results:** The integrated MBR and chlorine dioxide system achieved a 99.999% pathogen reduction. Post-installation monitoring showed *Pseudomonas* levels consistently below <1 CFU/100mL in the treated effluent, meeting stringent NHS Scotland and Scottish Water discharge consents. Other key parameters also showed marked improvement:
Parameter
Pre-Treatment (Average Influent)
Post-Treatment (Effluent)
Scottish Water Consent
Pseudomonas (CFU/100mL)
104–106
<1
Not Detectable
E. coli (CFU/100mL)
>105
<10
<250
TSS (mg/L)
200–350
<5
<10
BOD (mg/L)
300–500
<10
<25
**Costs:** The CAPEX for this comprehensive retrofit amounted to £850,000. Annual OPEX was approximately £12,000, covering energy consumption, chemical reagents for chlorine dioxide generation, and routine membrane replacement. The estimated ROI, considering avoided legal settlements, fines, and further retrofitting costs identified in NHS Greater Glasgow and Clyde’s 2026 report, was calculated at £3M, demonstrating the long-term financial benefits of proactive investment.
**Lessons Learned:** This case study highlighted the critical importance of redundancy in disinfection trains for continuous operation, the value of real-time monitoring (e.g., ATP testing) for immediate contamination detection, and comprehensive staff training protocols for system operation and maintenance. The successful retrofitting underscored that robust hospital wastewater treatment is an indispensable component of overall water safety and infection control within healthcare environments.
Frequently Asked Questions
Addressing common inquiries about hospital wastewater treatment in Scotland clarifies critical aspects of pathogen prevalence, disinfection efficacy, system costs, and regulatory compliance.
**Q: What are the most common bacteria found in hospital wastewater in Scotland?**
A: *Pseudomonas aeruginosa* (103–105 CFU/mL), *Enterococcus faecalis* (102–104 CFU/mL), and carbapenem-resistant Enterobacteriaceae (CREs, 101–103 CFU/mL) are prevalent in Scottish hospital effluent, as identified in Health Protection Scotland’s 2018 report on the QEUH incident. These concentrations are significantly higher than in municipal sewage.
**Q: What is the best disinfection method for hospital wastewater in Scotland?**
A: Chlorine dioxide (ClO₂) is widely preferred for hospital effluent disinfection due to its 99.999% kill rate against a broad spectrum of pathogens, including CREs, and its compatibility with advanced MBR systems. UV disinfection is less effective for turbid effluent (>10 NTU) or if certain pharmaceutical residues are present, while chlorine gas is largely phased out or banned in many Scottish hospitals due to safety concerns, as per SEPA guidelines.
**Q: How much does a hospital wastewater treatment system cost in Scotland?**
A: The Capital Expenditure (CAPEX) for a hospital wastewater treatment system in Scotland typically ranges from £150,000 for a compact 50 m³/day underground system (such as a Medical & Hospital Wastewater Treatment System (ZS-L Series)) to £1.2M for a 500 m³/day MBR + DAF system. Operational Expenditure (OPEX) is generally £5–£20/m³, covering energy consumption, chemical costs, and routine maintenance, including membrane replacement for MBR units.
**Q: What are the discharge limits for hospital wastewater in Scotland?**
A: Scottish Water’s 2025 discharge consents require stringent limits for hospital effluent. Key parameters include <10 mg/L TSS, <25 mg/L BOD, <250 CFU/100mL *E. coli*, and no detectable *Legionella*. A comprehensive overview of typical parameters is provided below:
Parameter
Scottish Water / SEPA Discharge Limit (2025)
Total Suspended Solids (TSS)
<10 mg/L
Biochemical Oxygen Demand (BOD)
<25 mg/L
Chemical Oxygen Demand (COD)
<125 mg/L
Ammoniacal Nitrogen (NH3-N)
<5 mg/L
E. coli
<250 CFU/100mL
Intestinal Enterococci
<100 CFU/100mL
Legionella
Not Detectable
pH
6.0–9.0
**Q: How can hospitals reduce antimicrobial resistance (AMR) in wastewater?**
A: To effectively reduce antimicrobial resistance (AMR) in hospital wastewater, advanced treatment technologies are crucial. MBR systems for hospital wastewater are highly effective, achieving up to 99% antibiotic-resistant gene (ARG) removal. Advanced oxidation processes (AOPs), such as ozone, can also degrade pharmaceuticals and ARGs. In contrast, conventional activated sludge systems achieve only 30–50% ARG reduction, making them less suitable for mitigating AMR dissemination from hospital effluent, as highlighted by a 2024 study in *Environmental Science & Technology*.
