Why Delhi Semiconductor and Data-Hall Wastewater Is a 2026 Problem
The global semiconductor market reached US$ 543,137,368 thousand by 2022 and is growing at an 8.6% CAGR, with growth in Delhi NCR driven by OSAT, compound semiconductor, and silicon fab build-out alongside hyperscale data-hall campuses in Greater Noida and Gurugram (Sim et al., 2023, S2). Korea's documented trajectory — wastewater generation rising by 177,937 m³/d (19.3%) and discharge by 164,833 m³/d (19.0%) from 2010 to 2019 — is a useful sizing reference for what a maturing Delhi fab cluster will look like once it reaches steady-state output (Sim et al., 2023, S2). That scale makes the contamination profile of fab effluent an emerging issue of significant complexity: documented contaminant families include fluoride, ammonia nitrogen, phosphate, turbidity, photoresist, and washing solutions (Sim et al., 2023, S2).
A 2026 Delhi design cannot be planned as a single blend. Two distinct waste inventories must be served in parallel: the fab side (CMP slurry, HF-bearing etchant, TMAH developer, photoresist stripper, copper-bearing polishing waste) and the data-hall side (cooling-tower blowdown, humidifier drain, generator coolant, and occasional server-flush waste). The local compliance layer — CPCB effluent tightening, Delhi Pollution Control Committee consent under the Water Act 1974, the Yamuna stretch as a receiving water body, and Delhi's structural water stress — dictates whether the plant targets reuse, MLD, or ZLD. Generic "treat-then-discharge" designs sized only to today's 2024/2025 consent numbers will not survive a 2026 PFR/CTO review or the next enforcement cycle. For a comparable 2026 framework on a European site, see the Hamburg semiconductor and data-hall wastewater 2026 guide.
Waste Stream Inventory: What a Delhi Fab and Data Hall Actually Discharge
Sim et al. (2023, S2) document the semiconductor fabrication chain as nine process steps: wafer manufacturing, oxidation, photolithography, etching, deposition and ion implantation, metallization, electrical die sorting (EDS), and packaging. Each step contributes a different contaminant family, and a Delhi EHS team should map its consent application against the same grid. The dominant groupings are fluoride from HF-bearing etchants, ammonia nitrogen and TMAH from developer and resist steps, phosphate from cleaning chemistries, turbidity from CMP slurry, and organics (photoresist, solvents, stripping agents) from lithography and metallization (Sim et al., 2023, S2). The EHS team should specifically flag four high-risk chemistries for the consent application: HF-bearing etchant waste, TMAH developer, copper-bearing CMP slurry, and solvent-bearing photoresist stripper — each carries a separate handling pathway and a separate consent line.
Data-hall streams sit in a parallel inventory that the global academic reviews do not address. Cooling-tower blowdown carries silica, hardness, and biocides; humidifier drain adds dissolved solids; generator coolant contributes glycol trace; and server-flush events produce episodic spikes. Without proper segregation, fluoride, ammonia, and phosphate loadings arriving at a single biological step will defeat downstream reuse targets, and a single equalization tank will flatten the spike patterns that the upstream chemistries need to handle separately (Sim et al., 2023, S2). The stream map is the first deliverable for a Delhi plant, written before any equipment is selected.

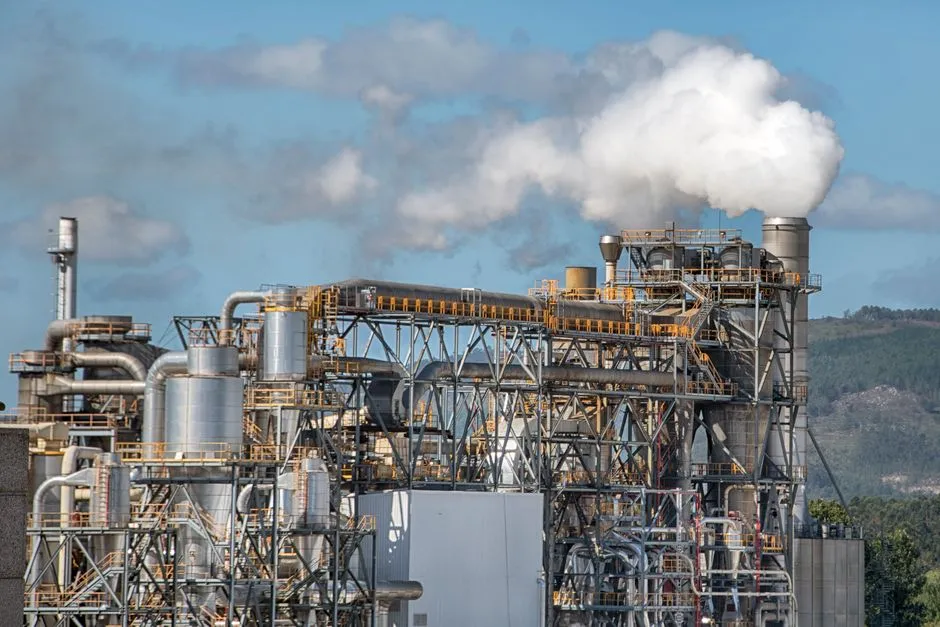

Delhi 2026 Compliance Layer: CPCB Norms, State Consent, and the Yamuna Question
The 2026 compliance backbone for a Delhi plant consists of three pillars: factory consent under the Water Act 1974 routed through the Delhi Pollution Control Committee, hazardous-waste authorization, and CTO conditions covering fluoride, heavy metals, ammonia, and TDS. The CTO will also reference the CPCB effluent norms in force at the time of commissioning, which are tightening. Request the current consent limits from DPCC at design kickoff and engineer the train to meet the most likely 2026 tightening rather than the present 2024/2025 limits.
Delhi sites face stricter public scrutiny than most Indian industrial clusters because of the Yamuna stretch. The engineering design should target maximal recovery rather than legal-minimum direct discharge. The global direction of travel documented in the literature is toward minimal or zero liquid discharge systems and reuse (iScience, 2025, S4), and aligning a Delhi design with that direction reduces enforcement risk. A 2026 PFR/CTO submission that names an MLD or ZLD-ready train is easier to defend than one anchored to direct discharge under today's consent.
Building the Treatment Train: A 2026 Engineering Flow
Sim et al. (2023, S2) organize the documented semiconductor treatment space into physical, chemical, biological, and combined/hybrid categories. A 2026 Delhi train routes each segregated stream to a matched unit process, then funnels polished effluents to a common reuse backbone. The sequence below reflects what the literature documents as deployed or pilot-validated on real fab waste.
| Stream | Primary unit process | Documented evidence |
|---|---|---|
| Fluoride-bearing (HF etchant) | Chemical precipitation and/or electrocoagulation–electroflotation | Aoudj et al., 2017; Sim et al., 2023, S2 |
| Ammonia + TMAH-bearing | Biological nitrification, followed by UV/H₂O₂ or UV-LED/H₂O₂ polish | Kim et al., 2022; Sim et al., 2023, S2 |
| CMP slurry | Electrocoagulation–flotation with surfactant dosing, optional metal recovery | Hu et al., 2005; Chou et al., 2009; Sim et al., 2023, S2 |
| Photoresist / organics | Catalytic wet oxidation, adsorption, or biological step with AOP polish | Ji et al., 2010; Sim et al., 2023, S2 |
| Combined polish (multi-stream) | Advanced oxidation + microfiltration + RO pilot | An et al., 2022; Sim et al., 2023, S2 |
| Data-hall cooling blowdown | Lime/soda softening or side-stream RO for silica and hardness | Qualitative — beyond the global reviews |
| Polishing & reuse | UF → RO → EDI to UPW-grade | Standard microelectronics practice; Sim et al., 2023, S2 |
For pretreatment, a dissolved air flotation (DAF) system handles suspended solids and CMP fines ahead of the chemical step. An MBR membrane bioreactor carries the biological load for ammonia and biodegradable organics. A polishing train of industrial RO system followed by an EDI polishing stack delivers UPW-grade reuse, and an automatic chemical dosing system holds reagent stoichiometry across variable feed. The combined AOP + MF + RO sequence documented in An et al. (2022) is the closest published analogue to a hybrid reuse polish and confirms that this is a real, deployed technology (Sim et al., 2023, S2).
Reuse and the Move Toward MLD/ZLD: What a 2026 Delhi Design Should Aim For
The global semiconductor industry is transitioning toward minimal liquid discharge systems (iScience, 2025, S4). A 2026 Delhi design should follow this trajectory. UPW-grade reuse is achieved by routing RO permeate to an EDI polishing stack, the documented semiconductor UPW-reclaim practice, and the same approach referenced in the adjacent semiconductor UPW reclaim and ZLD blueprint.
Delhi sites should specify high recovery (≥85–95%) at the RO/UF stage as a baseline. ZLD adds a thermal or evaporative polish — crystallizer or brine concentrator — that must be weighed against Delhi power costs, discharge liability, and consent risk. For an ultrafiltration step ahead of RO, an ultrafiltration (UF) system is the standard guard. The core decision is how much brine the site is willing to send to a thermal polisher and what consent that brine stream requires.
Decision Framework: Discharge vs MLD vs ZLD for a Delhi Plant
Three pathways exist on a spectrum, and a 2026 Delhi plant should choose deliberately. The framework below maps the documented industry direction (iScience, 2025, S4) onto site drivers a Delhi engineer faces.
| Pathway | Configuration | Best fit on a 2026 Delhi site | Key risk |
|---|---|---|---|
| Direct discharge under CTO | Treatment to consent limits, then discharge | Smaller data-hall campuses; sites with reliable downstream sewer capacity | Consent tightening, public scrutiny, Yamuna stretch |
| MLD (high-recovery RO with small brine) | UF → RO → EDI; small brine to sewer or thermal polish | Default 2026 choice for most Delhi fabs and data halls | Brine consent line; RO recovery ceiling |
| ZLD (thermal brine crystallization) | MLD plus crystallizer / brine concentrator; zero liquid effluent | Water-stressed sites, sites adjacent to sensitive receptors, large wafer fabs | Energy cost, capex, thermal system complexity |
The recommended default for a 2026 Delhi semiconductor design is MLD with ZLD-ready pretreatment, ensuring that future tightening of CPCB norms or DPCC consent does not force a redesign. A wafer fab is more likely to face ZLD pressure than a data-hall campus, because the fab's stream complexity and contamination severity push the MLD brine to a level where the regulator and the public both demand zero effluent. The cost trade-off between these pathways is covered in the CMP wastewater treatment cost comparison for 2026, which a procurement manager should request alongside any vendor quotation.
Frequently Asked Questions
What is the most likely 2026 design default for a Delhi semiconductor or data-hall site?
MLD with ZLD-ready pretreatment — specifically, a UF → RO → EDI polish on the reuse side with a small brine stream that can be routed to a thermal polisher if consent tightens. This matches the global direction documented as a transition toward minimal liquid discharge systems (iScience, 2025, S4) and gives the 2026 PFR/CTO submission room to absorb a future DPCC tightening without a redesign.
What inputs should a buyer request from a supplier before pricing a 2026 Delhi wastewater train?
Request at least three items: (1) a site-specific stream map with flow and load per segregated stream; (2) the current DPCC consent and CTO conditions for the specific plot, since equipment configuration changes based on the discharge line; and (3) a target recovery figure at the RO/UF stage in the ≥85–95% band documented for semiconductor UPW reclaim, so vendor proposals can be compared on a like-for-like basis. A CMP wastewater treatment cost comparison for 2026 reference helps frame expectations.
How should a Delhi engineer sequence fluoride, ammonia, and CMP-slurry treatment on a single site?
Treat them as segregated streams rather than a single blend. Fluoride-bearing waste goes to chemical precipitation and/or electrocoagulation–electroflotation; ammonia and TMAH go to biological nitrification with a UV/H₂O₂ polish; CMP slurry goes to electrocoagulation–flotation with surfactant dosing (Sim et al., 2023, S2). Equalizing the streams into one biological step defeats downstream
