Why Disc Filter Faults Usually Start Before the Filter
Most disc filter faults originate upstream of the filter itself, not inside the unit you are about to open (HydropureWater field data, 2026). When an operator pages out at 2 AM and sees disc filter differential pressure climbing, the temptation is to isolate the vessel and start pulling discs — but the root cause is usually sitting in the secondary clarifier, the DAF, or the coagulant dosing skid. A "sudden performance shift" — rising effluent TSS combined with a normal differential pressure — almost always means an upstream biological or coagulation upset, not a mechanical failure inside the disc stack.
Four upstream parameters deserve a check before any wrenches come out:
- Influent TSS — a spike from 10 mg/L to 30 mg/L will collapse a 30–60 min backwash cycle to under 10 min.
- FOG loading — grease and oil blind cloth media fast and resist backwash.
- Coagulant dose — under-dosing sends uncoagulated floc through to the discs and forces premature backwash.
- Biological bulking — check sludge recycle clarity; a high SVI in the activated sludge system will push excess solids onto the media.
The cycle-interval rule is a fast field test: a normal 30–60 min backwash cycle collapsing to under 10 min is a near-certain indicator of upstream solids overload or under-dosed coagulant, not a disc problem. The one-line field rule worth repeating to every shift is: check influent before you open the unit.
Master Symptom-to-Cause Decision Matrix
The table below collapses the symptom-to-cause decision tree into a single scannable view: alarm, probable cause, first instrument check, the decision rule that triggers the next move, and the time-to-fix on each row. Use it as the first stop on every tertiary filtration troubleshooting call.
| Alarm / symptom | Probable cause | First check (instrument) | Decision rule | Time-to-fix |
|---|---|---|---|---|
| High ΔP >0.7 bar, no recovery | Chemical scaling on disc media | Review backwash cycle log for last 24 h | If influent hardness >200 mg/L as CaCO₃ or iron >1 mg/L → CIP | 2–4 hours (planned) |
| High ΔP, no recovery, drive current spike | VFD fault or hydraulic lock | Read VFD fault code from panel first | 30 sec reset vs 30 min pull-apart — code first | 30 sec – 30 min |
| Backwash runs but ΔP stays high | Clogged backwash nozzle or Y-strainer | Read backwash pressure at gauge | 3–5 bar spec; drift >0.5 bar = strainer | 15–45 min |
| Effluent TSS rising, ΔP normal | Media bypass (torn or loose disc stack) | Pull one disc and inspect surface | Torn, deformed, or channeled = replace | 1–2 hours |
| Seal leakage at endcap or shaft | Worn mechanical seal or O-ring | Hand-turn drum with drive isolated, look for weep marks | Visible weep = seal kit replacement | 1–2 hours |
| Worn drive coupling or gearbox | Mechanical wear in drive train | Hand-turn drum with drive isolated | Hot to touch within 10 min of operation = gearbox | 2–4 hours (OEM service) |
High ΔP That Will Not Recover: Fouling vs Scaling
High differential pressure that does not recover after backwash is the single most common disc filter fault, and the diagnostic rule separates it cleanly: fouling returns to baseline after 1–2 backwash cycles; scaling does not. After 2–3 non-recovering cycles, the disc filter is chemically scaled and CIP is the correct next step. For a deeper look at the same fault family, the 2026 disc filter troubleshooting field guide walks the same case end to end.
The creeping-baseline metric is the earliest warning of slow mineral deposition: ΔP rising 0.05–0.1 bar per day across multiple cycles is the signature of carbonate or iron scale, often visible 2–3 weeks before the backwash trigger setpoint is reached (HydropureWater field data, 2026). The field test for scaling is to pull an influent sample and test for hardness (>200 mg/L as CaCO₃) and total iron (>1 mg/L); either positive means scale, not fouling.
There is a common trap worth flagging. Raising the backwash setpoint to 1.0 bar to "buy time" accelerates media fatigue without solving the underlying deposition — explicit no-go for any disc filter. The CIP recipe depends on the deposit:
- Carbonate scale: 2–4% citric acid at 30–40 °C for 2–4 hours (preferred — gentle on elastomers and 304 SS).
- Iron-dominated deposits: switch to 1–3% oxalic acid; never use HCl above 3% unless metallurgy documentation specifically permits it, because HCl attacks 304 stainless and most seal elastomers within hours.
Cross-link rule: if a upstream multi-media filter for iron and hardness reduction is in the train and the disc filter is scaling, the multi-media filter is under-performing — fix both stages in the same work order. The same chemistry applies whether it is dosed manually or via an automatic chemical dosing system for CIP acid and coagulant control.
Backwash Failure: Nozzles, Solenoids, Strainers, and Pressure
Backwash failure ranks as the second most frequent disc filter fault class, and the four components fail in roughly this order of frequency: rotating backwash nozzle → isolation solenoid or pneumatic valve → booster pump or pressure supply → Y-strainer on the backwash water line.
Clogged nozzles are the most common field failure. Remove one, inspect for biofilm or scale, and clean with a soft brush and a mild acid soak. Never use metal tools that score the orifice — a scratched nozzle distorts the spray pattern and leaves an unwashed strip of disc behind it. Hydrotech-style disc filters typically run 3–5 bar at the nozzle; low backwash pressure mimics a fouled-disc symptom by leaving solids in place even when the cycle "completes."
The Y-strainer trap is the silent killer. A clogged strainer starves the backwash pump and cripples cleaning without triggering a separate alarm on the PLC. A pressure drift of more than 0.5 bar from the gauge baseline almost always means a partially clogged strainer — pull the screen, flush, and re-pressurize before assuming the discs are at fault.
The solenoid/pneumatic trap is the second silent failure mode: the backwash cycle will log as "complete" on the PLC even though no water moved. If the unit does not already have a flow switch on the backwash line, install one — the absence of a flow signal is the only way to catch a stuck valve on most stock installations (Veolia Hydrotech design references, 2025).
Drum Rotation Faults: VFD, Coupling, Gearbox, and Hydraulic Lock
Drum rotation faults stop filtration entirely and force an immediate decision. The correct order of checks is: VFD power and fault code → manual hand-turn with drive isolated → drive coupling → gearbox → nozzle carriage track. The "30 seconds vs 30 minutes" framing matters here: clearing a VFD fault and resetting the drive takes about 30 seconds, while pulling a coupling apart to find a healthy drive takes 30 minutes — read the fault code from the panel before opening any guards.
Many disc filters slow the drum to 0.5–1 rpm during backwash, and a stuck VFD mimics a mechanical jam even though the drive is healthy. Read the fault code first.
The hydraulic lock rule is the next decision point. If drive power is present but the drum stalls under no flow, the disc stack is hydraulically locked by fouling. Backwash manually with the drum stationary to dislodge the mat before re-energizing rotation — re-energizing a locked stack will burn out the drive motor in minutes.
Once the drum moves freely, inspect the drive coupling and gearbox. A worn coupling allows slippage that presents as intermittent rotation under load; a failing gearbox will run hot to the touch within 10 minutes of operation (HydropureWater field data, 2026). The nozzle carriage is the last check: debris wedged in the nozzle track jams the carriage against the disc stack, a frequent cause after a hydraulic upset sends rags or plastic fragments into the filter.
Escalation rule: call the OEM when drive current exceeds nameplate by more than 15% under normal load. For a parallel diagnostic on rotating equipment health, the smart pump monitoring and predictive maintenance guide for US municipal wastewater covers the predictive-maintenance side of the same problem family.
Media Bypass: When ΔP Looks Perfect but TSS Is Rising
Media bypass is the most deceptive disc filter fault class because the instruments lie. The filter cycles normally, ΔP reads clean, but effluent TSS doubles — the discs are no longer capturing solids. The fix is disc media replacement; no backwash or CIP cycle will recover a torn element.
Pull one disc and inspect for torn, deformed, or channeled sections. A single torn disc can let pass-through solids double the effluent TSS even when ΔP reads perfectly clean. The compliance stakes are real: a disc filter running with one compromised disc can blow an entire reuse-permit compliance window if TSS rises above the 5 mg/L typical reuse threshold (HydropureWater field data, 2026).
Check the disc stack compression next. Loose stacks allow influent to bypass around the disc edge rather than through the media — a stack that has lost its preload torque reads normal ΔP while letting 20–40% of the flow short-circuit. Also verify that the influent flow distribution is even across the disc pack; uneven flow overloads one section and underutilizes the rest, accelerating media wear on the hot spot. Re-torque the stack to OEM spec after any disc pull, and replace the element rather than chasing symptoms that chemistry cannot reach.

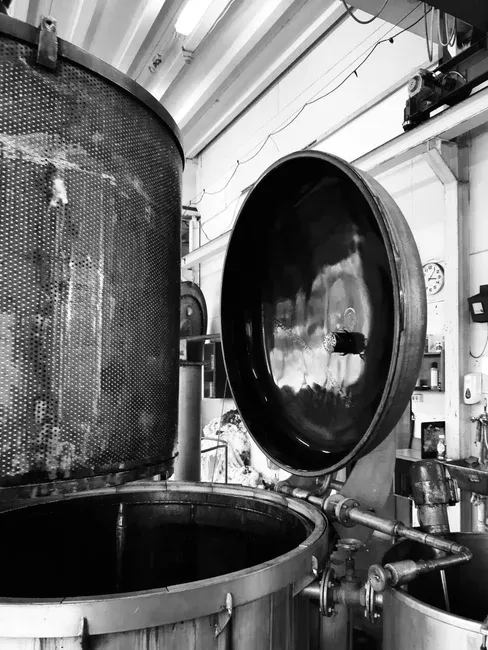

Clean-In-Place Protocol: The 2–4 Hour Shutdown Procedure
CIP is the required maintenance step when mechanical backwash cannot recover baseline ΔP, typically a 2–4 hour planned shutdown for a single-vessel disc filter in tertiary duty. The parameters below are the ones a planner can lift directly into a work order.
| Step | Action | Parameter / spec |
|---|---|---|
| 1. Isolate | Close influent and effluent isolation valves; drain the vessel; confirm zero flow at the drain | Double-block or LOTO per site procedure |
| 2. Pre-flush | Flush with clean water to remove loose solids and confirm CIP loop is leak-free | Until effluent runs clear |
| 3. Circulate acid | 2–4% citric acid for carbonate scale; 1–3% oxalic acid for iron-dominated deposits | 30–40 °C, 2–4 hours contact time |
| 4. Neutralize | Flush to drain with pH monitoring until effluent is between 6 and 9 | pH 6–9 before return to service |
| 5. Post-CIP baseline check | Record ΔP at clean state; escalate if not back to spec | ΔP <0.2 bar = pass; higher = OEM call |
Safety callout: never use HCl above 3% unless metallurgy documentation specifically permits it. HCl at >3% attacks 304 stainless components and most seal elastomers within hours. Citric acid first, oxalic second, dilute HCl only when metallurgy permits.
Preventive Maintenance Cadence: From Daily Trend to Annual CIP
Converting the troubleshooting playbook into a routine prevents the next 2 AM alarm page. The cadence below is anchored to a specific data point: proactive CIP at 12-month intervals typically extends disc media life by 40–60% in reuse-duty service (HydropureWater field data, 2026).
- Daily: log ΔP trend, backwash cycle count, and effluent TSS on a single trend sheet. A creeping baseline ΔP is the earliest warning of scale onset, often visible 2–3 weeks before the backwash trigger setpoint is reached.
- Weekly: inspect backwash nozzles and the Y-strainer; verify backwash pressure at the gauge reads within ±0.3 bar of OEM spec. A drift of more than 0.5 bar usually means a partially clogged strainer.
- Quarterly: full mechanical inspection of drive coupling, seal integrity, and disc stack compression; re-torque the stack to OEM spec if any disc was pulled for inspection.
- Annually: replace wear items (seals, nozzle O-rings, drive belts) and consider a planned CIP even if no scaling alarm has triggered. The 40–60% media-life-extension figure on this row is the single best ROI argument in the playbook.
Escalation triggers: call the OEM when CIP fails to recover baseline ΔP, the disc stack shows visible deformation, or drive current exceeds nameplate by more than 15% under normal load. For a parallel cadence covering the front end of the plant, the coarse screen inlet works maintenance guide covers the upstream side of the same preventive model.
Frequently Asked Questions
What is a normal differential pressure for a disc filter?
A healthy disc filter baseline runs below 0.2 bar; the backwash trigger is typically set between 0.5 and 0.7 bar. Non-recovery above 0.7 bar after 2–3 automatic cycles indicates chemical scaling and triggers CIP, not further backwashing (HydropureWater field data, 2026).
How do I know if my disc filter is fouled or scaled?
Fouling returns to baseline ΔP after 1–2 backwash cycles; scaling does not. Confirm by testing influent for hardness >200 mg/L as CaCO₃ or iron >1 mg/L — either positive is the scaling signature in tertiary duty.
What is the best CIP chemical for a scaled disc filter?
2–4% citric acid at 30–40 °C for 2–4 hours for general carbonate scale. Switch to 1–3% oxalic acid for iron-dominated deposits. Avoid HCl above 3% on 304 stainless unless metallurgy documentation specifically permits it — HCl attacks 304 SS and most seal elastomers within hours.
Why is my backwash running but ΔP stays high?
Most often a clogged backwash nozzle or Y-strainer. Verify backwash pressure at the gauge is 3–5 bar (Hydrotech-style) and pull the strainer screen; a clogged strainer will not trigger a separate alarm, so it is a silent failure mode.
How often should I CIP my disc filter in reuse duty?
Proactive CIP at 12-month intervals extends disc media life by 40–60% in reuse-duty service and prevents compliance excursions (HydropureWater field data, 2026). Scale-onset indicators in the daily ΔP trend should also trigger an unscheduled CIP — a creeping 0.05–0.1 bar per day baseline is the early warning.
