Why Kolkata's Domestic Sewage Problem Demands Engineered Treatment in 2026
India generates 72,368 MLD of urban wastewater but treats only about 28%, or 20,236 MLD; the remaining roughly 72% is discharged untreated into rivers, lakes, or groundwater (Niti Aayog 2022, as reported in NEPT 2024). Against that national baseline, the Central Pollution Control Board's 2021 audit found that approximately 39% of Indian sewage treatment plants fail the overall standards in the Environmental (Protection) Rules for discharge to water bodies, with "failure" most often surfacing as BOD, TSS, or fecal coliform exceedance. Kolkata sits inside both statistics. A NEPT 2024 characterisation of the East Kolkata Wetlands shows that the city's wastewater flow into the wetland system averages 909.07 MLD in winter and 709.34 MLD in summer, and the EKW achieves only 59.1% BOD removal and 99.28% fecal coliform reduction on that load, which is a useful natural benchmark but not a compliance route. WHO's 2018 field report on the same system is more pointed: Kolkata reuses almost 90% of its wastewater through more than 250 ponds spread across 12,000 hectares of the East Kolkata Wetlands, supporting around 20,000 families through aquaculture and irrigation, yet the same WHO team flagged diarrhoea and helminthic infection risks for the workers and downstream consumers. The engineering takeaway for any consultant or society manager specifying a packaged STP in 2026 is unavoidable: a new plant in the Kolkata Metropolitan Area must hit CPCB Schedule VI norms for inland discharge at minimum, and should be designed to produce reuse-quality effluent, because the regional water-reuse economy already absorbs roughly nine-tenths of the city's flow and treats reused water as a resource, not a waste.
What Kolkata Domestic Sewage Actually Looks Like in Numbers
Typical Indian domestic sewage in the CPHEEO-aligned design range carries BOD 200–300 mg/L, COD 400–600 mg/L, TSS 200–400 mg/L, NH3-N 20–40 mg/L, and fecal coliform 10⁶–10⁷ MPN/100 mL, and these are the numbers an engineer should plug into a mass balance before reviewing any vendor proposal. Kolkata modifies that range in two ways that directly affect sizing. First, the older KMA sewer network suffers substantial groundwater infiltration, which can dilute sewage strength by 20–40% in dry weather and fool a designer into undersizing the biological stage. Second, monsoon inflow can spike hydraulic load by 2× to 3×, which is why every domestic STP in this region is sized on a peak factor of 2.0 applied to the average daily flow rather than on the average itself. A third local modifier is almost always missed in proposals: kitchen waste, hospital effluent, and small commercial flows mixed into a residential society's sewer can push COD above 800 mg/L, so a strictly "domestic" influent assumption is risky. The NEPT 2024 study characterises EKW influent as "moderately polluted", and that rating is precisely why primary-only settling is never adequate for inland discharge in this region; full biological treatment (MBBR, MBR, SBR, or ASP) is required, with disinfection as a non-negotiable final step. The table below consolidates the working envelope an engineer should carry into a sizing meeting in Kolkata.
| Parameter | Typical domestic range (CPHEEO) | KMA / Kolkata modifier | Design implication |
|---|---|---|---|
| BOD | 200–300 mg/L | Can dilute to 150 mg/L in dry season (infiltration); spike with kitchen waste | Size aeration on 250 mg/L minimum |
| COD | 400–600 mg/L | Can exceed 800 mg/L in mixed-use societies | Check BOD:COD ratio stays near 0.45–0.50 |
| TSS | 200–400 mg/L | Higher post-monsoon due to sewer silt | Primary settling or MBR screening mandatory |
| NH3-N | 20–40 mg/L | Rises in summer as flows drop | Verify nitrification HRT in MBBR/SBR |
| Fecal coliform | 10⁶–10⁷ MPN/100 mL | Unchanged | UV or chlorination must follow biological stage |
| Hydraulic peak factor | 1.5–2.0 | Use 2.0 in KMA | Equalisation tank sized on peak, not average |

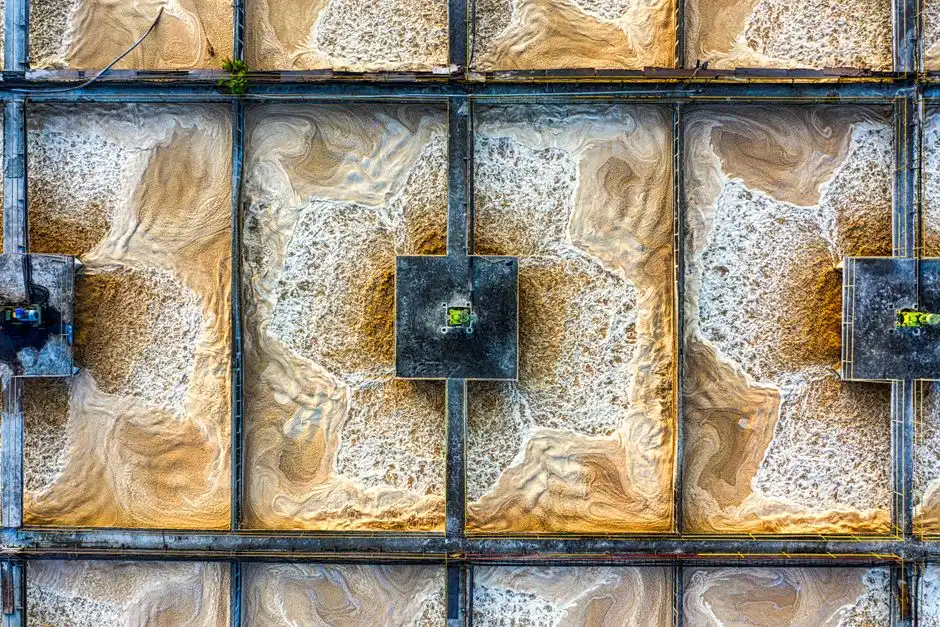

MBBR vs MBR vs SBR vs ASP: Choosing the Right Biological Process
The single highest-value decision in a packaged STP project is the core biological process, and in the Kolkata domestic-sewage envelope the realistic options are MBBR, MBR, SBR, and conventional ASP. MBBR (Moving Bed Biofilm Reactor) suspends plastic carrier media in an aeration tank so biomass grows attached to the surface and tolerates load swings. MBR (Membrane Bioreactor) couples activated sludge with submerged ultrafiltration membranes, typically rated below 1 µm, which is what produces the reuse-grade effluent. SBR (Sequencing Batch Reactor) runs fill, react, settle, and decant in a single tank on a timed cycle. ASP (Activated Sludge Process) is the conventional layout with a separate aeration basin and clarifier, which is forgiving on raw sewage but produces the largest waste-activated-sludge volume. The decision matrix below ranks them on the four axes a Kolkata buyer cares about most: effluent quality, footprint per KLD, operator skill required, and the relative CAPEX/power direction.
| Axis | MBBR | MBR | SBR | Conventional ASP |
|---|---|---|---|---|
| Effluent BOD (typical) | <20 mg/L | <10 mg/L | <20–30 mg/L | 20–30 mg/L (no tertiary) |
| Effluent TSS (typical) | <30 mg/L | <10 mg/L (membrane cut-off <1 µm) | <30 mg/L | 30–50 mg/L |
| HRT at average flow | 6–8 h | 4–6 h | 8–12 h (per cycle) | 6–8 h |
| MLSS in bioreactor | 3,000–4,000 mg/L | 8,000–12,000 mg/L | 3,000–5,000 mg/L | 2,000–4,000 mg/L |
| Footprint per KLD | Compact (clarifier still needed) | Most compact (no separate clarifier, ~60% smaller than ASP per MBR product datasheet) | Footprint-efficient up to ~500 KLD | Largest civil footprint |
| Shock-load tolerance | Best (attached biomass) | Good, but membrane fouling risk if pretreatment is skipped | Poor (bulking risk) | Moderate |
| Operator skill needed | Low–medium | Medium (membrane CIP, aeration balance) | Low | Medium (sludge return tuning) |
| Relative CAPEX | Medium | Highest | Lowest for small flows | Low (but high civil cost) |
| Relative power per KLD | Medium | Highest (membrane aeration + cross-flow) | Low | Medium |
The decision logic that follows from this matrix for Kolkata projects is straightforward. For residential societies with limited basement or setback area and a stated reuse intent (landscape, toilet flushing, or horticulture), the integrated MBR membrane bioreactor in the 10–2,000 m³/day range is the right pick, and it pairs well with the underground package sewage treatment plant (WSZ series) as a polishing or backup train. For hotels, hospitals, and commercial buildings that need compliance on a fixed budget and a non-technical operator, MBBR delivers the best balance. For intermittent-flow or rural-panchayat sites below ~50 KLD, SBR remains the lowest-CAPEX option and tolerates stop-start operation. For large institutional campuses with available land, trained O&M staff, and a biogas opportunity, ASP with a sludge digester is still defensible.
Sizing a Packaged STP: 100 KLD Residential Society Worked Example
Walk through any 100-flat residential society in the KMA area and the design basis falls out quickly. Average flow is 100 KLD, peak factor is 2.0, so the equalisation tank and downstream biological stage must handle a peak hydraulic load of 200 KLD. Influent BOD is 250 mg/L (the conservative middle of the CPHEEO range), and the design target is effluent BOD below 10 mg/L to comfortably meet CPCB Schedule VI and allow reuse. That implies a required BOD removal of at least 96%, which is achievable only on a properly sized aeration stage. For an MBBR train, the operating envelope is media fill 30–40%, HRT 6–8 hours at average flow, and MLSS 3,000–4,000 mg/L, which puts the aeration tank volume at roughly 25–35 m³ per 100 KLD, with a downstream clarifier and a sludge return line. Undersizing this tank is the single most common cause of the 39% CPCB non-compliance figure quoted earlier, because a short HRT starves the biofilm and pushes BOD straight through. For an MBR train, the same duty lands at HRT 4–6 hours, MLSS 8,000–12,000 mg/L, and a membrane flux of 15–25 L/m²·h, which compresses the bioreactor volume to about 15–25 m³ per 100 KLD, with the trade-off sitting in the membrane skid cost and the higher operating power. Around the biological stage, any correctly sized plant must include a rotary mechanical bar screen (GX series) upstream, a flow-equalisation tank, a sludge holding tank with periodic dewatering, and a disinfection step, most commonly a UV sterilizer for reuse applications or chlorination for discharge-only applications. The design effluent envelope to write into the spec is BOD <10 mg/L, COD <50 mg/L, TSS <10 mg/L, fecal coliform <100 MPN/100 mL, and pH 6.5–7.5. Anything weaker on BOD or TSS will struggle to pass a WBPCB inspection in 2026.
2026 Compliance Map: CPCB Schedule VI and West Bengal PCB Expectations
The discharge envelope any packaged STP in the KMA area must hit in 2026 is set by the Environmental (Protection) Rules, Schedule VI, which for inland surface water discharge specifies BOD ≤20 mg/L, TSS ≤30 mg/L, and fecal coliform ≤100 MPN/100 mL. Land-discharge norms under the same rules are more lenient on BOD and TSS but still require pathogen control, so disinfection is non-negotiable in either case. The CPCB's 2021 finding that roughly 39% of Indian STPs fail overall standards is not an abstract number for a designer, because audit observations cluster around four recurring root causes: an undersized biological stage, broken or bypassed disinfection, poor or interrupted sludge return, and infiltration diluting influent to a BOD:N:P ratio that the bugs cannot metabolise. West Bengal Pollution Control Board expectations for new STPs in the Kolkata Metropolitan Area go beyond the CPCB envelope in three practical ways: a Consent to Establish is required before civil work begins, a Consent to Operate is required before commissioning, and treated-effluent quality monitoring has to be demonstrable on demand. For plants above 100 KLD, WBPCB increasingly attaches explicit reuse or recycle obligations, in line with the regional reality that the East Kolkata Wetlands already reuse about 90% of the city's flow. From 2026 onward, WBPCB inspections commonly verify online flow meters on the treated-effluent line and grab-sample compliance, so any new plant should spec both on day one rather than retrofit later.
2026 Selection Matrix: Matching Technology to Site Constraints
Distil the article into a single decision tool that an engineer or society manager can use on a site visit. The four rules below are written in the order an actual site walk surfaces the constraints: footprint first, reuse intent second, flow pattern third, and operator capacity last.
| Site constraint | Pick this technology | Why |
|---|---|---|
| Footprint <0.5 m² per KLD, or reuse required (landscape, toilet flush, horticulture) | MBR | No separate clarifier, sub-1 µm membrane cut-off delivers reuse-grade effluent; the integrated MBR membrane bioreactor datasheet covers 10–2,000 m³/day |
| Compliance on a constrained budget, non-technical operator | MBBR (often in the underground package form factor) | Attached biomass tolerates load swings; the underground package sewage treatment plant (WSZ series) handles 1–80 m³/h with no dedicated operator |
| Intermittent flow, site below ~50 KLD, flood-prone area where buried tanks are at risk | SBR or containerised MBR | SBR tolerates stop-start cycles; containerised MBR keeps electromechanical equipment above grade |
| Large institutional campus, available land, trained O&M, biogas intent | ASP with sludge digester | Lowest tech risk, digester offsets some operating cost, sludge volume manageable on a large site |
One regional rule cuts across all four: any new STP in the KMA area should be designed to produce Class B or better reuse-quality effluent, because the East Kolkata Wetlands already absorb about 90% of the city's wastewater (WHO 2018), and the same WHO report flags health risks in the current reuse chain. Under-treating a new plant in 2026 means leaving reuse value on the table and leaving WBPCB's reuse obligations to be met by retrofit. For hotels and resorts sizing into the same envelope, the Hotel Resort Wastewater Treatment in India 2026: Sizing, Technology & Compliance Guide applies the same matrix to hospitality loads, and for decentralised and rural applications the Rural Sewage Treatment in India: 2026 Engineering Guide to Decentralized STPs piece carries the SBR/containerised-MBR logic further. For ongoing OPEX on an MBR already installed, the MBR Spare Parts and Consumables Cost in 2026: Real OPEX Breakdown article is the one to keep open during budgeting.
Frequently Asked Questions
What is the typical size of a domestic STP for a 100-flat Kolkata apartment?
A 100-flat residential society in the KMA area typically generates 80–100 KLD of average flow, and the design must be carried on a peak factor of 2.0, which puts the peak hydraulic load at 160–200 KLD. For an MBBR-based plant, the aeration tank works out to roughly 25–35 m³ per 100 KLD, and the packaged plant (including equalisation, clarification, and disinfection) fits inside a footprint of 40–60 m² for the biological section. The underground package sewage treatment plant (WSZ series) covers 1–80 m³/h, which spans this duty range and most societies larger than it.
Which CPCB limits apply to STP discharge in Kolkata?
For inland surface water discharge under the Environmental (Protection) Rules, Schedule VI, the key limits are BOD ≤20 mg/L, TSS ≤30 mg/L, and fecal coliform ≤100 MPN/100 mL. Land-discharge norms are more lenient on BOD and TSS but still require pathogen control. WBPCB typically layers Consent to Establish, Consent to Operate, and online flow-meter requirements on top of the CPCB envelope.
MBBR or MBR for a 50 KLD housing society?
MBBR is the lower-CAPEX and lower-risk option at 50 KLD, and it tolerates the load swings common in residential societies better than MBR because the biomass is attached to moving media rather than suspended. MBR only pulls ahead if the society has a stated reuse plan (landscape irrigation, toilet flushing, or horticulture) that needs BOD <10 mg/L and TSS <10 mg/L on a sustained basis; for discharge-only duty the extra membrane CAPEX and operating power are hard to justify at this scale.
What is the indicative cost of a packaged STP in Kolkata?
Specific INR figures vary widely with civil scope, electrical scope, and AMC terms, so the honest answer is the observed supplier capacity range rather than a fabricated per-KLD rate. IndiaMART listings for the Kolkata market show packaged domestic STPs from 2 KLD SBR units up to 1,000 m³/day MBR plants, with MBBR units common in the 5–500 KLD band. Civil work, electrical work, and an annual maintenance contract typically drive the final number more than the process equipment itself.
Does the East Kolkata Wetlands system mean a new STP is unnecessary?
No. The East Kolkata Wetlands treat only the fraction of Kolkata's sewage that is actually routed to them, and WHO's 2018 field report explicitly flags diarrhoea and helminthic infection risks for the farmers and fishermen working in the reuse chain. CPCB's 2021 finding that roughly 39% of Indian STPs, including engineered plants, fail overall standards is a reminder that a natural system is a benchmark, not a compliance substitute. A new domestic STP in 2026 must still meet CPCB Schedule VI on its own discharge and should be designed to produce reuse-quality effluent that is safer than what the wetland chain currently delivers.
