Why Water Scarcity Defines the 2026 Design Brief for Manama
Semiconductor and data-hall facilities in Manama in 2026 should treat wastewater as a reuse resource, not a disposal stream. The TNFD February 2026 case study on the technology sector (source: tnfd.global, 2026-02) reports that 45% of data centres globally sit in river basins at high risk of water-supply disruption and that the semiconductor industry consumes roughly 210 trillion litres of water annually, with almost half of that footprint falling in areas facing higher-than-average water scarcity. The same study quantifies a single fab at ~14 billion litres of UPW per year and 1.4–1.6 units of municipal water per unit of UPW produced, a ratio that compounds across hyperscale data-hall clusters.
Manama is not a hypothetical stress case. The S3 DataCenterMap directory lists 6 facilities across 4 operators on a single municipal catchment (source: datacentermap.com), meaning data-hall growth is competing with fab and residential allocation for the same desalinated supply. Groundwater abstraction in the Kingdom is effectively frozen for new industrial allocation, so a 2026 expansion must either reclaim internal streams or contract a TSE (treated sewage effluent) supply from the Sitra or Tubli catchments. The design brief that follows from this is straightforward: recover first, discharge last, with every later section in this guide returning to that single principle.
Manama Wastewater Streams: What a Fab and a Data Hall Actually Discharge
Fab and data-hall operations overlap in vocabulary but not in chemistry. The table below separates the two facility types so an engineer can tick the streams present on their own site and skip the rest.
| Stream | Source | Typical pH | Typical TDS / TSS | Key contaminants | Order of magnitude |
|---|---|---|---|---|---|
| UPW reject | Fab rinse ring | 6.5–8.0 | 1–10 mg/L TDS | Trace silica, boron, TOC | 50–60% of fab feed volume |
| CMP slurry waste | Polishing tools | 9–11 | 500–5,000 mg/L TSS | SiO₂, CeO₂, TiO₂, Cu fines | Sludge, low volume |
| HF / NH₄OH rinses | Etch + post-etch clean | 1–4 | Low TDS | Fluoride, ammonium | 5–15 m³/day per tool |
| TMAH photoresist developer | Coat/develop track | 12–13 | High COD (5,000–20,000 mg/L) | TMAH, surfactants, dissolved Cu | Batch, segregated |
| IPA rinses | Edge-bead removal | 6–8 | ~1,000 mg/L TOC | Isopropanol | Low volume, segregated |
| Scrubber blowdown | Acid/alkaline exhaust | 1–13 (varies) | 1,000–10,000 mg/L TDS | Acidic/alkaline salts, NOx, SOx | Continuous |
| Cooling-tower blowdown | Data-hall HVAC | 7.5–8.5 | 1,500–3,000 mg/L TDS (Gulf norm) | Silica, scale inhibitors, biocides | 1–2% of tower circulation |
| Glycol loop drain | Heat-exchanger leak | 7–9 | Variable | Ethylene/propylene glycol | Spill-only events |
| Humidification bleed | Ultrasonic / steam can | 7–8 | 500–2,000 mg/L TDS | Dissolved salts from evaporation | Low volume, high TDS |
| RO reject (make-up polish) | Side-stream RO | 6.5–7.5 | 200–600 mg/L TDS | Hardness, silica | 20–35% of make-up flow |
TNFD S5 frames the scale: a typical data centre uses 25–770 million litres per year, a hyperscale site can exceed 2 billion litres per year, and a single fab UPW line draws ~14 billion litres per year. On a Manama industrial plot, fab UPW reject alone is multiple times the volume of a hyperscale data hall, which is why the rest of this guide treats fab mass balance as the dominant sizing case and data-hall trains as the smaller, faster-payback add-on.
Bahrain Regulatory Framework: SCE Limits and 2026 Permit Reality
The operating instrument for industrial discharge in Bahrain is Supreme Council for Environment (SCE) Decree-Law No. 21 of 1996, updated through periodic SCE circulars and incorporated into the conditions of every facility-specific discharge permit. Engineers should treat the values below as the ceiling typically cited in SCE-issued permits and confirm the current circular with the SCE before commissioning — the limits move, and a 2025 or 2026 amendment can shift any single number by a class.
| Parameter | Typical SCE ceiling | Fab-specific watch-out |
|---|---|---|
| pH | 6–9 | TMAH developer discharge (pH 12–13) is the most common excursion |
| TSS | ≤ 50 mg/L | CMP slurry fines carry through if DAF is undersized |
| COD | ≤ 150 mg/L | TMAH and IPA streams are the COD source; biological step needed after dilution |
| BOD | ≤ 40 mg/L | Drives selection of biological vs. chemical destruction route |
| Oil & grease | ≤ 10 mg/L | Rare on fab side, more typical of diesel-generator coolant on data-hall side |
| Free chlorine | ≤ 1 mg/L | Dechlorination required before any RO feed |
| Fluoride | ≤ 15 mg/L (typical) | HF-bearing etch rinses; precipitation with CaCl₂ is the standard polish |
| Copper (total) | ≤ 1 mg/L (typical) | Routes through CMP slurry and TMAH developer; SCE inspection focus |
| Lead, Zinc, Nickel, total Cr | Sub-mg/L each | Reported in permit self-monitoring, usually quarterly |
| Cadmium, Mercury | Trace (ppb) | Drives ion-exchange selection on the heavy-metal polish step |
Discharge route matters. Sea outfall (the easier path for many Manama industrial plots) is generally more permissive on TSS and COD, but tighter on heavy metals and on temperature delta versus ambient. Municipal sewer discharge, into the Tubli or Sitra catchment, requires tighter biological oxygen demand and oil/grease control because the receiving works is sized for domestic load. Confirm which route the SCE permit authorises before the IFC package is signed; retrofitting a sea-vs-sewer split after construction is the most expensive mistake this guide will help you avoid.
Treatment Train for Fab Process Wastewater
The defensible fab train is a four-stage sequence with a side-loop for UPW reject. A process designer should be able to put this in front of an EHS team without further translation.
| Stage | Unit process | Target parameter leaving the stage | Equipment note |
|---|---|---|---|
| 1 | Equalisation + PLC-controlled pH adjustment + DAF | TSS ≤ 30 mg/L, pH 6.5–8.5 | DAF unit for CMP slurry and cooling-tower blowdown + PLC-controlled pH and coagulant dosing |
| 2 | Fluoride precipitation with CaCl₂ (where HF rinses are present) | F⁻ < 15 mg/L | Stoichiometric CaCl₂ dose, sludge to filter press |
| 3 | TMAH / IPA handling | TMAH < 100 mg/L before biological, or routed to alkaline hydrolysis + wet oxidation | Above ~100 mg/L, biological inhibition is real; chemical destruction is the safer route |
| 4 | Heavy-metal polish (ion exchange or precipitation) | Cu < 1 mg/L, Ni, Pb, Zn, total Cr to SCE permit | Quarterly self-monitoring analytes: Cu, Ni, Pb, Zn, total Cr, Cd, Hg |
| Side loop | UPW reject → side-stream RO at 70–80% recovery | Permeate to cooling-tower make-up; concentrate to Stage 4 | Side-stream RO for UPW reject and tower blowdown reuse |
Two field notes from operating fabs in the Gulf: First, do not blend TMAH-bearing developer with general process drain; the pH excursion alone can wipe out a biological stage that was sized for ordinary COD. Second, the equalisation tank outlet is where SCE inspectors take the compliance grab sample, so pH, ORP and conductivity probes belong on that line, not in a downstream buffer tank where the chemistry has already changed.
Treatment Train for Data-Hall Wastewater
Data-hall trains are simpler than fab trains because the chemistry is dominated by cooling-tower chemistry, not by photo-resist or HF. The table below is the standard sequence for a Manama-edge or hyperscale hall.
| Stage | Unit process | Target parameter leaving the stage | Equipment note |
|---|---|---|---|
| 1 | DAF on cooling-tower blowdown | TSS < 10 mg/L, oil/grease < 5 mg/L | DAF unit for CMP slurry and cooling-tower blowdown — same unit as fab side |
| 2 | Twin-tank softener | Hardness < 1 mg/L as CaCO₃ | Twin-tank softener ahead of side-stream RO to prevent scale on the RO membranes |
| 3 | Side-stream RO at 65–75% recovery | Permeate TDS < 50 mg/L for tower make-up; concentrate to brine management or sea outfall | Side-stream RO for UPW reject and tower blowdown reuse |
| Humidification bleed | Blended with blowdown at RO feed | Stable feed TDS, no separate line | Treatment-as-byproduct of the blowdown RO |
| Glycol loop drain | Batch chemical-physical skid | COD < 150 mg/L before sewer discharge | Spill-only — not part of the continuous train |
The realistic reuse order of magnitude for a 5 MW Manama data hall running 4–6 cycles of concentration is 30–55% of cooling make-up demand recovered internally, before any external TSE contract. Cycling up to 6 reduces blowdown volume by roughly 40% versus a 3-cycle baseline, which is the single largest no-capital knob on a 2026 design. The Baku semiconductor and data-hall wastewater guide (see Baku guide) treats the same reuse envelope in a colder climate; the Gulf version is simpler on freeze protection and harder on silica scale.
Integrated Reuse Flow for Co-Located Fab + Data-Hall Campuses
On a Manama industrial plot running both a fab and a data hall, the two trains above converge on a single side-stream RO. Fab UPW reject (50–60% of fab feed) and data-hall cooling-tower blowdown (1–2% of tower circulation) both feed a common RO sized for 65–75% combined recovery. RO permeate is split: a portion returns to the data-hall cooling tower as make-up, the rest goes to the fab as process rinse pre-feed. RO concentrate is the single waste stream that needs management; it is routed either to an SCE-permitted sea outfall or to a brine concentrator if the site has the energy budget for it.
On-site TSE (treated sewage effluent) is an alternative cooling-tower make-up for sites with a municipal TSE contract, but it must be polished by a dedicated UF/RO train before it enters the cooling loop — see UF pretreatment for TSE or RO feed followed by side-stream RO for UPW reject and tower blowdown reuse. Do not promise zero-liquid discharge unless a site-specific energy and capex study has been completed; the 2026 silicon wafer ZLD blueprint (see 2026 silicon wafer ZLD blueprint) quantifies why ZLD is a different capex class and only pays back at hyperscale UPW throughput.
The Vienna semiconductor process wastewater guide (see Vienna guide) treats the same shared-train concept in a temperate climate where TSE is colder and fouling rates are lower; the Manama equivalent is hotter, saltier, and benefits more from aggressive cycles-of-concentration design before the RO is even installed.

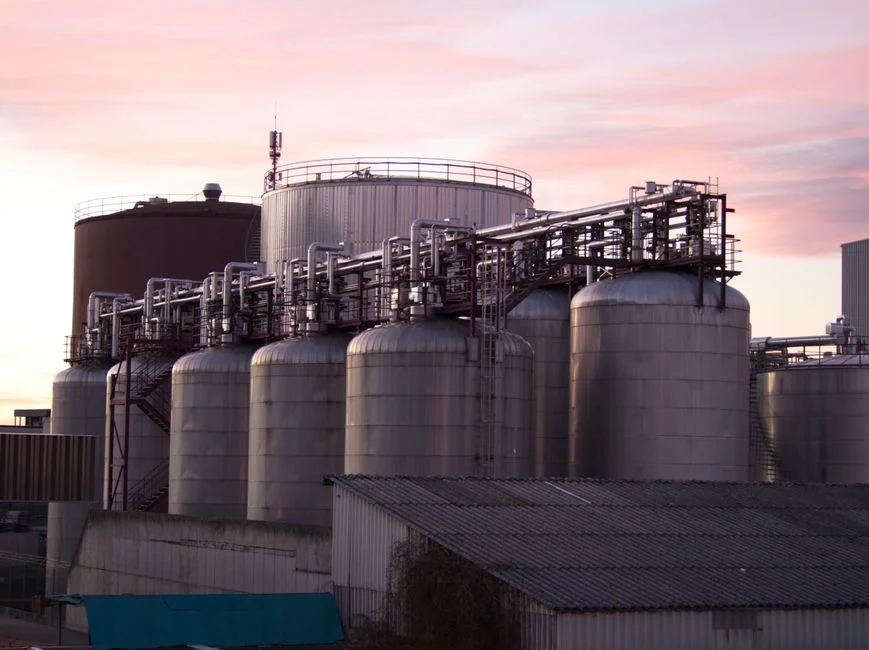

Compliance Checklist Before Commissioning in 2026
The list below is the punch-item set an EHS lead can hand to operations the week before commissioning.
| # | Action | Why it matters in Manama 2026 |
|---|---|---|
| 1 | Confirm the latest SCE effluent circular and any 2025–2026 amendment before signing the IFC package | Limits move between permits; retrofit is expensive |
| 2 | Segregate fluoride, TMAH and heavy-metal streams at source — do not blend with general process drain | Segregation is the difference between a working biological stage and a chronically inhibited one |
| 3 | Install PLC-controlled pH, ORP and conductivity monitoring on the equalisation tank outlet | This is the sample point SCE inspectors actually use; downstream measurements do not substitute |
| 4 | Design cooling-tower cycles of concentration to ≥ 5 (target 6) | Cuts blowdown volume by roughly 40% versus a 3-cycle baseline, no extra capex |
| 5 | Size the side-stream RO for 60–80% recovery on combined UPW reject and tower blowdown; pilot on real site water for ≥ 2 weeks | Gulf silica and TDS behaviour rarely matches vendor defaults; pilot data protects the membrane warranty |
| 6 | Document sea-outfall vs sewer discharge route in the SCE permit before IFC | Switching routes post-construction typically requires a new environmental impact study |
Frequently Asked Questions
What is the SCE effluent limit for fluoride in Bahrain?
The typical ceiling cited in SCE-issued permits is 15 mg/L total fluoride. Engineering practice is to target < 15 mg/L leaving the calcium-precipitation stage so the SCE permit self-monitoring grab stays comfortably under the line. Always confirm the current SCE circular before commissioning — limits are updated periodically, and the binding number is the one in your facility-specific permit.
Can a data hall in Manama reuse cooling-tower blowdown directly?
No. Raw blowdown at 1,500–3,000 mg/L TDS will scale and foul a cooling tower within days. The standard reuse train is DAF → softener → side-stream RO, which produces a permeate suitable for tower make-up. Skipping the softener shortens RO membrane life; skipping the DAF accelerates membrane fouling.
Does TMAH wastewater need biological treatment?
Only after dilution below ~100 mg/L TMAH. Above that concentration, TMAH inhibits activated-sludge bacteria and the biological stage stops working. For a concentrated developer stream, route to a dedicated chemical destruction step (alkaline hydrolysis followed by wet oxidation) and reserve the biological stage for the diluted general fab drain.
Is sea discharge easier than sewer discharge for a Manama fab?
Sea outfall is generally more permissive on TSS and COD, but tighter on heavy metals and on temperature delta versus ambient. Sewer discharge (into the Tubli or Sitra catchment) is tighter on BOD and oil/grease because the receiving works is sized for domestic load. The decision depends on pipeline distance to the outfall, SCE permit conditions, and whether the site has the cooling capacity to control the temperature delta at the sea outfall.
What reuse rate is realistic for a Manama fab in 2026?
With a properly sized side-stream RO running at 70–80% recovery on UPW reject and at 5–6 cycles of concentration on the cooling tower, 50–70% of fab UPW reject and cooling make-up can typically be reclaimed. These are order-of-magnitude figures, not site-specific; a real mass balance on the fab's daily flow and contaminant profile is required before sizing equipment or quoting a reuse rate to operations or finance.
