Why Midstream Oily Water Forces a Different MBR vs CAS Decision
Midstream produced water differs significantly from municipal sewage, and treating it as such is the primary reason biological treatment systems underperform on tank-battery and gas-plant pads. A typical midstream feed runs 30-100 g/L TDS, 50-500 mg/L oil & grease, 10-45 °C seasonally, and arrives in batch slugs when upstream vessels release — four stressors that simultaneously punish a conventional activated sludge (CAS) train. CAS relies on floc-forming heterotrophs that aggregate biomass in a clarifier; once TDS climbs above ~20 g/L or free oil sheaths the floc, settling collapses, solids bleed over the weir, and the operator chases turbidity for weeks. Submerged membrane bioreactors (MBR) decouple solid-liquid separation from settleability because the 0.1 µm membrane does the work the clarifier cannot. Mannina et al. (S4) confirm the broader MBR advantage of higher SRT and lower sludge yield, and both attributes translate directly onto a midstream pad: longer SRT gives halotolerant consortia the residence time to break down recalcitrant n-alkanes and PAHs, while lower yield cuts waste-hauling truck rolls to remote sites. The four midstream killers — salinity, emulsified oil, hydrocarbon spikes, and pad area — re-rank the technology choice, and a generic MBR-vs-CAS chart pulled from municipal data misleads more than it informs. An integrated MBR system sized for produced water is the more defensible default on a constrained midstream site, though CAS remains a viable alternative in specific configurations.
How Each Technology Actually Treats Oily Produced Water
The CAS train for midstream produced-water duty starts with a ZSQ DAF pre-treatment unit knocking free oil and grease down to roughly 20-40 mg/L, followed by an equalization basin to dampen slug flows, an aeration basin operated at SRT 5-15 days and MLSS 2,500-4,000 mg/L, a secondary clarifier with RAS/WAS pumping, and a polishing sand or cartridge filter to catch the inevitable solids carryover. The clarifier is the weak link: at high TDS or under oil shock, the floc rises, the surface scum load chokes the launder, and the operator loses hydraulic control of the whole train. Effluent oil & grease out of a stable CAS clarifier still lands in the 10-30 mg/L band, necessitating downstream polishing.
The MBR train replaces the clarifier and most of the polishing step with a submerged membrane tank. DAF still runs up front, equalization still buffers slugs, but the biology sits at SRT 20-60 days and MLSS 8,000-12,000 mg/L — roughly 2-3× the biomass a clarifier can hold. The 0.1 µm PVDF membrane physically rejects solids and most emulsified oil, so effluent turbidity drops below 1 NTU without a separate polishing stage. DF-series PVDF flat-sheet MBR modules with integrated coarse-bubble aeration scour typically sit in the 10-20× lower specific energy demand class than external cross-flow designs, representing the difference between an MBR penciling out at 0.6-0.9 kWh/m³ and a membrane system that is prohibitively expensive to operate. Soltani et al. (S3) proved the biology separately: an adapted bacterial consortium isolated from Bushehr (Iran) sea sediment degraded hexadecane and phenanthrene under high salinity inside a submerged hollow-fiber MBR — a halophilic pathway that conventional floc-formers cannot run. The CIP loop, permeate pump, and scour air are the operational requirements; everything else is civil works the MBR train avoids.

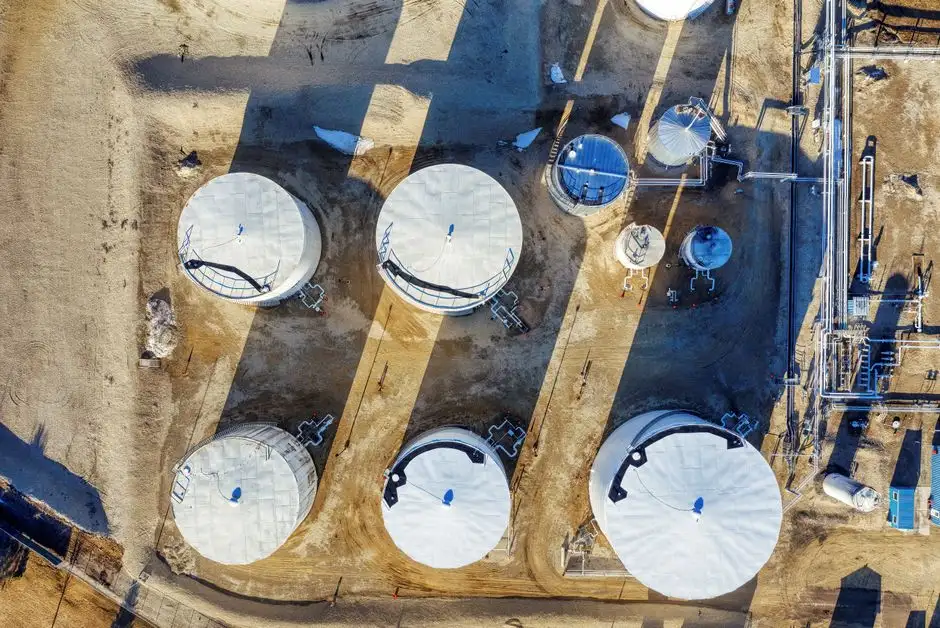

Head-to-Head Comparison: MBR vs CAS on Midstream KPIs
The table below provides the KPIs procurement leads use for CAPEX evaluations. These figures reconcile to Mannina et al. (S4) for energy, GHG, and sludge yield; to Soltani et al. (S3) for high-salinity biology; and to the HydropureWater integrated MBR product spec (S6) for footprint and effluent quality.
| Parameter | CAS train (DAF + aeration + clarifier + polish) | MBR train (DAF + anoxic/aerobic + submerged membrane) |
|---|---|---|
| Footprint per m³/day (midstream oily water) | 0.7-1.0 m²/(m³/day) | 0.25-0.40 m²/(m³/day) — roughly 60% smaller (per S6) |
| MLSS in bioreactor | 2,500-4,000 mg/L | 8,000-12,000 mg/L |
| SRT | 5-15 days | 20-60 days |
| Effluent oil & grease (steady state) | 10-30 mg/L, polishing usually required | <5 mg/L, often <1 NTU turbidity (S6) |
| Energy demand | 0.3-0.5 kWh/m³ | 0.6-0.9 kWh/m³ (membrane scour + aeration, per S4) |
| Sludge yield (observed) | Higher (0.3-0.5 kg TSS/kg COD removed typical) | Lower cell yield (S4) |
| Direct GHG emissions | 0.85 kgCO₂eq/m³ (S4) | 0.91 kgCO₂eq/m³ (S4) |
| Salinity tolerance (TDS) | Functional up to ~20 g/L, degrades above | Functional to 80-100 g/L with halophilic consortium (S3) |
| Hydrocarbon-spike tolerance | Poor — floc sheathing, clarifier upsets | Robust — biomass + physical barrier |
| 5-year OPEX driver | Power, sludge hauling, polymer | Membrane CIP, scour air, membrane replacement |
Footprint and salinity tolerance are the two primary factors that decide a midstream project. A 200 m³/day oily stream on CAS needs roughly 140-200 m² of process pad before equalization and DAF are added; the MBR train fits inside 50-80 m², which allows for easier retrofitting on existing pads. The 0.06 kgCO₂eq/m³ GHG delta between the two trains (S4) is marginal and should not anchor a CAPEX paper.
Membrane Fouling and CIP: The Real Midstream OPEX Line
The primary OPEX delta on an MBR is membrane management, which is largely controllable through maintenance. On oily produced water, four fouling modes compete for budget: oil emulsions blinding the surface, Ca²⁺/Ba²⁺ scaling when the biology strips CO₂ and shifts the carbonate balance, biofouling from MLSS at 10,000 mg/L pinning the membrane surface, and silica deposition at high TDS. The CIP interval for an oilfield MBR typically lands at 30-90 days versus 6-12 months on a municipal feed — a cost that should be budgeted as a $/m³ line item. Recovery clean (NaOH + surfactant + sometimes citric acid) restores permeability to roughly 90-95% of clean-water flux; a NaOCl maintenance soak in between handles biofouling. Mannina et al. (S4) state the principle plainly: "membrane fouling mitigation strategies (chemical cleanings, physical cleanings, and aeration) increase the energy demand and operating costs compared to CAS." Soltani et al. (S3) document the membrane-permeability decline under high oil loading and confirm that adapted biomass plus tight pre-treatment control is the only reliable countermeasure. Successful operations require stable DAF upstream, an integrated MBR system with continuous scour-air rather than intermittent, and a CIP SOP that runs on permeability decline rather than the calendar. On a 200 m³/day oily stream, membrane replacement is roughly 15-20% of the membrane OPEX line over a 5-year window; the rest is energy and CIP chemicals.

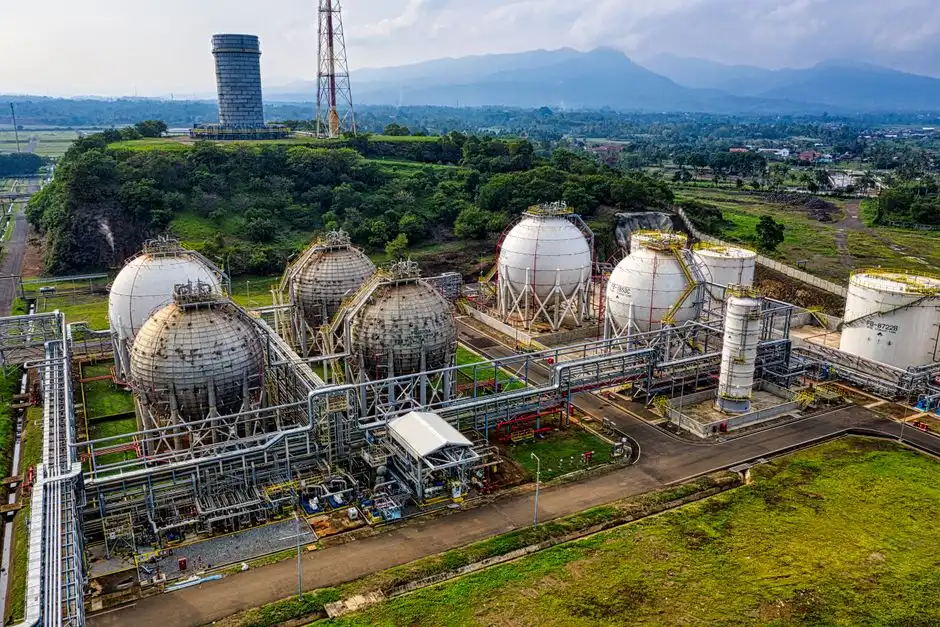

The 2026 Footprint Verdict: When MBR Wins, When CAS Still Wins
Engineers can apply a three-condition test to a site plot plan to determine the optimal technology.
Condition 1 — MBR wins by default. Pad area below 1,000 m², flow 50-500 m³/day, TDS above 20 g/L, free oil still present after DAF, or any requirement to reuse permeate (frac-water make-up, scrubber make-up, cooling-tower make-up). On a 600 m² pad treating 200 m³/day at 60 g/L TDS, the MBR fits, while the CAS train does not. Mannina et al. (S4) confirm that for long operating lives, MBR's higher upfront CAPEX amortizes through effluent-quality and footprint savings.
Condition 2 — CAS still wins. A large green-field central treating facility above 2,000 m³/day, TDS below 10 g/L, ample land, very low local power cost, and no permeate-reuse requirement. Here, the civil-works savings on a clarifier beat the membrane OPEX, and the operator can absorb a floc upset without a permit consequence. Bertanza et al. (2017, as cited in S4) found better economic results for CAS in this regime.
Condition 3 — Hybrid train wins. DAF + MBR polishing the hydrocarbon-rich stream down to sub-1 NTU permeate, feeding a downstream RO unit for produced-water reuse, with a sludge press on the WAS line. This is the dominant 2026 midstream pattern — the integrated MBR + RO + sludge-dewatering stack is what operators are procuring for tank-battery retrofits, solving both the disposal problem (no more produced-water hauling) and the water-supply problem (frac or cooling make-up on-site). For a deeper look on the reuse-turbidity trade-off, the MBR vs MBBR reuse-turbidity comparison applies the same permeate-quality lens to a different upstream. For a sizing reference on the DAF stage, the DAF vs clarifier for petroleum wastewater guide quantifies the free-oil envelope a clarifier can handle. For a Europe-side cost and compliance benchmark on a comparable MBR installation, the MBR engineering, cost and compliance guide covers the procurement-checklist side of the decision.
Frequently Asked Questions
Can MBR handle high-salinity produced water?
Yes, but only with a halophilic or halotolerant bacterial consortium. Soltani et al. (S3) demonstrated that an adapted consortium from Bushehr sea sediment degraded hexadecane and phenanthrene inside a submerged hollow-fiber MBR at high salinity. Conventional floc-forming CAS biomass collapses above roughly 20 g/L TDS; oilfield MBRs routinely run at 60-80 g/L and have been piloted up to 100 g/L with the right seed sludge and gradual acclimation.
How much smaller is MBR than CAS on a midstream site?
On oily produced water at midstream scale, an MBR train typically delivers a 60% footprint reduction versus a comparable CAS train — 0.25-0.40 m² per m³/day for MBR versus 0.7-1.0 m² per m³/day for CAS, before equalization and DAF are counted (per the HydropureWater integrated MBR product spec, S6).
How often do MBR membranes need CIP on oily water?
CIP intervals on oilfield MBRs typically run 30-90 days, versus 6-12 months on a municipal feed. The dominant fouling modes are oil emulsions, Ca²⁺/Ba²⁺ scaling, biofouling from
