DAF or Clarifier for Mining/Metals Wastewater in Pilgrim: 2026 Factory Guide

Why Pilgrim Mining Plants Are Re-evaluating DAF vs Clarifier in 2026

For Pilgrim-area mining and metals plants in 2026, the choice is rarely DAF or clarifier alone — it is which one goes first. Dense Fe(OH)₃ and Al(OH)₃ floc with intermittent tramp oil usually requires a DAF primary (30–50 µm micro-bubbles, >90% TSS removal) plus a lamella polish to hold the 40 CFR 437 daily-maximum envelope for TSS, lead, zinc, copper, and iron, with DAF CAPEX running 1.5–2.5x a comparable lamella at equal flow. The forcing function is the 40 CFR 437 (Ore Mining and Dressing) effluent envelope, which sets daily-maximum and monthly-average limits for total suspended solids, total recoverable Pb, Zn, Cu, and Fe, plus a pH band of 6.0–9.0 for any discharge to waters of the United States (per 40 CFR 437.30–437.32). Pilgrim-area discharges sit under the NPDES permit framing that 40 CFR 437 drives, so the rule is not generic guidance — it is the binding number on every discharge monitoring report.

The capital-cycle pressure is just as real. A meaningful share of in-service conventional clarifiers at Pilgrim-area concentrators date to the 1970s, and ESG-driven closed-loop water-reuse targets have pushed replacement to board level in 2026, not maintenance. The Pilgrim stream profile compounds the problem: dense metal-hydroxide floc (Fe, Mn, Al hydroxides, silica fines, magnetite) with intermittent tramp oil — the opposite of the FOG-heavy food-processing stream most generic DAF articles assume. The 2026 procurement frame should choose DAF, lamella, or a DAF + lamella train based on FOG and colloidal load, not on which asset is already in the yard. For comparable cold-region chemistry, the Detroit Lakes cold-weather mining guide walks through the same envelope.

How a DAF and a Lamella Clarifier Actually Work on Metals Streams

DAF and lamella clarifiers separate solids by different physical mechanisms, and that difference is the whole reason a Pilgrim procurement team has to choose rather than just inherit. A HydropureWater ZSQ DAF system floats solids on micro-bubbles. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air inside a packed saturation vessel. When the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm bubbles (per S1, S5). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. DAF removal in this service class is >90% for TSS, FOG, COD, and BOD (per S5), and a properly conditioned DAF can also capture particulate metals and colloidal silica (per S4).

Coagulant chemistry is non-optional on the DAF side. PAC, ferric chloride, or alum paired with 1–5 mg/L anionic polymer flocculant is the standard pairing for Pilgrim hydroxide floc; without that conditioning, micro-bubbles pass colloidal fines and the DAF underperforms (per S1, S4). Pair the DAF with a HydropureWater automatic chemical dosing skid to hold the dose tight against variable influent.

A lamella clarifier — a HydropureWater high-efficiency lamella clarifier — separates by gravity, but at a much higher rate than a conventional tank. Inclined plates stacked inside a compact tank multiply the effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. A conventional gravity clarifier is a large rectangular or circular tank operating at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10). For adjacent metals-bearing chemistry framing, the mining wastewater process guide walks through comparable precipitation steps.

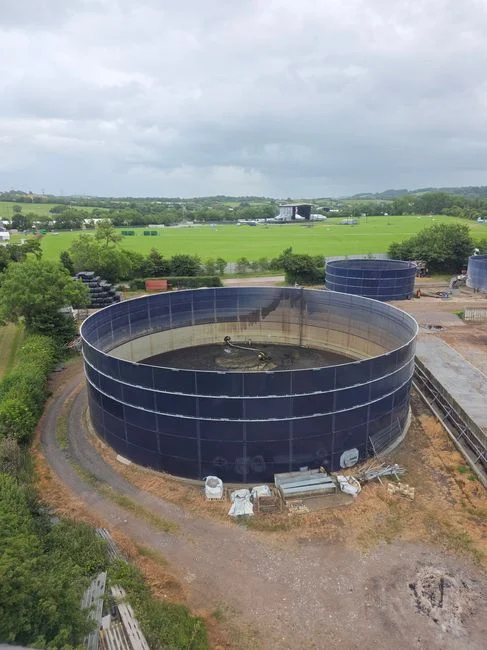

DAF vs Lamella vs Conventional Clarifier: Mining-Stream Comparison

The table below is the one page to hand to a non-technical decision-maker. It is reorganized for the dense metal-hydroxide stream profile a Pilgrim plant actually runs, not the FOG defaults that generic DAF-vs-clarifier articles use. Numbers are anchored to current field data and to the comparison used in the Caddo Gap mining and metals guide.

The head-to-head verdict for Pilgrim: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer for a replacement cycle. For a 100 m³/h Pilgrim stream, the difference is roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint (Zhongsheng field data, 2026).

Three Pilgrim-Plant Scenarios and the Right 2026 Train

Three Pilgrim-typical plant archetypes map directly to the table above and tell a Pilgrim engineer which unit to put first.

Scenario 1 — Iron/taconite concentrator at ~250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. Expected effluent: TSS <30 mg/L achievable with lamella alone, with the metals controlled at the upstream precipitation step (per 40 CFR 437 daily-maximum limits for Pb, Zn, Cu, Fe). A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. The 250 m³/h flow sits inside the standard ZSQ model range, so a HydropureWater ZSQ DAF system is a clean swap-in if the FOG load materializes, and a HydropureWater high-efficiency lamella clarifier is the right primary on day one.

Scenario 2 — Mixed-metals refinery with cutting-oil emulsions at ~80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease and TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model, so there is no custom-engineering cost layered on the procurement line.

Scenario 3 — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering. A 15 m³/h sump discharge that runs intermittently through Pilgrim winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime across the sub-10°C months. This is the case where the 10–15% recycle/saturation sizing margin in Section 5 stops being a footnote and becomes a procurement line item.

CAPEX, OPEX, and Pilgrim Cold-Weather Sizing for 2026

The headline ratio for 2026: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (Zhongsheng field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where the lamella fits cheaply) and smallest in dense industrial corridors (where every m² of building is expensive).

OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle (Zhongsheng P10), but DAF produces a thicker 4–8% DS float that dewaters more easily in a downstream HydropureWater plate-and-frame filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency. Pair either system with a HydropureWater automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window.

Cold-weather sizing converts a generic footnote into a Pilgrim-specific procurement line. Micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so size the recycle pump and saturation vessel with a 10–15% margin and insulate or heat-trace the saturation vessel and recycle line for Pilgrim winter operation (Zhongsheng field data, 2026). On Scenario 3, that margin is the difference between running through January and shutting down a sump line.

Frequently Asked Questions

Is DAF or a clarifier required by 40 CFR 437 for a Pilgrim plant?

Neither technology is explicitly required by 40 CFR 437, but the rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0. A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits, and many Pilgrim plants run DAF primary plus lamella polish for margin (per 40 CFR 437.30–437.32).

What surface loading should a Pilgrim lamella run on dense Fe(OH)₃ / Al(OH)₃ floc?

Design at 20–30 m/h on the plate-pack projected area for dense hydroxide floc; drop to 10–15 m/h for fine silica or low-density floc. The published 20–40 m/h range (Zhongsheng P10) is for clean, well-conditioned hydroxide floc only and is not a safe default for a colloidal or silica-bearing Pilgrim stream.

Can a DAF run through a Pilgrim winter?

Yes, with a 10–15% sizing margin on the recycle pump and saturation volume and insulation or heat-trace on the saturation vessel and recycle line, because micro-bubble nucleation slows 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026). For intermittent low-flow dewatering, that sizing margin is the line item that keeps a sump line running through January.

Can a taconite-style Pilgrim concentrator run lamella-only as primary?

Yes, on FOG-free streams. Add a DAF polish step only if colloidal fines bleed through or a maintenance shop discharge adds intermittent oil that the lamella cannot capture. Many taconite concentrators run lamella-only as primary clarification on FOG-free streams; the trigger to add DAF is the first oil source on the upstream side.

How much smaller is a DAF than a conventional clarifier?

A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h Pilgrim stream, that is the difference between roughly 30 m² and 600 m² of clarifier footprint (Zhongsheng field data, 2026).
