Why Metal Finishing Wastewater Demands a Dedicated Dosing System
Metal finishing wastewater routinely swings across pH 1–13, carries total dissolved solids above 5,000 mg/L, and contains free cyanide, hexavalent chromium, and the regulated heavy metals Cd, Cu, Ni, Pb, Zn, and Ag. Chelating cleaners (EDTA, gluconate, ammonia) further complicate precipitation by forming soluble metal complexes. Drag-out from plating tanks delivers slug loads that can shift metal concentrations by 5–10× within minutes, and a separate fume scrubber blowdown stream adds still another chemistry profile. A dosing system sized like a municipal pH-correction skid simply cannot respond to that variability.
EPA 40 CFR Part 433, promulgated in 1983 with technical amendments in 1984 and 1986, governs approximately 44,000 metal finishing facilities discharging either directly to surface waters under NPDES or indirectly to POTWs under the National Pretreatment Program (per EPA, 2015-05). The pretreatment standard sets daily maximum and monthly average limits for 13 pollutant categories. Because compliance — not operator preference — dictates reactor sizing, equalization volume, and pump turndown, the dosing system must be designed to 1.5× the average day load and qualified to demonstrate compliance on the worst slug, not the average hour. For a full plant process layout, the electroplating effluent treatment plant design guide shows how the dosing skid fits into the wider treatment train.
Wastewater Segregation Logic: The Architecture Behind the Skid
The dosing skid is only as good as the upstream segregation. Four canonical streams must be kept physically separate inside the plant pipework: (1) cyanide-bearing rinse water from Cu, Zn, Ag, and Au plating; (2) hexavalent chrome-bearing rinse water from hard chrome, decorative chrome, and chromate conversion coating; (3) acid/alkaline rinse water with mixed metals but no oxidizers; and (4) spent concentrated process baths dumped on a weekly or monthly cadence. The first two must remain isolated from each other until after destruction — mixing an acidified cyanide stream with a Cr(VI) stream risks liberating lethal HCN gas, and a reducing environment will not destroy cyanide before it is oxidized to cyanate.
Equalization tanks sized for 4–8 hours of HRT dampen concentration swings before dosing. The practical rule of thumb: one dosing skid per segregated stream, sized for the slug load of that stream alone. Consolidated dosing is acceptable only for fully characterized neutral streams where cyanide and Cr(VI) have already been measured below 0.1 mg/L each. A well-executed segregation plan is also the first step in any closed-loop or ZLD upgrade, as detailed in this PCB wastewater engineering solution with copper recovery.
Chemical Selection and Dosing Parameters
Six chemical functions dominate a metal finishing dosing skid: pH neutralization (low and high), coagulation, flocculation, Cr(VI) reduction, and cyanide destruction. Each has a typical dose band and a control variable. The numbers below reflect typical operating ranges for 50–5,000 m³/d plants; final values must be confirmed by jar testing on the actual site water.
| Function | Chemical | Typical Dose | Target / Control | Notes |
|---|---|---|---|---|
| Low-pH neutralization | NaOH (5–25% liquid), Ca(OH)₂, Mg(OH)₂ | Stoichiometric + 10–20% | pH 7.0–8.5 | NaOH minimizes sludge; lime adds roughly 30% more dry solids. |
| High-pH neutralization | H₂SO₄ (10–98%), HCl, CO₂ | Stoichiometric + 10–20% | pH 7.0–8.5 | HCl preferred when sulfate discharge is restricted. |
| Coagulation | Polyaluminum chloride (PAC) or FeCl₃ | PAC 50–200 mg/L; FeCl₃ 30–150 mg/L | Streaming current / zeta | PAC favored at high TDS; FeCl₃ favored for lower sludge volume. |
| Flocculation | Anionic polyacrylamide (PAM) | 1–10 mg/L as 0.05–0.2% solution | Visual floc, jar test | Maturation 10–30 min in slow mix. |
| Cr(VI) reduction | Na₂S₂O₅ (sodium metabisulfite) | 1.5× stoichiometric | ORP 250–300 mV at pH < 3 | Two-stage reduction then neutralization prevents re-oxidation. |
| Cyanide destruction | NaClO + NaOH | 2.73 mg Cl₂ per mg CN⁻ (partial); 4.09 mg Cl₂ per mg CN⁻ (full) | pH 10–11; residual Cl₂ 0.5–2.0 mg/L | Two-stage: CN⁻ → CNO⁻ → CO₂ + N₂. |
Cr(VI) reduction deserves a second look. The 1.5× stoichiometric Na₂S₂O₅ ratio is the figure used by most industrial dosing references and is confirmed by jar testing; ORP must be measured on a clean, calibrated probe, with the reduction stage held at pH 2.5–3.0 to keep the reaction kinetics fast, then re-neutralized before discharge. For cyanide, alkaline chlorination proceeds in two stages: partial oxidation of free cyanide to cyanate at pH 10–11, then full oxidation to CO₂ and N₂ at the same pH, with free chlorine residual held at 0.5–2.0 mg/L as the safety margin. A PLC-controlled automatic chemical dosing skid is the standard platform for delivering all six functions on a single, audited footprint.
EPA 40 CFR Part 433 Compliance Mapping
40 CFR Part 433 enumerates 13 regulated pollutant categories: total and amenable cyanide, total chromium, hexavalent chromium, cadmium, copper, lead, nickel, silver, zinc, total toxic organics (TTO), oil and grease, total suspended solids, and pH. The daily maximum and monthly average values from 40 CFR 433.102 Table 1 govern the reactor; designers must verify the current numbers against the live eCFR link before issuing drawings. Representative daily maximum values for the heavy metals that drive coagulant dose selection are summarized below.
| Pollutant | Daily Maximum (mg/L) | Monthly Average (mg/L) | Controlling Dosing Function |
|---|---|---|---|
| Cadmium (Cd) | 0.69 | 0.26 | Coagulation + pH 9–9.5 sweep |
| Chromium (total) | 2.77 | 1.71 | Cr(VI) reduction + coagulation |
| Hexavalent chromium, Cr(VI) | 0.77 | 0.33 | Na₂S₂O₅ reduction stage |
| Copper (Cu) | 3.38 | 1.48 | Coagulation at pH 8–9 |
| Lead (Pb) | 0.69 | 0.43 | Coagulation + sulfide precipitation |
| Nickel (Ni) | 3.98 | 2.38 | Coagulation at pH 9.5–10 |
| Silver (Ag) | 0.43 | 0.24 | Cl⁻ precipitation + coagulation |
| Zinc (Zn) | 2.61 | 1.48 | Coagulation at pH 8.5–9.5 |
| Total cyanide | 1.20 | 0.65 | Alkaline chlorination |
| pH | 6.0–9.0 (range) | — | Neutralization skid |
The dosing system must reliably meet the daily maximum under peak loading, not just the monthly average. PLC data logging of dose rates, pH/ORP trends, and flow is the auditable proof of compliance during NPDES inspections. Designers who treat the monthly average as the design point are the ones who get surprise excursions during a slug event.

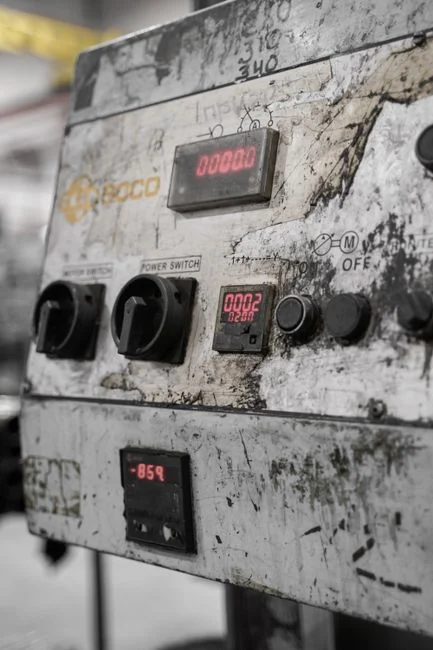

Dosing System Hardware: Pumps, Tanks, Mixers, and Instruments
Metering pumps are the heart of the skid. Solenoid- or motor-driven diaphragm pumps dominate for NaOH, H₂SO₄, and PAC; peristaltic pumps are preferred for shear-sensitive polyelectrolytes and viscous slurries like lime. Typical metering capacity ranges 0.1–1,200 L/h with a 100:1 turndown ratio as the minimum acceptable for NaOH and H₂SO₄ service. Diaphragm materials should be PTFE or EPDM for acid compatibility, and pump heads should be double-bounded for NaOCl service to contain any diaphragm failure.
Storage tank selection follows chemical compatibility. HDPE and PP handle most acids and alkalis up to 50 °C; cross-linked PE is required for H₂SO₄ above 70% concentration; FRP or rubber-lined carbon steel is used for concentrated chromic acid. Secondary containment (bunding) at 110% of the largest tank volume is standard for EPA SPCC compliance (40 CFR 112). Mixers fall into two speed classes: slow-speed anchor or paddle units at 30–60 rpm for flocculant maturation, and high-speed flash mixers at 1,200–1,500 rpm for coagulant dispersion, with a target velocity gradient G of 300–700 s⁻¹ at the flash stage. Inline instruments — pH, ORP, conductivity, and flowmeters — are required on each dosing loop, with calibration at least quarterly per Standard Methods 4500. The same PLC-controlled automatic chemical dosing skid that holds the chemical functions also holds the instrument package.
PLC Automation and the Dosing Control Loop
A 2026 dosing skid runs three control loops in parallel: flow-paced dosing (pump stroke scales with influent flowmeter signal), feedback trim from a pH or ORP probe to correct residual error, and lead/lag pump staging for redundancy. Flow-paced alone can hold the target within ±0.5 pH units on a steady stream, but the feedback trim is what gets the system through a slug without operator intervention. Lead/lag staging cuts the average pump duty to under 60% on each pump, which extends diaphragm life past 8,000 operating hours and is a non-negotiable requirement for unattended sites.
Typical installed plant data from 2024–2025 industrial dosing references show PLC feedback control reduces chemical overconsumption by 20–35% compared to timer-based systems, mostly by eliminating the conservative overdose that operators add as a safety margin. Every dosing skid should ship with a standard alarm package: pump failure, tank low level, instrument out of range, calibration due, and chemical batch exhaustion. Plants with central control rooms typically expect Modbus TCP or OPC UA integration into the SCADA layer; the online copper monitoring sensor buyer's guide covers the analyzer side of the same SCADA interface.
Downstream Pairing: DAF and Clarifier as the Dosing Partner
Chemical dosing creates the destabilized colloids and macro-floc particles that the downstream reactor consumes. Without proper coagulant and flocculant dose, DAF performance collapses because the micro-bubbles have no particles to attach to, and the effluent TSS climbs past 100 mg/L even when individual metal concentrations look acceptable. The ZSQ series dissolved air flotation system covers 4–300 m³/h, which matches the flow envelope of most metal finishing plants in the 50–5,000 m³/d range. Where influent TSS runs above approximately 500 mg/L — common when spent bath dumps are routed through the same reactor — a lamella clarifier for high-TSS metal finishing streams can substitute for DAF at the cost of larger footprint, typically 1.8–2.5× the DAF plan area for the same hydraulic load.
Sizing Checklist: 10 Questions to Define Your Dosing Skid
- What is the design flow, in m³/h, and the peak factor? (Determines pump capacity and equalization volume.)
- What is the influent pH range, minimum and maximum? (Sets the neutralization reactor size and pump turndown requirement.)
- What is the target pH band before discharge? (Drives NaOH or H₂SO₄ dose band.)
- Is Cr(VI) present, and at what maximum concentration? (Triggers the two-stage reduction stage with ORP control.)
- Is free or total cyanide present, and at what maximum? (Triggers alkaline chlorination with two-stage oxidation.)
- How many streams must be treated simultaneously? (Determines how many parallel dosing loops.)
- What is the downstream reactor — DAF, lamella clarifier, or both in series? (Sets the flocculation maturation HRT.)
- What is the influent TDS, and what is the sulfate or chloride limit? (Drives PAC vs. FeCl₃ selection.)
- What automation level is required — relay logic, PLC with HMI, or full SCADA integration? (Drives control panel cost.)
- What data must be logged to satisfy NPDES recordkeeping? (Drives PLC tag count and historian scope.)
Typical project lead time is 6–10 weeks for a PLC-controlled skid ex works, plus 2–4 weeks for installation and commissioning, which should be budgeted into the plant shutdown plan. The 10-question format mirrors the spec structure used in the flocculant dosing unit engineering specs and cost models piece, adapted to metal finishing chemistry.
Frequently Asked Questions
What does a chemical dosing system do in a metal finishing plant?
It injects pH adjusters, coagulants, flocculants, and reducing or oxidizing agents into segregated wastewater streams at controlled rates, conditioned by online pH/ORP feedback, to precipitate dissolved metals and break down cyanide and Cr(VI) before the downstream clarifier or DAF.
Which EPA regulation governs metal finishing wastewater discharge?
EPA 40 CFR Part 433, the Metal Finishing Effluent Guidelines, originally promulgated in 1983 and amended in 1984 and 1986. It sets daily maximum and monthly average limits for 13 pollutant categories and applies to roughly 44,000 facilities discharging either directly to surface waters or indirectly through POTWs.
What is the typical dose range for polyaluminum chloride (PAC) in metal finishing wastewater?
PAC is normally dosed at 50–200 mg/L, selected by jar testing on the actual site water; FeCl₃ at 30–150 mg/L is the common alternative when sludge minimization outweighs TDS tolerance.
How is hexavalent chromium reduced before discharge?
By a two-stage process: reduction with sodium metabisulfite (Na₂S₂O₅) at 1.5× stoichiometric dose, held at pH 2.5–3.0 with an ORP setpoint of 250–300 mV, followed by pH re-neutralization to 7.0–8.5 to precipitate the resulting Cr(III) hydroxide.
Why must cyanide and hexavalent chrome streams be segregated?
Mixing a cyanide stream at low pH with any other stream can liberate hydrogen cyanide gas; mixing it with a Cr(VI) stream before full reduction creates competing reactions and prevents the destruction step from reaching completion. The two streams must be kept in separate pipework, equalization tanks, and dosing skids until each destruction step is complete.
What pump turndown ratio is required for a metal finishing dosing pump?
100:1 is the minimum acceptable for NaOH and H₂SO₄ service, achieved with solenoid- or motor-driven diaphragm metering pumps. Peristaltic pumps are used for flocculant service, where shear sensitivity rather than turndown is the driver.
