RO membrane system for food processing wastewater: fouling, sizing, and compliance
RO membrane system for food processing wastewater selection depends on foulant load, flux, recovery, pretreatment, and cleaning chemistry. Dairy trains commonly use 10–15 LMH, beverage trains 15–20 LMH, and protein trains 8–12 LMH, while 2026 CAPEX ranges from ¥1.2M–¥5.5M by capacity.
Food plants do not receive a reliable design from a generic RO skid datasheet. Protein, sugar, calcium phosphate, fat, solids, temperature swings, and cleaning limits determine the feed envelope. Most plants we size for run at the lower end of the flux range, recovering capacity through pretreatment and scheduled CIP rather than pressure.
RO trains should be specified from a feedwater campaign, not a single grab sample. Record flow by shift, conductivity, hardness, alkalinity, silica, turbidity, TSS, FOG, COD, protein, temperature, and cleaning-agent carryover. The operating envelope should also state whether permeate is process water, wash water, boiler feed, or a source for another treatment step.
Why Food Processing Plants Struggle with RO Membrane Fouling
RO membrane fouling in food processing wastewater is driven mainly by protein, sugar, calcium phosphate, and poorly removed suspended solids. Fouling drives up to 60% of unscheduled downtime in food wastewater trains. Sector-specific flux, materials, and CIP cut that risk; generic 0.001 μm RO skids do not. 2026 CAPEX runs ¥1.2M–¥5.5M by capacity under FDA 21 CFR Part 117 and Directive (EU) 2020/2184.
A dairy plant in Shandong replaced membranes every three months due to protein fouling, losing roughly ¥800K per year in downtime, labor, and replacement elements (HydropureWater field data, 2025). The top three foulants in this sector are proteins from dairy, sugars from beverage lines, and calcium phosphate scaling from whey and cheese streams. A useful operating log separates irreversible flux loss from temporary pressure changes caused by temperature or production recipe changes.
A 2024 study in Dairy Science reported that standard polyamide membranes can clog within 48 hours when feed protein content reaches about 5%, cutting flux and forcing aggressive cleaning. Sector-specific chemistry closes that gap: PVDF membranes with pH 6.5–7.0 control resist protein adhesion in dairy lines, while polyamide elements paired with automated clean-in-place (CIP) handle high-sugar beverage wastewater. The article's field case and study claim should be validated against the plant's own normalized-permeate-flow trend before procurement.
For plants that need biological reduction upstream, an MBR Membrane Bioreactor Wastewater Treatment System can drop COD below 200 mg/L before RO, extending membrane service life. The MBR does not remove the need for RO feed monitoring: soluble salts, hardness, residual coagulant, and cleaning chemical compatibility still govern the downstream train.
RO Membrane System Specs for Food Processing: 2026 Engineering Parameters
RO membrane fouling prevention in dairy wastewater treatment starts with conservative flux: 10–15 LMH is the 2026 working range, against 15–20 LMH for beverage lines and 8–12 LMH for protein processing. Recovery ratios track the same logic—75–80% for dairy, 80–85% for beverages, 70–75% for protein—because higher recovery always raises scaling and biofouling risk. Pore size follows the foulant: 0.0001 μm for dairy to reject β-lactoglobulin, 0.001 μm for beverages to pass sugar-free permeate, and 0.0005 μm for protein lines that need peptide rejection.
Those ranges are starting points, not fixed outcomes. A designer should normalize permeate flow to temperature, trend differential pressure by vessel, and set an alarm for conductivity drift. Recovery must be checked against concentrate analysis and antiscalant performance; a nominal 80–85% recovery can be unsuitable when calcium phosphate, silica, or organic colloids rise during a whey or syrup campaign.
Membrane material matters as much as pore size. PVDF is the default for dairy because it tolerates NaOH and EDTA CIP chemicals; polyamide wins on flux for beverage plant water purification; ceramic elements cost more but resist heat and fat in protein processing. Food Technology 2025 benchmarks put membrane lifespan at 2–3 years for dairy under rigorous CIP, 3–5 years for beverage, and 1–2 years for protein. For higher-strength organic feeds, designers often compare RO against the duty cycle described in high-strength organic wastewater treatment by reverse osmosis before specifying recovery targets.
Material selection must also cover seals, housings, wetted pipework, and chemical tanks. A membrane element may tolerate a cleaning solution while an elastomer or sensor body does not. Specify the approved pH and temperature envelope for each component, and require a documented rinse endpoint before returning the skid to production.
| Parameter | Dairy Sector | Beverage Sector | Protein Sector |
|---|---|---|---|
| Typical Flux Rate (LMH) | 10–15 | 15–20 | 8–12 |
| Recovery Ratio (%) | 75–80 | 80–85 | 70–75 |
| Membrane Lifespan (Years) | 2–3 | 3–5 | 1–2 |
| Pore Size (μm) | 0.0001 | 0.001 | 0.0005 |
| Primary Membrane Material | PVDF | Polyamide | Ceramic |

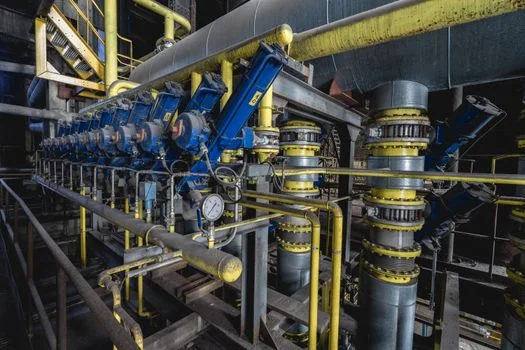

Zero-Fouling RO Design Strategies for Food Industry Wastewater
RO pretreatment decides whether a system runs three years or three months. Dairy lines need dissolved air flotation (DAF) to drop TSS below 50 mg/L and FOG below 10 mg/L; beverage lines need multimedia filtration under 1 NTU; protein lines usually need ultrafiltration (UF) to strip COD below 200 mg/L before RO. These are control targets for the design basis, not universal discharge limits. HydropureWater’s DAF systems for dairy and beverage pretreatment are sized for those targets and integrate with downstream RO skids.
Each pretreatment stage should have a sampling point before and after the unit. If DAF outlet FOG remains above 10 mg/L, increasing RO pressure only hides the problem. If multimedia filtration outlet turbidity exceeds 1 NTU, inspect backwash timing, media condition, and coagulant carryover before changing membrane flux. For UF, track COD below 200 mg/L together with normalized flux, because COD alone does not describe protein colloids.
zero-fouling ro membrane design dairy wastewater
Zero-fouling RO membrane design dairy wastewater requires staged solids removal, conservative 10–15 LMH flux, pH 6.5–7.0 control, and a trigger-based CIP plan. A practical trigger set combines normalized permeate-flow loss, rising differential pressure, conductivity movement, and a confirmed feed change. “Zero-fouling” is therefore a design objective, not a claim that fouling can never occur.
Chemical dosing closes the loop. Antiscalant at 1–3 ppm (dairy) or 2–5 ppm (beverage), dosed by an automatic chemical dosing system, stops calcium phosphate crystals and sugar-driven biofilm. pH control is non-negotiable: 6.5–7.0 for dairy to limit protein denaturation, 5.5–6.5 for beverage to prevent sugar caramelization. CIP cycles finish the job—4–8 h at 1% NaOH then 0.5% EDTA on dairy, 6–12 h at 0.5% citric acid on beverage, 2–4 h with 0.1% protease on protein lines.
ro membrane cip protocol beverage wastewater
Ro membrane CIP protocol beverage wastewater practice starts with the specified 6–12 h at 0.5% citric acid cycle, then verifies rinse conductivity and normalized permeate flow before release. Operators should record chemical strength, temperature, circulation rate, and soak time for every clean, because an undocumented cycle will not survive a customer or regulatory audit. Differential pressure readings before and after each clean show whether the protocol is recovering capacity; a slow drift across three consecutive cleans usually points to pretreatment breakthrough rather than cleaning chemistry.
pvdf ro membrane dairy protein fouling prevention
PVDF RO membrane dairy protein fouling prevention pairs PVDF compatibility with controlled pH, low suspended-solids loading, and a cleaning recipe proven on the actual feed. PVDF alone cannot compensate for protein breakthrough from DAF or UF. Confirm chemical compatibility, temperature, recirculation velocity, soak time, rinse conductivity, and return-to-service criteria during commissioning.
Zero-liquid-discharge (ZLD) layouts cut effluent volume but raise specific energy by 30–50% from the extra concentration stages, so every ZLD bid needs an energy trade-off check. The balance should include evaporator or crystallizer duty, concentrate pumping, heat recovery, brine handling, cleaning downtime, and the disposal route that remains available during maintenance.
Plants comparing membrane families should not substitute the phrase ceramic membrane water for an RO duty. That adjacent subject has a different separation mechanism and owner page. The same boundary applies to ceramic membrane wastewater; the link is provided for the relevant sibling topic rather than as a recommendation for this RO train.
Cost Breakdown: 2026 CAPEX and OPEX for Food-Grade RO Systems
2026 CAPEX for a food-grade RO skid runs ¥1.2M–¥1.8M at 5 m³/h, ¥2.5M–¥3.5M at 20 m³/h, and ¥4.5M–¥5.5M at 50 m³/h; ZLD-ready builds add a 20–30% premium for crystallizers and brine handling. On a 20 m³/h dairy system at ¥3M plus ¥800K annual OPEX, water-reuse savings and lower discharge fees return roughly ¥1.2M/year, which gives an 18-month payback (HydropureWater ROI analysis, 2026).
food grade ro membrane capex 2026
Food grade ro membrane capex 2026 should be compared on installed capacity, feed variability, pretreatment, instrumentation, CIP hardware, concentrate management, and commissioning support. The listed ¥1.2M–¥1.8M, ¥2.5M–¥3.5M, and ¥4.5M–¥5.5M bands are capacity examples, not a quote. Procurement should request a boundary-of-supply schedule so a low skid price does not omit DAF, UF, tanks, controls, electrical work, or disposal equipment.
OPEX splits predictably: membrane replacement 30–40%, energy at 0.5–1.2 kWh/m³ permeate 25–35%, labor for monitoring and CIP 10–15%, chemicals 5–10%. Downtime for CIP (2–4 h/week on dairy) and concentrate disposal at ¥50–¥200/m³ are the hidden line items that derail RO system cost 2026 budgets when procurement forgets them. Plants weighing ceramic elements as an alternative should compare that route against the data in the RO membrane used in food and beverage plants engineering guide.
A sound business case separates fixed and variable costs. Fixed items include vessels, pumps, controls, installation, validation, and spare-element inventory. Variable items include electricity, cleaning chemicals, membrane replacement, labor, concentrate disposal, and lost production during CIP. Use actual operating hours and seasonal flow rather than multiplying a nameplate 50 m³/h by every calendar hour.
| Cost Category | 5 m³/h System | 20 m³/h System | 50 m³/h System |
|---|---|---|---|
| CAPEX (¥) | 1.2M–1.8M | 2.5M–3.5M | 4.5M–5.5M |
| ZLD Premium (CAPEX) | +20–30% | +20–30% | +20–30% |
| Annual OPEX Breakdown (as % of total OPEX) | |||
| Membrane Replacement | 30–40% | 30–40% | 30–40% |
| Energy (0.5–1.2 kWh/m³) | 25–35% | 25–35% | 25–35% |
| Chemicals | 5–10% | 5–10% | 5–10% |
| Labor | 10–15% | 10–15% | 10–15% |
| Concentrate Disposal (¥/m³) | 50–200 | 50–200 | 50–200 |
FDA and EU Compliance: RO System Requirements for Food Processing
FDA-compliant RO systems for food processing must be integrated into the site's food-safety controls; an RO label alone is not a compliance determination. FDA also states that Part 117 applies generally to registered domestic and foreign food facilities unless an exemption applies. Earlier citations pointed to 21 CFR Part 110; the original Part 117 reference is the current food-CGMP boundary.
Draft claims that invoked 21 CFR Part 111 for Water for Injection were incorrect—part 111 covers dietary-supplement CGMP, not WFI. The FDA FSMA FAQ explains that dietary-supplement manufacturers may have Part 111 requirements and specified Part 117 requirements, depending on the activity and exemption; that distinction should not be transferred to ordinary food-processing wastewater. Where process water specs require it, plants still hold microbial counts under 10 CFU/mL and keep documented conductivity limits.
In the EU, Regulation (EC) No 852/2004 demands potable water for food contact. Directive (EU) 2020/2184 treats water used in a food business for manufacturing, processing, preservation, or marketing of food as water intended for human consumption. Earlier citations used Drinking Water Directive 98/83/EC and a TDS cap of 250 mg/L; Directive (EU) 2020/2184 repealed 98/83/EC as of 12 January 2023 and requires such water to be free from E. coli and intestinal enterococci. Local transposition and the intended use still determine the final specification.
KEPA-compliant RO systems for Middle Eastern food plants meet analogous regional standards, but the project specification must name the applicable authority instead of treating KEPA as a universal approval. The same discipline applies to NSF/ANSI 61 for drinking water components and 3-A Sanitary Standards for dairy equipment: confirm scope, product-contact status, certificates, and installation conditions before calling a skid compliant.
Audit-ready documentation is the second half of compliance. Real-time conductivity logs, CIP validation reports, and pressure-decay membrane integrity tests every six months are baseline. FDA 483 observations from 2025 show 40% of citations stem from missing CIP validation and 30% from absent integrity test records. For an overview of compliant skid design, see HydropureWater's FDA-compliant RO systems for food processing specification page. The buyer should request calibration records, chemical certificates, alarm history, cleaning records, and a change-control procedure with the final handover package.
Selection Checklist Before Ordering a Food-Grade RO Train
Food-grade RO selection is ready for quotation only when the feed, product-water, and operating boundaries are explicit. Use this short review before comparing bids:
- Confirm average, peak, and minimum flow by production shift, including CIP return and seasonal campaigns.
- Define permeate use, required conductivity, microbial criteria, temperature range, and whether water contacts product.
- Provide feed data for TSS, FOG, COD, protein, sugar, hardness, alkalinity, silica, conductivity, pH, and temperature.
- Set pretreatment outlet targets, CIP chemicals, chemical concentration, temperature, rinse endpoint, and operator responsibility.
- Ask for contracted normalized-flow, differential-pressure, recovery, and concentrate-quality values with their test methods.
- Price spares, validation, instruments, installation, training, disposal, downtime, and the ZLD boundary separately.
Who This Is For and Next Step
This page fits plant engineers and EPC procurement teams sizing a new RO train, or operators fighting premature membrane replacement in dairy, beverage, or protein lines. It is not the right reference for ultra-pure boiler feed or semiconductor rinse reuse, where resistivity targets and TOC limits differ. A practical inquiry package includes the feedwater analysis, target permeate volume, production schedule, discharge limits, existing pretreatment, and the intended compliance market.
Use the untracked Request a free quote route for general project contact, or use request a sized RO proposal with operating-cost projections for this article's inquiry attribution.
Frequently Asked Questions
What is the typical lifespan of an RO membrane in a dairy plant?
An RO membrane in a dairy plant typically lasts 2–3 years when rigorous clean-in-place (CIP) protocols are followed. Protein fouling and calcium phosphate scaling are the main stressors. PVDF elements with pH 6.5–7.0 control and antiscalant dosing at 1–3 ppm extend service life and improve RO system cost 2026 outcomes. Actual life depends on normalized flux, differential pressure, cleaning records, and the feed envelope.
How does zero-liquid-discharge (ZLD) impact RO system energy consumption?
Zero-liquid-discharge (ZLD) raises RO system energy consumption by 30–50%. The increase comes from higher operating pressures needed for elevated recovery and from downstream evaporators or crystallizers that handle the brine. Plant energy budgets for zero-liquid-discharge food processing must include those auxiliary loads, heat-transfer fouling, concentrate pumping, maintenance, and the available disposal route.
What pretreatment is essential for RO systems treating high-sugar beverage wastewater?
High-sugar beverage wastewater requires multimedia filtration to reduce turbidity below 1 NTU, dissolved air flotation (DAF) to strip suspended solids and FOG, and automated antiscalant dosing at 2–5 ppm. This pretreatment sequence protects beverage plant water purification membranes from sugar-induced scaling and biofilm. Trend turbidity, differential pressure, conductivity, and normalized flow rather than relying on a single visual inspection.
What are the key FDA compliance points for RO water used in food processing?
FDA-compliant RO systems for food processing must meet 21 CFR Part 117 CGMP and preventive-controls rules when the facility and activity fall within that scope. Earlier citations to 21 CFR Part 110 are superseded by part 117, subpart B; part 111 applies to dietary supplements, not WFI. Where specs require it, keep microbial counts under 10 CFU/mL and documented conductivity limits. Pressure-decay integrity tests every six months and complete CIP validation records close most gaps seen in 2025 FDA 483 observations.
How often should RO membranes in food processing be cleaned (CIP)?
CIP frequency for food processing RO membranes depends on the application: every 24–72 hours for dairy, every 3–7 days for beverage, and daily or twice daily for protein lines. Flux decline and differential pressure trends dictate the actual schedule and protect RO membrane fouling prevention targets. A cleaning interval should be adjusted only after confirming chemical strength, temperature, circulation, rinse completion, and the normalized-flow recovery trend.
