Electronics wastewater treatment requires specialized systems to remove fluoride (<15 mg/L), ammonia (via biological treatment or scrubbers), and metals from semiconductor and PCB manufacturing. Hybrid DAF-RO-MBR systems achieve 95%+ water recovery and zero-liquid discharge (ZLD) compliance, with CAPEX ranging from $200K for small PCB plants to $10M+ for semiconductor FABs. Key specs: MBR flux rates of 15–25 LMH, RO recovery of 80–95% for brines, and DAF TSS removal of 92–97% (EPA 2024 benchmarks).

Why Electronics Wastewater Treatment Demands Specialized Systems

Semiconductor and PCB manufacturing processes generate wastewater with contaminant profiles far exceeding municipal discharge limits, necessitating highly specialized treatment. This industrial effluent typically contains fluoride (ranging from 50–500 mg/L), ammonia (20–200 mg/L), copper (10–100 mg/L), and silica (30–150 mg/L), all of which are strictly regulated under standards like EPA 40 CFR Part 469. For example, a Texas semiconductor plant faced a $1.2M fine in 2023 due to fluoride exceedances, as documented in EPA enforcement data, highlighting the severe financial and regulatory risks associated with inadequate treatment. The production of ultrapure water (UPW), essential for electronics manufacturing with requirements of <10 ppb TOC and <0.1 μS/cm resistivity, further complicates wastewater management by creating high-volume rinse streams with trace contaminants that still require advanced removal. Two primary approaches to electronics wastewater treatment are employed: 'end-of-pipe' (EOP) and 'process-integrated' solutions. EOP systems treat a mixed stream of wastewater from various plant operations at a centralized location, offering the advantage of handling diverse contaminant loads but often incurring higher operational expenditures (OPEX) due to the complexity of treating a heterogeneous mixture. In contrast, process-integrated treatment involves treating specific waste streams closer to their source, which can be more efficient for highly concentrated or unique contaminants, potentially reducing overall chemical consumption and energy use but requiring more distributed infrastructure. The choice between these approaches, or a hybrid model, depends on the specific plant layout, contaminant profile, and desired water reuse targets.

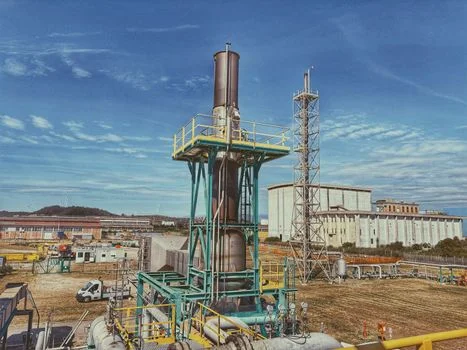

Contaminant Removal Benchmarks for Electronics Wastewater

Achieving compliance for electronics wastewater requires specific removal efficiencies for key contaminants, with each technology offering distinct performance targets. For fluoride removal from wastewater, chemical precipitation with Ca(OH)₂ or CaCl₂ typically achieves 80–90% reduction, but further polishing with reverse osmosis (RO) or nanofiltration (NF) membranes is often required to meet stringent discharge limits of <15 mg/L, as mandated by EPA regulations. Ammonia wastewater treatment can be effectively managed through biological nitrification/denitrification processes, which remove up to 95% of ammonia, or via air stripping, achieving about 90% removal when operated at a pH of 11. Copper, a common metal in PCB wastewater, is primarily removed through chemical precipitation using NaOH or Na₂S, which can achieve 95% removal, while ion exchange offers even higher efficiencies, up to 99%, though with a higher OPEX due to resin regeneration. Silica presents a unique challenge due to its propensity for scaling membranes; however, RO membranes are highly effective, removing over 98% of silica, provided adequate pretreatment such as lime softening is implemented to prevent membrane fouling. For organics, measured as Chemical Oxygen Demand (COD), advanced biological processes like MBR membrane bioreactor systems achieve effluent concentrations below 50 mg/L, consistently meeting EPA categorical limits for electronics manufacturing (40 CFR 469.12). These benchmarks are critical for environmental engineers designing and evaluating effective electronics wastewater treatment systems.

Contaminant	Typical Raw Concentration (mg/L)	Primary Treatment Method	Removal Efficiency (%)	Target Effluent (mg/L)	Key Challenge / Note
Fluoride	50–500	Ca(OH)₂/CaCl₂ Precipitation + RO/NF	80–90% (Precip.) / >95% (RO/NF)	<15 (EPA)	RO/NF needed for low limits
Ammonia	20–200	Biological Nitrification/Denitrification or Air Stripping	90–95%	<5–10	pH control for air stripping
Copper	10–100	Chemical Precipitation (NaOH/Na₂S) or Ion Exchange	95% (Precip.) / 99% (IX)	<0.5	Sludge management for precipitation
Silica	30–150	Lime Softening Pretreatment + RO	>98%	<1–5	Pretreatment critical for RO protection
COD (Organics)	100–500	MBR Membrane Bioreactor	>90%	<50 (EPA)	High-quality effluent for reuse
TSS (Total Suspended Solids)	50–200	DAF (Dissolved Air Flotation)	92–97%	<10	Protects downstream membranes

Hybrid Treatment Systems: DAF + MBR + RO for Zero-Discharge Compliance

Hybrid treatment systems combining Dissolved Air Flotation (DAF), Membrane Bioreactors (MBR), and Reverse Osmosis (RO) represent the gold standard for achieving zero-liquid discharge (ZLD) compliance in electronics wastewater treatment. DAF pretreatment plays a critical role in these configurations, effectively removing 92–97% of Total Suspended Solids (TSS) and 60–80% of Fats, Oils, and Grease (FOG), based on EPA 2024 benchmarks. This robust primary treatment with a high-efficiency DAF system for TSS and FOG removal protects the sensitive downstream MBR and RO membranes from fouling and premature wear. Following DAF, compact MBR systems for near-reuse-quality effluent, typically utilizing submerged PVDF membranes with a 0.1 μm pore size, achieve stable flux rates of 15–25 LMH with less than 10% annual fouling, as demonstrated by Zhongsheng DF Series specs. These MBR systems produce an exceptionally clean effluent, suitable for direct feed into RO. For final polishing and high water recovery, ultra-pure RO systems for brine recovery and ZLD are indispensable. Technologies like Saltworks' XtremeRO can recover 80–95% of the brine waste, significantly reducing the volume requiring disposal. This advanced RO stage consumes approximately 3–5 kWh/m³ of energy, which is substantially lower than the 8–12 kWh/m³ often required for thermal ZLD evaporators. A notable case study involves a 300 m³/h semiconductor plant in Taiwan, which achieved a 70% reduction in water consumption by implementing a DAF-MBR-RO system. This project incurred a CAPEX of $4.2M and operates at an OPEX of $1.80/m³, demonstrating the economic viability of integrated solutions. The decision between ZLD (95%+ water recovery) and minimum liquid discharge (MLD, 70–80% recovery) for electronics plants involves a trade-off between higher CAPEX/OPEX for ZLD and the imperative of regulatory compliance and water scarcity. ZLD systems, while more expensive upfront, offer maximum water reuse and virtually eliminate discharge liabilities, whereas MLD provides significant recovery with a lower investment. For more details on specific components, consider exploring our high-efficiency DAF system, compact MBR system, and ultra-pure RO system.

Hybrid System Configuration	Key Technologies	Primary Application / Use Case	Water Recovery Rate	Typical Effluent Quality	CAPEX Impact	OPEX Impact
DAF + Chemical Precipitation	DAF, Coagulation/Flocculation, Sedimentation	Small PCB plants, basic metals/TSS removal	50–70%	Meets municipal discharge limits (non-reuse)	Low	Medium (chemical & sludge)
DAF + MBR + RO	DAF, MBR, RO, Post-treatment	Mid-size semiconductor/PCB, high water reuse (MLD)	70–90%	Near-potable, suitable for industrial reuse	Medium	Medium-High (membrane replacement, energy)
DAF + MBR + RO + Evaporator/Crystallizer	DAF, MBR, RO, Brine Concentrator, Evaporator/Crystallizer	Large FABs, ZLD for critical water scarcity/regulations	>95%	Distilled water (reuse), solid waste (disposal)	High	High (energy-intensive evaporation)
A/O + MBR + RO (for high ammonia)	Anaerobic/Anoxic/Oxic biological process, MBR, RO	Semiconductor plants with high ammonia & organics	70–90%	Low ammonia, low COD, high reuse potential	Medium	Medium-High (aeration, membrane)

CAPEX & OPEX Breakdown: Electronics Wastewater Treatment by Plant Size

The capital expenditure (CAPEX) and operational expenditure (OPEX) for electronics wastewater treatment systems vary significantly based on plant size, flow rate, and the required level of treatment and water recovery. For small PCB plants processing up to 50 m³/h of wastewater, the CAPEX for a DAF system combined with chemical precipitation typically ranges from $200K to $800K, with an associated OPEX of $0.80–$1.50/m³. These systems focus primarily on copper removal and basic effluent compliance. Mid-size semiconductor plants with flow rates around 200 m³/h often require more advanced solutions, such as DAF-MBR-RO systems, incurring a CAPEX of $2M–$5M and an OPEX of $1.20–$2.50/m³. This investment supports significant water reuse and stricter contaminant removal. For large semiconductor FABs, particularly those exceeding 500 m³/h and aiming for zero-liquid discharge, the CAPEX can escalate to $8M–$15M for comprehensive ZLD systems that include evaporators and crystallizers. The OPEX for these advanced systems is typically higher, ranging from $2.50–$4.00/m³, primarily due to the energy-intensive nature of evaporation. Key cost drivers across all system sizes include membrane replacement, which can account for approximately 20% of OPEX, energy consumption (30–40% of OPEX, especially for pumps and aeration), and sludge disposal (15–25% of OPEX). Despite the substantial initial investment, the return on investment (ROI) for these systems is often realized within 3–7 years, driven by significant water reuse savings ($0.50–$2.00/m³) and the avoidance of substantial regulatory fines ($10K–$1M/year). For further details on specific applications, consider reviewing PCB wastewater treatment engineering specs and cost models and TFT-LCD wastewater treatment specs and hybrid system designs.

Plant Size / Flow Rate	Typical System Configuration	Estimated CAPEX Range	Estimated OPEX Range ($/m³)	Primary Cost Drivers	Typical ROI Period
Small PCB Plant (50 m³/h)	DAF + Chemical Precipitation	$200K–$800K	$0.80–$1.50	Chemicals, Sludge Disposal	3–5 years
Mid-size Semiconductor (200 m³/h)	DAF-MBR-RO	$2M–$5M	$1.20–$2.50	Energy, Membrane Replacement, Chemicals	4–6 years
Large FAB (500+ m³/h)	ZLD (DAF-MBR-RO + Evaporators/Crystallizers)	$8M–$15M	$2.50–$4.00	Energy (Evaporation), Membrane Replacement, Sludge	5–7 years

Selecting the Right System: Decision Framework for Electronics Plants

Selecting the optimal electronics wastewater treatment system requires a structured decision framework that considers the specific contaminant profile, plant size, effluent limits, and budget. The process typically begins with a thorough analysis of the wastewater's contaminant profile, identifying key pollutants such as fluoride, ammonia, and metals to match them with appropriate treatment technologies (e.g., high fluoride concentrations necessitate precipitation followed by RO). Use-case matching is crucial: PCB plants, for instance, often prioritize efficient copper removal, making chemical precipitation a primary focus, while semiconductor FABs frequently require zero-liquid discharge (ZLD) capabilities to meet stringent water reuse targets and minimize environmental impact. Regulatory compliance forms a non-negotiable cornerstone of the decision process. Facilities must adhere to federal standards like EPA 40 CFR Part 469 for semiconductors, alongside potentially stricter local limits, such as Taiwan EPA's <10 mg/L fluoride standard. Footprint constraints are another significant factor; for example, MBR systems offer a considerable advantage by requiring up to 60% less space than conventional activated sludge systems (Zhongsheng MBR specs), making them ideal for urban or space-limited facilities. Finally, future-proofing the investment is vital. Modular systems, such as containerized RO units, allow for flexible capacity expansion without necessitating a complete redesign of the treatment infrastructure, providing adaptability for evolving production demands and regulatory landscapes.

Decision Factor	Considerations for Electronics Plants	Recommended System Type	Impact on CAPEX/OPEX
Contaminant Profile (e.g., high fluoride, ammonia, metals)	Primary pollutants dictate core technologies needed.	Precipitation + RO (Fluoride), Biological/Stripping (Ammonia), DAF + Precipitation (Metals)	Higher complexity = Higher CAPEX/OPEX
Desired Water Recovery / Reuse Target	Partial reuse (MLD) vs. Zero-Liquid Discharge (ZLD).	MLD (DAF-MBR-RO) vs. ZLD (DAF-MBR-RO + Evaporator)	ZLD significantly increases CAPEX/OPEX
Regulatory Effluent Limits (e.g., EPA 40 CFR 469)	Strictness of discharge standards drives technology choice.	RO/NF for ultra-low limits, MBR for categorical limits	Stricter limits = More advanced tech = Higher cost
Plant Footprint / Space Availability	Limited space favors compact, high-density systems.	MBR (compact), Containerized units	Compact systems can reduce civil works CAPEX
Budget & ROI Expectations	Balancing upfront investment with long-term savings.	Phased implementation, modular designs	Lower CAPEX initially, potentially higher OPEX without ZLD

Frequently Asked Questions

What are the discharge limits for fluoride in electronics wastewater?

EPA 40 CFR Part 469 sets a limit of <15 mg/L for semiconductor plants in the United States; however, EU standards are often stricter, typically requiring <10 mg/L.

How much does a zero-liquid discharge (ZLD) system cost for a semiconductor plant?

For a 500 m³/h semiconductor plant, the CAPEX for a ZLD system typically ranges from $8M–$15M, with an OPEX of $2.50–$4.00/m³ due to the energy-intensive nature of evaporators and brine concentrators.

What’s the best technology for removing ammonia from electronics wastewater?

Biological nitrification/denitrification offers 95% ammonia removal and is highly effective for larger flows. Alternatively, air stripping can achieve 90% removal at pH 11, often preferred for smaller flows or when space for biological reactors is limited.

Can RO membranes handle high-silica wastewater from semiconductor plants?

Yes, RO membranes are highly effective at removing silica, but extensive pretreatment, such as lime softening, is required to prevent scaling and fouling. Without proper pretreatment, RO recovery rates can drop significantly, often to 70–80%.

What’s the typical payback period for a DAF-MBR-RO system in a PCB plant?

The typical payback period for a DAF-MBR-RO system in a PCB plant is 3–5 years, primarily driven by substantial water reuse savings (estimated at $0.50–$1.50/m³) and the avoidance of regulatory fines, which can range from $50K–$500K per year.
