Why Display Panel Wastewater Requires Specialized Treatment Systems
Display panel manufacturing wastewater contains distinct contaminant profiles, including high concentrations of TMAH, photoresist, and heavy metals, that render conventional municipal treatment ineffective. The intricate fabrication processes for TFT-LCD, OLED, and microLED panels generate a unique effluent characterized by specific chemical agents used in etching, developing, and stripping. For instance, tetramethylammonium hydroxide (TMAH), a strong developer and stripping agent, is typically present in concentrations ranging from 500–2,000 mg/L in raw display panel effluent. Photoresist residues, contributing 100–500 mg/L of chemical oxygen demand (COD), form stable emulsions that resist conventional coagulation and flocculation methods, posing a significant challenge for solids separation. heavy metals such as indium (often ≤ 5 mg/L) and copper (often ≤ 10 mg/L) are introduced during sputtering and etching stages, requiring specialized removal to meet stringent regulatory limits like those under EPA 40 CFR Part 469 (e.g., copper discharge limit for electronics manufacturing) and the EU Industrial Emissions Directive (IED) 2010/75/EU. Unlike municipal wastewater, which primarily contains biodegradable organics and suspended solids, or even other industrial effluents like those from PCB or semiconductor manufacturing, display panel wastewater necessitates a multi-stage, hybrid approach due to the presence of non-biodegradable organics, chelating agents, and specific heavy metal complexes.Table 1: Comparison of Wastewater Profiles
| Parameter | Municipal Wastewater | PCB Manufacturing Wastewater | Display Panel Wastewater |
|---|---|---|---|
| COD (mg/L) | 250–500 | 500–2,000 | 500–3,000 (incl. photoresist) |
| TSS (mg/L) | 200–400 | 100–500 | 100–800 (colloidal particles) |
| Key Organics | Biodegradable organics, nutrients | EDTA, formaldehyde, complexed organics | TMAH (500–2,000 mg/L), photoresist |
| Heavy Metals | Trace (e.g., zinc, lead) | Copper (up to 100 mg/L), nickel, tin | Indium (≤ 5 mg/L), Copper (≤ 10 mg/L) |
| pH Range | 6.5–8.0 | 2.0–11.0 (highly variable) | 3.0–12.0 (highly variable) |
| Treatment Focus | BOD/COD, nutrient removal | Heavy metal precipitation, COD reduction | TMAH degradation, photoresist emulsion breaking, heavy metal recovery |
Hybrid DAF-MBR-RO System Design: Engineering Specs for Display Panel Wastewater
A robust hybrid DAF-MBR-RO system is specifically engineered to treat the complex contaminant profile of display panel wastewater, integrating physical, biological, and membrane separation processes for comprehensive removal. The typical process flow begins with pretreatment, followed by biological degradation and advanced polishing, often culminating in zero-liquid-discharge (ZLD) capabilities.1. DAF Pretreatment: Dissolved air flotation (DAF) serves as the primary physical-chemical pretreatment stage, effectively removing suspended solids (TSS), oil and grease, and a portion of the COD. The ZSQ series DAF system for TSS and FOG removal in display panel wastewater operates by saturating a portion of the clarified effluent with air under pressure, then releasing it into the influent wastewater. This creates micro-bubbles (20-50 μm) that attach to suspended particles, increasing their buoyancy and causing them to float to the surface for skimming. DAF units typically achieve 90–95% TSS removal and 30–50% COD reduction, making them crucial for reducing the organic and solids load on subsequent biological stages. Chemical conditioning with coagulants and flocculants often precedes DAF to enhance particle aggregation and emulsion breaking, particularly for photoresist residues.
2. MBR Stage: Following DAF and an equalization tank, the wastewater proceeds to the membrane bioreactor (MBR) stage. MBRs combine conventional activated sludge treatment with advanced membrane filtration, employing submerged PVDF (polyvinylidene fluoride) membranes with a typical pore size of 0.1 μm. The DF series PVDF flat sheet MBR membranes for COD and TSS polishing are highly effective for COD and TSS polishing. The biological activity within the MBR degrades complex organic compounds, including a significant portion of TMAH and biodegradable photoresist components. Continuous aeration not only supplies oxygen for microbial activity but also provides scouring to prevent membrane fouling, a critical consideration when treating photoresist-laden wastewater. The high biomass concentration and long sludge retention times in MBRs enhance the degradation of recalcitrant organics, delivering effluent with exceptionally low TSS (<1 mg/L) and high COD removal efficiency.
3. RO Polishing: The final polishing stage involves reverse osmosis (RO) to remove dissolved salts, residual heavy metals, and non-biodegradable organics, enabling high-purity water reuse or ZLD. Industrial RO systems for heavy metal removal and water reuse in display panel manufacturing typically utilize polyamide thin-film composite membranes, which offer high rejection rates (99%+ for heavy metals and salts). To prevent fouling and scaling, which are common challenges in RO systems, robust pretreatment (e.g., ultrafiltration, activated carbon) and chemical dosing (antiscalants, pH adjustment) are essential. For display panel wastewater, preventing membrane fouling from residual photoresist components and scaling from metal hydroxides or silica is paramount. The RO permeate can be recycled for various manufacturing processes (e.g., ultrapure water makeup, cooling towers), significantly reducing freshwater consumption and discharge volumes.
Table 2: Key Engineering Specifications for Hybrid DAF-MBR-RO System Components
| Component | Key Specification | Design Parameter (Typical for 100 m³/day system) |
|---|---|---|
| DAF (ZSQ Series) | Hydraulic Loading Rate | 1–3 m³/m²·hr |
| Air-to-Solids Ratio | 0.02–0.05 kg air/kg TSS | |
| Retention Time | 20–40 min | |
| MBR (DF Series) | Membrane Material | PVDF Flat Sheet |
| Pore Size | 0.1 μm | |
| Flux Rate (average) | 10–25 LMH (L/m²·hr) | |
| MLSS Concentration | 8,000–12,000 mg/L | |
| Hydraulic Retention Time (HRT) | 8–12 hours | |
| RO System | Membrane Material | Polyamide Thin-Film Composite |
| Recovery Rate | 75–85% (single pass) | |
| Operating Pressure | 10–20 bar (low pressure), 40–80 bar (high pressure) | |
| Pretreatment Requirements | SDI < 5, Turbidity < 1 NTU |

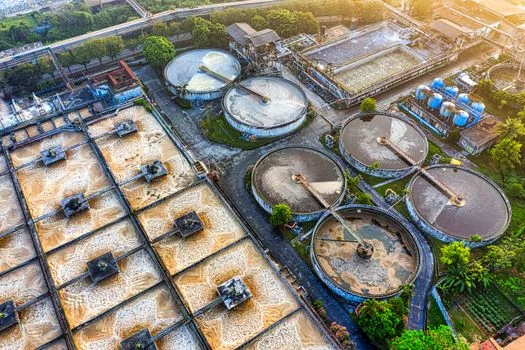

Contaminant Removal Efficiencies: What to Expect from Each Treatment Stage
1. DAF Stage Performance: The initial DAF stage effectively removes gross suspended solids and emulsified contaminants. Typical performance for a well-operated ZSQ series DAF system includes 80–90% TSS removal and 30–50% COD reduction. This stage is crucial for breaking down stable photoresist emulsions and precipitating heavy metals through chemical addition, significantly reducing the load on subsequent biological treatment. For example, an influent with 500 mg/L TSS would be reduced to 50–100 mg/L after DAF.
2. MBR Stage Performance: The MBR stage provides advanced biological treatment and superior physical separation. DF series PVDF flat sheet MBR membranes achieve 95–98% COD removal and 99%+ TSS removal, consistently producing effluent with <1 mg/L TSS and turbidity less than 0.5 NTU. The high biomass concentration and extended retention times within the bioreactor facilitate the biodegradation of TMAH and various organic compounds, including those derived from photoresist. For an influent with 200 mg/L COD entering the MBR, the effluent COD would typically be 4–10 mg/L.
3. RO Stage Performance: The RO stage acts as the final barrier, achieving high-purity water. Industrial RO systems for heavy metal removal and water reuse in display panel manufacturing typically demonstrate 99%+ heavy metal removal (e.g., indium, copper) and over 90% TMAH rejection. This enables the recovery of valuable metals and the production of water suitable for industrial reuse, significantly reducing the need for fresh water. For instance, an MBR effluent with 5 mg/L copper would be reduced to <0.05 mg/L after RO, easily meeting most discharge or reuse standards.
4. Sludge Dewatering: The sludge generated from DAF and MBR processes requires dewatering to reduce volume and disposal costs. A plate-and-frame filter press for sludge dewatering in display panel wastewater treatment is commonly used, achieving 20–30% dry solids content, which significantly minimizes the volume of hazardous waste requiring off-site disposal. This also facilitates potential heavy metal recovery from the sludge, particularly for valuable elements like indium.
Table 3: Contaminant Removal Efficiencies by Stage (Example for Display Panel Wastewater)
| Parameter | Raw Influent (Typical) | After DAF | After MBR | After RO Permeate | Target Effluent (EPA/ZLD) |
|---|---|---|---|---|---|
| TMAH (mg/L) | 1,000 | 700–800 (minor reduction) | 50–100 (biological degradation) | <10 (membrane rejection) | <10 |
| COD (mg/L) | 1,500 | 750–1,050 | <50 | <10 | <10 (ZLD) / <125 (EPA) |
| TSS (mg/L) | 400 | 40–80 | <1 | <0.1 | <1 (ZLD) / <30 (EPA) |
| Indium (mg/L) | 3 | 1–2 (precipitation) | 0.5–1 (adsorption/residual) | <0.01 | <0.01 |
| Copper (mg/L) | 8 | 2–4 (precipitation) | 1–2 (adsorption/residual) | <0.05 | <0.05 |
CAPEX and OPEX Breakdown: Cost Models for Display Panel Wastewater Treatment
The total CAPEX for display panel wastewater treatment systems ranges from $300K for standalone DAF units to $5M for full zero-liquid-discharge (ZLD) DAF-MBR-RO plants, with OPEX averaging $0.80–$2.50/m³ treated. This wide range reflects the varying complexities, treatment capacities, and desired effluent qualities.CAPEX Ranges: A small-scale DAF system, suitable for initial TSS and basic COD reduction in facilities with lower flow rates or less stringent discharge limits, typically requires a CAPEX of $300K–$800K. This includes the DAF unit, chemical dosing systems, and sludge handling. Expanding to a DAF-MBR system, which provides significantly better COD and TSS removal, can range from $1.5M–$3M. A comprehensive DAF-MBR-RO ZLD plant, designed for maximum water recovery and minimal discharge, represents the highest investment, typically between $3M–$5M. This capital expenditure covers civil works, equipment (DAF, MBR modules, RO units, sludge dewatering, automation systems, interconnecting piping), installation, and commissioning. Automation, often utilizing PLC-based control systems, can account for 10-15% of the total CAPEX, enhancing operational efficiency and reducing labor costs.
OPEX Benchmarks: Operating expenses for display panel wastewater treatment systems average $0.80–$2.50/m³ treated, depending on influent load, system complexity, and energy costs. Key OPEX drivers include:
- Energy: 30–50% of total OPEX, primarily for pumps, blowers (MBR aeration), and RO high-pressure pumps.
- Chemicals: 20–30% for coagulants, flocculants, pH adjusters, antiscalants, and membrane cleaning agents.
- Membrane Replacement: 10–15% for MBR and RO membranes (typically every 3–7 years).
- Labor & Maintenance: 10–20% for routine operation, monitoring, and preventive maintenance.
- Sludge Disposal: 5–10% for transport and disposal of dewatered sludge, which can be significant if classified as hazardous waste.
ROI Calculation for ZLD Adoption: Adopting a ZLD system, while requiring higher initial CAPEX, offers substantial long-term ROI through water reuse and valuable heavy metal recovery. Consider an example for a 100 m³/h (2,400 m³/day) ZLD system with a CAPEX of $4M and an average OPEX of $1.50/m³.
- Water Reuse Savings: If 80% of treated water is reused (1,920 m³/day) and fresh water costs $0.50/m³, annual savings are $350,400.
- Discharge Cost Avoidance: Eliminating discharge fees (e.g., $0.30/m³) saves $262,800 annually.
- Heavy Metal Recovery: Recovering 0.1 kg/day of indium (from 2,400 m³/day at 0.05 mg/L concentration, assuming 80% recovery efficiency) with indium valued at $300/kg yields $10,950 annually.
- Total Annual Savings/Revenue: $350,400 (water reuse) + $262,800 (discharge avoidance) + $10,950 (indium recovery) = $624,150.
- Annual Net Profit (before depreciation): $624,150 (savings/revenue) - ($1.50/m³ * 2,400 m³/day * 365 days) (OPEX) = $624,150 - $1,314,000 = -$689,850.
Table 4: Cost Comparison of Display Panel Wastewater Treatment Systems
| System Configuration | Typical CAPEX Range | Typical OPEX Range (per m³) | Effluent Quality | Primary Benefits |
|---|---|---|---|---|
| DAF-only | $300K–$800K | $0.80–$1.20 | Moderate (TSS, partial COD) | Low initial cost, basic pretreatment |
| DAF-MBR | $1.5M–$3M | $1.20–$1.80 | High (low TSS, low COD) | Excellent discharge quality, compact footprint |
| DAF-MBR-RO (ZLD) | $3M–$5M | $1.80–$2.50 | Very High (ultrapure water, minimal discharge) | Water reuse, heavy metal recovery, compliance certainty |
Regulatory Compliance: EPA, EU, and China Standards for Display Panel Effluent
EPA 40 CFR Part 469 (Electrical and Electronic Components Point Source Category): For display panel manufacturing, particularly TFT-LCD and OLED, the EPA sets effluent limitations for various parameters. Typical compliance targets include COD ≤ 125 mg/L, TSS ≤ 30 mg/L, and a pH range of 6–9. Pretreatment standards are crucial for facilities discharging to publicly owned treatment works (POTWs), focusing on contaminants that could interfere with POTW operations or pass through untreated. This includes strict limits on heavy metals (e.g., copper, nickel) and specific organic compounds like TMAH, which can inhibit biological treatment in municipal plants. Facilities must often implement robust in-house treatment to meet these pretreatment standards before discharge to a POTW, as TMAH can be particularly toxic to activated sludge bacteria.
EU Industrial Emissions Directive (IED) 2010/75/EU: The IED requires industrial installations, including display panel manufacturing, to obtain environmental permits based on Best Available Techniques (BAT). While specific effluent limits can vary by member state, BAT conclusions for the electronics industry typically mandate low discharge levels for heavy metals. For example, specific BAT reference documents (BREFs) may stipulate copper ≤ 1.3 mg/L and nickel ≤ 0.5 mg/L in direct discharges. The IED also emphasizes efficient resource use, promoting water reuse and material recovery, which drives the adoption of ZLD and advanced photoresist removal technologies. Compliance often involves detailed monitoring, reporting, and regular reviews to ensure continuous improvement in environmental performance.
China GB 21900-2008 (Discharge Standard of Water Pollutants for Electronic Industry): China's regulatory landscape is increasingly strict, especially in major manufacturing hubs. The GB 21900-2008 standard sets limits for various pollutants from the electronic industry, including display panel manufacturing. Key parameters include COD ≤ 80 mg/L, ammonia nitrogen ≤ 15 mg/L, and stringent limits for heavy metals. Local environmental protection bureaus (EPBs) often impose even stricter discharge limits than national standards, particularly in densely populated or environmentally sensitive areas like Suzhou and Shenzhen. Compliance involves not only meeting these limits but also obtaining discharge permits, implementing self-monitoring programs, and submitting regular compliance reports. Zero-discharge policies are increasingly being promoted or mandated for new industrial parks and facilities in certain regions.
Permitting Considerations: Navigating permitting requires a clear understanding of local regulations. Facilities discharging to municipal WWTPs typically need pretreatment agreements, which define effluent quality requirements and monitoring schedules. For direct discharge to surface waters, comprehensive permits (e.g., NPDES in the U.S.) are necessary, involving detailed effluent characterization, toxicity testing, and often public comment periods. Self-monitoring requirements for heavy metals and other priority pollutants are common, necessitating robust analytical capabilities and accurate record-keeping to demonstrate ongoing compliance.
Table 5: Key Regulatory Limits for Display Panel Wastewater Effluent
| Parameter | EPA 40 CFR Part 469 (Direct Discharge) | EU IED 2010/75/EU (BAT, Example) | China GB 21900-2008 |
|---|---|---|---|
| COD (mg/L) | ≤ 125 | <50 (BAT guidance) | ≤ 80 |
| TSS (mg/L) | ≤ 30 | <10 (BAT guidance) | ≤ 30 |
| pH | 6–9 | 6–9 | 6–9 |
| Copper (mg/L) | ≤ 2.0 (daily max) | ≤ 1.3 | ≤ 0.5 |
| Nickel (mg/L) | ≤ 1.0 (daily max) | ≤ 0.5 | ≤ 0.5 |
| Ammonia Nitrogen (mg/L) | N/A (often local limits) | <10 (BAT guidance) | ≤ 15 |
Choosing a Display Panel Wastewater Treatment Supplier: Decision Framework
Selecting an optimal display panel wastewater treatment supplier requires a structured evaluation across technical capabilities, compliance track record, and financial transparency to ensure long-term operational success. The complexity of display panel wastewater demands a supplier with specialized expertise beyond general industrial wastewater treatment.Technical Criteria: Evaluate a supplier's proposed system design, specifically its ability to handle TMAH, photoresist, and heavy metals effectively. A DAF-MBR-RO configuration is often
Recommended Equipment for This Application
The following Zhongsheng Environmental products are engineered for the wastewater challenges discussed above:
- ZSQ series DAF system for TSS and FOG removal in display panel wastewater — view specifications, capacity range, and technical data
- DF series PVDF flat sheet MBR membranes for COD and TSS polishing — view specifications, capacity range, and technical data
- Industrial RO systems for heavy metal removal and water reuse in display panel manufacturing — view specifications, capacity range, and technical data
- Plate-and-frame filter press for sludge dewatering in display panel wastewater treatment — view specifications, capacity range, and technical data
Need a customized solution? Request a free quote with your specific flow rate and pollutant parameters.
