GaN Wastewater Treatment Plant Design: 2027 Specs Guide

GaN wastewater treatment plant design centers on sub-micron abrasive fines, arsenic speciation, and gallium-ammonia complexes: a five-stage train (pre-oxidation, precipitation, MBR, RO, MVR) reaches As <5 µg/L and 99.2% gallium recovery for $2M–$20M CAPEX.

Why GaN Wastewater Breaks Conventional Treatment Systems

A GaN wastewater treatment plant needs a five-stage hybrid train—pre-oxidation, chemical precipitation, 0.04 µm MBR, RO, and MVR evaporation—because sub-micron GaN fines, As(III) speciation, and gallium-ammonia complexes defeat conventional clarifiers and polymeric membranes. ZLD-compliant builds run $2M–$20M CAPEX in 2027.

GaN’s 3.4 eV bandgap creates sub-micron particulates (0.1–0.5 µm) during CMP and back-grinding that are up to 10 times smaller than standard silicon fines. These ultra-fine particulates are a primary driver of system failure in semiconductor fabs because they bypass traditional clarifiers and cause irreversible pore-plugging in standard microfiltration membranes. Unlike silicon (Mohs 6.5) or gallium arsenide (GaAs), gallium nitride is exceptionally hard and chemically stable, leading to abrasive wear on pumping systems and internal pipework that accelerates mechanical degradation.

Relative to GaAs plants, GaN influent also carries higher arsenic peaks (up to 150 mg/L) and smaller, harder particulates, and MOCVD gallium-ammonia ligands block the settling chemistry that GaAs-era designs rely on.

Arsenic speciation in GaN effluent further complicates compliance. Field data indicates that arsenic typically exists in a split of 60% arsenite [As(III)] and 40% arsenate [As(V)]. While As(V) can be precipitated using traditional ferric salts, As(III) is highly soluble and frequently passes through biological and mechanical treatment stages undetected until final compliance testing. Without a dedicated pre-oxidation step—typically a 1:1 molar ratio of hydrogen peroxide—the As(III) fraction stays in solution. The result is arsenic spikes that exceed the EPA’s 10 µg/L discharge limit (HydropureWater field data, 2025).

Gallium-ammonia complexes generated during Metal-Organic Chemical Vapor Deposition (MOCVD) processes prevent the settling of up to 90% of metals in aerobic biological systems. Gallium is an amphoteric metal, meaning it exhibits high solubility at both low and high pH levels; gallium hydroxide dissolves in alkali to form gallate salts (Wikipedia, Gallium). In the presence of high-concentration ammonia (often 100–1,000 mg/L), gallium forms stable coordination complexes that resist standard hydroxide precipitation. These complexes act as “leakage points,” where gallium remains dissolved even when the system pH is theoretically optimized, resulting in effluent that fails to meet China GB 31573-2015 or equivalent international standards.

Scanning electron microscopy (SEM) studies of fouled membranes in GaN facilities show distinct abrasion patterns characterized by deep scouring of the polymer matrix. Because GaN particulates are smaller than the pore sizes of many 0.1 µm membranes, they lodge within the membrane structure rather than forming a removable filter cake. This leads to a rapid rise in transmembrane pressure (TMP) that cannot be recovered through standard backwashing or chemically enhanced backwash (CEB) protocols, necessitating premature membrane replacement and increased OPEX.

GaN Wastewater Treatment Plant Design: The Five-Stage Train from Influent to ZLD

Effective GaN wastewater treatment requires a five-stage hybrid process beginning with pre-oxidation to convert soluble As(III) into precipitable As(V) and break stable gallium-ammonia complexes. This systematic approach ensures that high concentrations of arsenic (up to 150 mg/L) and gallium (up to 500 mg/L) are reduced to trace levels while maximizing the potential for resource recovery. Engineers must design for specific residence times and dosing ratios to maintain stability against the variable influent loads typical of semiconductor manufacturing.

Because influent water composition at a GaN fab shifts with every tool dump, equalization and instrument-driven dosing decide permit compliance as much as the membrane does. Municipal operators solve the same buffering problem at city scale, where a single storm or industrial slug can reset an entire biological plant. The stage logic also mirrors the removal routes WHO lists for arsenic—oxidation, coagulation-precipitation, adsorption, ion exchange, and membrane techniques (WHO).

The process begins with Stage 1: Pre-oxidation. Hydrogen peroxide (H₂O₂) is dosed at 50–100 mg/L with a residence time of 30–60 minutes. This step is critical for breaking the ammonia-gallium bond and ensuring all arsenic is in the pentavalent state. Following oxidation, Stage 2: Chemical Precipitation utilizes a PLC-controlled ferric chloride dosing for arsenic precipitation combined with polyacrylamide (PAM) at 2–5 mg/L. The pH must be strictly maintained between 8.5 and 9.5. Gallium is amphoteric: below pH 7 or above 10 the metal re-solubilizes, and falling outside the working window by even 0.5 units can increase gallium solubility by an order of magnitude.

Stage 3 involves the use of an MBR Membrane Bioreactor Wastewater Treatment System built around 0.04 µm PVDF modules for GaN duty. This membrane bioreactor stage serves as the primary barrier for sub-micron TSS, achieving 99.5% removal. For fabs targeting water reuse or zero liquid discharge (ZLD), Stage 4 employs a ZLD-compliant RO system for GaN wastewater reuse. Antiscalant dosing is mandatory here to prevent residual gallium from scaling the RO membranes. Finally, Stage 5: Evaporation (typically via Mechanical Vapor Recompression, MVR) manages the brine, producing a solid waste stream and high-purity distillate.

For engineers designing these systems, the narrow pH window in Stage 2 is the most common point of failure. Automation is required to adjust dosing in real-time based on influent conductivity and pH sensors. The MBR stage must include high-intensity aeration scouring to prevent the abrasive GaN fines from settling on the membrane surface, which would otherwise lead to rapid flux decline. More detailed engineering specs for third-generation semiconductor wastewater treatment suggest that integrating these stages into a single automated platform reduces the risk of human error in chemical management.

MBR Membrane Materials for GaN Wastewater: PVDF vs. Ceramic vs. Ceramic vs. Silicon Carbide" width="800" height="450" loading="lazy" decoding="async">

Selecting the appropriate membrane material for MBR systems in GaN applications depends on a trade-off between the $50/m² CAPEX of PVDF and the 10-year lifespan of ceramic alternatives. GaN particulates are uniquely abrasive (Mohs 6–7), which places significant mechanical stress on polymeric membranes. While PVDF remains the industry standard due to its lower initial cost, the total cost of ownership (TCO) often favors inorganic materials in high-load GaN fabs where membrane replacement frequency can exceed once every three years.

PVDF membranes with a 0.04 µm pore size provide excellent arsenic and TSS removal but are prone to irreversible fouling when exposed to high concentrations of GaN fines. In contrast, ceramic membranes (typically Alumina or Titania) offer a 0.1 µm pore size with much higher physical durability. They can withstand aggressive “piranha” cleans (concentrated H₂SO₄ and H₂O₂) that would dissolve a PVDF membrane. For fabs prioritizing long-term stability, silicon carbide membrane alternatives for GaN wastewater represent the top tier of performance, offering the highest flux rates and superior oleophobic properties that resist fouling from CMP slurries. Campuses running dicing lines alongside GaN tools should also weigh ceramic membrane water recovery before locking the membrane specification.

Material Specification	PVDF (Polymeric)	Ceramic (Al₂O₃/TiO₂)	Silicon Carbide (SiC)
Pore Size (µm)	0.04	0.1	0.04 - 0.1
Design Flux (LMH)	15–25	40–80	60–120
Estimated Lifespan	3–5 Years	10–15 Years	8–12 Years
Chemical Resistance	pH 2–11	pH 1–14	pH 0–14
Relative CAPEX	1.0x (Baseline)	3.5x - 4.0x	2.5x - 3.0x

When evaluating these materials, engineers must consider the “irreversible fouling” factor. In a 0.04 µm PVDF MBR system, the sub-micron GaN particulates can become embedded in the soft polymer matrix. Silicon carbide and ceramic membranes possess a much harder surface, preventing particle impingement.

Silicon Carbide Membrane vs. PVDF MBR for Semiconductor Duty

Silicon carbide versus PVDF in semiconductor MBR duty comes down to surface hardness and electrostatics. SiC membranes exhibit a high isoelectric point, which creates a natural electrostatic repulsion against many common semiconductor surfactants, reducing the frequency of chemical cleanings by up to 40% compared to PVDF. Operational data suggests that while PVDF has the lowest entry cost, the energy consumption for ceramic and SiC systems is often 20–30% lower due to the higher sustainable flux. That allows a smaller footprint, which is often a critical constraint in existing fab expansions. For new builds, the decision typically rests on whether the EHS department prefers a lower CAPEX with frequent maintenance (PVDF) or a “fit-and-forget” high-CAPEX strategy (Ceramic/SiC).

CAPEX and OPEX Breakdown for GaN Wastewater Treatment Plants (2027 Data)

GaN wastewater treatment plant design in 2027 ranges from $2M to $20M for ZLD-compliant builds, with evaporation and crystallization units accounting for 20–40% of the CAPEX. The cost is heavily influenced by the required flow rate and the stringency of local discharge regulations. For a mid-sized facility processing 200 m³/h, the baseline CAPEX for a standard discharge-compliant system is approximately $6M–$9M, but this figure rises significantly if gallium recovery and zero liquid discharge are mandated. Teams budgeting whole-fab scopes should also cross-check the Chip Fab Wastewater Treatment: 2026 Engineering Specs, Zero-Fouling Design guide, since silicon-line and GaN-line trains often share one sewer and one permit.

OPEX drivers are dominated by energy consumption and chemical dosing. In GaN systems, the high concentration of arsenic and gallium requires substantial amounts of ferric chloride and oxidants. Energy costs are particularly high in ZLD configurations, where the thermal evaporation of brine can consume 20–50 kWh per m³ of treated water. However, the adoption of high-efficiency MVR evaporators and pressure exchangers in RO stages has begun to mitigate these costs, bringing the total OPEX down to a range of $0.80–$2.50/m³.

Cost-saving strategies in 2027 focus on precision dosing and automation. By implementing an automatic chemical dosing system with ORP (Oxidation-Reduction Potential) feedback loops, fabs can reduce ferric chloride consumption by 15–20%. Additionally, recovering gallium from the sludge can offset OPEX. A recovery rate of 99% can provide a payback period of 3–5 years on the recovery equipment alone.

Engineers should also account for membrane replacement in their 10-year OPEX models. While PVDF membranes are cheaper to buy, their 3-year replacement cycle in abrasive GaN environments can make them more expensive over a decade than ceramic membranes that last 10+ years. Labor costs, although a smaller fraction (approx. 10%), are also being reduced through the use of “Digital Twin” monitoring systems that predict fouling events before they lead to downtime.

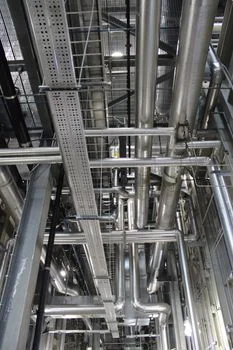

Case Study: GaN Wastewater Treatment at a 200 mm Semiconductor Fab in China

Implementation of an automated hybrid treatment system at a 200 mm GaN-on-Si fab achieved 99.2% gallium recovery while maintaining arsenic effluent levels below 5 µg/L. The facility, located in a high-tech industrial park with strict ZLD requirements, faced challenges with high influent TSS (1,800 mg/L) and arsenic concentrations peaking at 120 mg/L. The original treatment system, based on simple sedimentation, was unable to meet the 10 µg/L arsenic limit, leading to multiple compliance failures and production bottlenecks.

The upgraded process flow integrated a specialized pre-oxidation stage using H₂O₂ to address the As(III) fraction, followed by a two-stage precipitation process. The fab utilized a 0.04 µm PVDF MBR system to ensure the removal of abrasive GaN fines before the water reached the RO and MVR stages. This configuration protected the sensitive RO membranes, extending their cleaning interval from once every 2 weeks to once every 3 months.

“By shifting to an MBR-based hybrid design, we eliminated the arsenic ‘pass-through’ problem. The integration of MVR allowed us to reclaim 98% of our process water, while the gallium recovery unit produced a 99.2% pure gallium concentrate that was sold back to the material supplier.” — Lead EHS Manager, 2025 Project Report.

Measured Performance Data:

• Influent: As 120 mg/L, Ga 350 mg/L, TSS 1,800 mg/L, COD 1,200 mg/L.
• Effluent: As <5 µg/L, Ga <0.5 mg/L, TSS <10 mg/L, COD <50 mg/L.
• Resource Recovery: 99.2% Gallium recovery via specialized ion exchange and precipitation.
• Financials: CAPEX of $8.5M for a 200 m³/h system; OPEX of $1.20/m³.

The success of this project was attributed to the precise control of the pH 8.5–9.5 window during the precipitation of gallium hydroxide. Even minor deviations led to gallium re-solubilizing as gallate ions [Ga(OH)₄]⁻, consistent with gallium hydroxide’s amphoteric behavior in alkaline service (Wikipedia, Gallium). By using a multi-point PLC control system, the fab maintained the “sweet spot” for precipitation, ensuring that the MBR stage only had to handle the resulting solids rather than dissolved metal complexes. This case study serves as a benchmark for fabs transitioning from GaAs to GaN production.

Who This Is For / Next Step

Process engineers planning GaN line expansions, EPC contractors scoping ZLD packages, and procurement teams comparing membrane materials are the audience for this page. Owners of pure GaAs fabs without sub-micron fines or MOCVD ammonia loads should look elsewhere, because their chemistry does not need pre-oxidation or gallium-complex breaking. To size a five-stage train on your dump schedule and metal limits, send the influent table through our GaN wastewater treatment inquiry form.

Frequently Asked Questions

What is the biggest challenge in treating GaN wastewater?

Sub-micron GaN particulates (0.1–0.5 µm, Mohs 6–7) are the biggest challenge, because they lodge inside membrane pores and foul conventional modules irreversibly. Arsenic speciation compounds the problem: the As(III) fraction needs advanced oxidation before ferric precipitation can reach <10 µg/L. Equalization and pre-oxidation, sized on peak dumps rather than daily averages, are what keep both under control.

How does the gallium nitride wastewater arsenic removal process work?

Pre-oxidation with 50–100 mg/L hydrogen peroxide over 30–60 minutes converts soluble As(III) to precipitable As(V), addressing the 60/40 As(III)/As(V) split seen in field data. Ferric chloride at 50–100 mg/L then co-precipitates arsenate at pH 8.5–9.5, and the 0.04 µm MBR polishes effluent below 5 µg/L, as demonstrated at the 200 mm China fab. WHO lists oxidation and coagulation-precipitation among the accepted arsenic removal routes (WHO).

What drives zero liquid discharge GaN fab cost?

Evaporation and crystallization units account for 20–40% of ZLD CAPEX, and total GaN plant investment runs $2M–$20M across 50–500 m³/h classes. Thermal brine evaporation can consume 20–50 kWh per m³, pulling OPEX to $0.80–$2.50/m³. ZLD is not globally mandatory, but Chinese and EU industrial-park permits increasingly require it, and high-efficiency MVR plus RO pressure exchangers keep the numbers inside that band.

When is a ceramic membrane for semiconductor fab wastewater worth the premium?

Ceramic Al₂O₃/TiO₂ modules are worth the 3.5–4.0× CAPEX premium when feeds need piranha cleans or PVDF replacement cycles drop below three years. They run pH 1–14, deliver 40–80 LMH flux, and last 10–15 years against sub-micron GaN fines that embed irreversibly in soft PVDF. Higher sustainable flux also cuts energy 20–30% and shrinks footprint.

How often do MBR membranes need replacement in GaN systems?

Standard PVDF membranes typically last 3–5 years in GaN applications due to abrasive wear. Ceramic or Silicon Carbide membranes can last 10–15 years, offering a much lower total cost of ownership despite higher initial CAPEX. Budget CEB chemicals and a spare cassette from year two onward, because abrasion-driven TMP rise is gradual and predictable in most plants we track.
