Why TFT-LCD Plants Need Water Reuse: 2025 Water Scarcity & Regulatory Pressures
TFT-LCD manufacturing plants consume between 3 and 5 m³ of water for every square meter of panel produced according to the 2024 ITRPV report, with 60% to 80% of this volume eventually discharged as complex industrial wastewater. As global water scarcity intensifies, facilities face a dual challenge: the rising cost of high-purity intake water and increasingly stringent discharge limits. Regulatory frameworks such as China GB 31570-2015 and the EU Industrial Emissions Directive 2010/75/EU now mandate Chemical Oxygen Demand (COD) limits as low as 50 mg/L and Total Organic Carbon (TOC) levels below 0.5 mg/L for direct discharge. These requirements make conventional treatment insufficient and position wastewater treatment for electronics manufacturing as a critical operational necessity.
The economic incentive for water recycling is substantial. In regions like China and the EU, freshwater costs range from $0.50 to $2.00/m³, while discharge fees add another $0.10 to $0.50/m³. By implementing advanced recycling systems, plants can reduce freshwater consumption by up to 80%. For a medium-scale facility producing 100,000 m² of panels per month, recycling 80% of its wastewater can generate annual savings of approximately $1.2M, assuming a conservative water cost of $1.00/m³. This financial return, combined with the mitigation of regulatory risk, has shifted water reuse from a sustainability goal to a core procurement requirement for 2025.
Beyond cost, the technical feasibility of achieving 99.5% water recovery is now supported by integrated membrane and oxidation processes. These systems allow for the diversion of treated effluent back into cooling tower make-up or, with further polishing, as feed for ultra-pure water (UPW) systems. This blueprint analyzes the engineering specifications and cost-benefit ratios of these high-recovery architectures.
MBR/RO/Ozone Process for TFT-LCD Wastewater: Step-by-Step Engineering
The MBR/RO/ozone configuration represents the current technical benchmark for TFT-LCD water recycling, achieving a cumulative COD removal rate of over 99%. The process begins with a Membrane Bioreactor (MBR) stage, which utilizes a 2-stage anoxic/aerobic bioreactor coupled with an immersed Ultrafiltration (UF) membrane. This stage typically employs membranes with a 0.04 µm pore size, which effectively removes 98.5% of COD and 97.4% of TOC (per Top 1 scraped data). Engineering parameters for the MBR system for TFT-LCD wastewater reuse include a Mixed Liquor Suspended Solids (MLSS) concentration of 8,000 to 12,000 mg/L, a Hydraulic Retention Time (HRT) of 6 to 12 hours, and a membrane flux maintained between 15 and 25 LMH to prevent fouling.
Following the MBR, the Reverse Osmosis (RO) stage utilizes high-rejection spiral-wound membranes, such as the Dow Filmtec BW30-400. This RO system for TFT-LCD water reuse is designed to achieve 95% recovery of the MBR effluent. The resulting permeate typically features a COD of less than 5 mg/L and conductivity below 50 µS/cm, making it suitable for immediate reuse in cooling towers. The final polishing step involves an ozone stage, often utilizing a bubble column reactor with a height of 75 cm and a diameter of 5 cm. A 100 µm porous diffuser at the base ensures high mass transfer efficiency. Ozone dosage is typically calibrated between 5 and 15 mg/L with a contact time of 10 to 30 minutes to eliminate trace refractory organics and provide disinfection.
| Process Stage | Parameter | Influent Value | Effluent Value | Removal Efficiency |
|---|---|---|---|---|
| MBR (UF) | COD (mg/L) | 400–600 | <50 | 98.5% |
| MBR (UF) | TOC (mg/L) | 150–250 | <10 | 97.4% |
| RO System | Conductivity (µS/cm) | 1,500–2,500 | <50 | 98.0% |
| RO System | SDI | 3.0–5.0 | <1.0 | N/A |
| Ozone Polishing | Residual Organics | <5 mg/L | <1 mg/L | 80% |
For engineers seeking more technical depth on membrane performance, a detailed MBR engineering guide provides further insights into flux management and cleaning-in-place (CIP) protocols specific to electronics manufacturing wastewater.
Alternative Processes for TFT-LCD Water Reuse: MBR/RO vs. Electro-Fenton vs. DAF+RO
Selecting the optimal reuse technology depends on the influent wastewater characteristics, particularly the concentration of photoresist strippers and organic solvents. Electro-Fenton technology is highly effective for high-COD wastewater streams, capable of removal rates exceeding 95% by generating hydroxyl radicals. However, it requires precise chemical dosing for TFT-LCD wastewater pH adjustment to maintain a pH between 2 and 4, and it generates significant iron sludge which increases disposal costs. CapEx for a 50 m³/h Electro-Fenton system typically ranges from $500,000 to $1.5M.
Dissolved Air Flotation (DAF) combined with RO (DAF+RO) offers a lower CapEx alternative ($400,000 to $1.2M for 50 m³/h) but is primarily suited for wastewater with high Total Suspended Solids (TSS > 500 mg/L) or oil and grease. The DAF stage removes 90–95% of TSS before the water enters the RO membranes. In contrast, the MBR/RO process, while requiring a higher initial investment ($1.2M to $2.5M for 100 m³/h), provides superior stability against variable organic loads and produces the highest quality permeate without the need for extensive chemical pre-treatment.
| Feature | MBR/RO/Ozone | Electro-Fenton | DAF+RO |
|---|---|---|---|
| CapEx (100 m³/h) | $1.2M – $2.5M | $1.0M – $2.0M | $0.8M – $1.6M |
| OpEx ($/m³) | $0.80 – $1.50 | $1.20 – $2.00 | $0.60 – $1.10 |
| Effluent COD | <5 mg/L | <30 mg/L | <15 mg/L |
| Sludge Volume | Low (Biological) | High (Chemical/Iron) | Medium |
| Footprint | Compact | Medium | Large |
While MBR is the standard for general process water, plants dealing with high fluoride or specific solvent loads may find that PCB wastewater reuse engineering solutions offer relevant parallels in multi-stage chemical precipitation techniques.
Cost Breakdown: MBR/RO/Ozone System for TFT-LCD Water Reuse
The total capital expenditure (CapEx) for a TFT-LCD water reuse system generally falls between $12,000 and $25,000 per m³/h of treatment capacity. This investment is distributed across the MBR unit ($8k–$15k), the RO unit ($3k–$8k), and the ozone polishing unit ($1k–$2k). Automation and civil works typically account for 15-20% of the total project cost. Operational expenditure (OpEx) ranges from $0.80 to $1.50 per cubic meter of treated water. This is driven by energy consumption ($0.30–$0.60), chemical consumables ($0.20–$0.40), and membrane replacement reserves ($0.10–$0.30).
The Return on Investment (ROI) for these systems is typically realized within 2 to 4 years. This calculation is based on the displacement of expensive municipal water and the avoidance of discharge penalties. For example, a 100 m³/h system operating in Taiwan achieved a 3.2-year ROI by saving $1.2M annually in water-related costs (per 2023 industry report). As energy prices and water scarcity surcharges increase, the ROI period is expected to shorten for facilities commissioned in 2025.
| System Component | 50 m³/h Plant (USD) | 100 m³/h Plant (USD) | 200 m³/h Plant (USD) |
|---|---|---|---|
| MBR Unit | $450,000 | $850,000 | $1,600,000 |
| RO System | $200,000 | $380,000 | $720,000 |
| Ozone Polishing | $60,000 | $110,000 | $200,000 |
| Automation/Control | $100,000 | $180,000 | $340,000 |
| Total CapEx | $810,000 | $1,520,000 | $2,860,000 |

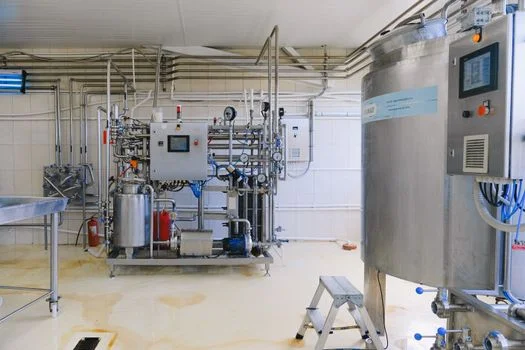

Compliance & Reuse Standards for TFT-LCD Wastewater Recycling
Compliance with global discharge and reuse standards is the primary driver for the integration of ozone polishing in the treatment train. Under China’s GB 31570-2015, discharge requires COD < 50 mg/L and TOC < 0.5 mg/L, but internal reuse for sensitive electronics processes often requires COD < 10 mg/L and conductivity < 100 µS/cm. In the European Union, the Industrial Emissions Directive 2010/75/EU sets similarly strict TOC limits, while individual nations like Germany may mandate COD levels below 5 mg/L for certain reuse applications.
The US EPA 40 CFR Part 469 sets a discharge limit of 120 mg/L for COD in the electronics subcategory; however, for reuse in cooling towers, the industry standard is much stricter: COD < 50 mg/L and bacterial counts < 1,000 CFU/mL to prevent biofouling and Legionella risks. Ozone plays a dual role here, providing 99.9% bacteria and virus removal while simultaneously oxidizing residual surfactants and color-causing organics that RO might not fully capture.
| Standard/Region | COD (mg/L) | TOC (mg/L) | Conductivity (µS/cm) | Bacteria (CFU/mL) |
|---|---|---|---|---|
| China GB 31570 (Reuse) | <10 | <0.5 | <100 | <100 |
| EU Directive (Reuse) | <5 | <0.5 | <150 | <50 |
| EPA 40 CFR 469 (Cooling) | <50 | N/A | <1,000 | <1,000 |
| TFT-LCD Process Water | <2 | <0.1 | <10 | <1 |
How to Select the Right TFT-LCD Water Reuse System: Decision Framework
Selecting a water reuse system requires a multi-step evaluation of the plant's specific chemical footprint and long-term sustainability goals. The first step is a comprehensive assessment of influent quality, specifically focusing on the concentration of Tetramethylammonium hydroxide (TMAH) and dimethyl sulfoxide (DMSO), which are common in TFT-LCD streams. If organic loads are exceptionally high or contain refractory compounds, an Electro-Fenton pre-treatment may be necessary before the MBR stage.
The second step involves defining the reuse target. If the water is intended for cooling tower make-up, an MBR/RO system is generally sufficient. If the goal is to feed the UPW plant, additional polishing steps like electrodeionization (EDI) or mixed-bed ion exchange must follow the ozone stage. Step three evaluates the available footprint and budget; MBR systems offer the most compact design for urban plants with limited space. Finally, a pilot test of at least 3–6 months is recommended to validate membrane fouling rates and chemical consumption under real-world load fluctuations.
Decision Framework:
- Scenario A: High TSS (>500 mg/L), Low Organic Load → Select DAF + RO.
- Scenario B: High Organic Load (COD > 2,000 mg/L), Refractory Compounds → Select Electro-Fenton + MBR.
- Scenario C: Standard TFT-LCD Wastewater, High Recovery Required → Select MBR + RO + Ozone.
- Scenario D: Ultra-Pure Water Feed Target → Select MBR + RO + Ozone + EDI.
Frequently Asked Questions
What is the typical recovery rate for TFT-LCD wastewater reuse systems?
A standard MBR/RO/ozone system achieves a recovery rate of 90% to 95%. When combined with brine recovery processes or zero liquid discharge (ZLD) evaporators, the total system recovery can reach 99.5%.
How much does an MBR/RO system cost for a 50 m³/h TFT-LCD plant?
The CapEx for a 50 m³/h system typically ranges from $800,000 to $1.1M, depending on the complexity of the automation and the specific membrane brands selected. OpEx is estimated at $0.80 to $1.20 per m³.
Can RO permeate from TFT-LCD wastewater be used for ultra-pure water (UPW) production?
Yes, but it requires additional polishing. RO permeate (Conductivity <50 µS/cm) serves as an excellent feed for EDI and UV-oxidation units, which can then elevate the water to UPW standards required for panel rinsing.
What are the maintenance requirements for an MBR/RO/ozone system?
Key maintenance includes quarterly CIP (Cleaning-In-Place) for RO membranes, monthly maintenance of ozone generators, and semi-annual sensor calibration. MBR membranes typically require replacement every 5–8 years, while RO membranes last 3–5 years.
Are there any subsidies or incentives for water reuse in electronics manufacturing?
Many regions, particularly in China and Southeast Asia, offer "Green Factory" subsidies or tax credits for industrial water recycling projects that achieve over 70% recovery, which can offset up to 20% of the initial CapEx.
