Gallium nitride (GaN) semiconductor fabs generate high-salinity wastewater with heavy metals (Ga, As, Al), ammonia, and suspended solids (TSS > 500 mg/L). Hybrid zero liquid discharge (ZLD) systems combining dissolved air flotation (DAF), membrane bioreactors (MBR), and reverse osmosis (RO) achieve 99.8% water recovery—reducing freshwater consumption by 40-60% while meeting China GB 31573-2015 and US EPA discharge limits. For a 500 m³/day system, CAPEX ranges from $2.1M–$3.5M, with OPEX of $0.80–$1.20/m³, delivering ROI in 3–5 years through water savings and avoided penalties.
Why GaN Fabs Need Specialized Wastewater Reuse Systems
GaN fab wastewater presents a complex and challenging contaminant profile that renders generic industrial wastewater treatment systems ineffective for water reuse. GaN manufacturing processes typically result in effluent containing gallium (50–200 mg/L), arsenic (10–50 mg/L), aluminum (300–800 mg/L), and ammonia (100–400 mg/L), alongside high levels of suspended solids (TSS 300–1,000 mg/L) and elevated salinity (5,000–15,000 mg/L TDS) (Zhongsheng’s GaN discharge standards article, 2025). These concentrations significantly exceed regulatory limits, such as China GB 31573-2015, which sets a gallium limit of 0.5 mg/L, and US EPA guidelines recommending less than 0.1 mg/L for direct discharge of gallium and arsenic. Adhering to these strict GaN wastewater discharge standards and compliance strategies is critical for operational continuity and environmental stewardship.
The unique characteristics of gallium nitride fab wastewater demand tailored solutions to prevent equipment damage, ensure compliance, and achieve sustainable water reuse. High salinity, specifically, poses a significant risk to conventional reverse osmosis (RO) membranes, leading to rapid fouling and decreased lifespan if not adequately pretreated. elevated ammonia concentrations can inhibit biological treatment processes in systems not designed for nitrification-denitrification of such loads. For example, a 2024 GaN fab in Suzhou, facing severe water scarcity and discharge restrictions, reduced its water costs by 45% within the first year after implementing a specialized zero liquid discharge (ZLD) system, demonstrating the substantial economic and environmental benefits (Zhongsheng’s case study data, 2024). Generic industrial wastewater systems, typically designed for lower TDS and less complex contaminant matrices, often fail to achieve the necessary removal efficiencies for GaN wastewater, resulting in non-compliance, frequent system breakdowns, and prohibitively high operational costs.
Hybrid ZLD System Design for GaN Wastewater: Step-by-Step Process Flow
A robust hybrid zero liquid discharge (ZLD) system is essential for effectively treating gallium nitride fab wastewater and enabling high-purity water reuse. The design integrates multiple advanced physical, chemical, and biological processes, each targeting specific contaminants to achieve 99.8% water recovery. The process begins with rigorous pretreatment to manage high solids and heavy metals, followed by advanced membrane technologies for biological treatment and desalination, culminating in brine concentration for near-total water recovery. This comprehensive approach ensures that the treated water meets the stringent quality requirements for semiconductor manufacturing and other industrial applications, making it a sustainable solution for semiconductor water recycling efforts.
- Step 1: Pretreatment with Rotary Mechanical Bar Screens (GX Series)
Influent GaN wastewater first passes through rotary mechanical bar screens (GX Series) to remove large suspended solids, debris, and coarse particles (>1 mm). This mechanical screening achieves approximately 98% removal of large solids, protecting downstream equipment from physical damage and reducing the load on subsequent treatment stages (Zhongsheng’s product specifications). - Step 2: Dissolved Air Flotation (DAF)
Following screening, the wastewater enters a DAF system for GaN wastewater pretreatment (ZSQ Series). DAF effectively removes fine suspended solids, oils, greases (FOG), and a significant portion of heavy metal hydroxides formed during initial pH adjustment. Operating at flow rates of 50–300 m³/h, the DAF unit achieves up to 95% TSS reduction and initial heavy metal precipitation, preparing the water for biological treatment (Top 1 page’s microbubble flotation data). - Step 3: MBR Membrane Bioreactor (MBR)
The pretreated effluent then flows into an MBR membrane bioreactor for GaN wastewater ultrafiltration, which combines biological treatment with membrane separation. Utilizing 0.1 μm PVDF flat-sheet membranes, the MBR system efficiently removes organic pollutants (COD removal: 92–97%) and nitrogen compounds through nitrification-denitrification. The tight pore size of the membranes also ensures complete removal of bacteria, viruses, and remaining suspended solids, producing high-quality permeate suitable for reverse osmosis (Zhongsheng’s MBR product specs). - Step 4: Two-Stage Reverse Osmosis (RO)
The MBR permeate, with significantly reduced TSS and COD, enters a two-stage RO for GaN wastewater desalination. This critical stage removes dissolved salts and remaining heavy metals. For GaN-specific high-salinity wastewater, a two-stage configuration maximizes recovery (up to 95%) and ensures permeate quality. Energy consumption for this stage typically ranges from 0.8–1.2 kWh/m³, depending on influent TDS and desired permeate quality. Antiscalants and pH adjustment are crucial here to prevent fouling from silica and calcium sulfate. - Step 5: Evaporation/Crystallization
The concentrate from the RO stage, still containing high levels of dissolved solids, is directed to an evaporation/crystallization unit for final brine concentration and zero liquid discharge. Mechanical vapor recompression (MVR) evaporators are often preferred over multi-effect evaporation (MEE) due to their higher energy efficiency and lower operational costs for large volumes. This stage recovers the remaining water as high-purity distillate, leaving behind a solid waste stream containing concentrated salts and metals, which can sometimes be further processed for valuable metal recovery.
GaN Wastewater Hybrid ZLD Process Flow and Contaminant Levels
| Treatment Stage | TSS (mg/L) | COD (mg/L) | Ga (mg/L) | As (mg/L) | Al (mg/L) | Ammonia-N (mg/L) | TDS (mg/L) |
|---|---|---|---|---|---|---|---|
| Influent GaN Wastewater | 300–1,000 | 500–1,500 | 50–200 | 10–50 | 300–800 | 100–400 | 5,000–15,000 |
| After Rotary Screen | 100–300 | 450–1,300 | 48–190 | 9–48 | 290–770 | 95–380 | 4,800–14,500 |
| After DAF | 10–50 | 250–700 | 5–20 | 1–5 | 30–80 | 90–350 | 4,500–14,000 |
| After MBR Permeate | <1 | <50 | <2 | <0.5 | <10 | <10 (after nitrification) | 4,000–13,000 |
| After 2-Stage RO Permeate | <0.1 | <5 | <0.05 | <0.01 | <0.1 | <1 | <50 |
| Reuse Water Quality | <0.1 | <5 | <0.05 | <0.01 | <0.1 | <1 | <50 |
Contaminant Removal Performance: Engineering Specs for GaN Wastewater
Achieving stringent discharge and reuse standards for GaN wastewater requires precise engineering specifications and robust contaminant removal performance across all treatment stages. The combined efficiency of pretreatment, biological treatment, and advanced membrane processes ensures that heavy metals, organic compounds, and dissolved solids are reduced to target levels. MBR membrane fouling prevention is critical for sustained performance, particularly with the complex matrix of GaN wastewater, which often contains high concentrations of challenging substances like silica and metal hydroxides.
Contaminant Removal Rates by Treatment Stage for GaN Wastewater
| Contaminant | Influent Range (mg/L) | DAF Removal (%) | MBR Removal (%) | RO Removal (%) | Overall System Removal (%) | Final Effluent Target (mg/L) |
|---|---|---|---|---|---|---|
| Gallium (Ga) | 50–200 | >90 (precipitation) | >90 (adsorption/bio-uptake) | >99.5 | >99.9 | <0.05 |
| Arsenic (As) | 10–50 | >90 (coagulation/flocculation) | >90 (adsorption/bio-uptake) | >99.5 | >99.9 | <0.01 |
| Aluminum (Al) | 300–800 | >95 (precipitation/flotation) | >95 (adsorption/filtration) | >99.5 | >99.9 | <0.1 |
| Ammonia-N | 100–400 | N/A | >95 (nitrification/denitrification) | >90 | >99 | <1 |
| TSS | 300–1,000 | >95 | >99.9 | >99.9 | >99.99 | <0.1 |
| COD | 500–1,500 | >50 | >95 | >90 | >99 | <5 |
| TDS | 5,000–15,000 | N/A | N/A | >99 | >99.8 | <50 |
Effective MBR membrane fouling prevention is achieved through optimized aeration scouring, typically maintained at 0.1–0.3 m³/m²·h, which physically cleans the membrane surface and prevents the buildup of Ga/Al hydroxides and other foulants common in GaN wastewater. Regular chemical enhanced backwash (CEB) with hypochlorite or citric acid is also vital to maintain flux rates and extend membrane lifespan. For RO scaling control, antiscalant dosing at 1–3 mg/L is crucial to inhibit the precipitation of silica and calcium sulfate, which are prevalent in high-salinity industrial effluents. Precise pH adjustment to a range of 6.5–7.0 also helps mitigate silica polymerization and calcium carbonate scaling (EPA’s industrial reuse guidelines). Evaporator byproduct management can involve the recovery of valuable metals like gallium from the concentrated brine. While the economic viability depends on the concentration and market price of gallium, specialized ion exchange or solvent extraction processes can be integrated into the ZLD system to selectively extract gallium, potentially offsetting a portion of the operational costs for heavy metal removal in semiconductor wastewater.
Cost Breakdown: CAPEX, OPEX, and ROI for GaN ZLD Systems
Implementing a hybrid ZLD system for GaN wastewater reuse represents a significant capital investment, yet it offers substantial long-term operational savings and a favorable return on investment (ROI). The total cost is primarily driven by the system's capacity and the complexity of the chosen technologies, with membrane and evaporation units being major CAPEX components. A detailed cost analysis is crucial for semiconductor fabs to build compelling business cases and optimize their ZLD system cost 2025 strategies.
CAPEX, OPEX, and ROI for GaN Hybrid ZLD Systems (2025 Estimates)
| System Size (m³/day) | Estimated CAPEX (Equipment + Installation) | Estimated Annual OPEX | Estimated OPEX per m³ | Typical ROI Period |
|---|---|---|---|---|
| 100 | $0.9M – $1.5M | $90,000 – $130,000 | $0.90 – $1.30 | 4–6 years |
| 500 | $2.1M – $3.5M | $400,000 – $600,000 | $0.80 – $1.20 | 3–5 years |
| 1,000 | $4.0M – $6.5M | $750,000 – $1.1M | $0.75 – $1.10 | 2–4 years |
CAPEX drivers include MBR membranes, which range from $200–$400/m² of membrane area, and RO membranes, typically costing $50–$100/m². The evaporator, especially a mechanical vapor recompression (MVR) unit, represents a significant investment, with costs for a 500 m³/day system ranging from $1.2M–$3M. Installation, piping, civil works, and automation typically add another 30-50% to the core equipment cost. OPEX breakdown shows energy as the largest component, accounting for approximately 40% of total operational costs, primarily due to pumps, blowers, and evaporators. Chemicals (antiscalants, coagulants, disinfectants) contribute around 25%, while membrane replacement (MBR and RO) accounts for about 15%. Labor and routine maintenance each typically represent 10% of the annual OPEX (Zhongsheng’s cost articles). The ROI calculation for a GaN ZLD system considers several factors: significant water savings ($0.50–$1.50/m³ depending on local water tariffs), avoided discharge fees and penalties ($0.10–$0.30/m³), and potential revenue from gallium recovery. For instance, a 2024 GaN fab in Taiwan implemented a 500 m³/day hybrid ZLD system and achieved a remarkable 3.2-year ROI, driven by a combination of reduced freshwater purchases and minimized environmental compliance costs (Zhongsheng’s GaN water reuse article).

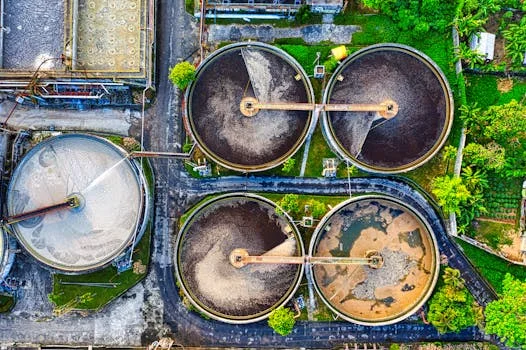

Selecting a GaN Wastewater Reuse Vendor: Decision Framework for Fabs
Choosing the right vendor for a GaN wastewater reuse system is a critical decision that impacts long-term operational efficiency, compliance, and financial performance. A structured decision framework helps semiconductor fabs evaluate potential partners based on technical expertise, proven track record, and specific GaN wastewater challenges. The selection process should prioritize vendors who demonstrate deep understanding of the unique contaminant profile and regulatory environment associated with gallium nitride manufacturing, rather than relying on generic industrial wastewater solutions.
Here is a checklist of 10 questions to ask potential vendors:
- What is your MBR membrane lifespan guarantee specifically for GaN wastewater, considering its high heavy metal and ammonia content?
- Can you provide detailed engineering specifications and removal efficiencies for Ga, As, Al, ammonia, TSS, and COD based on real-world GaN fab wastewater data?
- Do you offer a comprehensive 12-month performance guarantee for water recovery rate, permeate quality, and specific contaminant removal targets?
- What are your recommended antiscalant and cleaning-in-place (CIP) protocols tailored to prevent RO membrane fouling from silica and metal hydroxides in GaN effluent?
- Can you provide references from other semiconductor fabs, particularly those handling GaN or similar complex industrial wastewater?
- What is your approach to pilot testing on-site, and what parameters will be monitored to validate the system's performance for our specific wastewater stream?
- How do you design for energy efficiency, especially for the evaporation/crystallization stage, to minimize the overall operational expenditure?
- What are your capabilities for gallium or other valuable metal recovery from the concentrated brine, and can you provide an economic model for this?
- What kind of post-installation support, spare parts availability, and operator training do you offer?
- Can you provide a detailed CAPEX and OPEX breakdown, including a guaranteed OPEX cap for the first 3-5 years of operation?
Red flags to watch for include vendors who propose generic system designs without specific adaptations for GaN wastewater characteristics, those who cannot provide detailed engineering specs or removal rates for GaN-specific contaminants, or those lacking verifiable references in the semiconductor industry. A robust pilot testing protocol is non-negotiable, typically requiring 3–6 months of on-site operation for DAF, MBR, and RO components to validate performance under actual plant conditions. Key parameters to monitor during pilot testing include membrane flux rates, permeate quality (TDS, heavy metals, ammonia), and chemical consumption. Contract terms should include performance-based pricing, clear membrane replacement guarantees, and an OPEX cap to protect the fab from unforeseen operational costs.
Frequently Asked Questions
Understanding the nuances of GaN wastewater treatment and reuse is critical for semiconductor manufacturers facing increasing regulatory scrutiny and water scarcity challenges.
Q: What are the China GB and US EPA discharge limits for gallium in GaN wastewater?
A: China GB 31573-2015 sets a limit of 0.5 mg/L for gallium. The US EPA’s industrial reuse guidelines recommend <0.1 mg/L for direct discharge of gallium, emphasizing stringent limits for heavy metals in industrial effluent (US EPA, 2023).
Q: How does GaN wastewater differ from silicon wafer fab wastewater?
A: GaN wastewater typically has significantly higher salinity (5,000–15,000 mg/L TDS vs. 1,000–3,000 mg/L for silicon wafer fab wastewater) and elevated ammonia levels (100–400 mg/L vs. 20–50 mg/L). This necessitates specialized pretreatment, often involving DAF and advanced biological treatment like MBR, compared to conventional systems used for silicon wafer fab systems.
Q: What’s the typical payback period for a GaN ZLD system?
A: The typical payback period for a GaN ZLD system ranges from 3–5 years, largely dependent on local water costs, discharge fees, and the specific system configuration. A 500 m³/day system in Taiwan, for instance, achieved ROI in 3.2 years due to substantial water savings and avoided penalties (Zhongsheng’s case study, 2024).
Q: Can GaN wastewater be reused for non-potable applications like cooling towers?
A: Yes, RO permeate from a hybrid ZLD system typically meets cooling tower water quality standards (<50 mg/L TDS, <1 mg/L ammonia). For more sensitive non-potable applications or if residual ammonia and metals need further reduction, additional polishing steps like ion exchange or activated carbon may be required.
Q: What are the most common failure points in GaN ZLD systems?
A: The most common failure points include RO membrane fouling (often due to high silica and metal hydroxides), MBR membrane clogging (from Ga/Al hydroxides), and evaporator scaling (primarily from calcium sulfate and other sparingly soluble salts). Mitigation strategies involve rigorous pretreatment, precise antiscalant dosing, pH adjustment, optimized aeration scouring for MBRs, and regular chemical cleaning-in-place (CIP) protocols for all membrane and evaporation units.
