Industrial Wastewater Treatment in Toronto: 2026 Engineering Specs, Compliance & Cost-Optimized Equipment Guide

Toronto's Industrial Wastewater Bylaw Limits and Compliance Risks

Toronto Chapter 681 Table 1 caps sanitary discharge at pH >6.0 to <11.5, TSS 350 mg/L, FOG 150 mg/L, BOD 300 mg/L, copper 2 mg/L, chromium 4 mg/L, and zinc 2 mg/L. Corporate fines reach $100,000 per offence and $10,000 per day for continuing breaches. Pretreatment is mandatory before discharge to municipal sewers.

Chapter 681 is the primary rule for industrial discharge in Toronto. Neighbouring Peel Region Bylaw 53-2010 also sets TSS at 350 mg/L and FOG at 150 mg/L. Peel copper sits at 3 mg/L versus Toronto's 2 mg/L, so metal limits still differ at the municipal boundary. In 2023, a Toronto food processor was fined over $75,000 for repeated FOG violations after passive grease interceptors failed under peak production loads. That pattern is common when passive systems handle modern industrial volumes.

Municipal monitoring has tightened. Toronto Water inspectors now use automatic refrigerated samplers and real-time pH monitoring at the property line to catch slug loads. For pharmaceutical and metal finishing sites, surprise sampling focuses on COD and specific toxic organics. A single pH reading outside greater than 6.0 to less than 11.5 typically triggers an immediate Notice of Violation. Acidic or highly alkaline discharge can corrode municipal concrete sewers within hours.

Ontario environmental penalties separately reach $100,000 per day for the most serious violations under the Environmental Protection Act. Chapter 681 § 681-14.1 remains the direct municipal fine schedule for sewer-use breaches.

Step-by-Step Pretreatment Process Flow for Toronto Facilities

Effective pretreatment starts with mechanical screening, then moves through physical and chemical stages matched to the influent profile. Rotary mechanical bar screens (GX Series) capture solids larger than 3 mm at up to 95% removal efficiency, protecting downstream pumps and membranes from mechanical wear. Equalization tanks follow to buffer flow and concentration swings. Toronto food processors with end-of-shift wash-down surges cannot run without equalization, because a hydraulic shock will blow a fixed-rate treatment train past its design point.

Chemical pH adjustment sits at the heart of the train. Automated pH adjustment systems for Toronto's metal finishing plants hold Chapter 681's pH window by dosing sulfuric acid or sodium hydroxide at 0.1-0.5 L/m³, depending on influent alkalinity. For organic and suspended-solid removal, DAF systems for Toronto's high-FOG industrial wastewater are the workhorse. They achieve 92-97% removal and routinely drop FOG from 800 mg/L to well under 150 mg/L. Micro-bubbles attach to FOG and TSS particles and float them for skimming.

Lamella clarifiers handle sedimentation at surface loading rates of 20-40 m/h, removing 85-95% of TSS. Multi-media filters then polish to a Silt Density Index (SDI) below 5, which any reverse osmosis (RO) reuse loop requires. When microbial control is needed before discharge, chlorine dioxide generators for microbial control hit a 99% kill rate. For bubble-attachment physics, review how DAF systems achieve 95%+ TSS removal in Toronto's industrial wastewater.

Equipment Selection by Industry Sector

Technology selection should follow the contaminant profile, not a generic catalogue list. Food processors (meatpacking, dairy) deal with FOG and BOD. A ZSQ Series DAF unit sized for 150 m³/h will typically cut FOG from 800 mg/L to under 50 mg/L. That margin sits well below the 150 mg/L ceiling and absorbs production peaks without surcharge fees. Over-sizing the removal margin is cheap insurance compared to a single NOV.

Metal finishing and electronics sites focus on heavy metal precipitation and chemical oxidation. A hybrid chemical dosing plus lamella clarifier train removes 99% of copper and nickel. Pharmaceutical plants with high COD and complex organics usually step up to MBR systems for space-constrained Toronto facilities. Sub-1-µm membranes produce effluent clean enough for cooling-tower make-up or floor washing without a separate polishing stage.

Footprint is the binding constraint inside the city. Underground wastewater treatment systems for Toronto's urban facilities take about 60% less space than surface-mounted plants. The WSZ Series handles 1-80 m³/h and can sit under parking or loading docks. For cross-market context, compare local specs against how Toronto's wastewater treatment requirements compare to other North American cities. For buried-system civil and mechanical costs, see underground wastewater treatment systems for Toronto's urban facilities.

CAPEX, OPEX, and ROI for Toronto Treatment Systems

Capital expenditure (CAPEX) for an industrial wastewater treatment system in Toronto ranges from about $50,000 for a basic DAF skid to over $1.5 million for a high-capacity membrane bioreactor. DAF systems typically fall between $50,000 and $300,000 at 4-300 m³/h, including PLC automation and installation. MBR systems run $200,000-$1.5M because of membrane modules and aeration. They often deliver the lowest total cost of ownership when reuse or zero-liquid-discharge is the goal. Underground WSZ Series systems sit at $80,000-$500,000, with the premium covering below-grade civil work.

Operational expenditure (OPEX) breaks down into energy, chemicals, and maintenance. Energy runs $0.05/m³ for DAF and up to $0.20/m³ for high-intensity MBR aeration. Chemicals, including pH adjusters, coagulants, and flocculants, average $0.10-$0.50/m³. Maintenance budgets should sit at 2-5% of CAPEX per year. MBR sits at the upper end because membranes need replacement every 5-7 years. Those costs usually pay back through avoided fines and reduced surcharges.

Provincial incentives soften the bill. Ontario's Save on Energy program covers up to 50% of the cost for energy-efficient blowers and high-efficiency motors used in aeration. Combined with municipal water savings at roughly $0.50-$2.00/m³, an MBR or RO system typically reaches full ROI in 3 to 5 years. Procurement teams should request a sized proposal and operating-cost spreadsheet before sign-off.

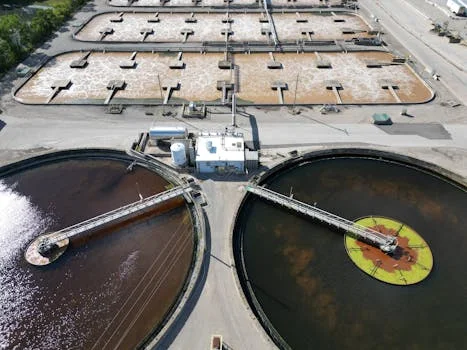

Compliance Checklist: Passing a Toronto Sewer Use Bylaw Inspection

Toronto Water expects at least 24 months of logged pH and flow data on inspection day. Inspectors will want clear access to every treatment unit, sampling port, and control panel. Systems treating more than 100 m³/day must be overseen by operators holding Ontario Water Wastewater Certification. Missing that paperwork alone can earn a procedural violation even when the equipment is running clean.

Pre-inspection, run a third-party audit to find gaps in the treatment chain. Metal finishers often lose marks on pH excursions during tank-cleaning cycles when readings hit 6.0 or below. Real-time pH monitoring with an automated diversion valve sends out-of-range effluent back to equalization rather than into the sewer. Walk inspectors through spill response and bypass procedures. They expect to see power-outage and equipment-failure behaviour, not just steady-state operation.

After the inspection, Toronto Water gives roughly 30 days to close out minor findings. Missing the corrective-action-report deadline escalates a warning into a fine. The most common GTA failures are FOG exceedances at food plants that rely only on grease traps, and heavy-metal spikes in electronics manufacturing. A tight maintenance log plus automated dosing is the burden of proof that keeps a facility off the annual non-compliance report.

Selection Checklist Before You Buy

• Confirm the discharge permit parameters (pH, TSS, FOG, metals, COD) against Bylaw 681 or the applicable regional bylaw.
• Map the influent profile by shift, including peak wash-down and slug loads.
• Match the technology to the dominant contaminant: DAF for FOG/TSS, MBR for COD/reuse, lamella for metals, underground WSZ for tight sites.
• Size for 20-30% hydraulic margin above peak flow.
• Verify operator certification requirements for systems over 100 m³/day.
• Budget 2-5% of CAPEX per year for maintenance and a membrane replacement line every 5-7 years for MBR.
• Confirm incentive eligibility (Save on Energy, FedDev Ontario) and include the paperwork in the project schedule.

Who This Guide Is For and Next Steps

This guide is built for plant engineers, EPC contractors, and procurement managers sizing pretreatment for a Toronto facility or any GTA site discharging to a municipal sewer under comparable bylaws. If your project is a pure potable-water or RO reuse loop with no sewer discharge, the bylaw section will not apply. A different spec set is needed.

For a sized proposal covering equipment selection, CAPEX/OPEX, and compliance documentation, send the influent profile and peak flow to our Toronto wastewater treatment team for a written response.

Frequently Asked Questions

What are the most common violations of Toronto's Sewer Use Bylaw for industrial facilities?

The top violations are pH outside Chapter 681's greater-than-6.0 to less-than-11.5 window, FOG above 150 mg/L, and TSS above 350 mg/L. Food processing and metal finishing plants drive most of these cases through high organic loads and acidic or alkaline discharges. Toronto Water's 2023 enforcement skewed heavily toward FOG and pH cases, with dozens of fines issued across the year.

How do I choose between a DAF system and an MBR for a Toronto facility?

Use the contaminant profile as the first filter. DAF fits high-FOG and high-TSS loads such as food processing and meatpacking, with 92-97% removal at $50,000-$300,000 CAPEX and $0.30-$0.50/m³ OPEX. MBR fits space-constrained urban sites and reuse-quality targets like pharmaceuticals and electronics. Expect $200,000-$1.5M CAPEX, $0.05-$0.20/m³ OPEX, and a footprint about 60% smaller than conventional plants.

What funding or rebates are available for industrial wastewater treatment in Toronto?

Ontario's Save on Energy program covers up to 50% of energy-efficient upgrades such as high-efficiency blowers and motors used in MBR aeration. Toronto Water's Industrial Pretreatment Program offers free compliance audits for at-risk facilities. FedDev Ontario provides low-interest loans for manufacturers upgrading toward zero-liquid-discharge (ZLD) systems. Stacking these with water-reuse savings usually returns full ROI inside 3 to 5 years.

How often does Toronto Water inspect industrial wastewater treatment systems?

High-risk facilities (food processing, metal finishing) are inspected annually. Moderate-risk sites (textiles, printing) are inspected biennially, and low-risk manufacturers follow a random schedule. Sites with a recent non-compliance history can move to quarterly inspections until they show 12 continuous months of compliance.

What are the consequences of discharging untreated wastewater in Toronto?

Under Chapter 681 § 681-14.1, corporations face up to $100,000 per offence and continuing daily fines up to $10,000, with totals not limited to $100,000. Ontario environmental penalties separately reach $100,000 per day for the most serious violations. Toronto Water can pursue court action and, for repeat offenders, operational shutdowns. Published violations also add reputational cost.
