Why Microelectronics Wastewater Reclaim is Non-Negotiable in 2025
The semiconductor industry's insatiable demand for water, coupled with increasingly stringent environmental regulations, makes advanced wastewater reclamation systems not just beneficial, but essential for survival in 2025. Many regions are mandating stricter discharge limits, with new regulations like China’s GB8978-2025 and the EU Industrial Emissions Directive 2025 targeting key contaminants. For instance, TMAH limits are being pushed below 0.1 mg/L, ammonia below 1 mg/L, and heavy metals like copper below 0.5 mg/L. Failure to comply can lead to substantial financial penalties, with California data from 2024 indicating fines up to $250,000 per day for permit violations. Beyond regulatory pressures, the sheer volume of water required by a 300mm fab—averaging 2 to 5 million gallons daily—highlights the unsustainability of relying solely on freshwater. A significant portion, 60–80%, is typically lost through evaporation or discharge, as reported in a 2024 SEMI report. Forward-thinking fabs are already demonstrating the economic advantages of advanced reclaim; a 2025 case study of TSMC’s Arizona fab revealed a 75% reduction in freshwater intake and annual savings of $1.2 million after implementing a Zero-Liquid-Discharge (ZLD) system. This economic and environmental imperative underscores the need for sophisticated water management strategies.
Microelectronics Wastewater Contaminant Profile: What’s Really in Your Effluent?
Understanding the precise chemical makeup of microelectronics wastewater is the bedrock of designing an effective reclamation system. The complexity arises from the diverse array of processes involved, each contributing a unique fingerprint of contaminants. Typical effluent from semiconductor fabrication plants can contain a wide spectrum of pollutants, including high concentrations of tetramethylammonium hydroxide (TMAH) ranging from 10–500 mg/L, ammonium from 50–300 mg/L, silica between 20–100 mg/L, and heavy metals such as copper (5–50 mg/L), chromium (0.1–5 mg/L), and fluoride (10–200 mg/L). These figures are derived from extensive industry analysis and research data. Chemical Mechanical Planarization (CMP) processes, for example, contribute abrasive particles and dissolved metals, while photoresist stripping wastewater is characterized by high levels of Total Organic Carbon (TOC) and TMAH. Etching processes often yield acidic wastewater laden with heavy metals. The environmental and health risks associated with these contaminants are substantial: TMAH is acutely toxic to aquatic life, with harmful effects observed at concentrations as low as 0.1 mg/L, while ammonia can lead to eutrophication of water bodies. Heavy metals pose a significant bioaccumulation risk. A generalized process flow for treating such wastewater might begin with streams from CMP, flowing to an equalization tank, followed by pH adjustment, Dissolved Air Flotation (DAF) for solids removal, a Membrane Bioreactor (MBR) for organic breakdown, Reverse Osmosis (RO) for ion removal, and finally, ion exchange for polishing to Ultrapure Water (UPW) standards before it re-enters the UPW reclaim loop. For initial solids and FOG removal, Dissolved Air Flotation (DAF) is a critical first step.
| Contaminant Category | Specific Contaminants | Typical Concentration Range (mg/L) | Primary Source Processes | Environmental/Health Risks |
|---|---|---|---|---|
| Organic | Tetramethylammonium Hydroxide (TMAH) | 10–500 | Photoresist stripping, wafer cleaning | Aquatic toxicity (e.g., at 0.1 mg/L), potential irritant |
| Organic | Ammonium (NH₄⁺) | 50–300 | Wafer cleaning, etching, CMP slurries | Eutrophication, aquatic toxicity |
| Organic | Total Organic Carbon (TOC) | Variable (high in PR strip) | Photoresist stripping, cleaning agents | Oxygen depletion in water bodies, indicator of organic load |
| Inorganic | Silica (SiO₂) | 20–100 | CMP slurries, wafer cleaning | Scaling in downstream equipment, potential membrane fouling |
| Inorganic | Heavy Metals (e.g., Copper, Chromium) | Cu: 5–50, Cr: 0.1–5 | Etching, plating, CMP slurries | Bioaccumulation, toxicity to aquatic life, potential human health risks |
| Inorganic | Fluoride (F⁻) | 10–200 | Etching, cleaning | Skeletal fluorosis (high chronic exposure), aquatic toxicity |
| Particulate | Suspended Solids (TSS) | Variable (high in CMP) | CMP slurries, general process waste | Turbidity, interference with downstream processes, habitat degradation |
| Particulate | Fats, Oils, and Grease (FOG) | Variable | Cleaning processes, general workshop waste | Surface water pollution, operational issues in treatment systems |
For initial solids and FOG removal, Dissolved Air Flotation (DAF) is a critical first step. Learn more about our Dissolved Air Flotation (DAF) machines.
Hybrid Water Reclaim System Design: Engineering Specs for 99%+ Recovery
Achieving 99%+ water recovery and meeting Ultrapure Water (UPW) standards necessitates a meticulously engineered hybrid system, integrating multiple advanced treatment technologies. The primary treatment stage often begins with Dissolved Air Flotation (DAF), designed to remove 90–95% of suspended solids and Fats, Oils, and Grease (FOG). Optimal DAF operation involves loading rates of 4–6 gpm/ft², precise chemical dosing of coagulants like Polyaluminum Chloride (PAC) at 50–100 mg/L and polymers at 1–5 mg/L, with skimming frequency adjusted based on influent characteristics. Following DAF, a Membrane Bioreactor (MBR) serves as the secondary treatment stage, effectively achieving 95–99% COD removal and over 99% TSS removal. MBR membranes typically feature pore sizes of 0.1 μm, operating at flux rates between 15–25 LMH (Liters per square meter per hour) with Mixed Liquor Suspended Solids (MLSS) concentrations maintained at 8–12 g/L. For tertiary treatment and high-level water recovery, Reverse Osmosis (RO) systems are employed, capable of recovering 75–90% of the water. Depending on the design, single-stage RO can achieve 75% recovery, while two-stage systems can reach 90%. These systems utilize spiral-wound polyamide membranes and operate under pressures ranging from 150–400 psi. The final polishing step involves ion exchange (IX) to remove residual ions, such as silica and boron, ensuring effluent quality meets stringent resistivity standards (>18 MΩ·cm). This stage utilizes specific resin types, like strong acid cation and weak base anion exchangers, with regeneration cycles optimized for performance. For Zero-Liquid-Discharge (ZLD) compliance, the concentrated brine from RO is directed to an evaporator/crystallizer, commonly a Mechanical Vapor Recompression (MVR) or thermal evaporator, with energy consumption typically between 20–50 kWh/m³ of brine, enabling near-total water reuse and solid salt recovery. For advanced organic removal, MBR systems are crucial, while RO systems are indispensable for ion removal and high-recovery water reclaim.
| Treatment Stage | Key Technology | Primary Function | Typical Removal Efficiency | Key Engineering Parameters | Typical Footprint (m²/m³/day) |
|---|---|---|---|---|---|
| Primary | Dissolved Air Flotation (DAF) | Suspended Solids, FOG removal | 90–95% TSS, 80–90% FOG | Loading Rate: 4–6 gpm/ft² PAC Dose: 50–100 mg/L Polymer Dose: 1–5 mg/L |
0.2–0.5 |
| Secondary | Membrane Bioreactor (MBR) | COD, BOD, TSS, pathogens removal | 95–99% COD, >99% TSS | Membrane Pore Size: 0.1 μm Flux: 15–25 LMH MLSS: 8–12 g/L |
0.5–1.0 |
| Tertiary | Reverse Osmosis (RO) | Dissolved salts, ions, most organics | 95–99% dissolved salts (depends on stage) | Recovery Rate: 75% (single), 90% (two-stage) Pressure: 150–400 psi Membrane Type: Polyamide |
0.2–0.5 |
| Polishing | Ion Exchange (IX) | Trace ions (silica, boron, etc.) | >99.9% for target ions | Resin Type: SAC/WAC, SBA/WBA Regeneration Frequency: Variable Effluent: >18 MΩ·cm resistivity |
0.1–0.3 |
| Brine Management (ZLD) | Evaporation/Crystallization (e.g., MVR) | Water recovery from concentrate, salt production | Near 100% water recovery | Energy Consumption: 20–50 kWh/m³ Product: Solid salts |
Varies significantly with technology |
Technology Comparison: MBR vs. RO vs. Ion Exchange for Microelectronics Reclaim
Selecting the optimal treatment train for microelectronics wastewater reclaim involves understanding the distinct capabilities and limitations of key technologies. Membrane Bioreactors (MBR) excel in removing high levels of Suspended Solids (TSS) and Chemical Oxygen Demand (COD), making them ideal for pre-treatment or handling variable influent loads. They have a moderate Capital Expenditure (CAPEX) of $1,500–$3,000 per cubic meter per day (m³/day) and Operating Expenditure (OPEX) of $0.20–$0.40/m³, with a footprint of 0.5–1 m²/m³/day. Membrane replacement is typically required every 5–8 years. Reverse Osmosis (RO) systems are highly effective at removing dissolved ions and are crucial for achieving high water recovery rates, especially after MBR treatment. Their CAPEX ranges from $2,000–$4,000/m³/day, with OPEX at $0.30–$0.60/m³ and a smaller footprint of 0.2–0.5 m²/m³/day. RO membranes require replacement every 3–5 years. Ion Exchange (IX) is the technology of choice for final polishing to achieve Ultrapure Water (UPW) standards, removing trace ions that other methods miss. IX offers the lowest CAPEX at $500–$1,500/m³/day and OPEX of $0.10–$0.30/m³, with a minimal footprint of 0.1–0.3 m²/m³/day. Resin replacement occurs every 3–5 years. A hybrid system combining MBR and RO can achieve approximately 95% water recovery, while integrating ion exchange allows for 99%+ recovery and UPW quality. Precise chemical dosing is often managed by an automatic chemical dosing system to optimize performance across these stages.
| Technology | Primary Contaminants Removed | Typical Removal Efficiency | CAPEX ($/m³/day) | OPEX ($/m³) | Footprint (m²/m³/day) | Maintenance Requirements | Best Use Case |
|---|---|---|---|---|---|---|---|
| MBR | TSS, COD, BOD, Turbidity | >99% TSS, 95–99% COD | $1,500–$3,000 | $0.20–$0.40 | 0.5–1.0 | Membrane cleaning (CIP), occasional replacement (5–8 yrs) | Pre-treatment for high organic/solids loads, variable influent |
| RO | Dissolved salts, ions, small molecules | 95–99% dissolved salts | $2,000–$4,000 | $0.30–$0.60 | 0.2–0.5 | Membrane cleaning (CIP), pre-treatment critical, membrane replacement (3–5 yrs) | High-recovery water reclaim, ion removal after MBR, UPW make-up |
| Ion Exchange (IX) | Trace ions (e.g., silica, boron, cations, anions) | >99.9% for target ions | $500–$1,500 | $0.10–$0.30 | 0.1–0.3 | Resin regeneration, occasional resin replacement (3–5 yrs) | Final polishing to UPW standards, selective ion removal |

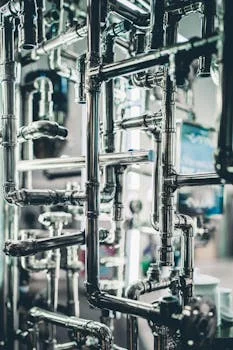

Cost Breakdown and ROI: Is Water Reclaim Worth the Investment?
Investing in a high-recovery water reclaim system for microelectronics fabrication is a strategic financial decision driven by significant long-term savings and avoided costs. For a system capable of processing 1,000 m³/day, the Capital Expenditure (CAPEX) can range from $2.5 million to $10 million. This typically breaks down as follows: DAF systems might cost $200K–$500K, MBR units $800K–$2M, RO units $500K–$1.5M, ion exchange systems $300K–$800K, and the ZLD evaporation/crystallization component $700K–$3M. Operating Expenditure (OPEX) for these systems generally falls between $0.50 to $1.50 per cubic meter, comprising energy costs ($0.20–$0.60/m³), chemicals ($0.10–$0.30/m³), membrane and resin replacement ($0.10–$0.40/m³), and labor ($0.10–$0.20/m³). The Return on Investment (ROI) is compelling, with payback periods typically ranging from 3 to 7 years. This is calculated based on direct savings from reduced freshwater purchases (estimated at $0.50–$2.00/m³), avoided discharge fees ($0.10–$0.50/m³), and the critical avoidance of fines for regulatory non-compliance. Beyond these direct financial benefits, water reclaim systems offer substantial non-financial advantages, including reduced dependency on increasingly scarce freshwater resources, enhanced Environmental, Social, and Governance (ESG) scores, and future-proofing operations against potential water shortages. For instance, Intel's Leixlip fab reported annual savings of $3.5 million after implementing a 98% recovery system, as detailed in their 2025 sustainability report. Exploring detailed process designs and ZLD cost breakdowns can further clarify project economics.
| Cost Category | Typical Range for 1,000 m³/day System | Components/Notes |
|---|---|---|
| CAPEX | $2.5M – $10M | DAF ($200K–$500K), MBR ($800K–$2M), RO ($500K–$1.5M), IX ($300K–$800K), ZLD ($700K–$3M) |
| OPEX | $0.50 – $1.50 / m³ | Energy ($0.20–$0.60/m³), Chemicals ($0.10–$0.30/m³), Replacement ($0.10–$0.40/m³), Labor ($0.10–$0.20/m³) |
| Payback Period | 3 – 7 Years | Based on water savings, discharge fees, and avoided fines |
| Water Savings Value | $0.50 – $2.00 / m³ | Direct reduction in freshwater purchase costs |
| Discharge Fee Avoidance | $0.10 – $0.50 / m³ | Costs associated with discharging treated wastewater |
Frequently Asked Questions
Q: What is the minimum water quality required for microelectronics reclaim?
A: Ultrapure Water (UPW) standards, essential for most semiconductor processes, demand a resistivity greater than 18 MΩ·cm, TOC below 1 ppb, and particles smaller than 0.1 μm, as defined by standards like SEMI F63-0701. Hybrid systems, particularly those combining MBR, RO, and ion exchange, are engineered to consistently achieve and exceed these stringent requirements.
Q: How do I handle high-silica wastewater in reclaim systems?
A: For elevated silica concentrations, anti-scalant dosing, such as polyacrylic acid, is crucial in RO systems to prevent scaling and membrane fouling. When silica levels exceed 100 mg/L, advanced pre-treatment methods like electrocoagulation or dedicated ion exchange can be implemented to manage this challenge effectively.
Q: What are the biggest challenges in microelectronics wastewater reclaim?
A: The primary challenges include managing highly variable contaminant loads, preventing membrane fouling from complex organic compounds, and effectively managing the concentrated brine generated in ZLD systems. Solutions involve robust equalization tanks, optimized Clean-in-Place (CIP) protocols, and advanced brine concentration technologies like MVR evaporators.
Q: Can I reuse reclaimed water for all fab processes?
A: Reclaimed water is ideally suited for non-critical applications such as cooling towers, scrubbers, and as make-up water for UPW systems after appropriate polishing. Direct reuse in critical processes like photolithography or etching without extensive further purification is generally not recommended due to the potential for trace contaminants to affect yield.
Q: How do I monitor system performance?
A: Continuous monitoring is vital. Online TOC analyzers with detection limits below 1 ppb, highly accurate conductivity sensors (±0.5%), and particle counters capable of measuring particles in the 0.05–0.2 μm range are essential at each stage to ensure consistent effluent quality and identify potential issues early. Our integrated water purification systems incorporate these advanced monitoring capabilities.
For a comprehensive overview of advanced solutions, explore our article on IC fab water reuse and ZLD systems, and understand how MBR effluent quality is achieved.
