How Pulse Jet Dust Collectors Work: Engineering Principles and Efficiency Drivers
Consider a large-scale manufacturing facility facing a mandatory shutdown due to visible stack opacity exceeding 20%. The failure is rarely due to a lack of filtration, but rather the inability of the cleaning system to maintain a stable pressure drop across the filter media. The best pulse jet dust collector for industrial use in 2025 balances efficiency, compliance, and cost. Leading systems achieve particulate emissions below 10 mg/Nm³, meeting EPA NSPS and EU Industrial Emissions Directive standards. Key factors include airflow capacity (5,000–50,000 CFM), filter media (polyester, PTFE, or fiberglass), and pulse cleaning pressure (60–100 PSI). This guide compares top brands, provides sizing calculations, and offers a decision framework to select the optimal system for your application.
Pulse jet technology operates on the principle of high-pressure compressed air injection to dislodge accumulated dust from the exterior of filter bags. Unlike reverse air systems that require a compartment to be taken offline, pulse jet systems allow for continuous operation. The process begins when dirty, dust-laden air enters the collector through a hopper or side inlet. As the air passes through the filter media, particulates are trapped on the outer surface, forming a "dust cake." This cake actually improves filtration efficiency until it becomes thick enough to restrict airflow, increasing the differential pressure.
The pulse cleaning cycle is triggered by either a timer or a pressure differential sensor. A burst of compressed air (60–100 PSI) is released from a header pipe through a diaphragm valve and into a blowpipe positioned above the filter bags. This air travels through a venturi nozzle, creating a shockwave that travels down the length of the bag. The bag expands rapidly, shattering the dust cake, which then falls into the collection hopper (per Griffin Filters data). This cycle typically lasts only 0.1 to 0.5 seconds, ensuring that the filtered air stream is not significantly disrupted.
Efficiency drivers are primarily dictated by filter media selection. Standard polyester felt provides 99.5% efficiency for particles down to 1 micron. However, for high-temperature applications or sub-micron particulate capture, PTFE (Polytetrafluoroethylene) membranes are utilized, pushing efficiency to 99.9%+. In corrosive environments or coal-fired boiler applications, fiberglass or specialized ceramic media are required to prevent chemical degradation. When comparing pulse jet vs. reverse air baghouses, pulse jet systems offer significantly higher airflow capacities (5,000–50,000 CFM) and a smaller footprint, though they require a dedicated compressed air source, which increases operational energy costs (per PAA data).
Top 5 Pulse Jet Dust Collectors for Industrial Use: Specs, Efficiency, and Use Cases
Selecting the right dust collector requires a side-by-side analysis of performance metrics across leading manufacturers. Engineering teams must evaluate not only the CFM capacity but also the emission benchmarks and temperature ratings to ensure long-term compliance with the EPA New Source Performance Standards (NSPS).
| Model / Series | Airflow Capacity (CFM) | Max Temp Rating | Emission Benchmark | Primary Application |
|---|---|---|---|---|
| Donaldson Torit FT | 5,000 – 50,000 | 275°F (Standard) | <10 mg/Nm³ | Food Processing & Grain |
| Zhongsheng ZSDM Series | 8,000 – 60,000 | 500°F (Fiberglass) | <10 mg/Nm³ | Coal-fired Boilers & Furnaces |
| Griffin Jet-Aire | 1,000 – 40,000 | 500°F (Ceramic) | <15 mg/Nm³ | Metalworking & Mining |
| Nederman MikroPul | 2,000 – 100,000+ | 450°F (Nomex) | <10 mg/Nm³ | Chemical & High Vacuum |
| Flex-Kleen (CECO) | 5,000 – 50,000 | 375°F (Aramid) | <20 mg/Nm³ | General Industrial / OEM |
The ZSDM Series Pulse Jet Baghouse for coal-fired boilers and industrial furnaces is engineered specifically for high-load particulate environments where flue gas temperatures fluctuate. For facilities requiring combined pollutant control, an integrated FGD scrubber for combined SO₂ and particulate removal may be necessary to meet strict regional mandates. While the Donaldson Torit FT excels in food processing due to its sanitary design and high-efficiency Dura-Life media, the Nederman MikroPul is often the choice for massive scale chemical plants due to its modularity and high-pressure ratings.
Pulse cleaning pressure is a critical differentiator. Most systems operate between 60–100 PSI, but the frequency of pulses (typically every 30–60 seconds) must be calibrated to the dust load. Over-cleaning can lead to "bleeding," where dust is forced through the media, while under-cleaning leads to high pressure drop and reduced suction at the source. Compliance data from the EPA NSPS suggests that maintaining emissions below 10 mg/Nm³ is becoming the standard for new installations, particularly in power generation and heavy manufacturing.

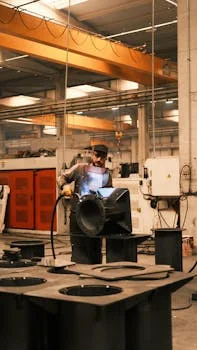

How to Size a Pulse Jet Dust Collector: Engineering Calculations and Common Mistakes
Sizing a pulse jet dust collector is a function of total air volume and the specific characteristics of the dust being handled. An undersized system leads to premature bag failure and poor air quality, while an oversized system results in unnecessary capital expenditure and wasted energy. The fundamental formula for calculating required airflow is:
Airflow (CFM) = Room Volume (ft³) × Air Changes per Hour (ACH) / 60
For example, consider a 10,000 ft³ metalworking shop. Based on industry standards, metalworking requires an ACH of 6 to 10 depending on the intensity of the grinding or welding. Using an ACH of 6: (10,000 × 6) / 60 = 1,000 CFM. This is the absolute minimum airflow required to maintain air quality. However, engineering teams must also account for the "Air-to-Cloth" (A/C) ratio, which is the ratio of air volume to the total square footage of filter media. For fine particulates like welding fumes, a conservative A/C ratio of 2:1 or 3:1 is recommended, whereas coarse wood chips can be handled at 8:1.
| Industry | Recommended ACH | Typical A/C Ratio | Dust Type |
|---|---|---|---|
| Food Processing | 8 – 12 | 3.5:1 | Starch, Flour, Sugar |
| Metalworking | 6 – 10 | 2.5:1 | Grinding dust, Fumes |
| Woodworking | 10 – 15 | 7:1 – 10:1 | Sawdust, Shavings |
| Pharmaceutical | 12 – 20 | 1.5:1 – 2:1 | Fine chemical powders |
A common engineering mistake is ignoring the impact of temperature and humidity. As gas temperatures rise, air density decreases and volume increases, requiring a larger collector to maintain the same effective suction. if the gas stream reaches its dew point, moisture will combine with the dust to form a "mud" on the bags that cannot be pulsed off, a condition known as blinding. Future expansion should also be factored in; it is significantly more cost-effective to install a system with 20% excess capacity today than to replace the entire unit in three years when a new production line is added.
Cost Breakdown: Pulse Jet Dust Collector Pricing, Operating Costs, and ROI
The total cost of ownership (TCO) for a pulse jet system extends far beyond the initial purchase price. Capital costs typically range from $10,000 for small, dedicated units to over $250,000 for large-scale industrial baghouses (50,000+ CFM). These costs are influenced by the choice of materials (e.g., 304 stainless steel for food grade vs. carbon steel for general industrial use) and the sophistication of the control system.
Operating costs are dominated by three factors: energy for the fan motor, compressed air consumption, and filter bag replacement. Compressed air costs generally range from $0.10 to $0.30 per 1,000 CFM per hour of operation. Filter bags, while relatively inexpensive individually ($5–$20 per bag), can become a major expense in large systems containing hundreds of bags, especially if the application requires high-performance PTFE or ceramic media. Maintenance costs, including diaphragm valve kits and solenoid replacements, typically run between $1,000 and $5,000 annually (Zhongsheng field data, 2025).
| System Capacity | Initial Capex | Annual Energy/Air | 5-Year TCO Estimate |
|---|---|---|---|
| 5,000 CFM | $15,000 – $25,000 | $4,500 | $45,000 – $55,000 |
| 20,000 CFM | $60,000 – $90,000 | $14,000 | $150,000 – $185,000 |
| 50,000 CFM | $180,000 – $260,000 | $32,000 | $380,000 – $480,000 |
ROI is often realized through the avoidance of regulatory fines and the reduction of equipment downtime. For a 20,000 CFM system, preventing just five days of unplanned downtime per year can save a facility upwards of $50,000, leading to a payback period of 3 to 5 years. Additionally, high-efficiency collectors can sometimes allow for the recirculation of tempered air back into the facility, significantly reducing HVAC heating and cooling costs during winter and summer months.

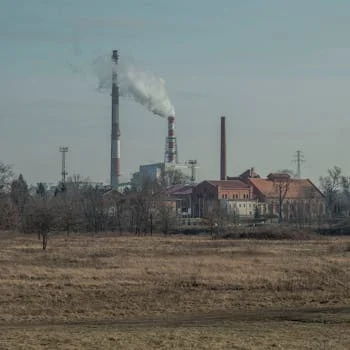

Compliance and Emission Standards: Meeting EPA, EU, and Local Regulations
Regulatory compliance is the primary driver for equipment upgrades in 2025. The EPA NSPS (New Source Performance Standards) mandates particulate emissions remain below 20 mg/Nm³ for most general industrial processes, but this limit drops to <10 mg/Nm³ for coal-fired boilers and hazardous waste incinerators. Similarly, the EU Industrial Emissions Directive (2010/75/EU) requires new installations to meet the 10 mg/Nm³ threshold to achieve Best Available Techniques (BAT) status.
Local jurisdictions often impose even stricter requirements. For instance, the California Air Resources Board (CARB) and various regional air quality districts in China (under GB 16297-1996) may require secondary filtration, such as HEPA after-filters, to capture PM2.5 particulates. Facilities in these regions must also consider wastewater treatment compliance for industrial facilities if they utilize wet scrubbers in conjunction with dust collectors, as the blowdown from scrubbers contains concentrated pollutants.
| Region / Standard | Standard Limit | Strict Limit (Sensitive) | Target Particle Size |
|---|---|---|---|
| EPA NSPS (USA) | 20 mg/Nm³ | 10 mg/Nm³ | PM10 |
| EU Directive | 20 mg/Nm³ | 5 – 10 mg/Nm³ | PM10 / PM2.5 |
| GB 16297 (China) | 30 mg/Nm³ | 10 mg/Nm³ | PM10 |
| CARB (California) | 10 mg/Nm³ | <5 mg/Nm³ | PM2.5 |
Future-proofing a facility involves selecting a pulse jet system that can be retrofitted with high-efficiency membranes or secondary scrubbers without replacing the main housing. This is particularly relevant for industries handling heavy metals or toxic organic compounds, where emission standards are expected to tighten further by 2030. For plants integrating multiple environmental systems, ensuring compatibility between dust collection and sludge dewatering solutions for industrial wastewater (to handle collected wet dust or scrubber blowdown) is essential for a closed-loop compliance strategy.
Decision Framework: How to Choose the Best Pulse Jet Dust Collector for Your Application
A structured decision framework ensures that technical requirements align with budget constraints. Follow these six steps to select the optimal system:
- Define Application and Dust Characteristics: Identify the particle size (micron), abrasiveness, and temperature of the dust. Determine if the dust is explosive (requiring ATEX/NFPA compliance) or corrosive.
- Calculate Required Airflow (CFM): Use the sizing formula (Volume x ACH / 60) and adjust for the specific Air-to-Cloth ratio required for your dust type.
- Match Filter Media to the Environment: Select polyester for standard dry dust, PTFE for fine/sticky particulates, or fiberglass/ceramic for high-temperature flue gases.
- Evaluate Brand Specifications: Compare the emission benchmarks and pulse cleaning efficiency of the top 5 brands. Ensure the system can maintain <10 mg/Nm³ if required by local law.
- Analyze TCO and ROI: Factor in the 5-year operating costs, including compressed air and bag replacements, rather than just the initial Capex.
- Pilot Testing: For high-risk or unique applications (e.g., new chemical compounds), request a pilot test or a small-scale slipstream test to verify the A/C ratio and cleaning frequency.
The decision tree typically leads engineers toward modular pulse jet systems for general manufacturing due to their scalability. However, for heavy utility applications like coal-fired power plants, the focus shifts toward heavy-duty, high-temperature baghouses with automated hopper evacuation systems. By prioritizing the Air-to-Cloth ratio and media chemistry over the lowest initial bid, facilities can avoid the common pitfalls of excessive pressure drop and frequent maintenance shutdowns.
Frequently Asked Questions
What is the difference between pulse jet and reverse air baghouses?
Pulse jet collectors use high-pressure (60–100 PSI) compressed air to clean bags while the system remains online, offering higher airflow (up to 50,000 CFM) and a smaller footprint. Reverse air systems use low-pressure fans to clean bags in offline compartments, which is gentler on the media but requires more space and results in lower efficiency for fine dust.
How often should I replace the filter bags in a pulse jet system?
In standard industrial applications, filter bags last 12 to 24 months. However, this lifespan can drop to less than 6 months if the system is undersized, operates at high temperatures without proper media, or handles abrasive dust. Regular monitoring of the differential pressure is the best way to determine replacement timing.
Can a pulse jet dust collector handle explosive dust?
Yes, but the system must be equipped with explosion vents, fire suppression systems, and grounded filter bags (anti-static) to comply with NFPA 68 and 69 standards. Pulse jet systems are commonly used for explosive dusts like flour, sugar, and aluminum powder when properly configured with safety features.
What is the ideal Air-to-Cloth (A/C) ratio for metalworking?
For general metal grinding and machining, an A/C ratio between 2.5:1 and 4:1 is ideal. If the application involves heavy welding fumes or laser cutting, the ratio should be lowered to 2:1 to account for the sub-micron particle size and the tendency of fumes to clog filter pores more quickly.
How much compressed air does a pulse jet collector use?
Compressed air usage typically ranges from 0.05 to 0.15 standard cubic feet (SCF) per pulse per bag. For a 20,000 CFM system pulsing every 30 seconds, this translates to roughly 10–25 SCFM of continuous compressed air demand, which should be factored into the facility’s total air compressor capacity.
