Determine Which Sewer Limits Apply
Food and beverage plants near New Hebron meet pretreatment limits by identifying the sewer authority that controls their connection, obtaining its local discharge limits and monitoring requirements, and characterizing each production, washdown, sanitation and clean-in-place stream. The treatment train then matches contaminants to controls: screening and equalization protect downstream equipment; dissolved air flotation removes suspended solids, fats, oils and grease; automatic chemical dosing supports coagulation and pH adjustment; and biological treatment can reduce BOD and nutrients where required. Hebron WWTP is a secondary treatment plant serving 2,206 people and operating under U.S. EPA NPDES regulations, but the plant must still verify its authority-specific pretreatment conditions before designing equipment.
The applicable regulatory structure comes from the U.S. EPA National Pretreatment Program. According to the U.S. EPA, NPDES permits issued to publicly owned treatment works include pretreatment implementation requirements. The control authority is the POTW where it has an approved local pretreatment program; otherwise, the Approval Authority performs that role. EPA identifies this structure under 40 CFR 403.3(f), which regulates nondomestic facilities discharging to the POTW system.
That federal framework does not supply the complete equipment scope for an individual food and beverage discharger. The applicable control authority must identify local pretreatment limits, monitoring frequencies, sampling protocols, reporting forms, designated discharge points and any production or discharge restrictions. A discharger should also establish whether it is subject to an individual permit, a general permit or another authorization; the control authority’s written determination, not an assumption based on a general sewer rule, should define the path.
Utility Radar reports that Hebron WWTP is a secondary treatment plant serving 2,206 people and operating under U.S. EPA NPDES regulations. That is useful receiving-system context, but it is not a quoted local limit and does not establish that a proposed treatment train will be accepted.
Before buying equipment, create a compliance register with three categories: confirmed permit conditions, proposed interpretations requiring written confirmation, and unresolved information. The industrial pretreatment compliance workflow provides a useful model for organizing those records. Keep every assumption, consultant comment and authority response traceable, including the date and source.
Characterize Every Wastewater Stream
Food and beverage wastewater must be characterized by source because a single averaged sample can conceal the contaminants and operating swings that determine treatment performance. ALAR identifies detergents and disinfectants from CIP and sanitation as chemicals that can alter pH and affect downstream biological processes, while production streams may carry different organic loads, solids and FOG.
| Stream or source | Contaminants to investigate | Design implication |
|---|---|---|
| Production wastewater | BOD, TSS, FOG, proteins, sugars and nutrients where relevant | Determine organic loading, solids removal and biological treatment needs. |
| Process washdown | Soluble organics, suspended material and cleaning residues | Check whether the stream should be segregated or equalized with other flows. |
| Floor washdown | TSS, FOG, sediment and detergents | Assess screening, solids removal and potential chemical effects. |
| Sanitation and CIP | pH, detergents, disinfectants and residual oxidant | Confirm pH neutralization and compatibility with downstream biology. |
| Batch and seasonal flows | Flow, concentration and discharge-duration changes | Size equalization and treatment for operating variation, not only the average. |
ALAR states that meat and poultry facilities can produce wastewater rich in FOG, which may clog pipes and interfere with biological treatment unless removed. Beverage manufacturing and confectionery processes can produce readily degradable sugars and starches that increase BOD, while protein-rich wastewater can cause foaming or odor problems. Pulp, seeds and grains from food preparation and packaging contribute suspended solids that require clarification or solids removal.
ECOR notes that food and beverage wastewater characteristics can swing with seasonal peaks and production changes. The sampling plan should therefore capture normal production, cleaning cycles, peak production and seasonal conditions. Request flow, BOD, TSS, pH, FOG, nutrients, detergents or disinfectants where relevant, and the proposed discharge schedule. Use the analytical methods and reporting conventions required by the control authority.
Representative data—not a single compliance sample—is the basis for sizing and pilot work. ALAR offers pilot testing to validate performance before full-scale installation, which is particularly useful where production and cleaning cycles produce variable wastewater. For high-strength process design, the MBR process design for high-strength food wastewater illustrates why biological and solids-handling decisions need a defined process basis.
Match Contaminants to Pretreatment Steps
A defensible treatment train assigns each contaminant to a process step and then verifies that the steps work together. Equipment should not be selected from a list of “food-processing solutions”; it should be selected from the confirmed wastewater profile, authority requirements and treatment objectives.
| Confirmed condition | Primary treatment function | Evidence to request before approval |
|---|---|---|
| Solids, rags, plastics or fibrous debris | Remove material before pumps and downstream equipment | Selected screen duty, extracted-solids handling and bypass arrangement. |
| FOG, oil, colloids or floatable solids | DAF clarification and float removal | Application data, hydraulic basis, float-handling method and pilot results where variability is high. |
| pH outside the required operating band | pH neutralization and chemical dosing | Feed-forward control, probe location, chemical compatibility and alarm setpoints. |
| Coagulation or flocculation required | Conditioning before clarification | Jar or pilot testing, chemical range and control strategy. |
| BOD or nutrients requiring reduction | Biological treatment and clarification | Organic-loading basis, process model, sludge production and effluent targets. |
| Residual treatment sludge | Dewatering and disposal preparation | Feed characteristics, selected press configuration and cake-handling plan. |
Start with screening and solids control. HydropureWater’s GX Series rotary mechanical bar screen is designed for continuous-duty municipal and industrial headworks, including solids, rags, plastics and fibrous debris. Its relevance should be checked against the plant’s flow, debris type, screen opening, extraction method and space constraints.
Use industrial DAF equipment for food-processing wastewater where the wastewater contains FOG, oil, colloidal material or suspended solids that should be removed before biological treatment. USP Technologies reports that DAF is common in meat, protein and dairy operations because it removes non-soluble suspended solids, FOG and related contaminants. The DAF versus clarifier equipment comparison is useful for framing the distinction, but the food and beverage wastewater data must remain the sizing basis.
Use chemical dosing for coagulation, flocculation and pH adjustment only within a defined sequence. HydropureWater’s PLC-controlled automatic chemical dosing system handles coagulants, flocculants, pH adjusters and specialty chemicals, but control logic must reflect the confirmed contaminant profile and authority requirements.
Add biological treatment when the confirmed permit or treatment objective requires BOD or nutrient reduction. ALAR identifies MBBR and IFAS as biological approaches for high-strength food and beverage waste streams. Include solids handling early because dewatering affects the residuals leaving DAF, biological and chemical processes. Flow recording, sampling, alarms and operating data are treatment components, not optional accessories.
Build a Practical New Hebron Treatment Train
The proposed sequence should connect each waste source to a controlled treatment function and end at an authorized discharge point. A typical structure is collection; screening; equalization; DAF or another FOG and solids stage; chemical conditioning or pH adjustment; biological treatment where required; final monitoring; and sludge dewatering. The control authority must confirm which stages are needed and where monitoring must occur.
HydropureWater lists 13 DAF models with capacities from 4–300 m³/h. The listed equipment uses micro-bubble technology, automatic skimming and applications that include food processing and municipal pretreatment. These are available equipment capacities, not a recommendation to select a model from a headline flow number. The selected unit must fit the measured hydraulic and contaminant profile, installation constraints, float-removal method and expected operating variation.
Equalization should absorb production and cleaning-batch variation before chemical or biological treatment. ECOR identifies seasonal peaks and production changes as conditions that alter wastewater characteristics and treatment demand. Equalization is not a substitute for proper stream segregation: a high-strength production flow, dilute washdown flow and chemically aggressive CIP discharge may require different collection and treatment decisions.
Define operating responses before commissioning. Specify bypass, upset, high-FOG, high-flow, chemical-dosing and pH alarms, including the condition that triggers isolation, diversion, recirculation or an operator response. Align any diversion or stop-discharge procedure with the permit, and confirm that the destination of diverted flow is operationally and legally available.
Submit the process narrative, source-by-source wastewater data, preliminary mass balance, proposed sampling points, chemical assumptions, solids-handling route and monitoring plan to the control authority for written review. Hebron WWTP’s status as a secondary treatment plant does not approve a proprietary treatment train.
After that review, solicit comparable bids for DAF, automatic chemical dosing and sludge dewatering. Give every bidder the same confirmed local limits, representative wastewater data, treatment objectives and required documentation. This produces proposals that can be compared on process fit rather than on different interpretations of the permit.

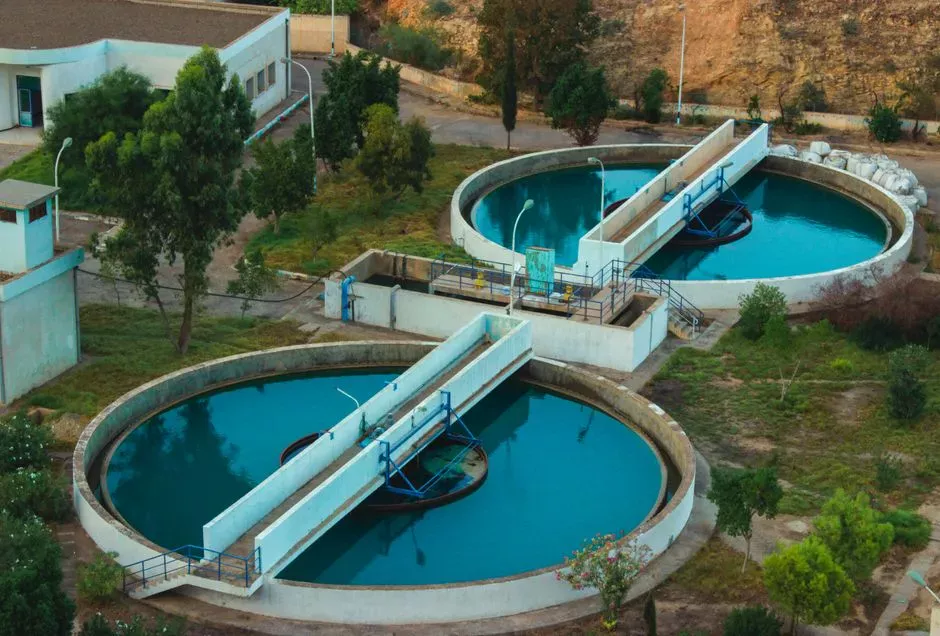

Verify Performance Before and During Sewer Discharge
Compliance must be demonstrated through representative baseline sampling, defined operating checks and retained records. A supplier’s statement that equipment “meets discharge limits” is not evidence unless it is tied to the confirmed local limits and the plant’s measured wastewater.
Before full-scale installation, establish the baseline wastewater profile and use pilot testing where variability is high. ALAR describes pilot testing as a method for validating performance before full-scale installation. The test should address the conditions that matter to the selected process: flow, FOG, TSS, BOD, pH, chemical demand and expected cleaning-batch changes.
During operation, verify screening performance, DAF float removal, chemical dosage, pH balance and flow. Compare BOD, TSS and other required parameters with the authority’s confirmed limits using its specified sampling and analytical protocols. Define routine operating checks, calibration frequency, alarm setpoints, corrective actions and the responsible operator for each control.
Maintain a consistent evidence package containing the wastewater characterization, equipment-sizing calculation, chemical-use records, instrument calibration records, laboratory results, operating trends, deviations and corrective-action log. This is more useful than maintaining disconnected spreadsheets because it connects design assumptions to actual results and permit decisions.
Prepare bypass and upset procedures for noncompliant flow. Monitoring alarms should initiate the approved operational response, including stopping or redirecting discharge when required, while protecting the treatment system and the receiving utility. Do not assume that dilution in the collection system is an acceptable control.
Review treatment demand as products, production schedules, cleaning chemicals and seasonal output change. ECOR identifies production changes and seasonal peaks as conditions that can alter wastewater characteristics and treatment demand. A structured pretreatment compliance workflow helps keep those changes tied to sampling, review and written authority decisions.
Choose Equipment and Suppliers With Comparable Proposals
Equipment selection should reward a documented wastewater fit, measurable treatment performance and complete operating support. A larger nominal capacity does not compensate for an undefined contaminant basis or an incomplete solids-handling scope.
Issue the same technical package to every bidder and require equivalent responses. Include the authority’s confirmed limits, source-by-source wastewater data, proposed process train, available capacity range, controls, instrumentation, included pretreatment steps, utilities, installation conditions, operator training and commissioning plan.
| Proposal area | Required response | Reason to require it |
|---|---|---|
| Design basis | Measured flow, BOD, TSS, FOG, pH and other relevant characteristics, including sampling dates | Shows how the proposed capacity was selected. |
| Process performance | Pilot or prior operating evidence appropriate to the application | Connects equipment selection to expected treatment results. |
| Compliance connection | Treatment objectives mapped to confirmed local limits | Shows how the equipment supports the permit rather than making a generic claim. |
| Controls and instrumentation | Control narrative, alarms, data logging, calibration and bypass provisions | Defines how the plant will detect and respond to upsets. |
| Solids and chemicals | Chemical use, sludge-volume basis, dewatering and disposal route | Exposes operating and downstream costs. |
| Commercial support | Lead time, installation scope, training, maintenance, spare parts and mobile support | Supports production continuity and lifecycle comparison. |
Give particular weight to food-processing fit, automatic DAF skimming, PLC-controlled chemical delivery, dewatering options and the supplier’s ability to provide additional treatment capacity during seasonal peaks or upsets. ECOR identifies mobile capacity for those conditions. Ask each bidder to state whether that capability is available, under what commercial terms and with what response arrangements.
Confirm lead time, installation requirements and training during commercial negotiation. The supplied research contains no universal price or lead time for a New Hebron-area food and beverage installation, so any budget must use a project-specific quotation based on the measured wastewater profile, confirmed limits, treatment stages and solids-handling scope.
Frequently Asked Questions
Can a food and beverage plant near New Hebron rely on general wastewater rules instead of obtaining its own pretreatment authorization?
No. The plant should obtain the control authority’s written determination of its connection status, applicable local limits, monitoring requirements and discharge conditions. General sewer rules and Hebron WWTP’s NPDES status are not substitutes for the authorization governing the discharger.
How much should a DAF and chemical dosing system cost for food and beverage pretreatment?
The supplied research provides no defensible universal cost. Request a project-specific quotation using measured flow and wastewater characteristics, confirmed local limits, required treatment stages, utilities, controls and sludge-handling scope. Compare the bid and operating assumptions, not only the initial equipment price.
Is DAF sufficient by itself for a dairy, brewery or meat-processing discharge?
Not necessarily. DAF can remove FOG and floatable solids, but the resulting wastewater may still require pH control, chemical conditioning, biological treatment, clarification or other measures to meet confirmed BOD, TSS, nutrient and pH requirements.
How should a food and beverage plant size pretreatment equipment?
Sample production, washdown, sanitation and seasonal conditions, then size the complete treatment train against confirmed authority requirements and measured flow and contaminant data. Pilot testing can validate performance where influent variability is high.
What should be included in an equipment supplier’s compliance proposal?
Require the wastewater basis, proposed process, available capacity, controls, test or pilot evidence, sludge handling, operating support and a clear connection between the design and the confirmed local limits. The proposal should also identify utilities, installation requirements, training, maintenance and support arrangements.
