Why Ohio Facilities Choose Package Wastewater Treatment Plants
Ohio's package wastewater treatment plants handle flows from 1,000 to 100,000 gallons per day, combining biological treatment, sedimentation, and disinfection in a single prefabricated unit. The Ohio EPA's Package Plant Initiative (2020) mandates nutrient conversion for plants under 1 MGD, with 92% of noncompliant facilities citing operator training gaps. Typical installed costs range from $12,000 to $45,000 per 1,000 GPD capacity, with rural installations averaging 20% higher due to site preparation requirements.
A benchmark evaluation conducted by STONE Engineering in 2023 for the West Muskingum County Schools illustrates the financial logic behind decentralized systems. The district faced a choice between a $3.5 million connection to a centralized municipal sewer line or upgrading their existing on-site package plant. The evaluation determined that a high-efficiency package system provided $2.1 million in capital savings while meeting the stringent ammonia-nitrogen limits required for discharge into local tributaries. This case reflects a broader trend across the state, where 47% of all package plants now serve populations or facilities under 1,000 people, according to the 2024 Ohio EPA compliance report.
Package plants offer a modularity that conventional activated sludge systems cannot match.For industrial facility managers and municipal engineers in rural townships, systems like the WSZ Series are designed for flow rates of 1-80 m³/h (approximately 26 to 2,100 GPD per unit), making them ideal for residential clusters, highway rest areas, and small industrial sites. These units typically occupy a footprint 60% smaller than site-built concrete systems. By utilizing Ohio-approved underground package plant with 1-80 m³/h capacity models, facilities can preserve surface land for production or parking while maintaining compliance with Title 3745 of the Ohio Administrative Code.
The decentralized treatment trend in Ohio is driven by the rising costs of traditional pipe-and-pump infrastructure. In rural counties like Licking, Delaware, and Fairfield, where rapid development outpaces sewer extensions, prefabricated systems provide an immediate, scalable solution. These systems integrate primary clarification, aerobic digestion, and secondary clarification into a single steel or fiberglass vessel, significantly reducing the civil engineering overhead associated with traditional wastewater projects.
Ohio EPA Compliance Requirements for Package Plants: 2025 Standards
The Ohio EPA Division of Surface Water (DSW) governs compliance for package plants in Ohio.The 2020 Package Plant Initiative was specifically designed to address the high rate of technical failures in systems under 1 MGD. A key component of this initiative is the mandatory "Nutrient Conversion" requirement, which forces plants to optimize for ammonia removal and, in sensitive watersheds, phosphorus reduction. Failure to meet these standards often results in Administrative Orders, yet 2024 EPA data suggests that 68% of noncompliance is caused by operator error rather than equipment failure.
The permitting timeline for a new installation in Ohio typically spans 90 to 120 days. This includes the Permit-to-Install (PTI) and the National Pollutant Discharge Elimination System (NPDES) permit application. For specialized facilities, such as outpatient clinics or rural medical centers, specific discharge limits for pathogens and chemical residues must be met using an Ohio-approved medical wastewater treatment for clinics and dental offices.
| Parameter | Ohio EPA Limit (Typical <1 MGD) | Federal Standard (Secondary) | Monitoring Frequency |
|---|---|---|---|
| BOD5 (Biochemical Oxygen Demand) | 10 - 25 mg/L | 30 mg/L | Weekly Grab/Composite |
| TSS (Total Suspended Solids) | 12 - 30 mg/L | 30 mg/L | Weekly Grab/Composite |
| Ammonia-Nitrogen (Summer) | 1.0 - 3.0 mg/L | No Federal Limit | 2x Monthly |
| Total Phosphorus (Sensitive Basins) | 0.5 - 1.0 mg/L | No Federal Limit | Monthly |
| Dissolved Oxygen (Minimum) | 6.0 mg/L | N/A | Daily |
Ohio also enforces strict operator certification levels. Most package plants require at least a Class A or Class I certified operator. To mitigate the 22% of failures caused by design capacity exceedance, the Ohio EPA now provides free technical assistance for small plants through the Compliance Assistance Unit (CAU). This program helps operators identify "pinballing" sludge levels and aeration imbalances before they lead to permit violations. Understanding Ohio's clarifier requirements for package plants under 1 MGD is essential when designing these systems to ensure they can handle peak hourly flows during Ohio's frequent heavy rain events.

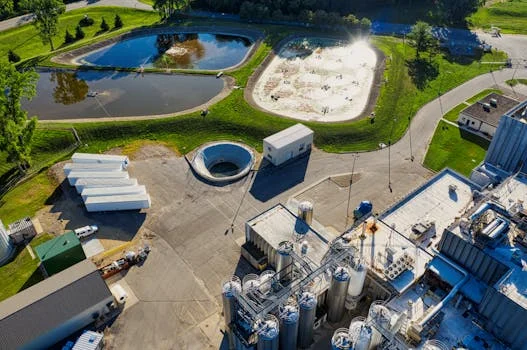

Technical Specifications: Ohio's Most Common Package Plant Configurations
In Ohio, winter temperatures frequently drop below freezing, which significantly impacts biological activity. The WSZ Series underground plants utilize the surrounding soil's thermal mass to maintain a stable internal temperature, but even these systems require a 30% increase in aeration capacity when ambient temperatures fall below 10°C (50°F) to maintain nitrification rates. This adjustment is critical for meeting Ohio's year-round ammonia limits.
| Technology Type | BOD Removal Efficiency | Footprint Requirement | Energy Use (kWh/1k gal) | Ohio Best-Use Case |
|---|---|---|---|---|
| A/O (Anaerobic/Oxic) | 85-92% | Moderate | 1.2 - 1.8 | General municipal sewage |
| MBR (Membrane Bioreactor) | 98-99% | Minimal | 2.5 - 4.0 | Water reuse & tight limits |
| SBR (Sequencing Batch Reactor) | 90-95% | Moderate | 1.5 - 2.2 | Variable flow (Schools/Churches) |
For high-performance applications, an Ohio EPA-compliant MBR system for direct reuse applications is often the preferred choice. MBR technology achieves 99.9% pathogen removal, which aligns with Ohio EPA Rule 3745-1-04 regarding the reuse of treated effluent for irrigation or industrial cooling. This is particularly valuable for facilities in the Scioto River basin where water conservation credits are available.
Industrial pretreatment adds another layer of complexity. Food processing facilities in Ohio, such as dairy or meat packing plants, must often remove high concentrations of Fats, Oils, and Grease (FOG) before the biological stage. Pretreatment requirements typically dictate a footprint of 0.5 to 2.0 m² per m³/h of capacity. While urban installations may have access to existing grease traps, rural sites often require integrated DAF (Dissolved Air Flotation) units within the package plant sequence. When comparing these technical needs, it is helpful to look at how Germany's package plant regulations compare to Ohio's requirements, as German standards often mirror the high-efficiency nutrient removal now being adopted in the Midwestern United States.
Cost Breakdown: Package Wastewater Treatment Plants in Ohio (2025 Data)
The total cost of ownership (TCO) for an Ohio package plant is influenced by the "Rural Premium."Case studies from 2024 indicate that rural installations cost 18% to 22% more than urban counterparts. This discrepancy is largely due to the need for specialized soil stabilization in Ohio's clay-rich regions and the logistics of transporting heavy prefabricated tanks to remote sites. Site preparation in rural Appalachia, for instance, may require extensive rock excavation, whereas Northwest Ohio installations often face high water tables requiring specialized anchoring to prevent tank buoyancy.
| Plant Capacity (GPD) | Equipment Cost (USD) | Estimated Installation | Annual OPEX | Total 5-Year TCO |
|---|---|---|---|---|
| 5,000 | $45,000 - $65,000 | $30,000 | $8,500 | $117,500 - $137,500 |
| 25,000 | $110,000 - $160,000 | $75,000 | $22,000 | $295,000 - $345,000 |
| 50,000 | $190,000 - $280,000 | $120,000 | $41,000 | $515,000 - $605,000 |
| 100,000 | $350,000 - $520,000 | $210,000 | $78,000 | $950,000 - $1,120,000 |
Operating costs in Ohio average between $0.80 and $2.50 per 1,000 gallons treated. With Ohio's industrial electricity rates averaging approximately $0.12/kWh, energy-efficient blowers and automated DO (Dissolved Oxygen) sensors can reduce annual OPEX by up to 15%. For a detailed cost comparison: Ohio vs Alberta package plant economics can provide context on how climate and labor rates shift the ROI.
Financing for these projects is often available through the Ohio Water Pollution Control Loan Fund (WPCLF). This fund provides below-market interest rate loans for municipal and some private entities to install or upgrade package plants. For small communities, "Principal Forgiveness" grants may be available if the project addresses a documented public health issue caused by failing septic systems. The ROI calculation for a package plant typically reaches the break-even point within 4.5 to 7 years when compared to the escalating tap-in fees and monthly service charges of centralized municipal sewer systems.
Selecting a Package Plant Supplier for Ohio Projects: Decision Framework
The most common pitfall for Ohio buyers is selecting a system designed for warmer southern climates that fails to nitrify during an Ohio January. Suppliers must provide winter performance guarantees and specific data on nutrient removal efficiencies at low temperatures.
The Ohio Supplier Evaluation Matrix:
- Compliance Documentation: Does the supplier provide PTI-ready engineering drawings and O&M manuals that meet Ohio EPA Division of Surface Water standards?
- Technical Support: Is there a local service network capable of a 24/7 response? Ohio law requires immediate reporting of bypass events or major failures.
- Installation Experience: Can the supplier demonstrate successful installations in similar Ohio soil conditions (e.g., the heavy clays of Central Ohio)?
- Training Programs: Does the supplier offer Ohio EPA-approved contact hours for operator certification?
| Selection Criteria | Weighting | Red Flag |
|---|
