Why Plants Retrofit a Multiple Effect Evaporator in 2026
An MEE retrofit in 2026 is rarely a discretionary modernization — it is triggered by a hard number on the engineer's desk: a steam invoice, a discharge-fee escalation, or a regulator letter. The four recurring drivers are (1) steam/energy OPEX pressure on a multi-ton/h unit, (2) feed TDS rising above the original MEE design envelope (often 50,000–80,000 mg/L into equipment rated for less), (3) a new ZLD or local discharge-limit mandate, and (4) a capacity bottleneck where the original 3-effect MEE cannot keep up with upstream throughput gains. Each driver maps cleanly onto one of the four engineering levers covered in the next section.
The technical menu is not invented for this guide. Chantasiriwan's 2020 MDPI Processes paper on sugar-factory cogeneration catalogues the same four levers: increasing the number of effects, mechanical vapor compression, thermal vapor compression, and redistributing heating surface area (Chantasiriwan, 2020-03, MDPI Processes). The reference uses a heat-loss coefficient ε ≈ 0.015 as a realistic baseline, and demonstrates that the backward-feed arrangement yields a larger log-mean temperature difference and therefore higher overall energy efficiency than forward-feed — a result that translates directly into a retrofit lever even for wastewater duty (Chantasiriwan, 2020-03, MDPI Processes).
Industry scope matters because the right retrofit looks different in each sector. MEE is the workhorse for high-TDS effluents in pharmaceuticals, chemicals and petrochemicals, textile dyeing, power plants, and food & beverage (per S3, Saad, 2025-06). A 20–60% fresh-steam cut on a unit processing tens of tons per hour is the difference between a cost center and a recoverable OPEX line item; 2–4 year paybacks are realistic in most regions when the retrofit is matched to the driver rather than to a vendor's catalogue.
The Four Engineering Levers for MEE Retrofit and Upgrade
Lever 1 — Add an effect. Converting a 3-effect MEE to 4-effect, or a 4-effect to 5-effect, reuses the vapor of the previous stage at progressively lower pressure. Live-steam demand drops roughly 20–30% per added effect (Higa et al., cited in Chantasiriwan, 2020-03, MDPI Processes). Capex is moderate because the existing shell, condenser, vacuum system, and most of the piping are reused — the new effect is typically a falling-film body sized to match the existing ΔT envelope. The trade-off is footprint and residence time: more effects mean more liquor holdup, which can hurt viscous feeds.
Lever 2 — Convert forward-feed to backward-feed. Forward-feed (steam and liquor co-current) is the default because it does not require inter-effect pumps. Backward-feed is counter-current: the most-concentrated liquor meets the hottest vapor in the first effect. Chantasiriwan (2020-03, MDPI Processes) shows analytically that the log-mean temperature difference is larger in counter-flow, which raises the heat transferred per m² of heating surface. In retrofit language this means lower live-steam consumption, lower scaling risk on the hot end (since the hottest tubes see the most dilute liquor), and better use of existing surface area. Capex is low-to-medium: piping re-route, inter-effect pumps, and a control rewrite.
Lever 3 — Hybridize with Mechanical Vapor Recompression (MVR / MVC). A vapor compressor elevates vapor from the last effect to a usable saturation temperature, effectively turning the MEE tail-end into a heat pump. Palacios-Bereche et al. (cited in Chantasiriwan, 2020-03, MDPI Processes) confirm MVR/MVC as one of the highest-impact energy-efficiency upgrades available. Typical delivered steam saving is 40–60% versus the original MEE baseline. Capex is high — a roots or centrifugal compressor plus electrical infrastructure — and payback hinges on the plant's electricity-to-steam cost ratio.
Lever 4 — Add Thermal Vapor Recompression (TVR). A steam-jet ejector compresses part of the vapor stream from a later effect back into the first effect using motive steam. Chen and Ruan (cited in Chantasiriwan, 2020-03, MDPI Processes) treat TVR as a standard steam-economy measure. TVR is cheaper than MVR and has no moving parts, but it requires a stable, surplus low-pressure steam header to function. Where that header exists, TVR delivers 15–25% steam reduction with a 2–3 year payback and very low operating cost.
Cross-cutting upgrades. Before any of the four, redistribute heating surface area per Chantasiriwan's optimal-area model (Chantasiriwan, 2020-03, MDPI Processes, refs 6–9) so each effect is sized to the local heat duty rather than the default equal-area layout. Then tighten heat loss: target the literature baseline ε ≈ 0.015 (Chantasiriwan, 2020-03) via shell-and-line insulation, vapor-line tracing, and flash-tank tuning. These two actions alone typically recover 3–8% of steam at sub-1-year payback.
Retrofit Lever Comparison: Steam Savings, Capex, and Best-Fit Feed
The table below condenses the four levers into the parameters procurement and management will ask for first. Ranges reflect the spread observed in industrial retrofit work for high-TDS wastewater duty, not a guarantee for any specific site.
| Retrofit lever | Typical steam saving vs original MEE | Relative capex | Typical payback (years) | Best-fit driver / feed |
|---|---|---|---|---|
| Add an effect (3→4 or 4→5) | 20–30% | Medium | 2–4 | Stable feed, steam-cost pressure, available footprint |
| Forward → backward feed conversion | 5–15% | Low–medium | 1–2 | Scaling-prone, viscous liquors, high-TDS wastewater |
| MVR / MVC hybridization | 40–60% | High | 3–5 | ZLD duty, low-cost electricity, very high steam cost |
| TVR addition | 15–25% | Medium | 2–3 | Surplus low-pressure steam header, low-OPS preference |
| Surface redistribution + insulation tune-up | 3–8% | Low | <1 | Almost any MEE — do this first |
Decision rule: if the binding constraint is steam cost on a stable feed, add an effect or run a TVR if low-pressure steam is available. If the binding constraint is scaling on a viscous or high-TDS liquor, convert to backward-feed before anything else. If the driver is a ZLD mandate and the plant has a favorable electricity tariff, MVR hybridization is the lever with the largest absolute steam cut, at the longest payback.
Pre-Retrofit Audit: What to Measure Before You Spend Capex
A retrofit selection made without field data is a guess wearing a calculator. The minimum audit before capex is committed is threefold.
First, the feed-side audit: log TDS, BOD/COD, suspended solids, calcium, sulfate, silica, pH, and temperature over at least two weeks of representative operation. This determines whether the binding constraint is energy (steam cost) or fouling (scaling and corrosion). A wastewater stream at 80,000 mg/L TDS with 600 mg/L Ca²⁺ and 1,200 mg/L SO₄²⁻ behaves nothing like a 50,000 mg/L stream with soft water chemistry — the lever mix changes accordingly.
Second, the existing-MEE baseline: live-steam flow per ton of water evaporated (kg steam / t H₂O), vacuum on the last effect, condensate temperature leaving each effect, and per-effect ΔT. These numbers become the denominator of every ROI calculation. A plant that does not know its current specific steam consumption cannot defend a "40% saving" claim to procurement.
Third, the operating-window audit: hours/year, turndown ratio, fouling frequency, current ZLD or discharge status. This tells you whether the retrofit needs more capacity, higher outlet concentration, or just more uptime. Tie the audit to a target: "reduce specific steam by X%" or "reach Y% water recovery for ZLD." Levers that do not move the chosen KPI are out of scope.
Integrating the Retrofitted MEE with a ZLD Train

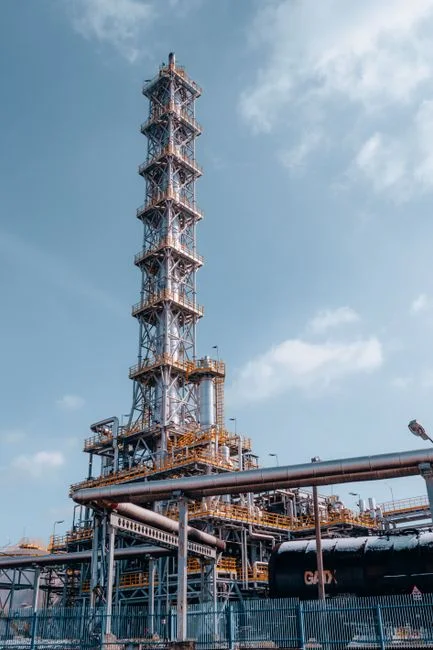

In 2026, the most common retrofit driver is not steam saving alone — it is a ZLD mandate that turns the MEE from an evaporator into one box in a chain. Industry sources position the MEE as the "reliable end-of-pipe" concentrate step in a ZLD train (per S2, Ion Exchange), sitting between an upstream RO or MBR and a downstream crystallizer or salt-recovery stage. The retrofit choice must respect that envelope.
For high-TDS duty, including landfill leachate and saline-organic streams, the relevant MEE patent family is well established (S5 patent family covering saline-organic and landfill-leachate MEE systems). The leverage point is not only MEE steam economy but also the coupling to brine concentration (NaCl, Na₂SO₄, NH₄Cl) and to the crystallizer that sits downstream. An MBR membrane bioreactor upstream of the MEE reduces organic load and protects the heat-transfer surface, while an RO concentrate stream feeding the MEE keeps the evaporator at its design TDS rather than running it on a dilute feed that wastes steam on water that RO could have rejected.
Condensate polish is the retrofit failure mode most engineers under-weight. MEE distillate still carries volatiles — ammonia, low-MW organics, traces of low-boiling solvents — and most retrofits under-deliver because the recycled water loop is contaminated. Pre-treatment upstream plus a polishing RO downstream protects the recycled water and turns the condensate from a liability into a recoverable stream. A 4-effect MEE with MVR feeding a forced-circulation crystallizer is the 2026 default ZLD configuration for chemical and pharma plants; the retrofit choice should be made against that downstream envelope, not against the MEE in isolation.
Worked Example: 4-Effect + MVR Retrofit on a Textile Dyeing MEE
Baseline: 3-effect forward-feed MEE on textile dyeing effluent, 20 t/h feed at ~80,000 mg/L TDS, 4.5 t/h live steam, no ZLD, rising discharge-fee pressure, and a softening unit upstream that is undersized for the current Ca²⁺ load. Plant operates ~7,500 h/yr with monthly acid-cleaning of the last effect. The driver is a combination of steam cost and a regional discharge-fee increase tied to total dissolved solids in the outfall.
Retrofit: add a 4th effect, convert to backward-feed, and install MVR on the last effect. Capex sits in the medium-to-high band of the comparison table — a new falling-film body plus a vapor compressor plus piping rework. Live steam drops from 4.5 t/h to roughly 2.2 t/h, an approximately 50% reduction, in line with the 40–60% MVR-hybridization band. A DAF pre-treatment ahead of the MEE and a multi-media filter polishing the MEE feed are added in parallel to control scaling and protect the new heat-transfer surface.
Economics: at a representative industrial steam cost, the steam saving alone pays back the retrofit in roughly 3 years before counting reduced effluent fees, condensate reuse, and avoided capacity expansion. Total project envelope, including the DAF and the multi-media filter, is higher than the MEE-only capex but is justified by the fact that scaling — not steam cost — would otherwise have eaten the saving within 12 months. Caveats: actual steam saving depends on feed TDS swing through the week, on compressor electrical cost vs steam cost in the plant's region, and on whether the upstream softening is upgraded alongside the MEE. Treat any ROI sketch that does not show these sensitivities as marketing.
Frequently Asked Questions
How much steam can an MEE retrofit realistically save?
A 2026 multiple effect evaporator retrofit typically recovers 20–60% of fresh steam consumption by combining one or more of four engineering levers: adding an effect, converting to backward-feed, hybridizing with MVR, or adding TVR. The 40–60% upper end is delivered by MVR hybridization, while a stand-alone backward-feed conversion usually returns 5–15%.
What is the typical payback for an MEE retrofit?
Payback ranges from under 1 year for a surface-redistribution and insulation tune-up, to 2–4 years for adding an effect or TVR, to 3–5 years for full MVR hybridization. Most industrial retrofits on multi-ton/h units land in the 2–4 year band when the lever is matched to the driver.
When is backward-feed conversion the right retrofit?
Backward-feed conversion is the right retrofit when the binding constraint is scaling on a viscous or high-TDS liquor rather than steam cost alone. Chantasiriwan (2020-03, MDPI Processes) shows backward-feed gives a larger log-mean temperature difference than forward-feed, and in retrofit terms it puts the most-concentrated liquor against the hottest vapor — reducing scale formation on the hottest tubes.
How does MVR compare with adding an extra effect?
MVR hybridization delivers a larger absolute steam cut (40–60%) than adding an effect (20–30%) but costs more and has a longer payback. The choice depends on electricity-to-steam cost: MVR wins when electricity is cheap relative to steam and the driver is ZLD or very high steam cost; adding an effect wins when the feed is stable and capex must stay moderate.
What should be measured before committing capex to an MEE retrofit?
Before spending capex, log feed TDS, BOD/COD, suspended solids, calcium, sulfate, silica, pH, and temperature for at least two weeks, and baseline live-steam flow per ton of water evaporated, last-effect vacuum, per-effect ΔT, and condensate temperature. Without these numbers, neither the lever choice nor the ROI can be defended to procurement.
