What a Decanter Centrifuge Is, and Where It Fits
A decanter centrifuge — also called a solid-bowl centrifuge — is a continuous sedimentation machine that does the same job as a settling tank, but at 1,000–4,000 G instead of 1 G (per Wikipedia, S4). A horizontal bowl spins the slurry; denser solids are thrown against the bowl wall, conveyed out one end as dewatered cake, while clarified liquid (centrate) overflows adjustable weirs at the other end. Typical municipal biosolids dewatering targets 20–30% cake dry solids after polymer conditioning (S1, S4).
Decanters handle the same broad duty envelope across municipal and industrial sites: wastewater biosolids, food processing slurries, paper-mill fiber, chemical and mining tailings, and oil-and-gas drilling-mud solids control (S1, S3, S4). The 1,000–4,000 G operating window and the 20–30% cake-solids target are the two headline numbers most spec sheets will quote. The most common alternative a specifier is weighing against is the plate-and-frame filter press, which we cover head-to-head in the comparison section below.
The Working Principle: From Feed Slurry to Cake and Centrate
Separation happens in four physical stages inside the bowl. The sequence below is the one most OEMs describe (per S3, S4, S5).
- Feed. Polymer-conditioned sludge enters through a stationary pipe at the center of the rotating assembly and is accelerated to bowl speed inside a feed zone. Polymer floc strength at this point sets the ceiling for downstream cake dryness (S1).
- Sedimentation. High G throws denser solids outward against the cylindrical bowl wall. Clarified liquid forms the inner layer — this is the centrate.
- Conveying. The helical scroll (conveyor) rotates at a slightly different speed than the bowl — the differential, typically a few RPM. That difference moves settled solids axially toward the conical beach (S3, S4).
- Discharge. Solids climb the beach, rise above the liquid pool, drain, and exit through ports at the narrow end of the cone. Centrate overflows adjustable weirs (dam plates) at the cylindrical end (S3).
The feed enters and both streams leave continuously, allowing the decanter to outperform batch technologies on throughput and labor per ton of dry solids handled.

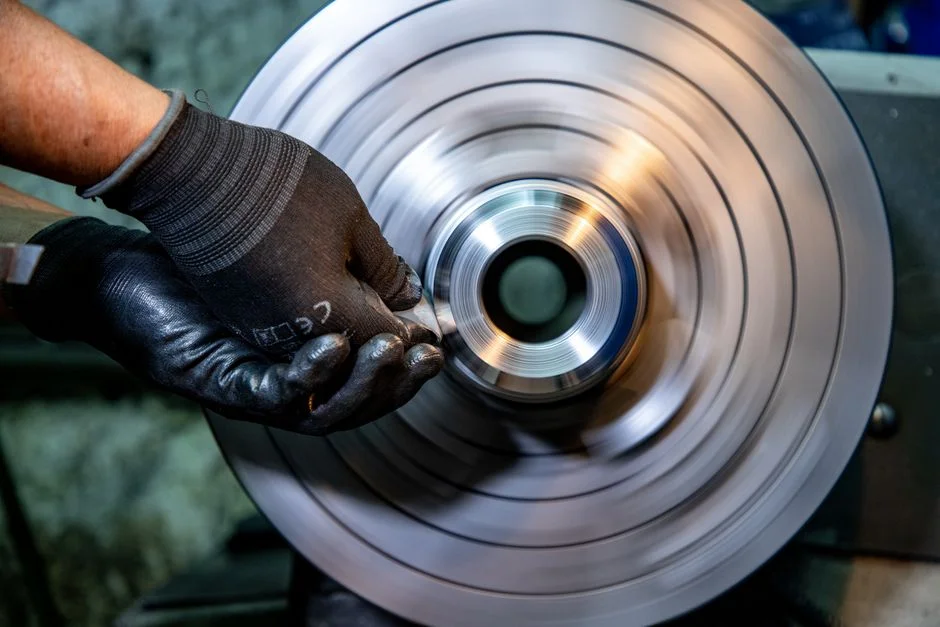

The Two Control Levers: Differential Speed and Weir Setting
An operator typically adjusts only two variables on a decanter during normal running. Understanding their trade-off logic is the most useful piece of mechanics a spec writer can carry into a meeting.
Differential speed is the small RPM difference between the bowl and the scroll, set by a planetary or cycloidal gearbox at the machine's end. A lower differential gives solids more residence time on the beach, which drains more liquid and produces drier cake — but it also raises scroll torque, raises the risk of solids packing, and reduces throughput. A higher differential pushes solids out faster and protects the gearbox, at the cost of wetter cake and slightly more turbidity in the centrate (S3, S4). Modern units automate this on PLC torque and vibration feedback rather than asking an operator to chase a setpoint by hand (S1).
Weir (dam plate) position sets the depth of the liquid pool inside the cylindrical section. A deeper pool gives solids a longer settling path and cleaner centrate but pushes the beach closer to the discharge, which means wetter cake. A shallower pool trades centrate clarity for cake dryness (S3).
The underlying physics is the same on every machine. G-force at the bowl wall is given by:
G = ω²r / g
where ω is angular velocity (rad/s), r is the bowl radius (m), and g = 9.81 m/s². For a 300 mm bowl radius (0.30 m) turning at 3,500 RPM (ω = 2π·3500/60 ≈ 366.5 rad/s):
G = (366.5)² × 0.30 / 9.81 ≈ 4,108 G
That result sits inside the 1,000–4,000 G envelope and is high enough to clarify fine biosolids without further treatment. Drop the bowl radius or the RPM and G falls off as the square of speed — which is why bowl diameter is the first number to check on a competing datasheet.
Key Design Parameters and What They Mean for Sizing
The table below is the parameter matrix a specifier needs to read a manufacturer's data sheet. Values are typical operating envelopes drawn from S3 and S4 unless flagged otherwise.
| Parameter | Typical range / value | What it drives |
|---|---|---|
| Bowl diameter | 150–900 mm (small to large industrial) | G-force at a given RPM; hydraulic capacity |
| Bowl length | 0.5–3× diameter | Residence time, clarifier capacity |
| L/D ratio | 2–4 (clarifier-leaning higher, dryer-leaning lower) | Higher L/D = better clarification; lower L/D = drier cake (S4) |
| Beach angle | 6–15° typical | Smaller angle = lower slippage = drier cake (S4) |
| G-force | 1,000–4,000 G at the bowl wall | Fine-particle capture, separation sharpness |
| Differential speed | 2–30 RPM, set by planetary or cycloidal gearbox | Residence time on the beach, scroll torque |
| Main-drive power | 7.5–250 kW typical industrial range | Throughput ceiling, energy cost |
| Solids throughput | Up to 40,000 lb/hr (18,000 kg/hr) for horizontal units (S4) | Maximum feed solids capacity |
| Liquid feed rate | Up to 300 gpm (1.1 m³/min) horizontal; up to 250 m³/hr on the largest modern units (S4) | Hydraulic capacity |
| Benchmark torque | Z8E: 24,000 N·m at adjustable impeller (S4) | Reference for very heavy industrial duty |
For sizing, work backward from your required dry-solids throughput and target cake moisture. Throughput claims are usually quoted at optimistic feed solids and at the driest end of the cake-solids range, and real plants sit somewhere below that line.
Two-Phase vs. Three-Phase: When You Need a Tricanter
A standard decanter is a two-phase machine: one liquid outlet (centrate) and one solids outlet (cake) (S3, S4). When the duty requires separating two immiscible liquids plus solids in a single pass, the same hardware is reconfigured as a tricanter (three-phase decanter) by adding a second adjustable weir and tuning the heavier liquid phase to discharge through a dedicated port under the lighter liquid (S4).
| Feature | 2-phase decanter | 3-phase tricanter |
|---|---|---|
| Liquid outlets | 1 (centrate) | 2 (light + heavy liquid phase) |
| Solids outlet | 1 (cake) | 1 (cake) |
| Typical G-range | 1,000–4,000 G | 2,000–4,000 G (needs higher G to split near-equal-density liquids) |
| Example duty | Municipal biosolids, paper fiber, drilling mud | Oil–water–solids, fish-meal, vegetable oil, environmental remediation (S4) |
Tricanters add mechanical complexity and demand tighter control of differential speed and weir heights. If your liquid pair has a density difference below ~0.05 g/cm³, a tricanter is rarely economic; consider a coalescer, hydrocyclone, or dissolved-air flotation stage instead.
Decanter Centrifuge vs. Plate-and-Frame Filter Press
The decision most buyers face is decanter versus plate-and-frame filter press. The two technologies achieve the same end goal — drier cake for hauling or disposal — by different physics: centrifugal sedimentation versus mechanical pressure on a filter cloth.
| Criterion | Decanter centrifuge | Plate-and-frame filter press |
|---|---|---|
| Operating principle | 1,000–4,000 G sedimentation, continuous | Mechanical pressure on cloth, batch |
| Achievable cake dryness | 20–30% dry solids typical (S1, S4) | 30–45% dry solids typical |
| Throughput | Up to 40,000 lb/hr solids; 300 gpm liquid (S4) | Lower per cycle, dependent on cycle time and plate count |
| Footprint | Compact, single skid; easy retrofit | Large; needs building clearance for plate pack |
| Energy use | Higher (high-RPM main drive) | Lower (hydraulic feed pump only) |
| Labor / automation | Continuous, PLC-controlled, low operator attention | Batch, requires plate-shift operator or full automation retrofit |
| Capex | Higher unit cost | Lower purchase price |
| Opex drivers | Electricity, polymer, wear parts (scroll flights, bowl tiles) | Cloth replacement, wash water, polymer, batch labor |
| Sludge variability tolerance | High — PLC retunes for feed swings (S1) | Lower — cycle time and cake quality drift with feed changes |
A chemical WWTP initially specified a belt filter press on purchase price alone, then re-selected a decanter once installation constraints and labor were priced in. The decanter cut building modifications and improved long-term operating efficiency (S1).
Decision rule: choose a decanter when footprint, automation, or variable sludge matters most; choose a filter press when maximum cake dryness or lowest capex matters most. For municipal biosolids targeting haul-and-landfill, the 5–15 percentage-point cake-solids gap usually tips the lifecycle calculation toward the filter press. For tight retrofits, food-plant or chemical-plant duties with fluctuating feeds, the decanter wins.

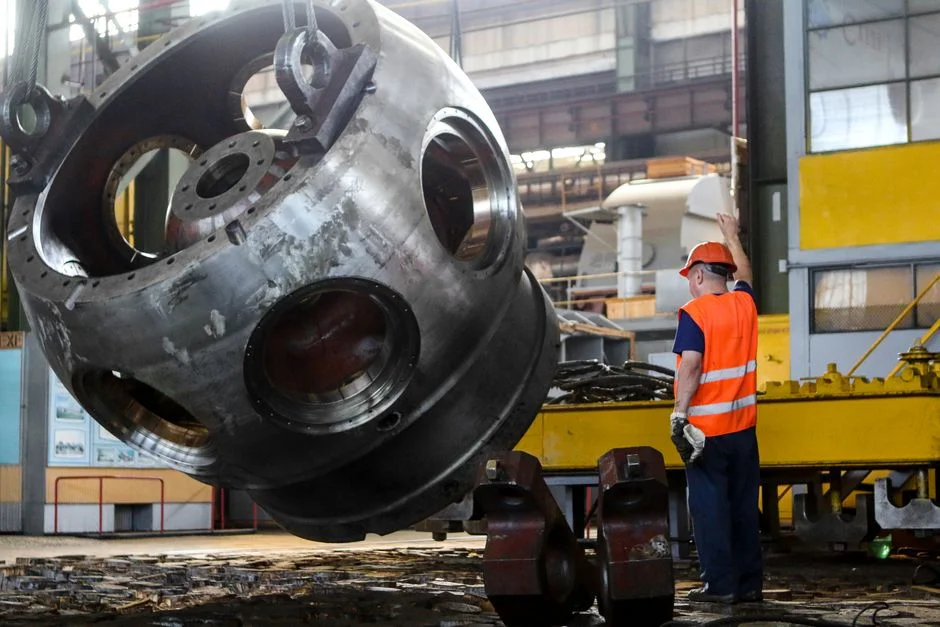

Operating Costs, Maintenance, and Common Failure Modes
Electricity is the line item most lifecycle-cost spreadsheets underestimate. A decanter draws more power than a screw press because the bowl turns at high RPM, and that power draw runs 24/7 in continuous service. Include motor nameplate kW × duty hours × tariff in any comparison (S1).
Wear is mechanical and predictable. Scroll flights, the bowl's inner surface, the feed zone, and the beach erode over time — especially on abrasive slurries — and that erosion reduces conveying efficiency and separation quality. The standard mitigations are replaceable wear tiles, tungsten carbide flight tips, and hardfacing on the beach; these are rebuilt on a scheduled interval (S3). Bearings, the main gearbox, seals, the feed accelerator, and the drive belts all carry heavy dynamic loads and degrade together. Uneven wear throws the rotating assembly out of balance, which shows up as vibration and accelerates further damage. A proper decanter rebuild includes inspection, replacement of worn parts, and rebalancing of the assembly before the test run (S3).
Polymer conditioning is the recurring opex line that catches first-time buyers off guard. The only reliable way to estimate polymer dose and target cake solids for a specific sludge is a pilot test on a representative sample, or a rental pilot on-site (S1). Dose that is too low produces cloudy centrate and wet cake; dose that is too high is wasted money and can re-stabilize the sludge. A correctly sized automatic polymer dosing system pays for itself in the first year of operation by holding dose within a tight band against feed swings.
For a broader look at the upstream biology that produces the sludge, the EGSB reactor working principle explainer is a useful read, and for low-energy polishing of the centrate stream the constructed wetland retrofit guide covers the trade-offs.
Frequently Asked Questions
What is a decanter centrifuge and what does it do?
A decanter centrifuge is a continuous-feed mechanical separation device that utilizes centrifugal force to separate slurries into solid and liquid phases based on density differences. The system consists of a horizontal rotating bowl and a scroll conveyor (screw) rotating at a slightly different speed, which continuously discharges the separated solids (cake) while the clarified liquid (centrate) exits through adjustable weirs.
What G-force does a decanter centrifuge generate?
Modern industrial decanter centrifuges typically operate within a range of 2,000 to 4,000 Gs, though high-speed specialized units can exceed 6,000 Gs depending on the bowl diameter and rotational velocity. The G-force is calculated as a function of the bowl radius and angular velocity, where higher G-forces are required for the effective separation of fine particles with low density differentials.
What is differential speed in a decanter centrifuge?
Differential speed is the precise difference in rotational velocity between the centrifuge bowl and the internal scroll conveyor, typically measured in revolutions per minute (RPM). This setting is critical for performance, as it determines the residence time of solids within the bowl and the torque required to transport the cake; typical differentials range from 5 to 50 RPM depending on the required dryness and the feed solids concentration.
How dry is the cake from a decanter centrifuge?
The dryness of the discharged cake, measured as total solids content, typically ranges from 15% to 45% depending on the specific gravity of the solids and the rheological properties of the sludge. Achieving higher cake dryness often requires increasing the bowl G-force or optimizing the differential speed to extend the compression zone within the conical section of the bowl.
What is the difference between a decanter and a tricanter centrifuge?
While a standard decanter centrifuge separates a feed into two phases—a solid cake and a single liquid centrate—a tricanter is engineered for three-phase separation. The tricanter features a modified discharge system that allows for the simultaneous recovery of a light liquid phase (oil), a heavy liquid phase (water), and a solid phase (sludge) by utilizing two separate liquid discharge channels.
