Why Indigo Denim Wash Water Breaks Generic MBBR Sizing
Indigo denim wash effluent behaves differently than generic laundry wastewater. Indigo is a vat dye: in the dye bath it exists as reduced leuco-indigo, water-soluble and colorless, then re-oxidizes on contact with air into the insoluble blue chromophore that gives denim its color. That re-oxidation step spikes the true color load and adds a slug of slowly biodegradable COD that arrives in pulses as each batch hits the drain. Generic laundry characterization tables (surfactants, phosphate, CMC) miss this entirely, which is why MBBR designs copied from municipal or hospitality laundry references underperform on a denim line.
A defensible influent envelope for denim wash water runs COD 800–2,500 mg/L, BOD₅/COD ratio of 0.20–0.35 (refractory because of the dye), pH 9–12 from sodium hydroxide carryover, residual sulfide 5–50 mg/L from sodium hydrosulfite reduction baths, plus surfactants and sizing agents. Batch wash sequences create hydraulic and load swings of 3–5× across a single 8-hour shift, so the MBBR tank must be sized on peak hourly flow, not daily average. The only directly cited MBBR-on-laundry dataset in current literature is the Tanjungpura University study on FRESCO laundry effluent, which used Kaldnes K1 media at 20% fill to drop COD, BOD, phosphate, and surfactant (Kusuma, Fitria & Kadaria, 2017). The broader textile MBBR HRT envelope — 5–15 hours across Spain, China, and Iran installations — is documented in the IJSR review (Smitha & Shivayogimath, 2017). These two data points bracket the design space, but neither was run on indigo dye, which is the gap this article fills.
Step 1: Build the Indigo Influent Profile Before You Pick an Equation
Influent profile characterization on the actual production line is required before any sizing math is defensible. Pull a 24-hour flow-weighted composite plus 2-hour grab samples across at least three production days that include a full denim wash sequence (desize → scour → dye/oxidation → rinse → soften). One-shot sampling misses the batch peaks that drive the real sizing case.
Run a parameter panel that covers COD, BOD₅, TSS, total and dissolved sulfide, color (Pt-Co or ADMI), pH, and temperature. Denim wash water commonly exits at 30–55 °C — biofilm carriers tolerate the upper end only if DO is held above 2 mg/L and the temperature swing is damped by equalization. Compare your numbers to the textile MBBR feed ranges in the IJSR review: 120–150 mg/L COD (Spain, Calderón 2012), 270–300 mg/L COD (China, Chundong 2012), and 641 mg/L COD (Iran hybrid MBBR, Moghaddam & Sargolzaei 2014). Indigo denim sits at the high end of that family and the refractory component is heavier, so design conservatively. Flag three pretreatment triggers before sizing the MBBR: free sulfide above 20 mg/L, pH outside 6.5–8.5, and temperature spikes above 40 °C — any of these will slough biofilm and reset the system's acclimation clock.
| Parameter | Indigo denim wash (typical) | Textile MBBR feed range (literature) | Pre-MBBR limit |
|---|---|---|---|
| COD (mg/L) | 800–2,500 | 120–641 (Spain/China/Iran) | <2,500 |
| BOD₅/COD | 0.20–0.35 | 0.30–0.50 | n/a (flag low end) |
| pH | 9–12 | 6.5–9 | 6.5–8.5 |
| Total sulfide (mg/L) | 5–50 | <5 (typical textile) | <20 (after pretreatment) |
| Color (ADMI) | 2,000–8,000 | 500–3,000 | n/a (biological stage) |
| Temperature (°C) | 30–55 | 20–35 | <40 at MBBR inlet |
| TSS (mg/L) | 200–800 | 100–400 | <200 (after DAF) |
Step 2: Pick HRT and Carrier Fill from Target COD Removal
HRT and carrier fill fraction are the two coupled decisions that drive roughly 80% of MBBR sizing. Anchor HRT to the 5–15 hour textile MBBR range documented in the IJSR review (Smitha & Shivayogimath, 2017). For indigo denim specifically — where the dye chromophore is refractory and the load swings in pulses — push the design HRT to 8–14 hours. The lower bound (8 hr) is defensible when influent COD stays under 1,200 mg/L and the equalization basin is effective; the upper bound (14 hr) is for plants seeing 2,000+ mg/L COD, sulfide above 30 mg/L, or color shock events that require a longer biological oxidation window.
Set 20% Kaldnes K1 fill as the documented baseline, taken from the Tanjungpura MBBR-on-laundry study (Kusuma et al., 2017). Step up to 30–40% fill when the OLR check forces it. The OLR check is the gate that ties HRT, fill, and influent load into one number: OLR = (Q × COD_in) / V_media, where V_media is the volume occupied by carrier. Target 0.5–2.0 kg COD/m³·day for textile biofilm carriers. Above 2.0 kg COD/m³·day, the biofilm goes anaerobic at the carrier core and sulfide generation increases.
COD removal expectation: 80–90% on the biodegradable fraction once indigo's leuco form is re-oxidized in pretreatment, leaving 50–70% color removal biologically. The remaining color is polished downstream with ozone, Fenton oxidation, or activated carbon — the MBBR is the bulk reducer, not the final color barrier.
| Influent COD (mg/L) | Recommended HRT (hr) | Carrier fill (%) | OLR (kg COD/m³·day) | Expected COD removal (%) |
|---|---|---|---|---|
| 800–1,200 | 8–10 | 20 | 0.5–1.0 | 80–85 |
| 1,200–1,800 | 10–12 | 30 | 1.0–1.5 | 80–88 |
| 1,800–2,500 | 12–14 | 30–40 | 1.5–2.0 | 85–90 |
Step 3: Calculate Aerobic Volume and Number of MBBR Stages
Turn the chosen HRT into a concrete tank volume using V = Q × HRT, with Q as peak hourly flow. Peak hourly flow protects the biofilm during the dye-bath discharge pulse; sizing on daily average guarantees an overloaded tank three or four times per shift.
Worked example: a 100 m³/h denim wash line at 10 hr HRT gives a 1,000 m³ MBBR aerobic volume. Split it into two stages in series — Stage 1 at roughly 60% of the volume for COD and sulfide oxidation, Stage 2 at 40% for nitrification (if the line carries ammonia from scouring baths) and color polishing. Two-stage configuration is the practical minimum for indigo denim; a single CSTR-style MBBR allows the leuco-indigo re-oxidation front to move through the whole bed in one slug and starves the tail end of carbon. Size coarse-bubble diffusers at 4–6 Nm³ air per m³ of wastewater to keep dissolved oxygen at 2–4 mg/L while maintaining the carrier-mixing energy that keeps the media fluidized. Upstream, install a rotary bar screen for denim MBBR headworks with openings of 3 mm or less to protect both the media and the diffuser membranes from lint and fabric fragments shed during stone-wash and enzyme steps.

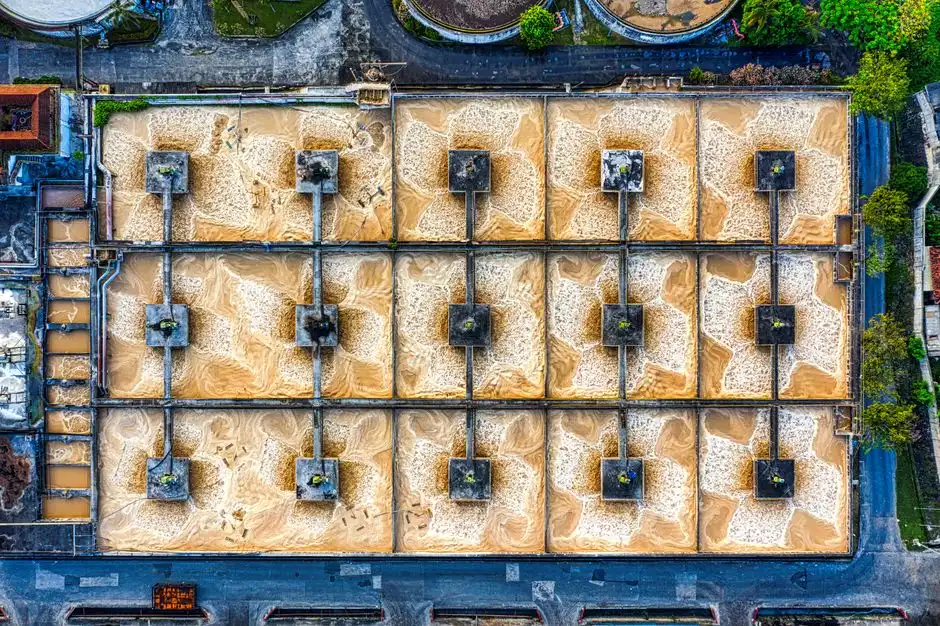

Pretreatment Train Denim Effluent Needs Before the MBBR
An MBBR cannot be sized in isolation. The pretreatment envelope is what keeps the biofilm alive across the batch swings described in Section 1.
Equalization comes first. Size the basin at 8–12 hours of average flow to damp the 3–5× hydraulic and load pulses, and install mechanical mixing to prevent sulfide from stripping in pockets and creating odor events. Dissolved air flotation follows, sized to drop TSS to under 200 mg/L and strip emulsified sizing agents, fats, and the flocculated indigo precipitate that forms when leuco-indigo re-oxidizes. Textile DAF pretreatment for dye effluent is the workhorse between equalization and biological treatment on denim lines. pH correction to 6.5–8.5 uses CO₂ or sulfuric acid dosing; if total sulfide exceeds roughly 20 mg/L, add an iron precipitation step (FeCl₃ or FeSO₄) ahead of the DAF to drop sulfide to under 5 mg/L before the biofilm sees it. Hold the corrected pH within ±0.3 units using an automated pH and coagulant dosing system for textile wastewater — manual pH trim on a denim line is ineffective, because the dye bath swings pH faster than operators can respond. Once pH, sulfide, and TSS are controlled, the MBBR can be sized on the conservative HRT and fill-fraction envelope in Section 2 without overdesigning for shock events.
Frequently Asked Questions
What HRT is realistic for an MBBR treating indigo denim wash water?
Design for 8–14 hours. The broader textile MBBR literature covers 5–15 hours (Smitha & Shivayogimath, 2017), but indigo's refractory chromophore and the batch-driven load swings push denim toward the upper half of that range. Plants running above 2,000 mg/L influent COD or seeing regular color shock should target 12–14 hours to keep the biofilm inside its design OLR window.
How is an MBBR different from an MBR for denim effluent?
An MBR (membrane bioreactor) adds ultrafiltration membranes to the activated-sludge or biofilm tank and delivers lower effluent COD and TSS — typically under 30 mg/L COD with complete solids retention. The trade-off is higher capex, membrane-fouling risk from indigo precipitate, and more demanding operator skill. MBBR is the workhorse for bulk COD and color reduction on a denim line, with a downstream clarifier or polishing DAF; MBR is the right call only when discharge limits justify the membrane maintenance burden. For context, see our MBR sizing for textile white water guide, which covers the membrane-side calculation in detail.
Can MBBR remove indigo color biologically, or is a polishing step required?
MBBR removes 50–70% of indigo color biologically once the leuco-indigo is re-oxidized in equalization and the biofilm is acclimated. That is not enough to meet typical discharge limits of 100–200 ADMI on most denim mills. A polishing step is mandatory — ozone (2–5 mg O₃ per mg residual color), Fenton oxidation, or activated carbon adsorption handles the remaining 30–50%. The MBBR reduces load and color; the polish step finishes the job.
What carrier media do denim wastewater treatment plants actually use?
Kaldnes K1 HDPE media is the industry default, typically operated at 20–40% volumetric fill. Specific surface area is 500–1,200 m²/m³ depending on the K1 variant, which sets the biofilm surface available for COD and sulfide oxidation. The 20% figure in the Tanjungpura laundry study (Kusuma et al., 2017) is the lower-bound baseline; denim plants with OLR above 1.5 kg COD
