Why Paper Machine Seal Water Breaks Generic DAF Sizing
Paper machine seal water is a heated filtrate/white water loop that services press, calender, and dryer bearings, plus suction roll seal leakage, typically 5–25 m³/h per machine at 45–65 °C (per Zhongsheng field data, 2026). The TSS load is 300–1,500 mg/L of fines, broke, starch, and filler, with intermittent spikes when a refiner or headbox dumps and trace defoamer/slimicide carryover riding on every drop. A DAF specified from a food-plant or metalworking factory underperforms here because the design target is different: the operator wants fiber back for repulping, not just clear effluent. When defoamer load spikes, the float blanket collapses, polymer demand jumps 30–50% within an hour, and the recovered fiber lands in the float hopper contaminated with silicone — unusable in the machine chest. Generic sizing tables assume 20 °C, low TSS, and FOG-only float; none of those assumptions survive a paper machine seal water pit in production.
Step 1 — Build the Seal Water Flow and Load Balance
Pull 7-day SCADA or flowmeter data first, then compute the average and the 95th-percentile flow — peaks dominate DAF area, not averages. If no flow data exists, apply a peak factor of 1.25–1.5 to the average flow to size for upset events such as broke pulper overflow or headbox dumps. Sample TSS, COD, conductivity, and temperature on a diurnal cycle and report ranges rather than single grab numbers; a single sample taken during a calm shift will understate the design load by 2–3×. The 45–65 °C operating envelope matters because Henry's law constant rises with temperature, so saturation air yield falls roughly 15% going from 20 °C to 60 °C — the A/S ratio must compensate. Account for coexisting streams before sizing: the seal water pit often receives press section drainage and broke pulper overflow in parallel, and those flows must be summed into the design basis, not handled by a separate unit.
| Parameter | Typical Range (Kraft/TMP/Recycled) | Why It Matters for Sizing |
|---|---|---|
| Average flow per machine | 5–25 m³/h | Sets baseline hydraulic load |
| 95th-percentile / peak flow | 1.25–1.5× average | Governs DAF surface area |
| TSS | 300–1,500 mg/L | Drives A/S ratio and polymer dose |
| Temperature | 45–65 °C | Reduces saturation air yield ~15% vs. 20 °C |
| COD | 800–3,000 mg/L | Flags starch/broke load; informs downstream polish |
| Conductivity | 1,000–3,500 µS/cm | Triggers coagulant pre-dose above 2,000 µS/cm |
| Defoamer/slimicide | Trace to 5 mg/L | Suppresses bubble attachment; raises polymer demand |

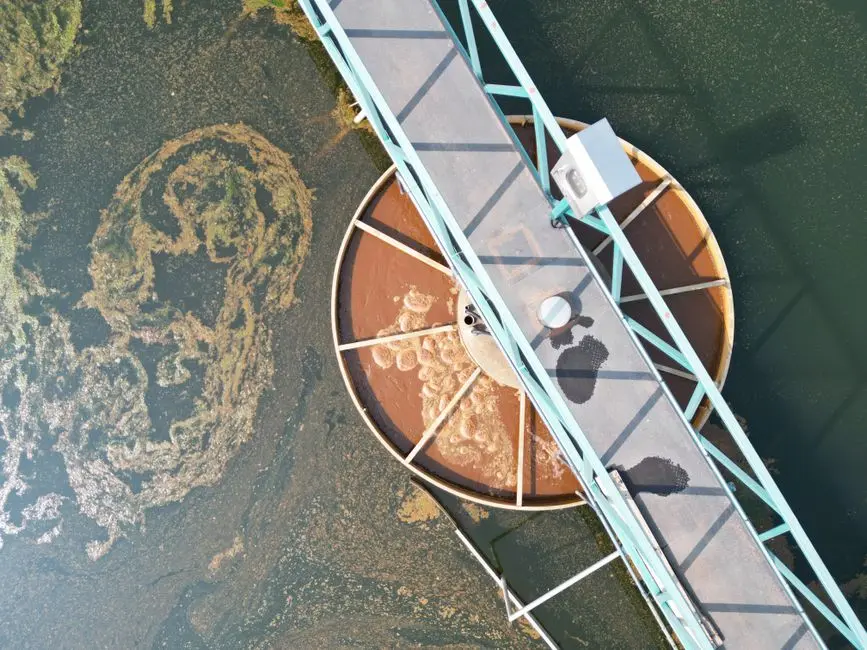

Step 2 — Apply Hydraulic Loading and Air-to-Solids Ratio for Fiber-Bearing Water
The governing equation for DAF surface area is: DAF surface area (m²) = design flow (m³/h) ÷ hydraulic loading rate (m/h). For paper mill seal water, recommend a hydraulic loading rate of 5–15 m/h — the lower end when fiber recovery for repulping is the goal, the upper end for polish-only duty. This band is tighter than the 5–25 m/h generic range because variable defoamer and slime load punish aggressive hydraulic loading with float blanket collapse. The A/S ratio target is 0.02–0.04 g air per g TSS at 5 bar saturation pressure; drop to 0.01–0.02 if the stream runs hotter than 60 °C, since saturation efficiency falls with temperature. Saturator recycle flow should be set at 20–30% of forward flow for pressurized saturation designs, and the microbubble diameter target is 10–100 μm — verify with the saturator vendor's nozzle/orifice spec rather than a marketing cut sheet. For context on the broader DAF sizing math applied to fiber lines, the methodology for DAF sizing for white water discharges follows the same governing equations but with cooler temperatures and lower TSS, which is why seal water needs its own framework.
| Parameter | Generic Industrial DAF | Paper Mill Seal Water DAF | Reason for Difference |
|---|---|---|---|
| Hydraulic loading rate | 5–25 m/h | 5–15 m/h | Fiber float needs longer residence |
| A/S ratio (5 bar sat.) | 0.01–0.02 g/g | 0.02–0.04 g/g | Higher TSS + defoamer compensation |
| A/S at T > 60 °C | Rarely adjusted | 0.01–0.02 g/g | Lower air solubility at 60 °C |
| Saturator recycle | 10–20% of Q | 20–30% of Q | Higher air mass needed per m³ |
| Microbubble diameter | 20–80 μm | 10–100 μm | Fiber fines attach to finer bubbles |
| Design temperature | 10–25 °C | 45–65 °C | Seal water loop is heated |
Step 3 — Worked Sizing Example: 150 m³/h Seal Water Stream at 60 °C
Inputs from the SCADA pull: Q_avg = 150 m³/h, peak factor 1.3, so Q_design = 195 m³/h. TSS = 800 mg/L, temperature = 60 °C. Choose HLR = 10 m/h (mid-range, fiber recovery duty) → required DAF surface area = 195 ÷ 10 = 19.5 m². Calculate saturator air requirement: 195 m³/h × 800 mg/L × 0.025 g/g × 10⁻⁶ ≈ 3.9 kg air/h. At 5 bar saturation pressure this requires roughly 7–9 m³/h of saturated recycle flow. Set saturator recycle at 25% of Q_design = 49 m³/h, then verify the chosen saturator model can dissolve the required air mass at 60 °C — saturation efficiency drops approximately 15% versus 20 °C operation, so the saturator must be sized with that derate built in. The vendor spec sheet should list: surface area ≥ 19.5 m², design/peak flow 150/195 m³/h, saturator recycle 25% (49 m³/h), A/S ratio 0.025 g/g, design temperature 60 °C, and polymer allowance 2–8 mg/L active PAM. Send this one-page spec to vendors and you will get comparable quotes. Equipment selection should reference a ZSQ series dissolved air flotation system unit that covers the 195 m³/h design point with margin.
Step 4 — Polymer Program and Defoamer Quenching
Select a cationic or anionic polyacrylamide (PAM) matched to the furnish — cationic for recycled fiber (high anionic trash from OCC and broke), anionic for virgin Kraft and TMP — at a typical dose of 2–8 mg/L active. The defoamer interference mechanism is the primary hurdle: silicone or fatty-alcohol defoamers spread on bubble surfaces and suppress attachment, which is why flash mixing energy matters more than dose. Target a flash mix G-value of 50–150 s⁻¹ and keep flocculation time short at 2–4 minutes so the floc forms around entrained bubbles rather than around coalesced gas pockets. Add a coagulant pre-dose — typically PAC (polyaluminum chloride) at 10–30 mg/L — when conductivity exceeds 2,000 µS/cm or when the furnish carries high broke or surface starch loading. Size the rapid-mix and flocculation zones upstream of the DAF: 30–60 seconds rapid mix, 4–8 minutes flocculation. These zones are separate from the DAF surface area, and they are where the polymer program is won or lost. A automatic chemical dosing skid tied to the flowmeter signal keeps the PAM-to-TSS ratio stable through diurnal swings, which a manual day-tank cannot.
Step 5 — Select the DAF Model and Verify Skimming for Fiber Recovery
Map the calculated design flow onto the ZSQ model range — the series spans 4–300 m³/h across 13 standard models and has documented pulp & paper references (Zhongsheng field data, 2026) — and pick the next-size-up unit for 15–20% turndown margin. Confirm the skimmer is a full-width flight type rated for fiber-laden float, not a beach or scoop skimmer designed for oil-only service; fiber float is denser and more abrasive than FOG. Specify a float hopper and repulping return line back to the machine chest or broke tank if fiber recovery is a goal — the recovered stock typically runs 1–3% consistency and can be pumped directly back into the furnish. Cross-check that the unit's stated microbubble range (10–100 μm) and saturation pressure (5–6 bar) match the worked example inputs from Step 3. Downstream of the DAF, clarified seal water usually returns to the machine chest; if a portion is bled to the effluent treatment plant, a downstream MBBR or MBR handles residual COD. Sizing that next stage is covered in the MBBR sizing for factory white water guide.
| Design Flow (m³/h) | Selected ZSQ Model Range | Turndown Margin | Skimmer Type Required |
|---|---|---|---|
| 10–30 | Small ZSQ (4–30 m³/h band) | 15–20% | Full-width flight |
| 30–100 | Mid ZSQ (30–100 m³/h band) | 15–20% | Full-width flight, fiber-rated |
| 100–200 | Upper-mid ZSQ (covers 195 m³/h design point) | 15–20% | Full-width flight, fiber-rated, dual-direction |
| 200–300 | Large ZSQ (200–300 m³/h band) | 15–20% | Full-width flight, fiber-rated, heavy-duty drive |
Frequently Asked Questions
What flow rate should I use to size a DAF for paper machine seal water?
Use the 95th-percentile flow from a 7-day SCADA pull, or apply a peak factor of 1.25–1.5 to the measured average if no flow data exists. Peaks from broke pulper overflow and refiner dumps dominate the required surface area; average flow understates it by 25–50%.
How does the 45–65 °C seal water temperature change DAF sizing?
Higher temperature reduces air solubility per Henry's law, so saturation air yield drops approximately 15% going from 20 °C to 60 °C. Compensate by raising the A/S ratio to 0.02–0.04 g/g, or by oversizing the saturator recycle to 25–30% of forward flow.
What air-to-solids ratio should I target for fiber-bearing seal water?
Target 0.02–0.04 g air per g TSS at 5 bar saturation pressure for normal seal water service. Drop to 0.01–0.02 g/g if the stream runs above 60 °C, and verify the saturator's dissolved-air yield at design temperature before locking the spec.
