What the AAO Process Is and When to Specify It
The AAO (Anaerobic-Anoxic-Aerobic) process is a suspended-growth biological nutrient removal configuration that combines anaerobic phosphorus release, anoxic denitrification, and aerobic BOD/nitrification in three sequential reactors with internal mixed-liquor and sludge recycle. Typical 2026 design targets: anaerobic HRT 1–2 h, anoxic HRT 2–4 h, aerobic HRT 6–8 h, MLSS 3,000–4,000 mg/L, SRT 10–20 d, internal recycle 200–400% of influent, achieving TN <15 mg/L and TP <0.5 mg/L on municipal influent.
AAO uses two recycle streams to move biomass through the three functional zones: the internal mixed-liquor recycle (R) carries nitrate from the aerobic to the anoxic zone, while the return activated sludge (r) carries biomass from the clarifier back to the anaerobic head. PAO organisms release 1–2 mg P per g COD taken up under the anaerobic block, then luxury-uptake 4–6 mg P/g biomass aerobically; that P leaves the system in the waste sludge. The distinction from A2O is the addition of a post-anoxic polish reactor for TN <10 mg/L. Modified AAO (MAAO) adds a chemical-P dosing stage at the aerobic effluent to lift TP removal from ~85% to >95% without expanding tankage.
Specify AAO when the influent envelope sits at BOD₅ 150–400 mg/L, TN 30–80 mg/L, and TP 4–12 mg/L — the band where the carbon-to-nitrogen ratio (typically 5–8:1 BOD/TN) is high enough for denitrification without methanol supplementation. Below 30:1 BOD/TP, switch to a UCT split-return layout to keep nitrate away from the anaerobic zone. The outlet target the design must hit is COD ≤50 mg/L, NH₃-N ≤5 mg/L, TN ≤15 mg/L, and TP ≤0.5 mg/L per GB 18918-2002 first-tier / equivalent EPA nutrient criteria.
Zone-by-Zone Design Parameters for 2026
Zone volumes are set by HRT, not by mass balance, because hydraulic residence drives the kinetic window for each microbial group. The values below are the 2026 working envelope used in Zhongsheng BNR designs for municipal flow 5,000–50,000 m³/d; older EPA design manuals still cite HRT ranges, but they predate the shift to higher MLSS operation.
| Parameter | Anaerobic | Anoxic | Aerobic |
|---|---|---|---|
| HRT (h) | 1–2 | 2–4 | 6–8 |
| MLSS (mg/L) | 2,500–3,500 | 3,000–3,500 | 3,000–4,000 |
| DO (mg/L) | <0.2 | <0.5 | 1.5–2.5 |
| ORP (mV) | -200 to -300 | -50 to +50 | +100 to +300 |
| Temp range (°C) | 10–25 | 10–25 | 10–25 |
Anaerobic HRT below 1 h starves PAO organisms of the fermentation window they need to take up volatile fatty acids; below 1 h, biological P removal collapses and TP removal falls below 60%. Anoxic nitrate-N loading is bounded at 0.04–0.08 kg NO₃-N/kg MLVSS·d — the upper limit is the denitrifier uptake rate, not the nitrate supply. Aerobic SRT must clear 1/μmax for Nitrosomonas at design winter temperature; for 10 °C the minimum practical SRT is 12 d, for 15 °C it drops to 8 d, and for 20 °C it falls to 5 d. Nitrification rate roughly halves per 6 °C drop below 20 °C, so a plant designed at 15 °C will lose ~30% of its ammonia capacity in a 10 °C winter unless SRT is raised to 18–22 d.
Recycle ratios set the nitrogen balance. Internal mixed-liquor recycle R = 200–400% of Q, return sludge r = 50–100% of Q. Theoretical TN removal follows R/(R+1): at R = 3Q, maximum TN removal is 75%, so the design must not promise more than that without an external carbon source. Higher R improves TN removal but raises aeration-tank hydraulic load and the energy cost of pumping 3–5Q through the anoxic reactor.
Worked example for 10,000 m³/d municipal flow, BOD₅ 200 mg/L, TN 40 mg/L, average temperature 18 °C: anaerobic volume 700 m³ (HRT 1.7 h), anoxic volume 1,400 m³ (HRT 3.4 h), aerobic volume 2,800 m³ (HRT 6.7 h). Internal recycle R = 3Q = 30,000 m³/d, return sludge r = 0.75Q = 7,500 m³/d. Aerobic MLSS 3,500 mg/L, SRT 14 d. Predicted effluent: COD ~35 mg/L, NH₃-N ~2 mg/L, TN ~12 mg/L, TP ~0.6 mg/L (biological only). For <0.3 mg/L TP, add an FeCl₃ polish at 5–10 mg/L as Fe.
Process Flow, Recycles, and Sludge Age
The mass balance has three independent loops: carbon (BOD → CO₂ + new cells), nitrogen (NH₄⁺ → NO₃⁻ → N₂), and phosphorus (PO₄³⁻ → polyphosphate in biomass → wasted sludge). Aerobic nitrification consumes 4.57 g O₂ per g NH₄-N oxidized; anoxic denitrification consumes 2.86 g COD per g NO₃-N reduced to N₂. Total aeration requirement is therefore 1.5–1.8 kg O₂/kg BOD removed plus 4.57 kg O₂/kg NH₄-N nitrified; the standard equation is O₂ = (a·S_r + b·MLVSS·t) + 4.57·N_ox, where S_r is BOD removed, N_ox is NH₄-N oxidized, and a, b are empirical coefficients (a = 0.5–0.6, b = 0.05–0.10 d⁻¹ at 20 °C).
Phosphorus flow is driven by PAO metabolism, not by chemistry. Anaerobic P release of 1–2 mg P/g COD taken up is a prerequisite — without it, aerobic luxury-uptake of 4–6 mg P/g biomass cannot occur. Net TP removal equals P released aerobically minus P in the effluent, both expressed per unit flow; the design lever is wasted sludge mass, not chemical dose. Sludge yield Y = 0.4–0.6 kg VSS/kg BOD; observed yield with endogenous decay at 15 °C and SRT 15 d is 0.15–0.25 kg VSS/kg BOD (Zhongsheng field data, 2026). SRT must exceed 1/μmax of nitrifiers at design winter temperature, not average temperature — designing at the annual mean is the most common cause of winter ammonia breakthrough.
AAO Variants: Modified AAO, UCT, Step-Feed, and MBBR Hybrids
When the standard configuration cannot meet the discharge target, the first move is to a variant of AAO, not a different process family. The four most common 2026 retrofits are listed below with the operating condition that triggers each one.
| Variant | Key change | Trigger condition | TP / TN outcome |
|---|---|---|---|
| Modified AAO (MAAO) | Add FeCl₃ or PAC dose at aerobic effluent | TP target <0.3 mg/L | TP >95% removal |
| UCT / MUCT | Split sludge return; nitrate-free RAS to anaerobic | BOD/TP <30:1 | TP removal rises 10–15% |
| Step-feed AAO | Distribute influent along aeration tank | Tankage expansion not possible | Denitrification capacity +20–30% |
| AAO + MBBR / MBR | Add carrier media or MBR cassette | Footprint binding constraint | Footprint -40 to -60% |
Modified AAO (MAAO) is the most common 2026 retrofit in Chinese municipal plants because the FeCl₃ dose is cheap and operationally trivial — typically 5–10 mg/L as Fe at the aerobic effluent weir, raising TP removal from ~85% to >95% without any civil works. The UCT split-return layout is the right call when the influent BOD/TP ratio falls below 30:1, because nitrate-rich RAS fed back to the anaerobic zone disrupts PAO fermentation; MUCT adds a second anoxic stage to absorb the nitrate before the sludge reaches the anaerobic reactor. Step-feed AAO is the standard answer for brownfield retrofits where tankage cannot be expanded — the influent is split into 3–4 feed points along the aeration tank, which raises the apparent denitrification capacity by 20–30% without adding volume.
Hybrid layouts are where the binding constraint shifts from nutrient limits to footprint. The IFAS hybrid configuration inserts carrier media into the aerobic zone, raising effective MLSS to 5,000–6,000 mg/L without raising the clarifier solids loading rate; an AAO + MBR hybrid package replaces the secondary clarifier with an MBR cassette and runs the biological tanks at 8,000–12,000 mg/L, shrinking total plant footprint by 40–60% — the right move when the site is landlocked. Where online NH3-N and TP analyzers are already installed, the variant decision is straightforward: pick the cheapest layout that hits the discharge envelope, and only escalate to a hybrid if tankage is the binding constraint.

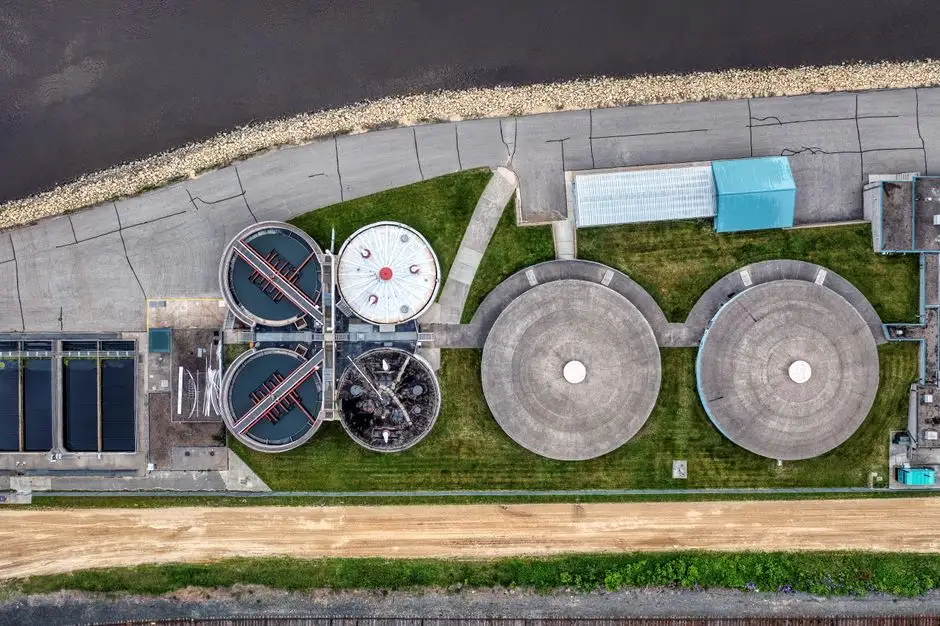

Expected Removal Performance and 2026 Compliance Targets
Effluent quality on municipal influent at 15–25 °C and the parameter envelope above. Numbers below 0.5 mg/L TP require chemical polish; numbers below 1 mg/L NH₃-N below 10 °C require SRT ≥18 d.
| Parameter | Influent (typical) | AAO effluent | Removal % | Compliance basis |
|---|---|---|---|---|
| COD | 300–500 mg/L | ≤50 mg/L | 85–92% | GB 18918-2002 1A |
| BOD₅ | 150–250 mg/L | ≤10–20 mg/L | 95–98% | GB 18918-2002 1A |
| NH₃-N | 20–40 mg/L | ≤1–5 mg/L | 90–98% | EPA nutrient criteria |
| TN | 30–60 mg/L | ≤15 mg/L | 60–80% | GB 18918-2002 1A |
| TP (biological) | 4–8 mg/L | 0.5–1.0 mg/L | 80–90% | GB 18918-2002 1A |
| TP (chemically polished) | 4–8 mg/L | ≤0.3 mg/L | >95% | EU UWWTD sensitive areas |
NH₃-N below 1 mg/L is achievable above 15 °C; below 10 °C the rate drops and the design must commit to SRT 18–22 d, which forces a larger aerobic volume. TN removal is bounded by the recycle ratio per the R/(R+1) relationship; for TN <10 mg/L the design must either run R = 4–5Q or add a post-anoxic polish with external carbon. TP below 0.3 mg/L triggers the MAAO chemical polish in essentially every 2026 Chinese design brief.
CAPEX and Footprint: How AAO Compares to MBR, SBR, and A2O
AAO sits in the middle of the 2026 BNR cost band. The table below is turnkey CAPEX including civil, equipment, and instrumentation for a 10,000–50,000 m³/d municipal plant in a mid-cost region; multiply by 0.6 for high-density Asian urban sites and by 1.3 for low-density North American sites.
| Process | CAPEX (USD/m³/d) | Footprint vs AAO | OPEX (USD/m³) | Best-fit condition |
|---|---|---|---|---|
| AAO | $80–180 | 1.0× | $0.05–0.15 | Standard municipal BNR |
| A2O | $80–190 | 1.05× | $0.05–0.16 | TN <10 mg/L required |
| SBR | $150–300 | 0.9× | $0.08–0.18 | Low flow, intermittent |
| MBR (AAO + MBR) | $250–450 | 0.4–0.5× | $0.18–0.32 | Footprint binding constraint |
MBR commands a 40–150% CAPEX premium over AAO but returns a 50–60% footprint reduction, which is the entire point — when the binding constraint is land, not nutrient limits, MBR wins. A2O CAPEX lands within ±10% of AAO; the differentiator is post-anoxic polish volume and the methanol cost when influent carbon is insufficient. SBR has the lowest control-instrumentation cost but the highest cycle-time risk on diurnal flow peaks. For small flows <500 m³/d a compact A/O packaged plant is often the right call over AAO, because the BNR controls become disproportionately expensive at that scale.
Frequently Asked Questions
What internal recycle ratio R is needed for TN ≤15 mg/L on a 40 mg/L TN influent? The theoretical bound is TN_out/TN_in = 1/(R+1), so for 15/40 = 0.375, R must be at least 1.67; in practice R = 2.5–3.0Q is specified to cover kinetic losses and clarifier nitrate recycle. At 10 °C, raise R to 3.5–4.0Q or accept a 5–8 mg/L TN increase.
Why does ammonia breakthrough happen in winter even when SRT looks adequate on paper? μmax for Nitrosomonas halves per 6 °C drop below 20 °C; a plant designed at SRT 12 d for 15 °C falls to μmax·SRT ≈ 1.0 at 10 °C, which is the washout threshold. Specify SRT 18–22 d for 10 °C design winter temperature, not annual mean.
When should AAO be replaced by UCT or MUCT instead? Switch when influent BOD/TP < 30:1, because nitrate-rich RAS fed back to the anaerobic zone inhibits PAO fermentation. UCT adds a second anoxic reactor that absorbs the nitrate before the sludge reaches the anaerobic block, raising TP removal by 10–15%.
What is the smallest footprint layout for a 20,000 m³/d BNR plant with TN ≤10 mg/L and TP ≤0.3 mg/L? AAO + MBR with chemical P polish: aerobic HRT 5–6 h, MLSS 8,000–10,000 mg/L, MBR cassette flux 15–20 L/m²·h, total footprint 0.10–0.15 m² per m³/d. See IFAS OPEX benchmarks for the lifecycle cost comparison.
Can AAO be retrofitted into an existing activated-sludge tank without new civil works? Yes, by step-feed AAO: split the influent across 3–4 feed points along the aeration tank, convert the first 25% to anoxic with a submersible mixer, and add the internal recycle line. Typical denitrification capacity gain is 20–30% without expanding the concrete envelope.
