How an MVR Evaporator Recycles Its Own Steam
An MVR (Mechanical Vapor Recompression) evaporator uses a high-efficiency centrifugal or Roots-type steam compressor — typical vapor handling 4–15 t/h depending on model — to take the low-pressure secondary vapor leaving the separator, raise its pressure and temperature by a ΔT of roughly 8–18°C, and feed it back as the heating medium for the same effect. Electrical energy in (compressor kWh) substitutes for the latent heat of fresh live steam. The Yunrui product page states that, in theory, MVR "saves over 80% of energy, over 90% of condensate water, and reduces footprint by over 50% compared to a traditional [single-effect] evaporator," and that it requires "no external fresh steam" (per Hebei Yunrui Chemical Equipment, 2026-07). A PLC control loop modulates temperature, pressure, and compressor motor speed to keep evaporation equilibrium stable.
The catch that procurement often misses is boiling-point elevation (BPE). Because the compressor can only raise the secondary steam temperature by a finite ΔT, the MVR is only economic when the feed BPE stays below roughly 5–8°C. Push the BPE higher — as happens with CaCl₂, Li₂SO₄, or concentrated NaOH brines — and the available temperature driving force collapses, evaporation rate drops, and the compressor is forced into an oversized, uneconomic duty. That single number (BPE ≤ ~5–8°C) is the most important filter on any MVR specification. In practice, an MVR trains a falling-film or plate heat exchanger to keep residence time low and product degradation minimal, which is why it dominates in pharma, food, and light-chemical duty where the feed BPE is intrinsically low.
How a Multiple-Effect Evaporator Chains Effects in Series
A multiple-effect evaporator (MEE) chains 2 to 6 effects in series at progressively lower pressure. The vapor boiled off in effect 1 condenses on the heat-transfer surface of effect 2 and reboils its feed, and so on down the train. The total heat-transfer capacity is the sum across all effects (per the standard chemical-engineering derivation in the docin teaching slides): qT = U1A1Δt1 + U2A2Δt2 + ... + UnAnΔtn, and qT is directly proportional to the total Δt between the first-effect steam and the last-effect vapor. Assuming equal area and equal overall coefficient U in each effect, qT = U·A·ΣΔt (per the docin slides, 化工原理课件 chapter 5-2).
The counterintuitive but classic finding from those same slides is that a multi-effect evaporator's total capacity is usually NOT greater than a single-effect evaporator with the same total Δt — the gain is in steam economy, not throughput. Each extra effect multiplies kg of water evaporated per kg of fresh steam: a double-effect reaches about 1.8–2.0 kg/kg, a triple-effect about 2.5–3.0, and a quadruple-effect about 3.0–3.5. Beyond four effects the CAPEX climbs, the per-effect Δt shrinks, and the incremental economy no longer pays — which is why most MEE trains stop at 3–4 effects in industrial wastewater duty. The penalty is a footprint 2–3× larger than an MVR at the same evaporation capacity, plus a hard dependency on a reliable low-pressure steam header.
Head-to-Head Parameter Comparison: MVR vs MEE
The table below is the working engineer's cheat sheet for an MVR vs multiple-effect evaporator selection meeting. All numeric ranges reflect typical 2026 industrial practice for a 5–30 t/h evaporation duty; the MVR 80% / 90% / 50% figures trace back to the Yunrui product page (2026-07) and apply only against a single-effect baseline with low-BPE feed.
| Parameter | MVR (single-effect with compressor) | MEE (3-effect baseline) |
|---|---|---|
| Heat source | Recycled secondary steam (no fresh steam) | Fresh live steam to effect 1 |
| Primary energy input | Electricity (compressor kWh) | Fuel / steam (boiler or waste heat) |
| Steam economy (kg water / kg fresh steam) | Effectively infinite once running; only startup steam needed | 2.5–3.0 for 3-effect; up to 3.5 for 4-effect |
| Typical operating temperature | 40–90°C (limited by compressor ΔT of 8–18°C) | 60–110°C (first effect), falling to 40–60°C (last effect) |
| Footprint at equal capacity | Baseline; reduced >50% vs single-effect (per Yunrui, 2026-07) | 2–3× MVR footprint for the same t/h |
| CAPEX range (USD per t/h evaporation) | $45,000–$90,000 (compressor-driven) | $25,000–$55,000 if steam is available onsite |
| OPEX driver | Electricity (compressor + auxiliaries) | Steam cost (dominant) + cooling water |
| Load turndown | ~40–100% via VFD on compressor | ~60–110% with throttling valves |
| Heat-sensitive material fit | Strong — low ΔT, low residence time, falling-film | Conditional — only with falling-film configuration |
| Maximum recommended feed TDS | 150,000–200,000 mg/L with anti-scalant | Up to 250,000–300,000 mg/L (forced circulation) |
| BPE tolerance | ≤ ~5–8°C; beyond this, hybrid required | Handles BPE up to 25–40°C by adding effects |
| Best-fit application | Low-BPE, moderate-TDS, electricity-cheap sites, no boiler | High-BPE, large-flow (>30 t/h), steam-abundant sites, ZLD pre-RO |
Where MVR Wins and Where MEE Still Beats It
Translating the table into feed conditions: MVR wins on low-to-moderate TDS (under ~100,000 mg/L), low BPE (NaCl, light organics, low-sulfate brines, fermentation broths), and any heat-sensitive product such as pharma intermediates, amino acids, vitamins, or food concentrates that degrade above 60–70°C. MVR also wins wherever a facility has cheap off-peak electricity and no on-site boiler — a battery-materials plant in a region with $0.05/kWh grid power can justify MVR on energy cost alone.
MEE wins on the opposite corners of the matrix: very high TDS brines (above 200,000 mg/L, common after RO concentration in a ZLD loop), high-BPE feeds (CaCl₂, Li₂SO₄, NaOH at >20% w/w), and very large flows above 30 t/h evaporation. A site with cheap waste-heat steam from a co-generation turbine, a process flue gas, or an existing boiler island will run an MEE train at a lower OPEX than any MVR.
The 2026 ZLD standard for high-TDS feeds is a hybrid: a falling-film MEE (2–3 effects) as the first stage to push TDS from roughly 5% up to 18–20% w/w, then an MVR as the second stage to push to 25–28% before the crystallizer. On the fouling axis, MEE with forced circulation handles scaling feeds such as CaSO₄-saturated brines more robustly; an MVR with plate or falling-film exchanger is more sensitive to scaling and typically needs anti-scalant dosing plus scheduled acid washing. For a wider view of where an industrial RO pre-concentration system sits upstream of either evaporator in a ZLD train, that link covers the RO duty that usually feeds both.

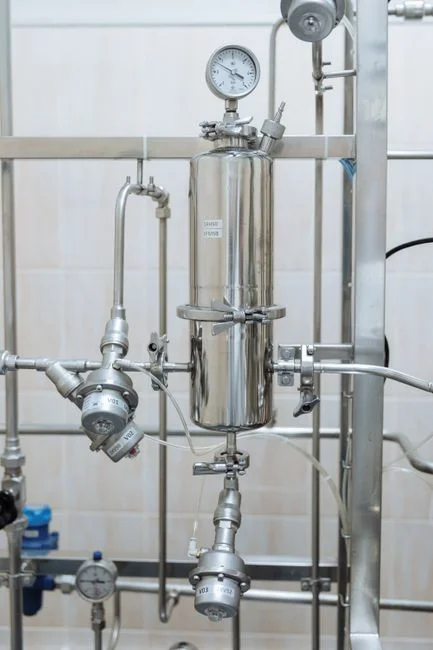

CAPEX, OPEX, and Payback in 2026
Translating the technical comparison into numbers a procurement manager will sign off on: representative 2026 ranges for a 5–30 t/h evaporation duty are summarized below. Electricity OPEX is benchmarked against a $0.06–0.09/kWh industrial tariff; steam OPEX against a $20–30/ton industrial steam tariff in coastal China and Southeast Asia (Zhongsheng field data, 2026).
| Cost line | MVR (single-effect + compressor) | MEE (3-effect baseline) |
|---|---|---|
| Equipment CAPEX (USD per t/h evaporation) | $45,000–$90,000 | $25,000–$55,000 |
| Annual steam cost (per ton water evaporated) | Near zero (startup steam only) | $4–$8 at $20–30/ton steam tariff |
| Annual electricity cost (per ton water evaporated) | $3–$9 at $0.06–0.09/kWh | $0.5–$1.5 (pumps + auxiliaries) |
| Annual maintenance (% of CAPEX) | 3–5% (compressor overhaul is the big ticket) | 1.5–2.5% |
| Typical payback vs single-effect baseline | 18–36 months | 12–30 months if waste steam is free |
| Hybrid MEE + MVR ZLD train | CAPEX premium recovered in 24–40 months vs an oversized single-train MEE trying to hit the same final concentration | |
The cross-over is sensitive to local utility pricing. MVR is favored when electricity sits below ~$0.07/kWh and steam is priced above ~$25/ton; MEE is favored in the inverse scenario. A practical rule of thumb used in 2026 ZLD project reviews: if the plant already runs a steam header and pays less than $15/ton for process steam, MEE wins on OPEX even with its larger footprint. If the plant imports electricity at off-peak rates and has no boiler, MVR wins on both CAPEX (smaller building, less piping) and OPEX. For adjacent OPEX benchmarking on a different dewatering technology, this belt filter press OPEX breakdown uses a similar 2026 cost framework.
How to Choose: A 5-Step Decision Framework
Step 1 — Plot the feed. Put feed TDS (mg/L), boiling-point elevation (°C), and required evaporation rate (t/h) on a single sheet. Mark the 100,000 mg/L TDS line and the 5–8°C BPE line — both are the soft ceilings for an MVR-only solution.
Step 2 — Quantify local utilities. Get the current electricity tariff ($/kWh) and the marginal cost of process steam ($/ton). The cross-over between MVR-favored and MEE-favored is around electricity $0.07/kWh versus steam $25/ton. Above that line on the steam side, MEE wins on OPEX; below, MVR wins.
Step 3 — Check heat sensitivity. If the product degrades above 60–70°C (amino acids, antibiotics, certain vitamins, food concentrates), the only safe answer is a falling-film configuration — and falling-film pairs naturally with MVR, with MEE as a fallback if steam is free.
Step 4 — Check steam availability. If the site has no boiler, no steam header, and no waste-heat source, MVR is usually the only option that makes schedule sense. Installing a boiler island to feed an MEE typically adds 6–12 months to a project.
Step 5 — For high-TDS ZLD trains (>200,000 mg/L), default to MEE-first then MVR-finisher in a hybrid train. For moderate TDS (<100,000 mg/L) and no steam, MVR alone is the simpler, lower-CAPEX choice. The same matrix logic shows up in adjacent decisions like the MBR vs MBBR comparison guide for biological trains and the SBR vs AAO process comparison for sequencing decisions — plot the parameters, then let the cross-over points decide.
Frequently Asked Questions
Which is more energy efficient, MVR or MEE? MVR saves 80%+ versus a single-effect baseline once the compressor is fully loaded and the BPE is low (per Yunrui, 2026-07). However, an MEE-3 can match or beat MVR in steam economy per kg of fresh steam, because its kg-water-per-kg-steam reaches 2.5–3.0. The real comparison is "electricity kWh per ton water" versus "steam tons per ton water" at your local utility prices.
Can MVR replace a multiple-effect evaporator? Yes for low-BPE, moderate-capacity feeds under ~100,000 mg/L TDS with cheap electricity. No for high-BPE brines (CaCl₂, Li₂SO₄, NaOH) or for flows above ~30 t/h where the MEE's steam economy and larger heat-transfer area become cheaper to run.
What is the maximum TDS for MVR? Generally 150,000–200,000 mg/L with anti-scalant dosing and scheduled acid wash. Above that, scaling on the heat-transfer surface and rising BPE degrade compressor efficiency and force the design toward a hybrid MEE+MVR train.
What is the typical payback for MVR vs MEE? MVR against a single-effect baseline pays back in 18–36 months when electricity is below $0.07/kWh and steam is above $25/ton. An MEE-3 pays back in 12–30 months if waste steam is available at near-zero marginal cost.
Is MVR suitable for zero-liquid discharge? Yes — but as the second-stage concentrator after an MEE in a hybrid train. MVR alone is rarely economic past 20–22% w/w TDS; the MEE handles the high-BPE bulk evaporation, and the MVR polishes the concentrate to the 25–28% the crystallizer wants to see.
