MBBR for Enzyme Manufacturing Wastewater: 2026 Cost Guide

Why Enzyme Manufacturing Wastewater Is Hard for Conventional Treatment

Enzyme fermentation effluent is one of the most punishing streams a biological treatment plant can receive, and conventional activated sludge (CAS) routinely fails on it. Published fermentation profiles show influent COD of 8,000–25,000 mg/L, BOD₅ of 5,000–15,000 mg/L, total suspended solids (TSS) of 2,000–6,000 mg/L, total nitrogen of 500–1,800 mg/L, pH swinging between 4.5 and 9.0, and temperatures from 25–40°C depending on the organism being grown. The peptone, yeast extract, and protein hydrolysate used as nitrogen and vitamin sources in fermentation media drive most of that load — these substrates are highly biodegradable but also highly variable, and they foam violently when aerated.

CAS struggles on this matrix for three structural reasons. First, the high food-to-microorganism (F/M) ratio and abundant soluble protein cause persistent foaming and bulking sludge, which is exactly the failure mode a process engineer watches for at 3 a.m. when a batch spikes. Second, CAS biomass concentration is limited to 2,000–4,000 mg/L mixed liquor suspended solids (MLSS) by settling clarifier hydraulics — the biomass simply washes out when the feed pushes past 3× the daily average, which is routine in batch fermentation. Third, pH swings from upstream fermentation (a common problem when fermenter CIP skids share a drain header with broth) routinely knock a CAS basin off its nitrification curve for 24–48 hours.

MBBR addresses each of these failure modes by attaching biomass to free-floating HDPE carrier media that move with the flow, achieving 8,000–15,000 mg/L effective biomass concentration in the reactor with no clarifier required. Biofilm protects the organisms from pH, temperature, and toxic shock, and the system tolerates 3× diurnal load swings that would wash out a CAS basin.

One important distinction for buyers: enzyme producers fall into three segments with very different discharge targets. Detergent-enzyme plants (subtilisin, lipase) typically discharge to a municipal POTW with limits around BOD ≤300 mg/L. Food-grade enzyme plants (pectinase, amylase for juice and brewing) often need reuse-quality water for CIP. Pharmaceutical-grade enzyme plants (API-grade trypsin, chymotrypsin) usually face the tightest limits, sometimes approaching zero liquid discharge. The right MBBR configuration is driven by which segment you operate in.

MBBR Process Design Parameters for Enzyme Effluent

Enzyme wastewater is not municipal wastewater, and a vendor who quotes an MBBR design without first asking about your influent COD and diurnal peak profile is selling you a municipal unit. The parameters below are the minimum set of sizing knobs a process engineer should expect to see in a defensible MBBR proposal for an enzyme plant.

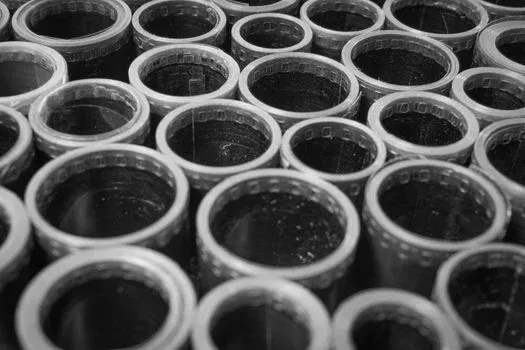

Carrier media. HDPE (high-density polyethylene) moving media with specific surface area in the 500–1,200 m²/m³ range is standard. Filling fraction — the percentage of reactor volume occupied by media — typically runs 30–60%; higher fill fractions increase biomass capacity but require more aggressive aeration to keep media in motion. For enzyme wastewater with high COD, a 40–50% fill fraction is the usual design point. Reputable manufacturers warrant HDPE media for 10+ years; PE media is cheaper but typically carries a 5-year warranty and is not appropriate for pharma-grade plants.

Hydraulic retention time (HRT). For enzyme wastewater, HRT runs 6–14 hours depending on the target effluent. If you are sending MBBR effluent to a municipal POTW with a BOD limit of 300 mg/L, 6–8 hours is usually sufficient. If you are polishing with MBR for reuse, 8–10 hours is the typical pre-MBBR design, with the MBR adding another 4–6 hours.

Organic loading rate (OLR). This is the single most important number to challenge a vendor on. For enzyme wastewater, design OLR should be expressed as 4–12 g COD/m²·day on the biofilm surface, not as a volumetric loading rate (g COD/m³·day). Volumetric loading can be inflated by quoting high fill fractions and is a common smokescreen in under-engineered proposals. Surface loading reflects what the biology actually experiences and is the more honest metric.

Dissolved oxygen (DO) setpoint. 2.0–2.5 mg/L in the carbon-oxidation zone is standard. If total nitrogen removal is needed (common in enzyme wastewater with 500–1,800 mg/L TKN), the nitrification zone should run at 2.5–3.0 mg/L DO, with a separate anoxic zone upstream returning mixed liquor for denitrification.

Temperature handling. Biofilm retains metabolic activity from roughly 8–10°C up to 38–40°C. This matters for enzyme plants with seasonal throughput — winter diurnal swings do not knock biofilm off its curve the way they do CAS.

Pre-treatment. Enzyme broth carryover contains residual oils, antifoam agents, and cell debris. Influent TSS to the MBBR should be reduced to <200 mg/L using a DAF pre-treatment for enzyme wastewater — typically a dissolved air flotation unit ahead of an equalization basin. Skipping this step is the most common cause of carrier-media fouling in retrofits.

Capital Cost (CAPEX) Breakdown for an MBBR Enzyme Wastewater System

The widely cited industry benchmark for MBBR capital cost is $125–$285 per gallon-per-day (gpd) of design flow, or $33–$75 per gpd on a design-flow basis (HNS Watertech, 2023). Applied directly to a 200 m³/day (≈52,800 gpd) enzyme plant, that range translates to $6.6M–$15.1M in CAPEX at U.S./EU contractor pricing. In practice, Asian-fabricated systems from manufacturers with established fermentation-sector experience typically land 30–45% below that ceiling, putting a defensible installed CAPEX for a 200 m³/day enzyme plant at roughly $1.4M–$2.8M.

For procurement purposes, the line-item breakdown matters more than the headline number. Tanks and civil works (concrete or coated-steel basins, foundations, walkways) typically run 25–35% of total CAPEX. Blowers, aeration grid, and DO control instrumentation account for 15–20% — a higher share than for municipal MBBR because enzyme wastewater's high OTR demand requires more aggressive aeration. Carrier media itself is 8–12%, with HDPE media currently priced around $8–$15/kg installed. Pumps, valves, and piping represent 10–15%, with stainless-steel pipe in fermentation-adjacent skids adding 3–5% over carbon-steel. Control panels, instrumentation (pH, DO, TSS, flow, level), and SCADA integration run 8–12%, and installation, commissioning, and engineering PM make up the final 10–15%.

Enzyme-specific CAPEX adders over a generic industrial MBBR are modest — typically 5–10% — and are driven by higher tank corrosion allowance (for pH excursions), stainless piping in fermentation-adjacent skids, and more aggressive instrumentation redundancy for permit compliance. The largest adder is usually a more robust equalization basin (24–48 hour retention) to buffer batch spikes, which can add $80K–$200K depending on tankage.

A useful external data point: the published MBBR-MBR study from a Spanish textile plant (PMC8625884) found that the hybrid MBBR-MBR system achieved an 18% internal rate of return (IRR) and a positive NPV against a CAS baseline, with CAPEX roughly comparable to CAS but OPEX materially lower. The textile matrix is not enzyme matrix, but the CAPEX/OPEX structure is a useful sanity check — MBBR is rarely the cheapest system to install, but it is almost always the cheapest system to own.

Operating Cost (OPEX) Drivers Over a 5-Year Horizon

OPEX — not CAPEX — is where MBBR wins or loses against CAS, and it is the line item that determines 10-year total cost of ownership (TCO). For a 200 m³/day enzyme plant, 5-year OPEX for an MBBR-only system typically falls in the $0.35M–$0.7M range, and the line items below are where that money goes.

Aeration energy (40–55% of OPEX). Blower electricity is the single largest operating cost. For a 200 m³/day MBBR treating 8,000–25,000 mg/L COD, aeration energy typically runs $0.08–$0.14 per m³ treated. VFD-driven blowers with DO feedback cut this line 20–30% versus fixed-speed blowers — the single highest-ROI operational change you can specify.

Carrier media top-up (3–5% of OPEX). HDPE media degrades through attrition at roughly 3–5% per year under normal operation. At $8–$15/kg for HDPE media and typical fill fractions, that is a modest line item — usually 3–5% of total OPEX — but worth confirming in the vendor's media warranty.

Sludge handling (10–15% of OPEX). MBBR produces 25–40% less waste activated sludge than CAS because biomass stays attached to media and sloughs at a slower, more controlled rate. For a 200 m³/day enzyme plant, this saves $0.02–$0.05 per m³ in sludge hauling and dewatering costs versus CAS — a real number, not a marketing claim.

Chemicals (5–10% of OPEX). Phosphorus supplementation is required if influent total phosphorus is below 5 mg/L (common in fermentation media that is nitrogen-and-vitamin-rich but phosphorus-light). pH correction — typically sodium hydroxide dosing — runs $0.01–$0.03 per m³ in enzyme plants with significant pH swings. Antifoam is rarely needed in MBBR but is occasionally used during upset conditions.

Maintenance and labor (10–15% of OPEX). 0.3–0.5 FTE is typical for a 200 m³/day MBBR, covering routine carrier inspection, blower maintenance, and instrumentation calibration. Membrane cleaning labor is not included in the MBBR-only OPEX — that is captured in the MBBR+MBR configuration covered in the next section.

MBBR Alone vs MBBR + MBR vs SBR: Choosing the Right Configuration for Enzyme Effluent

For an enzyme plant, the question is not whether to use MBBR, but which configuration matches your discharge target and reuse ambition. The three viable options are MBBR alone, MBBR+MBR hybrid, and sequencing batch reactor (SBR). Each fits a different envelope.

MBBR alone is the right answer when your plant discharges to a municipal POTW with conventional limits (BOD ≤300 mg/L, COD ≤500 mg/L, TSS ≤30 mg/L). Expected COD removal is 85–93% — comfortably below most POTW thresholds. MBBR alone has the lowest CAPEX of the three options and the smallest footprint. It is also the easiest to retrofit into an existing aeration basin, which is why it is the most common first-step retrofit for enzyme producers.

MBBR + MBR (hybrid) is needed when discharge limits approach reuse quality: BOD ≤30 mg/L, COD ≤100 mg/L, TSS ≤10 mg/L. The published Spanish textile MBBR-MBR study (PMC8625884) reported 93% COD removal, 99% TSS removal, and 85% color removal — performance consistent with reuse-quality effluent. The CAPEX adder for the MBR stage is 40–60% over MBBR alone; OPEX adder is 25–40%, driven by membrane aeration, periodic chemical cleaning (CIP), and membrane replacement every 5–8 years. The trade-off is real: you pay more to hit tighter limits and unlock water reuse as a revenue line. For plants pursuing reuse, MBR polishing for MBBR effluent using DF series flat sheet MBR modules is the standard configuration.

SBR (sequencing batch reactor) is competitive when influent flow is highly intermittent and a single-tank configuration is preferred. Expected COD removal is 80–88% — slightly below MBBR — and CAPEX is comparable, but SBR requires more sophisticated controls and a higher operator skill level. For continuous 24/7 enzyme production, SBR usually loses to MBBR on footprint, energy, and operational simplicity.

Pharma-grade water reuse. For pharmaceutical-grade enzyme plants targeting boiler feed, CIP rinse, or other reuse applications, the standard train is MBBR → MBR → RO for enzyme plant water reuse. This train consistently produces permeate at conductivity <50 µS/cm and TOC <1 mg/L, suitable for most non-compendial reuse applications.

Decision shortcut for buyers: if your discharge limit is BOD ≤300 mg/L → MBBR alone. If BOD ≤30 mg/L or you need reuse-quality water → MBBR + MBR. If you need near-zero liquid discharge → MBBR + MBR + RO.

ROI and Payback: When MBBR Wins on Total Cost of Ownership

For a 200 m³/day enzyme plant, an MBBR retrofit typically pays back against CAS in 3–5 years through three quantifiable savings. First, 25–40% lower sludge disposal cost, which compounds over the asset life. Second, 15–25% lower energy use because biofilm achieves higher substrate removal per unit biomass than suspended-growth systems, with the gap widening at higher temperatures typical of fermentation effluent. Third, 30–50% smaller footprint, which reduces civil cost in greenfield builds and avoids the need for additional basinage in retrofits.

For greenfield enzyme plants, MBBR CAPEX is typically within 5–10% of a comparable CAS system. The OPEX advantage is what flips the decision — there is no formal payback calculation to run, because MBBR wins on TCO from year one.

One hidden ROI driver that rarely appears in vendor models: regulatory risk. A single permit excursion from a CAS basin during a fermentation batch peak can cost $50K–$500K in fines, lost production, and cleanup. MBBR's shock-load tolerance — biofilm recovers from 3× diurnal spikes that wash out CAS — materially reduces the probability of those events. Underwriting this risk properly often moves the ROI calculation by 0.5–1.5 years.

For related plant-level economics on adjacent technologies, the article Denver Wastewater Treatment Plant Cost 2026: CAPEX, OPEX & Tech-Specific Breakdown for Industrial Buyers provides a useful municipal-cost comparison point, while the MBR System for Food Processing Sewage: 2026 Engineering Specs, Cost Models & Zero-Risk Selection Framework piece provides MBR polishing benchmarks for a food-grade matrix that translate cleanly to food-grade enzyme plants.

Vendor Selection Checklist: 10 Questions to Ask Before Signing the MBBR PO

Use this checklist in your next vendor meeting. A vendor who cannot answer these clearly is not qualified for enzyme-plant work.

1. What is the offered organic loading rate in g COD/m²·day on biofilm surface — not volumetric? Reject proposals quoting only volumetric loading (g COD/m³·day).
2. What carrier media are you offering — HDPE or PE — and what is the manufacturer's warranty (years at design fill fraction)?
3. What is the specific surface area (m²/m³) and food-grade / pharma-grade certification status of the media?
4. Can you provide a guaranteed effluent performance curve (COD, BOD, TSS vs flow) with a penalty/bonus clause at 90% confidence?
5. Are blowers VFD-driven with DO feedback control, and what is the guaranteed specific energy consumption (kWh/kg COD removed)?
6. Can you provide a full 5-year OPEX model with itemized energy, media top-up, sludge hauling, chemicals, and labor costs?
7. How does the MBBR PLC/SCADA integrate with the enzyme plant's existing DCS, and is remote monitoring included?
8. What is the equalization basin HRT you are designing for, and how does the system respond to a 3× diurnal load spike?
9. What pre-treatment (DAF, screening) do you require upstream, and is that included in your scope and pricing?
10. What is the carrier media replacement schedule, unit cost, and lead time — and is there a media attrition warranty?

For projects in regions with specific regulatory or infrastructure considerations — for example, the Jharkhand industrial corridor — the Industrial Wastewater Treatment in Jharkhand 2026: Engineering Specs, Costs & Zero-Risk Compliance Guide provides a useful parallel framework for cost benchmarking and vendor evaluation.

Frequently Asked Questions

What is the typical CAPEX for an MBBR system treating 200 m³/day of enzyme wastewater?

For a 200 m³/day enzyme plant with influent COD of 8,000–25,000 mg/L, total installed MBBR CAPEX typically lands at $1.4M–$2.8M for Asian-fabricated systems or $2.5M–$4.5M for U.S./EU contractor pricing. This assumes DAF pre-treatment, equalization, and a single-stage aerobic MBBR with HDPE media at 40–50% fill fraction.

What COD removal can MBBR achieve on enzyme fermentation wastewater?

MBBR alone typically achieves 85–93% COD removal on enzyme fermentation effluent, with influent COD of 8,000–25,000 mg/L reduced to 600–3,500 mg/L. MBBR followed by MBR polishing achieves 93–97% COD removal, suitable for water reuse applications.

How does MBBR handle shock loads from batch fermentation discharges?

MBBR's biofilm-based design retains biomass at 8,000–15,000 mg/L regardless of hydraulic spikes, and the biofilm matrix protects organisms from pH, temperature, and toxic shock. MBBR routinely tolerates 3× diurnal load swings that would wash out a CAS basin operating at 2,000–4,000 mg/L MLSS.

What pre-treatment is required before an MBBR for enzyme wastewater?

Dissolved air flotation (DAF) is the standard pre-treatment to reduce influent TSS, oils, and antifoam residues to below 200 mg/L before the MBBR. Equalization for 24–48 hours is also recommended to buffer batch fermentation spikes. Skipping DAF is the most common cause of carrier-media fouling in retrofits.

When should I choose MBBR+MBR over MBBR alone for an enzyme plant?

Choose MBBR alone if your discharge target is BOD ≤300 mg/L (typical municipal POTW limit). Choose MBBR+MBR if your target is BOD ≤30 mg/L, COD ≤100 mg/L, or TSS ≤10 mg/L — or if you want to pursue water reuse. MBBR+MBR adds 40–60% to CAPEX and 25–40% to OPEX, but unlocks reuse as a revenue line and avoids discharge fees on higher-strength streams.

How long does HDPE carrier media last in an MBBR?

Reputable HDPE carrier media carries a manufacturer warranty of 10+ years at design fill fraction. In practice, annual top-up of 3–5% compensates for normal attrition. PE media is cheaper but typically carries a 5-year warranty and is not appropriate for pharmaceutical-grade enzyme plants.
