Semiconductor Ultrapure Water System SEMI F63 Compliance in 2026
Advanced-node UPW must hold resistivity above 18.2 MΩ·cm at 25 °C, TOC below 0.5 ppb, and silica below 0.1 ppb at the point of use under SEMI F63. A 300 mm fab invests 30–70 million USD in CAPEX and 5–12 million USD per year in OPEX. Point-of-use warranties and a 14-day continuous-run acceptance test cut supplier risk.
Sub-7 nm and 5 nm nodes are sensitive to ionic, organic, and particulate contaminants at parts-per-trillion levels. Silica particles larger than 0.05 µm can induce pattern collapse in EUV lithography. 2025 ITRS data associate TOC above 1 ppb with a 5–8% yield loss in 5 nm production, and a 300 mm fab in Taiwan recorded a 12% yield improvement after upgrading UPW control to below 0.2 ppb silica, per internal audit records.
The 18.2 MΩ·cm target sits near a physical ceiling, so it is audited continuously rather than spot-checked. Just 0.1 ppb of sodium chloride lowers resistivity to 18.11 MΩ·cm at 25 °C, per Wikipedia's ultrapure water reference. Ionic impurities below 1 ppb can still disrupt FinFET doping profiles and gate oxide integrity. That is why resistivity above 18.2 MΩ·cm at 25 °C remains the practical ionic-cleanliness checkpoint.
Scale explains the budget line. Wikipedia's overview describes advanced fabrication plants consuming several million gallons of UPW per day, with wafer cleaning in and after wet etching during FEOL as the primary and most critical application. A specification slip at that volume multiplies across every wafer processed, which is why the compliance frame below starts at the parameter table.
SEMI F63 Resistivity, TOC and Silica Specifications for 2026
The 2026 specification set below aligns with ITRS roadmaps for advanced nodes. The governing document is SEMI F63, formally the Guide for Ultrapure Water Used in Semiconductor Processing, listed as product F06300 in the SEMI store. Engineers should verify each parameter against the point-of-use sampling plan before accepting a system proposal.
| Parameter | Specification (2026 Target) | Measurement Unit | Impact on Semiconductor Processes |
|---|---|---|---|
| Resistivity | >18.2 MΩ·cm | At 25 °C | Prevents ionic contamination in critical layers such as FinFET channels. |
| TOC (Total Organic Carbon) | <0.5 ppb | µg/L | Reduces organic film risk on wafers, enhancing gate dielectric integrity. |
| Silica (dissolved/colloidal) | <0.1 ppb | ng/L | Prevents pattern collapse in EUV lithography at levels above 0.3 ppb. |
| Boron | <0.1 ppb | ng/L | Blocks unintended p-type dopant contamination in epitaxial layers. |
| Particles (>0.05 µm) | <0.5 particles/mL | particles/mL | Minimizes surface defects during advanced lithography and CMP processes. |
| Bacteria | <0.01 CFU/mL | CFU/mL | Reduces biofilm formation risks in distribution lines and wafer contamination. |
| Dissolved Oxygen | <1 ppb | µg/L | Limits oxidation of sensitive materials and unwanted chemical reactions. |
| Metals (Na, K, Fe, Cu, etc.) | <0.01 ppb | ng/L | Prevents catalytic reactions and metal-induced gate oxide defects. |
TOC is typically measured by UV oxidation with conductivity detection; advanced analyzers reach 0.1 ppb limits. Boron above 0.1 ppb can interfere with p-type doping in epitaxial layers, shifting threshold voltages and degrading transistor uniformity. Feed-water chemistry also matters: fabs with high dissolved silica, such as parts of Singapore, need stronger silica removal to hold below 0.1 ppb. Boron-selective resin and enhanced electrodeionization (EDI) polishers are commonly specified to control boron drift, while redundant particle counters downstream of the polishing loop verify limits for sub-0.05 µm counts. For clause-level detail on the standard itself, see the dedicated semi f63 process-design guide.

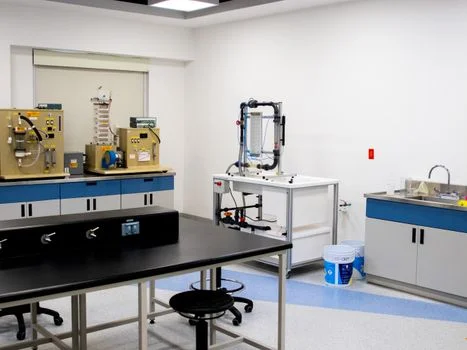

How Each UPW Stage Achieves Compliance: Makeup, Primary, and Polishing
Raw water is converted to semiconductor-grade UPW in three blocks: Makeup (initial purification), Primary (deionization and TOC reduction), and Polishing (final refinement). Each block must be sized so the combined train meets resistivity, TOC, silica, and particle limits at the tool. Shortchanging any one block shows up as excursions in the next.
The Makeup stage typically starts with RO systems for semiconductor UPW pretreatment. These systems achieve 95–98% salt rejection, cutting TDS from about 500 ppm in typical raw water to below 10 ppm. When raw silica exceeds 50 ppm, antiscalant dosing is required to limit membrane fouling and scaling. A two-pass RO train is often used to drive silica below 0.5 ppm before primary deionization, with 1 µm and 0.2 µm cartridge filtration protecting downstream ion-exchange resin from particulate loading. Compact pretreatment packages such as All-in-one UPW pretreatment solutions are sometimes used where footprint or site utilities are constrained.
The Primary stage performs bulk deionization and TOC destruction. Dual-wavelength TOC UV (185/254 nm) at 300–500 mJ/cm² typically removes 90–95% of TOC. Membrane degasification strips dissolved CO₂ and oxygen ahead of the polishing loop, reducing ionic load spikes on mixed-bed or EDI polishers. Mixed-bed units in this stage commonly operate near 18 MΩ·cm; EDI modules provide continuous regeneration without acid/caustic handling and lower neutralization waste. For high-flow fabs, a two-bed (cation + anion) plus mixed-bed arrangement remains a stable benchmark for resistivity and low TOC slip.
The Polishing stage locks compliance. Final mixed-bed polishers or EDI cells hold resistivity above 18.2 MΩ·cm, while 0.05 µm (or finer) filtration and 254 nm UV sterilization keep particles and bacteria below the table limits. Distribution loops use high-purity PVDF or PFA-lined stainless steel with continuous online monitors for resistivity, TOC, dissolved oxygen, and particles. A polishing loop that recycles 5–10% of total flow helps maintain turbulent flushing velocity (≥1.5 m/s) and limits biofilm colonization. Where residual oxidant control in the loop is required, On-site ClO₂ generators for UPW distribution loop disinfection are specified against a validated residual and quench plan.
EDI vs Mixed-Bed Polisher for Semiconductor UPW
EDI versus mixed-bed ion exchange at the polishing position is a high-consequence procurement choice. Both can deliver resistivity above 18.2 MΩ·cm, but operating cost, footprint, and chemical handling differ sharply. The comparison table below frames the bid evaluation.
| Criterion | Mixed-Bed DI | EDI |
|---|---|---|
| Resistivity Performance | 18.2+ MΩ·cm at start of run; gradual decline | Steady 18.2+ MΩ·cm with consistent feed quality |
| Chemical Regeneration | Requires HCl and NaOH; waste neutralization required | No external regeneration chemicals |
| OPEX Profile | Higher (resin replacement, acid/caustic, neutralization) | Lower (only power and periodic module cleaning) |
| CAPEX Profile | Lower initial investment | Higher initial investment |
| Silica & Boron Removal | Strong, especially with specialty resins | Effective for boron with optimized module selection; silica sensitive to feed hardness |
| Best Fit | Smaller fabs, batch operations, very high silica feed | Large 300 mm fabs, continuous duty, strict SEMI F63 reporting |
For high-volume 300 mm fabs on 24/7 duty, an EDI Electrodeionization System usually shows lower lifetime cost and avoids strong acid/caustic handling. Facilities with highly variable feed water, or with an existing regeneration skid, may still prefer mixed-bed. Many 2026 designs place both in series, using mixed-bed as a final guard after EDI to catch silica and boron transients. In most advanced-node plants, EDI is adequate as the primary polisher when feed quality is stable, but a mixed-bed guard remains common for margin.
What CAPEX and OPEX Should a 300 mm Fab Budget in 2026?
Capital and operating cost scale with fab capacity, feed quality, and target specifications. The ranges below are typical 2026 turnkey figures for greenfield fabs, intended as first-pass screening values for procurement.
| Fab Type | UPW Capacity (m³/h) | Estimated CAPEX (USD) | Estimated OPEX (USD/yr) | Dominant OPEX Drivers |
|---|---|---|---|---|
| R&D / Pilot Line | 5–20 | 1.5–4 million | 250,000–600,000 | Resin replacement, energy, lab-grade consumables |
| 200 mm Production Fab | 50–150 | 8–18 million | 1.2–3.0 million | Resin, acid/caustic, antiscalant, energy for pumps and UV |
| 300 mm Advanced Node Fab | 200–500 | 30–70 million | 5–12 million | Power for high-flow recirculation, EDI module replacement, TOC UV lamp swap-out |
| Mega-Fab (multi-module) | 500–1,200 | 80–180 million | 12–25 million | Energy, large-volume resin logistics, redundant polishing trains |
Energy typically accounts for 30–40% of OPEX, driven by recirculation pumps, UV lamps, and continuous polishing duty. A 20% reduction in distribution-loop energy is achievable with variable-frequency drives, lower-friction PVDF piping, and heat recovery from reject streams. Model resin and EDI module replacement conservatively at 3–5 years for mixed-bed and 5–7 years for EDI, with sensitivity cases on feed hardness and TOC load. Engineering, fabrication, and installation for a new 300 mm UPW plant typically take 14–22 months, with site acceptance and qualification adding another 3–6 months before production water is approved.
Screening these bands against a specific site is where most fab teams start. A deeper financial model, including ROI on polishing-technology choice and redundancy, is worked through in Semiconductor UPW System Cost: 2026 CAPEX, OPEX & ROI Breakdown for Fabs. Use the same feed-water analysis and design flow in both exercises so the numbers reconcile.
Semiconductor UPW Supplier Selection Checklist
UPW integrator awards carry long lead times and high consequence. Use the following checkpoints when comparing bids.
- Confirm documented SEMI F63 audit history for at least two operating fabs of comparable size and node generation.
- Require contracted performance numbers for resistivity, TOC, silica, boron, and particles at the point-of-use, not just at the polishing skid outlet.
- Verify online monitoring redundancy: dual-channel resistivity, online TOC analyzers with auto-calibration, and laser particle counters with 0.05 µm sensitivity.
- Request a complete mass balance, including reject recovery, waste neutralization loads, and chemical consumption projections over a 10-year horizon.
- Validate that distribution piping materials meet SEMI E12, F57, and F63 surface finish and extractable limits; PVDF or PFA-lined 316L stainless steel is typical.
- Require a documented commissioning protocol, including a 14-day continuous-run reliability demonstration with full data logging before acceptance.
- Assess lifecycle service capability: local spare parts inventory, 24/7 field response, and contracted EDI module and resin lead times.
- Ensure the control system supports secure remote diagnostics, batch traceability, and integration with the fab's manufacturing execution system (MES).
Structured evaluation against these items reduces the chance of redesign or compliance gaps after handover. Linking final payment milestones to sustained point-of-use performance during qualification is the most defensible commercial structure for 2026 fab projects. Related process context for fab water trains includes Pretreatment for heavy metal removal in semiconductor UPW systems and Wastewater reuse strategies for semiconductor fabs.
Who This Is For and Next Steps
This guide is for fab facilities engineers, UPW process owners, and procurement teams specifying or bidding 200 mm / 300 mm semiconductor ultrapure water systems against SEMI F63 targets. Municipal drinking-water plants, general industrial softeners, and buyers seeking only laboratory Type I polishers without fab distribution, online particle/TOC redundancy, or point-of-use performance contracts should look elsewhere. Next step: assemble feed-water analysis, design flow (m³/h), and point-of-use limits, then request a quote with those data so CAPEX/OPEX and polishing technology can be screened against the ranges above.
Frequently Asked Questions
What resistivity is required for semiconductor ultrapure water in 2026?
A resistivity above 18.2 MΩ·cm at 25 °C is the baseline for advanced nodes, and it is the practical ionic-cleanliness checkpoint for FinFET doping and gate oxide integrity. Point-of-use monitoring across the distribution loop is required to confirm the value, because polisher-outlet readings can hide ionic slip downstream. Dual-channel online resistivity with auto-calibration is standard practice.
How does SEMI F63 differ from SEMI F61 or F57?
SEMI F63 specifically defines the latest ultrapure water quality and monitoring standards for advanced semiconductor manufacturing, building on the broader guidelines in F57 (process water) and F61 (chemical handling). F63 carries the resistivity, TOC, silica, boron, and particle limits your process tools audit against. F57 and F61 govern the surrounding piping surfaces and chemical handling infrastructure instead.
How are TOC levels below 1 ppb achieved?
TOC below 1 ppb is achieved with 185/254 nm UV oxidation in the primary stage — typically 90–95% TOC destruction at 300–500 mJ/cm² — followed by optimized mixed-bed or EDI polishing. A distribution loop with low biological activity, recirculation at 1.5 m/s or higher, and online TOC analyzers holds the level steady. Analyzers with 0.1 ppb detection limits verify performance continuously.
What are typical CAPEX and OPEX for an ultrapure water system at a 300mm fab?
A 300mm advanced-node fab typically budgets 30–70 million USD in CAPEX and 5–12 million USD per year in OPEX for a 200–500 m³/h UPW train. R&D lines run 1.5–4 million USD, 200 mm fabs 8–18 million USD, and mega-fabs 80–180 million USD. Power for high-flow recirculation and EDI module replacement dominate the operating spend.
How do silica bounce and energy cost affect 300mm fab UPW operation?
Silica bounce — transient excursions above the 0.1 ppb limit — drives polishing-train redesign and filter loading, and levels above 0.3 ppb threaten pattern collapse in EUV lithography. Energy is the other lever: recirculation pumps and UV lamps account for 30–40% of OPEX, and variable-frequency drives plus lower-friction PVDF piping can cut distribution-loop energy by 20%. Both factors belong in the 10-year cost model.
