Silicon carbide ceramic membrane wastewater recovery now pays at fab scale: DAF returns 85–90% of bulk SiC, membrane polishing delivers 99%+ purity, and 50 m³/day trains pay back in 2.5–3.5 years. Effluent carries 100–500 mg/L TSS; disposal runs $150–$400/ton.
Silicon carbide ceramic membrane wastewater recovery, as a design discipline, has moved from pilot curiosity to standard practice for 50 m³/day industrial trains. The full design playbook — flowsheets, purity targets, discharge economics — is detailed in SiC Wastewater Resource Recovery: 2026 Hybrid System Design, 99%+ Purity. This page adds the mechanism-by-mechanism engineering detail and the cost model behind the payback claims.
How Silicon Carbide Ceramic Membrane Systems Cut Wastewater Recovery Costs
A 50 m³/day DAF-MBR-SiC train removes 99.9% of TSS, recovers 85–90% of bulk SiC in the DAF cake, and polishes to 99%+ purity on SiC membranes running 150–400 LMH. Operating cost runs $0.80–$1.50/m³ against avoided disposal of $4–$6/m³, with payback in 2.5–3.5 years.
The cost cut comes from two directions at once. Avoided disposal and recovered material both land on the same balance sheet, so every percentage point of recovery counts twice — once as tonnage not hauled, once as product not purchased. Recovered SiC carries a market value of $12–$18/kg at 99%+ purity, which is why the polishing stage earns its CAPEX even when bulk recovery already looks healthy.
SiC Wastewater Resource Recovery Hybrid System: The 2026 Case
SiC wastewater resource recovery hybrid system economics rest on three 2026 pressures. Global SiC demand is projected at $6.3 billion by 2027, pulling manufacturing volume up with it. Semiconductor fabs — primary consumers — generate 5–10 m³/day of SiC-laden effluent at 100–500 mg/L TSS per SEMI 2024 standards. World Bank 2025 data puts hazardous disposal at $150–$400/ton, a line item that only trends upward.
Regulation tightens the same screw. ZLD compliance for semiconductor effluent demands fluoride below 10 mg/L and copper below 0.5 mg/L, while the EU's CSRD and China's 14th Five-Year Plan push resource recovery into permit conditions. Escalating industrial waste discharge costs are driving the same shift across sectors. A 2025 Shenzhen micro-powder plant pilot proved the upside, cutting raw SiC purchases 35% through on-site recovery and saving $2.1 million/year.
The material itself explains the handling difficulty. Wikipedia's silicon carbide entry rates it at 9–9.5 on the Mohs scale — just below diamond — so every pump, valve, and membrane in the train faces an abrasive load that shreds softer materials. GaN/SiC fab context and wider effluent rules are covered in our guide to third-generation semiconductor wastewater treatment.
Recovery Mechanisms: Flotation, Membrane Filtration, Chemical Leaching
Three mechanisms dominate SiC particle recovery: flotation, membrane filtration, and chemical leaching. Each fits a different particle size, feed chemistry, and purity target. Picking the wrong one shows up fast — as either unrecovered fines or an overloaded chemical bill.
Flotation, particularly the RECOSiC method, excels on larger particles: approximately 98.1% SiC recovery at 98%+ purity under optimized conditions of 0.8 mol/L HF at -400 mV. Cells run at pH 2–4 and 20–30°C for reliable bubble-particle attachment. Effectiveness drops below 5 µm particles as adhesion weakens.
The method uses 50% less energy than the Acheson process (HydropureWater 2025 data). That margin is real: Wikipedia describes Acheson furnacing as combining silica sand and carbon at high temperature, with rod heating to 1700–2500 °C and runs of approximately 20 hours.
SiC membrane filtration owns the fine end. Ceramic membranes at 0.1–1.0 µm pores deliver 99.9% TSS removal at 150–400 LMH, roughly triple the 50–100 LMH typical of polymeric elements. Hydrophilic surfaces and tolerance of 1000 ppm chlorine suit semiconductor duty, and ISO 14040 lifecycle data confirms durability across pH 0–14. On CMP-style streams carrying mixed silica, ceramic membrane wastewater ultrafiltration with 99% silica recovery is the adjacent playbook worth benchmarking.
Chemical leaching handles complex waste streams such as cutting fluids. Acid leaching (H₂SO₄/HCl) dissolves metallic impurities, then alkaline dissolution (NaOH) refines the slurry. Deoxidation at 800–1000°C yields greater than 95% pure SiC (ScienceDirect 2024), with reagent ratios and 2–4 hour reaction times demanding tight control. Secondary streams of metal hydroxides remain the limitation and need their own treatment line.
Hybrid DAF-MBR-SiC System: Design and Operating Envelope
The 2026 hybrid architecture combines pre-concentration, biological polishing, and SiC-specific polishing on a single skid. A 50 m³/day train pairs a DAF for bulk SiC and TSS removal (effluent below 50 mg/L) with an MBR basin at 8,000–12,000 mg/L MLSS for organics, then the SiC ceramic stage for final polish. Design-stage detail for the whole train follows our SiC wastewater treatment engineering specs guide.
DAF MBR SiC Ceramic Membrane Polishing Design
DAF MBR SiC ceramic membrane polishing design assigns each stage a narrow duty and a hard outlet target. The table below lists the operating envelope cited for 2026 designs.
| Parameter | DAF Stage | MBR Stage | SiC Membrane Stage |
|---|---|---|---|
| Influent TSS | 100–500 mg/L | <50 mg/L | <10 mg/L |
| Effluent TSS | <50 mg/L | <10 mg/L | <1 mg/L |
| Flux (LMH) | — | 15–25 | 150–400 |
| Operating pH | 2–4 | 6.5–7.5 | 0–14 |
| Recovery target | 85–90% bulk SiC | — | 99%+ SiC purity |
Sludge from the DAF stage reports a 30–40% solids cake, dry enough for direct re-introduction into upstream SiC feedstock lines after dewatering. SiC membrane backwash runs every 30–60 minutes with 1000 ppm chlorine, plus weekly chemical-enhanced backwash against silica scaling. Plants we audit that stretch backwash beyond 60 minutes trade membrane life for marginal energy savings, and lose on the exchange.
Zero Liquid Discharge Silicon Carbide Recovery ROI: The Numbers
Zero liquid discharge silicon carbide recovery ROI lands between 2.5 and 3.5 years for semiconductor fabs and large industrial plants. DAF concentrate routes to a thin-film evaporator or crystallizer; SiC membrane permeate forwards to RO for greater than 90% water reuse. Operating cost clusters at $0.80–$1.50/m³ treated, set against avoided disposal of $4–$6/m³ and recovered SiC value of $12–$18/kg at 99%+ purity. Five-year ROI runs 180–260% at typical utilization, on energy draw of 0.8–1.2 kWh/m³ dominated by membrane aeration and recirculation pumping.
Water-side value stacks on top of material value. Every reused cubic meter displaces both freshwater purchase and discharge volume, which matters most for fabs in water-stressed regions. Comparable water-reuse economics for wafer lines appear in our silicon wafer wastewater treatment designs coverage.
Silicon Carbide Membrane Filtration for ZLD Compliance
Silicon carbide membrane filtration supports ZLD compliance by surviving the chemistry that compliance demands. The elements tolerate pH 0–14 and 1000 ppm chlorine backwash, so aggressive cleaning cycles that would age polymer membranes in months become routine maintenance here. Wikipedia's ceramic membrane entry notes that silicon carbide requires higher sintering temperatures above 2000 °C versus 1200–1600 °C for oxide membranes — that manufacturing energy is what buys the chemical and thermal tolerance. Hydrophilic surfaces keep flux stable in high-silica feed as long as backwash discipline holds.
Dicing and grinding lines apply the same ceramic membrane water recovery playbook for 99% silica reuse.

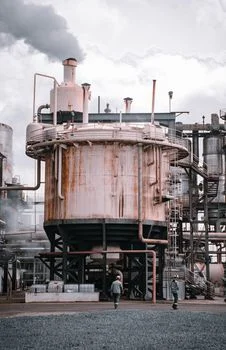

Next Step: Specifying the Equipment Package
Three products carry this application. DAF systems for SiC pre-treatment handle bulk solids and the recoverable cake; Integrated MBR systems for SiC-laden wastewater take the organics load between stages.
PLC-controlled chemical dosing for SiC recovery keeps pH windows and backwash chemistry inside spec without operator babysitting. Need a customized solution? Request a free quote with your specific flow rate and pollutant parameters.
Frequently Asked Questions
What SiC purity is achievable with a hybrid DAF-MBR-SiC system?
Recovered SiC purity typically reaches 99%+ when a SiC ceramic membrane polishing stage runs downstream of the DAF. Bulk recovery of 85–90% happens in the DAF stage, and the final polish delivers the 99.9% TSS removal target. Purity beyond that ceiling requires chemical leaching on the recovered cake. Spec buyers usually set 99% as the contract threshold.
What is the typical payback period for a hybrid SiC recovery system?
Capital payback for semiconductor and large industrial plants commonly falls between 2.5 and 3.5 years. The drivers are avoided disposal costs of $4–$6/m³ and recovered SiC value of $12–$18/kg. Utilization near design flow keeps the payback at the fast end. Underused trains stretch it quickly.
Can SiC ceramic membranes handle high-silica and chlorine environments?
Yes. SiC ceramic membranes are rated for pH 0–14 and tolerate 1000 ppm chlorine backwash cycles, making them suitable for semiconductor wastewater with aggressive cleaning protocols. Hydrophilic surfaces limit silica adhesion between cleans. Weekly chemical-enhanced backwash controls the residual silica scaling, and that tolerance is exactly why the elements outlast polymer here.
How does the hybrid system meet ZLD requirements?
DAF concentrate routes to an evaporator or crystallizer, while SiC membrane permeate forwards to RO for greater than 90% water reuse. The combined loop achieves zero liquid discharge when integrated with a downstream crystallizer. Effluent targets — TSS below 1 mg/L from the polishing stage — stay inside permit conditions throughout. The crystallizer is what closes the loop, so size it with the same care as the membranes.
What does SiC wastewater treatment cost per cubic meter?
Operating cost for 2026 hybrid systems clusters at $0.80–$1.50/m³ treated. Energy draw averages 0.8–1.2 kWh/m³, dominated by membrane aeration and recirculation pumping, with chemicals and backwash making up most of the rest. Against avoided disposal of $4–$6/m³, the net treatment position is positive from commissioning. Feed TSS swings move the number within that band.
