Silicon Wafer Wastewater Treatment Plant: 2027 Engineering Specs, Hybrid DAF-RO-MBR Design & $500K–$15M CAPEX Breakdown

Why Silicon Wafer Wastewater Requires Specialized Treatment Plants

Silicon wafer grinding and slicing operations generate approximately 10 m³ of wastewater per 12-inch wafer, containing total suspended solids (TSS) concentrations as high as 5,000 mg/L. Unlike municipal or general industrial effluent, silicon wafer wastewater is characterized by ultra-fine silicon slurry particles (0.1–10 μm) that exhibit high abrasive potential and a tendency to cause rapid mechanical fouling in standard filtration systems. Conventional biological treatment plants often fail in these environments because the high salinity (5,000–10,000 mg/L TDS) and the presence of toxic organic solvents, such as isopropyl alcohol (IPA) and acetone, inhibit the metabolic activity of standard activated sludge.

Hydrofluoric acid (HF), a primary component in wafer cleaning and etching, presents a secondary challenge. Effective treatment requires precise pH adjustment to a target range of 6.5–8.5 to precipitate fluorides, followed by advanced oxidation processes (AOP) to eliminate chemical oxygen demand (COD). Field data from semiconductor installations indicates that AOP can achieve over 90% COD removal, which is essential for meeting EPA discharge limits. Without these specialized stages, the "silicon slurry challenge" becomes a primary driver of operational failure; specifically, silicon particles can clog reverse osmosis (RO) membranes within 48 hours if pre-treatment is insufficient. Implementing a ZSQ Series DAF system for silicon slurry pre-treatment allows for 92–97% TSS removal, providing the necessary protection for downstream membrane stages.

The integration of Dissolved Air Flotation (DAF), Reverse Osmosis (RO), and Membrane Bioreactors (MBR) into a hybrid design has become the industry standard for modern fabs. These systems address the high-strength organic loads and the inorganic particle density simultaneously. By utilizing hybrid designs, facility managers can transition from simple discharge to high-efficiency water recycling, which is critical as global semiconductor manufacturing faces increasing water scarcity and stricter environmental oversight.

Hybrid System Designs: DAF-RO vs. DAF-RO-MBR for Semiconductor Fabs

Hybrid DAF-RO-MBR systems achieve 95% water recovery in semiconductor fabs, whereas simpler DAF-RO configurations are typically limited to 70–80% recovery. The choice between these two designs depends largely on the fab's daily flow rate, effluent quality requirements, and available physical footprint. DAF-RO systems are generally preferred for smaller facilities with flow rates under 300 GPM or for fabs that already have existing biological treatment infrastructure. These systems carry a lower CAPEX ($500K–$3M) but require more frequent membrane cleaning due to the absence of the biological polishing provided by an MBR.

In contrast, DAF-RO-MBR systems are designed for high-volume fabs (>300 GPM) or those pursuing zero-liquid-discharge (ZLD) goals. The inclusion of an MBR allows for a significantly longer hydraulic retention time (HRT). For silicon wafer wastewater, the MBR HRT must be maintained between 8–12 hours—nearly double the 4–6 hours required for municipal sewage—to account for the high COD (500–2,000 mg/L) and inhibitory salinity levels. Despite the higher energy demand (1.5–2.5 kWh/m³ compared to 0.8–1.2 kWh/m³ for DAF-RO), the MBR provides a 60% footprint reduction compared to conventional activated sludge and clarifiers, making it ideal for urban fab locations.

Utilizing an integrated MBR system for near-reuse-quality effluent ensures that the water can be cycled back into cooling towers or secondary process loops. This hybrid approach not only mitigates the risk of fouling but also provides a buffer against fluctuations in influent chemistry, which are common during wafer production ramp-ups.

2027 Engineering Specs for Silicon Wafer Wastewater Treatment Plants

2027 engineering specifications for zero-fouling silicon wafer treatment require an air-to-solids ratio of 0.02–0.04 in the DAF stage and 0.1 μm PVDF membrane pore sizes in the MBR stage. These parameters are optimized to handle the specific gravity and particle size distribution of silicon slurry. For the DAF system, maintaining a microbubble size of 30–50 μm is critical; bubbles larger than this range fail to adhere to the ultra-fine silicon particles, while smaller bubbles may not provide sufficient buoyancy for a hydraulic loading rate of 5–10 m/h. This precision ensures that the bulk of the solids are removed before they reach the sensitive membrane stages.

Downstream, the RO stage utilizes 8-inch spiral-wound polyamide thin-film composite (TFC) membranes. These membranes are specified for a 99.5% salt rejection rate to handle the high TDS common in semiconductor cleaning processes. To prevent fouling, the pre-treatment must achieve a Silt Density Index (SDI) of less than 3. This is accomplished through a combination of DAF and multimedia filtration using layers of anthracite, sand, and garnet. For organic destruction, UV-H²O² advanced oxidation is specified with a 254 nm UV dose of 500–1,000 mJ/cm², effectively breaking down complex solvents that RO membranes cannot reject.

For facility managers designing these systems, selecting the correct MBR membrane bioreactor module is essential for maintaining flux stability. incorporating RO systems for silicon wafer wastewater recycling requires a robust cleaning-in-place (CIP) protocol to maintain the 75–85% recovery rate expected in high-volume wafer production environments.

CAPEX and OPEX Breakdown: $500K to $15M for Semiconductor Fabs

Turnkey silicon wafer wastewater treatment plants for 300–1,200 GPM facilities require a CAPEX of $3M to $15M, with OPEX ranging from $1.20 to $1.80 per cubic meter treated. The wide range in capital expenditure is driven primarily by the degree of automation, the volume of wastewater, and whether the system is a modular skid-mounted unit or a fully integrated turnkey plant. Modular DAF-RO systems for smaller fabs (50–300 GPM) represent the entry point of the market, costing between $500K and $2M. While these systems have lower upfront costs, their OPEX is sensitive to membrane replacement cycles, which typically account for 20% of total operating costs.

Operating expenses are dominated by energy (30%) and chemicals (15%). Energy consumption is highest in MBR-equipped plants due to the continuous aeration required for membrane scouring and biological activity. Chemical costs are primarily associated with coagulants (e.g., PAC) for the DAF stage and pH neutralizers for HF wastewater. However, the ROI models for industrial wastewater treatment plants show that water recycling can save $0.50–$1.00/m³ compared to purchasing municipal water. For a fab processing 500 GPM, this can result in a payback period of 3 to 7 years, depending on local utility rates and discharge surcharges.

To optimize sludge management and reduce disposal costs, many fabs integrate sludge dewatering for silicon wafer wastewater treatment using high-pressure presses. This reduces the volume of hazardous waste by producing cake with 35–45% dry solids content. For additional technical context on similar high-tech environments, see the solar cell wastewater treatment specs for photovoltaic fabs or review PV wastewater treatment equipment for semiconductor-adjacent fabs.

How to Select a Silicon Wafer Wastewater Treatment Supplier: 5 Critical Questions

Selecting a wastewater supplier for a semiconductor facility requires verifying zero-fouling guarantees and the ability to integrate advanced oxidation (AOP) for hydrofluoric acid and solvent removal. Procurement teams must look beyond general industrial experience and focus on suppliers who understand the specific kinetics of silicon slurry and the high-salinity challenges of fab effluent. The following five questions serve as a decision framework for evaluating potential partners:

• Does the supplier offer zero-fouling guarantees for RO membranes? Ensure the design includes high-efficiency pre-treatment like PVDF MBR and DAF. Systems lacking these often suffer from irreversible membrane scaling within the first year of operation.
• Can the system handle hydrofluoric acid (HF) wastewater safely? Ask for specific pH adjustment and fluoride precipitation specs. The integration of AOP is the industry standard for destroying the organic solvents that often accompany HF in cleaning streams.
• What is the projected CAPEX/OPEX for your fab’s specific flow rate? Request a breakdown of modular vs. turnkey costs. For example, a 600 GPM plant may cost approximately $3.2M for the core modules, but installation and site integration can significantly impact the final budget.
• Does the supplier provide EPA/ISO compliance documentation? Semiconductor fabs are subject to strict limits (COD ≤50 mg/L, TSS ≤30 mg/L). Demand third-party lab reports from previous semiconductor installations to verify performance.
• Is the system design scalable for future fab expansion? Modular designs allow for phased scaling. A fab might start with a $500K DAF-RO system for 50 GPM and add MBR and AOP modules as capacity expands to 600 GPM.

By asking these questions, facility managers can ensure they are investing in a system that balances initial capital outlay with long-term operational stability and compliance. For those comparing regional cost variations, refer to the CAPEX breakdown for industrial wastewater treatment to understand how location influences labor and material costs.

Frequently Asked Questions

What are the EPA discharge limits for silicon wafer wastewater?
Under EPA 40 CFR Part 469, semiconductor fabs must generally meet limits of COD ≤50 mg/L, TSS ≤30 mg/L, and Fluoride ≤4 mg/L. pH must be maintained between 6.0 and 9.0.

How much does a 600 GPM silicon wafer wastewater treatment plant cost?
A 600 GPM plant typically requires a CAPEX of $3M to $12M. The price varies based on the inclusion of MBR for high-quality reuse and AOP for organic solvent removal. OPEX usually ranges from $1.20 to $1.80 per cubic meter.

What is the best pre-treatment for silicon slurry in wastewater?
Dissolved Air Flotation (DAF) is the most effective pre-treatment. When paired with appropriate coagulants, it achieves 92–97% TSS removal, which is vital for protecting downstream RO membranes from mechanical fouling.

Can MBR systems handle high-salinity silicon wafer wastewater?
Yes, but the system must be designed with an increased hydraulic retention time (HRT) of 8–12 hours to allow the biomass to process COD in a high-TDS environment. This prevents osmotic shock to the microorganisms.

What is the payback period for water recycling in semiconductor fabs?
For fabs processing more than 500 GPM, the payback period is typically 3 to 7 years. Savings are generated through reduced municipal water purchases ($0.50–$1.00/m³ savings) and lower discharge surcharges.

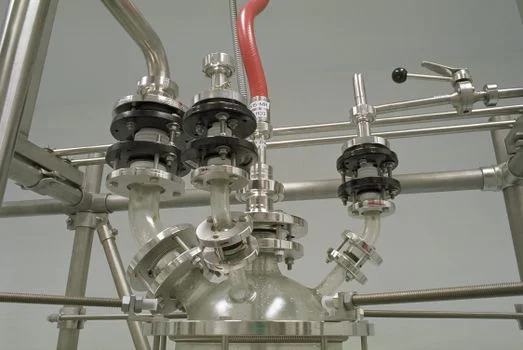

Recommended Equipment for This Application
