An MBR system for silicon wafer wastewater pairs 0.1 μm PVDF membrane bioreactors with DAF pretreatment and RO recovery to reach 99.8% water recovery and COD below 50 mg/L. CAPEX runs $500K–$15M by capacity; OPEX lands between $0.80 and $1.50 per cubic meter treated.
What Is an MBR System for Silicon Wafer Wastewater?
An MBR system for silicon wafer wastewater is a three-stage train. DAF flotation removes 90–95% of suspended CMP solids, RO recovers 85–95% of the water, and a 0.1 μm PVDF membrane bioreactor polishes effluent to COD below 50 mg/L. Hybrid designs exist because no single stage survives CMP slurries, fluoride, and refractory organics together.
Most fabs we size for CMP-dominated feeds run the membrane at the lower end of its flux band, because 50–300 nm silica colloids blind surfaces faster than textbook flux tables admit. That field reality pushes flux, scouring air, dosing, and redundancy toward conservative settings. The treatment targets stay fixed: 99.8% water recovery and effluent COD below 50 mg/L, well inside China's GB 8978-1996 COD ceiling of 100 mg/L.
The 2027 benchmark envelope exists because reuse targets keep tightening while fab water demand keeps growing. A train designed for 99.8% recovery with COD <50 mg/L clears GB 8978-1996, EPA 40 CFR Part 469, and typical local permits at the same time. Designing to the strictest of the three layers is cheaper than retrofitting a stage later. Every specification below is written against that envelope.
This guide walks the decision path in order: what breaks, which architecture fits, the specification benchmarks, the CAPEX and OPEX math, and the compliance file. Each section ends in numbers you can carry into a vendor meeting. The same logic holds for China, Taiwan, Korea, and US permit environments.
Why Silicon Wafer Wastewater Breaks Conventional Treatment
Silicon wafer wastewater carries three contaminant groups — CMP slurries, hydrofluoric acid, and refractory organics — and each defeats a different part of a conventional plant. Clarifiers, media filters, and standard activated sludge were never engineered for streams this hostile. The failure modes arrive as filter blinding, corrosion, and pass-through organics.
Chemical Mechanical Planarization (CMP) slurries hold 50–300 nm silica or alumina particles engineered to resist aggregation, per particle-size data summarized by vsep.com. That stability means the colloids do not settle under gravity. They blind conventional media filters within days and overload DAF units not designed for sub-micron solids, cutting throughput long before compliance is threatened.
Hydrofluoric acid (HF) from etching attacks the plant itself, not just the biology. HF is highly corrosive to stainless steel and degrades biological treatment systems. Meeting China's GB 8978-1996 fluoride design target of <5 mg/L calls for PVDF (polyvinylidene fluoride) and Hastelloy alloys, plus precise pH adjustment to precipitate fluoride as calcium fluoride. A 2025 Korean fab cut HF violations by 90% using automated lime dosing at pH 6.5–7.5 with PVDF membranes in the train.
Refractory organics — photoresists and tetramethylammonium hydroxide (TMAH) — resist conventional biological degradation. Traditional activated sludge typically achieves less than 40% COD removal on these compounds (field data, 2025). Effective removal needs advanced oxidation processes or an integrated MBR built on 0.1 μm membranes, which reaches greater than 95% COD removal on the same loads.
The combination is what kills single-technology bids. A stream that is simultaneously sub-micron, fluoride-bearing, and organically refractory hands every unit process a job it was not built for. Vendors who quote a clarifier-plus-filter package for this matrix usually return within a year to quote the membranes they skipped.
Characterization comes before architecture. A two-week sampling campaign that captures campaign cleans, slurry changeovers, and maintenance dumps will find the pH 2–12 envelope and the 10–100 mg/L HF band that weekly averages hide. Plants that skip this step buy the wrong train at the right price.
How a DAF-RO-MBR System for Semiconductor Fab Wastewater Works
A DAF-RO-MBR system for semiconductor fab effluent is the default architecture for high-TSS streams, particularly CMP-dominated flows above 500 m³/day. The DAF unit removes 90–95% of suspended solids, including fine colloids, by floating them on microbubbles for skimming. RO then recovers 85–90% of the water and cuts fresh water demand. The MBR polishes RO permeate or a split of DAF effluent to COD typically below 10 mg/L, in a footprint smaller than conventional builds.
Stage-one hardware matters most, because DAF performance sets the load every downstream membrane sees. The DAF system for CMP wastewater pretreatment is engineered for exactly this high-TSS duty. Most plants we audit under-size the DAF hydraulic reserve, then pay the difference back in membrane cleanings.
Zero-Fouling MBR Design for CMP Wastewater
Zero-fouling MBR design for CMP wastewater rests on submerged PVDF membranes with a 0.1 μm pore size, chosen for chemical resistance and durability. Typical flux rates run 20–30 LMH (liters per square meter per hour). Robust air scouring at 0.2–0.4 Nm³/m²·h creates the shear that continuously sweeps CMP particles off the membrane surface. The result is stable operation, extended membrane life, and energy consumption between 0.4–0.6 kWh/m³ (DF Series MBR).
Chemical Precipitation-MBR: The Lower-CAPEX Route
Chemical precipitation-MBR carries a lower upfront cost of $300K–$8M, paid back through higher operating expense ($1.20–$2.00/m³ treated) driven mainly by sludge disposal. Coagulants such as ferric chloride (100–300 mg/L) or lime destabilize colloids and precipitate dissolved contaminants, and the MBR then finishes biological treatment and solids separation. The route suits HF removal and dissolved metals such as copper and nickel. Where solids handling dominates the design question instead, mbr for sludge separation gets a dedicated walkthrough on our monocrystalline silicon page.
RO Recovery Rates and Silica Scaling Control
RO recovery in wafer fabs tops out by staging, not willpower. Single-stage systems reach 80–90% recovery. Two-stage systems reach 90–95%, usually with inter-stage pH adjustment held at 6.5–7.5. That pH window keeps silica soluble — silica scaling is the failure mode that quietly robs semiconductor RO trains of output between cleanings, and inter-stage dosing with online pH monitoring is cheap insurance against it.
Choosing between the hybrids is a five-minute decision once three numbers are on the table. If TSS dominates and reuse water has value, the DAF-RO-MBR train pays its higher CAPEX back through $0.80–$1.50/m³ OPEX and 85–95% recovery. If fluoride or dissolved metals dominate and reuse is optional, precipitation-MBR reaches permit at $300K–$8M CAPEX and accepts $1.20–$2.00/m³ OPEX. Mixed streams justify splitting the header: precipitation on the HF leg, DAF on the CMP leg, merged before the MBR.
The two leading hybrid architectures compare as follows:
| Feature | DAF-RO-MBR System | Chemical Precipitation-MBR System |
|---|---|---|
| Primary Application | High-TSS streams (e.g., CMP slurries) | HF removal, metal precipitation, lower TSS streams |
| CapEx Range | Higher ($2M–$15M) | Lower ($300K–$8M) |
| OpEx Benchmark | Lower ($0.80–$1.50/m³) | Higher ($1.20–$2.00/m³) |
| TSS Removal (Pretreatment) | 90–95% (DAF) | Variable, dependent on coagulant/flocculant |
| Water Recovery | 85–95% (RO) | Lower (typically 60-80% post-MBR) |
| Sludge Generation | Moderate (DAF sludge, MBR sludge) | Higher (chemical sludge, MBR sludge) |
| Footprint | Compact for high recovery | Potentially larger for sludge handling |
MBR specifications for wafer fab effluent start from a wide influent envelope, because fab drains mix acidic etching with alkaline CMP and cleaning discharges. Influent TSS ranges 100–1,000 mg/L and COD 200–1,500 mg/L. HF commonly runs 10–100 mg/L, and pH swings from 2 to 12 across a production week. Score vendor proposals against every line of that envelope, not just the average values.
DAF pretreatment is engineered for robust particle removal ahead of the membranes. Microbubbles of 30–50 μm attach to suspended particles and float them to the surface for skimming. Executed correctly, this stage removes 90–95% of TSS and sharply cuts the solids load reaching downstream systems.
RO systems carry the reuse burden. Designs should target 90–95% recovery to meet 2027 benchmarks, with permeate flux of 15–25 LMH at operating pressures of 15–40 bar. Antiscalant dosing at 2–5 mg/L and feed pH held at 6.5–7.5 keep silica soluble and membranes productive.
Silica deserves its own line in the OPEX review. Antiscalant at 2–5 mg/L costs almost nothing against the recovery it protects, while a single scaling event costs a full cleaning cycle and days of lost output. Dosing packages sized for silica alone can miss carbonate scaling at the same pH setpoints, so both threats belong on the chemical list.
The biological stage sets the effluent floor. A typical MBR system for silicon wafer wastewater runs PVDF membranes of 0.1 μm nominal pore size, MLSS at 8,000–12,000 mg/L, and SRT of 20–30 days for robust degradation of refractory organics. Effluent COD lands below 50 mg/L, meeting both EPA and China GB 8978-1996 discharge limits. Our MBR Membrane Bioreactor Wastewater Treatment System is built around these 0.1 μm PVDF modules and duty points.
Automated chemical dosing holds the whole train inside its operating window. PAC dosed at 50–200 mg/L coagulates CMP wastewater, ferric chloride at 100–300 mg/L precipitates heavy metals and sharpens phosphorus removal, and lime holds pH at 6.5–7.5 for fluoride precipitation and biological activity. The PLC-controlled chemical dosing for pH adjustment and coagulant addition keeps those setpoints stable through influent swings.
Detailed engineering specifications for the key components:
| Parameter | DAF System (HydropureWater) | RO System (Typical) | MBR System (HydropureWater DF Series) | Chemical Dosing (Typical) |
|---|---|---|---|---|
| Capacity Range | 4–300 m³/h | 50–2000 m³/day | 50–2000 m³/day | Automated, proportional |
| TSS Removal | 90–95% | >99% (post-DAF/MBR) | >99% (solids retention) | N/A |
| Microbubble Size | 30–50 μm | N/A | N/A | N/A |
| Membrane Material | N/A | Polyamide (RO) | PVDF | N/A |
| Pore Size | N/A | <0.001 μm (RO) | 0.1 μm | N/A |
| Flux Rate | N/A | 15–25 LMH | 20–30 LMH | N/A |
| Operating Pressure | 0.3–0.5 MPa | 15–40 bar | <0.05 MPa (transmembrane) | N/A |
| MLSS Concentration | N/A | N/A | 8,000–12,000 mg/L | N/A |
| SRT (Solids Retention Time) | N/A | N/A | 20–30 days | N/A |
| Effluent COD | N/A | <50 mg/L (post-MBR) | <50 mg/L | N/A |
| Chemicals & Dosing | N/A | Antiscalant (2–5 mg/L) | N/A | PAC (50–200 mg/L), Ferric Chloride (100–300 mg/L), Lime (pH 6.5–7.5) |
MBR CAPEX for Semiconductor Wastewater Treatment: $500K to $15M
MBR CAPEX for semiconductor wastewater treatment scales in three capacity tiers: $500K–$2M at 50–200 m³/day, $2M–$8M at 200–1,000 m³/day, and $8M–$15M at 1,000–2,000 m³/day and above. Those figures include core equipment (DAF, MBR, RO), civil works, installation, and commissioning. The monocrystalline side of the industry buys the same train — the Monocrystalline Silicon Wastewater Treatment Plant: 2026 Engineering Specs, Hybrid DAF-RO-MBR Design, $500K–$15M CAPEX Breakdown page breaks its numbers down tier by tier.
Three cost drivers decide where a quote lands inside a tier. Membrane material choice — PVDF versus ceramic — moves component cost the most. Automation level, from manual controls to PLC-based systems, changes both initial investment and long-term operating efficiency. Pretreatment selection, DAF versus simpler chemical precipitation, sets overall system complexity and price.
Tier boundaries move with site facts as well as flow. A fab with high reuse demand justifies jumping a tier early, because recovery equipment earns its keep daily. Sites with difficult discharge permits often shift budget from RO recovery toward monitoring and redundancy. Retrofit projects inside existing buildings routinely price above greenfield for the same process scope, because civil works squeeze into occupied space.
OPEX runs $0.80–$1.50 per cubic meter treated. Energy for pumps, blowers, and RO high-pressure pumps accounts for $0.20–$0.40/m³. Chemicals — coagulants, antiscalants, and pH adjusters — add $0.15–$0.30/m³. Membrane replacement, periodic but unavoidable, contributes $0.10–$0.20/m³.
The return case is where finance teams listen. A 2024 Taiwan fab case study showed a 35% reduction in raw water procurement costs from high-recovery reuse. Robust treatment also keeps fabs clear of compliance penalties that can reach $2.1 million.
Combined water savings and avoided fines typically produce payback in 2–4 years for fabs above 500 m³/day. To budget the comparison properly, a downloadable CAPEX/OPEX spreadsheet template is available with formulas for fab-specific inputs such as influent COD, capacity, and local utility rates.
| Capacity Range | Estimated CAPEX | OPEX Benchmark |
|---|---|---|
| 50–200 m³/day | $500K–$2M | $0.80–$1.50/m³ treated |
| 200–1,000 m³/day | $2M–$8M | |
| 1,000–2,000 m³/day | $8M–$15M |
Key OPEX Drivers (per m³ treated):
- Energy: $0.20–$0.40
- Chemicals: $0.15–$0.30
- Membrane Replacement: $0.10–$0.20
- Sludge Disposal: $0.10–$0.30 (variable)
- Labor & Maintenance: $0.15–$0.30

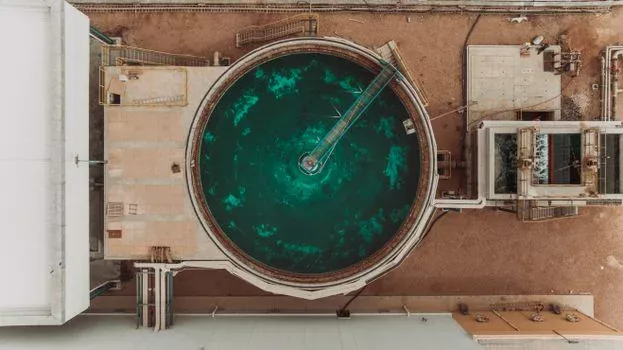

Compliance Checklist: GB 8978-1996, EPA 40 CFR Part 469, and Local Permits
Compliance for silicon wafer discharge runs on three layers: China's GB 8978-1996, US EPA's 40 CFR Part 469, and local permits that are often stricter than both. EHS managers and procurement teams can audit existing systems or vendor proposals against the checklist below. The GB 8978-1996 values listed under item 1 are the design targets most fabs adopt; where a local permit tightens them further, the local number governs.
1. China GB 8978-1996 design targets:
- COD (Chemical Oxygen Demand): <100 mg/L
- HF (Hydrofluoric Acid): <5 mg/L
- pH: 6–9
- TSS (Total Suspended Solids): <70 mg/L
- Other specific limits for metals (e.g., Copper <0.5 mg/L, Nickel <1.0 mg/L)
Designing fluoride to <5 mg/L keeps a fab comfortably inside local permits that tighten the national fluoride ceiling.
On the US side, the federal framework is 40 CFR Part 469 (Semiconductor Manufacturing Point Source Category). According to US EPA, the rule was promulgated in 1983, and pollutants found in these wastewaters include fluoride, arsenic and organic compounds. The rule reaches plants through NPDES permits. Under Effluent Guidelines Program Plan 15 (January 2023), EPA completed a detailed study of the E&EC category, found its data review does not demonstrate a need to revise the existing regulation at this time, and intends to continue to monitor discharges of PFAS from this category (US EPA).
Earlier project summaries cite EPA semiconductor-subcategory values of COD <250 mg/L, copper <1.3 mg/L, and lead <0.1 mg/L daily max, with pH 6–9. Treat those as placeholder permit numbers rather than federal tables: the federal BAT limitations for the semiconductor subcategory under 40 CFR § 469.15 cover fluoride at 32.0 mg/L maximum for any one day and 17.4 mg/L as a 30-day average, plus total toxic organics at 1.37 mg/L (40 CFR § 469.15). Always score a proposal against the actual NPDES permit or pretreatment agreement.
3. Local and regional standards: Always verify stricter local or regional environmental agency limits. Taiwan's EPA, for instance, often enforces COD <60 mg/L and TSS <30 mg/L for certain industrial discharges — tighter than both national baselines above.
4. Monitoring requirements:
- Continuous online monitoring for key parameters: pH, TSS, and COD.
- Regular grab sampling and laboratory analysis: Daily for flow rates, weekly for general parameters, and quarterly for metals (using methods like ICP-MS) and specific refractory organics.
- Calibration and maintenance of all monitoring equipment according to manufacturer specifications.
5. Documentation and reporting:
- Maintain daily logs of influent and effluent flow rates, chemical dosing parameters, and effluent quality data.
- Ensure all compliance reports are submitted to regulatory bodies on time.
- Conduct annual third-party audits of the wastewater treatment system and compliance records to identify and rectify potential issues proactively.
- Keep detailed records of all maintenance activities, calibration logs, and waste disposal manifests.
Who Should Specify This Train, and the Next Step
Fabs above roughly 50 m³/day carrying combined CMP, HF, and refractory-organic loads are the natural fit for a DAF-RO-MBR or precipitation-MBR train, especially where reuse water has a price. Very small flows, or discharges that are grit-dominated rather than colloid-dominated, justify simpler plants. Before signing anything, run a six-point check:
- Design basis covers the full influent envelope: TSS 100–1,000 mg/L, COD 200–1,500 mg/L, HF 10–100 mg/L, pH 2–12.
- Pretreatment matches the dominant contaminant — DAF for CMP-dominant TSS, precipitation for HF and dissolved metals.
- Wetted materials are specified: 0.1 μm PVDF membranes, Hastelloy or compatible plastics on the HF path.
- Recovery and effluent commitments are stated with conditions — 85–95% RO recovery, effluent COD <50 mg/L at design load.
- OPEX is quoted line by line against the $0.80–$1.50/m³ benchmark, including sludge disposal.
- Every permit parameter traces to a treatment stage and a monitoring point.
The next step is a sizing pass on your real numbers. Send your flow rate and pollutant profile for a quote; capacity, influent COD, TSS, fluoride, and a reuse target are enough to anchor a budget-grade proposal within the tiers above.
Frequently Asked Questions
What is the best system for CMP wastewater?
The best system for CMP wastewater is a hybrid DAF-RO-MBR configuration. The DAF (Dissolved Air Flotation) unit removes over 90% of total suspended solids, including fine CMP particles. Reverse Osmosis then recovers 85–90% of the water, and the MBR polishes effluent to COD typically below 10 mg/L. Standalone biological systems are generally ineffective on CMP streams, often achieving less than 60% COD removal, because the colloidal load defeats the biomass before organics degrade.
How do you prevent RO membrane fouling from CMP particles?
Preventing RO fouling from CMP particles requires multi-stage pretreatment. Use robust 0.1 μm pre-filtration from an MBR or ultrafiltration system ahead of the membranes. Hold RO feed pH between 6.5–7.5 to prevent silica precipitation, and dose antiscalant at 2–5 mg/L to inhibit scaling. Clean the membranes chemically every 3–6 months with citric acid at pH 2–3. Plants that let the pH window drift foul first, regardless of antiscalant brand.
What is the typical payback period for a silicon wafer wastewater system?
The typical payback period is 2–4 years for fabs with capacities exceeding 500 m³/day. The return comes from two lines: raw water procurement savings up to 35%, shown in a 2024 Taiwan fab case study, and avoided compliance fines, which can reach millions of dollars annually. Smaller fabs still earn the water-savings line, but fixed costs spread over fewer cubic meters stretch the same payback math.
Can a PVDF membrane bioreactor for hydrofluoric acid wastewater handle fluoride?
Yes, a PVDF membrane bioreactor for hydrofluoric acid wastewater handles fluoride when three design conditions hold. Membranes and wetted parts must be HF-resistant — PVDF membranes, Hastelloy or compatible plastics for piping. Automated pH adjustment must precipitate fluoride as calcium fluoride before the biological stage. Influent HF should also sit below 5 mg/L entering biology, protecting microorganisms and equipment. The 2025 Korean fab result — 90% fewer HF violations after automated lime dosing — shows the dosing loop, not the membrane, is the usual weak point.
How do DAF and chemical precipitation differ for CMP wastewater?
The key difference is mechanism: DAF floats solids, precipitation chemically aggregates them. DAF removes 90–95% of TSS, including fine CMP particles, using microbubbles and typically minimal or no flocculation chemicals. Chemical precipitation doses coagulants such as ferric chloride at 100–300 mg/L to destabilize particles and precipitate dissolved metals, generating a higher sludge volume with costlier disposal. DAF sludge comes off more concentrated and lower in volume.
