Integrated circuit wastewater treatment plants must achieve effluent quality below stringent regulatory limits, including fluoride (≤15 mg/L), TMAH (≤1 mg/L), and COD (≤50 mg/L), as mandated by EPA 40 CFR Part 469 and Taiwan EPA standards. Zero-fouling MBR systems, utilizing 0.1 μm PVDF membranes, consistently deliver 99.9% TSS removal and 95% COD reduction. Pretreatment with chemical precipitation (CaCl₂ + NaOH) effectively reduces fluoride concentrations to less than 5 mg/L. Capital expenditures (CAPEX) for these advanced facilities typically range from $5M for a 50 m³/day plant to $50M for a 5,000 m³/day facility, with operational expenditures (OPEX) between $0.80–$2.50/m³ depending on zero-liquid discharge (ZLD) requirements.

Why Integrated Circuit Wastewater Treatment Plants Fail: A Fab Manager’s Story

MBR membranes in integrated circuit wastewater treatment plants frequently experience a 30% flux decline within six months due to severe fluoride scaling and photoresist buildup, leading to annual replacement costs exceeding $200,000. This rapid deterioration of membrane performance is a common frustration for fab managers, directly impacting operational stability and increasing maintenance budgets. Beyond physical fouling, inadequate treatment often results in permit violations, particularly for fluoride concentrations exceeding the EPA 40 CFR Part 469 limit of 15 mg/L, or TMAH levels surpassing Taiwan EPA’s 1 mg/L standard. Such violations trigger substantial regulatory fines and can lead to production downtime while corrective measures are implemented. Common failure modes in existing integrated circuit wastewater treatment plants stem from several critical design and operational shortcomings. Firstly, membrane fouling from inorganic precipitates like calcium fluoride (CaF₂) and organic contaminants such as photoresist polymers is pervasive. These substances form a tenacious cake layer, reducing flux and increasing trans-membrane pressure (TMP). Secondly, biological treatment systems are highly susceptible to toxicity from heavy metals (e.g., copper, nickel) and organic compounds like TMAH, which can inhibit microbial activity and lead to effluent non-compliance. Finally, many conventional systems lack adequate pretreatment stages for high-COD streams, which often range from 500–3,000 mg/L in IC fabrication wastewater, overwhelming biological processes and leading to poor overall treatment efficiency. Addressing these specific challenges requires a specialized approach tailored to the unique chemical profile of semiconductor fab wastewater treatment.

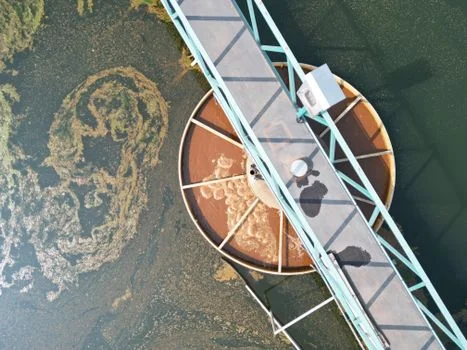

IC Wastewater Pollutant Profile: Fluoride, TMAH, Metals & COD Limits

Integrated circuit fabrication facilities generate a distinct wastewater profile characterized by high concentrations of fluoride, tetramethylammonium hydroxide (TMAH), heavy metals, and chemical oxygen demand (COD). These pollutants originate from various processes, including etching, chemical mechanical planarization (CMP), and cleaning steps. Fluoride, a byproduct of hydrofluoric acid (HF) etching, typically appears in concentrations ranging from 100–500 mg/L in raw wastewater streams. TMAH, a common developer in photolithography, can be present at 5–50 mg/L, posing a significant challenge for biological treatment due to its toxicity. Photoresist residues and other organic compounds contribute to a high chemical oxygen demand (COD), often between 1,000–5,000 mg/L, while heavy metals like copper (10–100 mg/L) and nickel (5–50 mg/L) are common from plating and etching processes. Meeting regulatory limits for these specific pollutants is paramount for semiconductor fabs. The U.S. EPA 40 CFR Part 469 sets a stringent effluent limit of ≤15 mg/L for fluoride. Taiwan EPA mandates TMAH concentrations in discharge to be ≤1 mg/L. The EU Industrial Emissions Directive requires COD levels to be ≤50 mg/L for many industrial discharges. These limits are challenging to achieve with generic wastewater treatment approaches. TMAH and various heavy metals are known to inhibit the nitrification process in biological wastewater treatment systems at concentrations exceeding 10 mg/L, compromising the removal of nitrogen compounds and overall effluent quality. Effective treatment strategies for semiconductor fab wastewater treatment must specifically target these hazardous components.

IC Wastewater Pollutant	Typical Influent Concentration	Key Regulatory Limit	Regulatory Body
Fluoride (F⁻)	100–500 mg/L	≤15 mg/L	EPA 40 CFR Part 469
Tetramethylammonium Hydroxide (TMAH)	5–50 mg/L	≤1 mg/L	Taiwan EPA
Chemical Oxygen Demand (COD)	1,000–5,000 mg/L	≤50 mg/L	EU Industrial Emissions Directive
Copper (Cu)	10–100 mg/L	≤0.2–1.0 mg/L (varies)	Local/Regional Standards
Nickel (Ni)	5–50 mg/L	≤0.2–1.0 mg/L (varies)	Local/Regional Standards
Total Suspended Solids (TSS)	50–200 mg/L	≤10–30 mg/L (varies)	Local/Regional Standards

Zero-Fouling Design: Chemical Pretreatment + MBR for IC Wastewater

Achieving zero-fouling performance in integrated circuit wastewater treatment plants relies on a multi-stage approach, combining robust chemical pretreatment with advanced membrane bioreactor (MBR) technology. This strategy directly addresses the unique challenges posed by IC-specific pollutants, particularly fluoride scaling and high-COD photoresist. The first critical step is chemical precipitation for fluoride removal from wastewater. Dosing with calcium chloride (CaCl₂) and sodium hydroxide (NaOH) at an approximate 1:1 molar ratio of Ca:F effectively reduces fluoride concentrations from typically 500 mg/L down to less than 5 mg/L, achieving greater than 99% removal efficiency. This process forms insoluble calcium fluoride precipitates, which are then easily separated. Precision in chemical addition is managed by an automatic chemical dosing system, ensuring optimal reaction conditions and minimizing reagent waste. Following fluoride precipitation, coagulation and flocculation are essential for removing photoresist particles and other suspended solids. Polyaluminum chloride (PAC) dosed at 10–50 mg/L, combined with a polymer flocculant (PAM) at 1–5 mg/L, achieves approximately 95% efficiency in removing photoresist and total suspended solids (TSS). This pretreatment significantly reduces the load on subsequent biological and membrane stages, preventing fouling by larger particles and organic colloids. The pretreated wastewater then enters the biological treatment stage, often an anoxic/aerobic (A/O) process, critical for TMAH wastewater treatment and high-COD industrial wastewater degradation. An A/O process with a hydraulic retention time (HRT) of 12–24 hours ensures sufficient time for microbial communities to acclimate and degrade complex organic compounds and TMAH, mitigating biological toxicity. The core of the zero-fouling design is the MBR system. Specifically, MBR membrane bioreactor for IC wastewater treatment employs 0.1 μm PVDF flat-sheet membranes, which offer superior resistance to chemical attack and fouling compared to hollow-fiber alternatives. These 0.1 μm PVDF flat-sheet membranes for high-COD streams are submerged in the bioreactor, where a consistent aeration rate of 0.3–0.5 m³/m²·h is maintained. This vigorous aeration serves multiple purposes: it provides oxygen for biological activity, scours the membrane surface to prevent foulant accumulation, and keeps solids in suspension, ensuring a stable flux greater than 20 LMH. The combination of effective chemical pretreatment and optimized MBR operation is key to achieving consistent effluent quality and preventing MBR membrane fouling in challenging IC wastewater.

Treatment Stage	Key Parameter/Mechanism	Performance/Specification	Fouling Prevention Role
Chemical Precipitation (Fluoride)	CaCl₂ + NaOH dosing (1:1 molar ratio Ca:F)	Fluoride reduced from 500 mg/L to <5 mg/L (99% removal)	Prevents CaF₂ scaling on membranes
Coagulation/Flocculation	PAC (10–50 mg/L) + PAM (1–5 mg/L)	95% removal of photoresist and TSS	Removes suspended solids, organic colloids, and photoresist to protect MBR
Anoxic/Aerobic (A/O) Bioreactor	HRT 12–24 h; optimized MLSS	Degrades TMAH and COD; mitigates biological toxicity	Reduces organic load and toxic compounds that can foul membranes or inhibit biology
MBR Membrane Module	0.1 μm PVDF flat-sheet membranes	Consistent flux >20 LMH; 99.9% TSS removal	Physical barrier, high filtration efficiency, robust material for chemical resistance
MBR Aeration System	Aeration rate 0.3–0.5 m³/m²·h	Maintains membrane scouring and oxygen supply	Prevents foulant accumulation on membrane surface, supports biological activity

CAPEX & OPEX Breakdown: $5M to $50M for IC Wastewater Treatment Plants

Capital expenditures (CAPEX) for integrated circuit wastewater treatment plants, encompassing MBR and chemical pretreatment, typically range from $5 million for a 50 m³/day facility to $50 million for a 5,000 m³/day installation. This wide range reflects the complexity, scale, and specific pollutant profiles of each semiconductor fab wastewater treatment project. On average, the CAPEX per cubic meter per day capacity for an MBR + chemical pretreatment system falls between $100,000 and $500,000/m³/day. This investment covers civil works, equipment (reactors, membranes, pumps, chemical dosing systems), instrumentation, and installation. For facilities pursuing zero-liquid discharge (ZLD) for IC fabs, significant add-on CAPEX is required. ZLD systems, which typically include reverse osmosis (RO) units followed by evaporators or crystallizers, can add an additional $3 million to $20 million to the base plant cost. This represents an increase of 30–50% of the initial CAPEX, depending on the desired water recovery rate and the concentration of reject brine. This additional investment is often justified by stringent environmental regulations, water scarcity, or strategic goals for water reuse in semiconductor manufacturing. Operational expenditures (OPEX) for IC wastewater treatment plants generally range from $0.80–$2.50/m³. This cost primarily covers energy consumption (pumping, aeration), chemical reagents (for fluoride precipitation, coagulation, pH adjustment), membrane replacement (typically every 5–7 years for MBRs), and labor. Implementing a ZLD system significantly increases OPEX, often by 40%, due to the high energy demands of RO and evaporation processes, as well as increased chemical usage for anti-scalants and brine conditioning. However, the return on investment (ROI) for advanced IC wastewater treatment plants, particularly those incorporating water reuse, can be substantial. Payback periods of 3–5 years are commonly observed, driven by savings from reduced freshwater consumption (50–80% water recovery), avoided discharge fees, and prevention of costly regulatory fines through consistent EPA 40 CFR Part 469 compliance. For more detailed cost benchmarks, refer to detailed cost benchmarks for chip fab wastewater treatment.

Plant Capacity (m³/day)	Estimated Base CAPEX (MBR + Chemical Pretreatment)	Estimated OPEX (Discharge Compliance)	ZLD Add-on CAPEX (RO + Evaporator/Crystallizer)
50	$5M – $10M	$1.50 – $2.50/m³	$3M – $5M
500	$15M – $25M	$1.00 – $2.00/m³	$5M – $10M
5,000	$30M – $50M	$0.80 – $1.50/m³	$10M – $20M

How to Select an IC Wastewater Treatment Plant: Decision Framework for Fabs

Selecting the optimal integrated circuit wastewater treatment plant requires a structured decision framework that considers influent characteristics, regulatory mandates, and long-term operational goals. This systematic approach ensures that the chosen solution effectively addresses specific fab challenges while optimizing CAPEX and OPEX. Step 1: Assess Influent Quality and Pretreatment Needs Begin by conducting a comprehensive analysis of your fab's wastewater streams. Characterize key pollutants such as fluoride, TMAH, COD, and heavy metals, noting their typical concentrations and variability. This data is critical for determining the necessary pretreatment stages. For instance, high fluoride (>200 mg/L) necessitates robust chemical precipitation, while high COD (>1,000 mg/L) and TMAH require specialized biological or advanced oxidation processes. Step 2: Compare MBR vs. Conventional Treatment Evaluate membrane bioreactor (MBR) systems against conventional activated sludge processes with secondary clarification. MBRs typically offer a smaller footprint, superior effluent quality (e.g., lower TSS, better pathogen removal), and greater stability against influent fluctuations. However, MBRs generally have higher CAPEX and OPEX (primarily energy for aeration and membrane replacement) compared to conventional systems. Consider your facility's available space, desired effluent quality for discharge or reuse, and budget constraints. Step 3: Evaluate ZLD vs. Discharge Compliance Determine whether zero-liquid discharge (ZLD) is a viable or necessary strategy. This decision hinges on several factors: the severity of local water stress, the cost and availability of freshwater, the stringency of discharge regulations, and the long-term strategic goals for water reuse in semiconductor manufacturing. ZLD offers maximum water recovery (often >90%) and eliminates liquid waste discharge, but entails significantly higher CAPEX and OPEX due to the energy-intensive nature of RO and evaporation/crystallization. Discharge compliance, while less costly, carries ongoing regulatory risks and potential future increases in discharge fees. For comprehensive insights into regulatory compliance, see regulatory compliance strategies for semiconductor wastewater. Step 4: Request Pilot Testing For complex or highly variable wastewater streams, particularly those with high COD (>1,000 mg/L) or high fluoride (>200 mg/L), pilot testing is indispensable. A pilot plant allows for real-world validation of treatment efficacy, optimization of chemical dosing ratios, and assessment of membrane fouling potential under actual operating conditions. This step significantly de-risks full-scale plant deployment and provides concrete performance data for both engineers and procurement teams.

Decision Factor	MBR System	Conventional System (Activated Sludge)	ZLD (Add-on to MBR)	Discharge Compliance (MBR Effluent)
Footprint	Compact (30-50% smaller)	Larger	Moderate increase	Smallest increase
Effluent Quality	High (TSS <1 mg/L, pathogen-free)	Moderate (TSS 5-10 mg/L, requires disinfection)	Highest (ultrapure water for reuse)	High (meets discharge limits)
CAPEX	Higher	Lower	Significantly Higher	Lower
OPEX	Moderate to High (energy, membranes)	Lower (energy, sludge handling)	Highest (energy, chemicals)	Moderate (energy, chemicals)
Water Reuse Potential	High (suitable for RO pretreatment)	Low (requires significant post-treatment)	Maximized (>90% recovery)	Limited (if any)
Regulatory Risk	Low (consistent compliance)	Moderate (potential for excursions)	Lowest (no liquid discharge)	Low (consistent compliance)

Frequently Asked Questions

Semiconductor fab EHS engineers and procurement teams frequently ask specific questions regarding the engineering specifications, cost implications, and compliance requirements for integrated circuit wastewater treatment plants. What are the primary pollutants in IC wastewater and their typical limits? Integrated circuit wastewater typically contains high concentrations of fluoride (100–500 mg/L influent), TMAH (5–50 mg/L influent), heavy metals (e.g., copper 10–100 mg/L), and high COD (1,000–5,000 mg/L influent). Regulatory limits include fluoride ≤15 mg/L (EPA 40 CFR Part 469), TMAH ≤1 mg/L (Taiwan EPA), and COD ≤50 mg/L (EU Industrial Emissions Directive). How does Zhongsheng Environmental achieve zero-fouling in MBR systems for IC wastewater? Zero-fouling is achieved through a multi-pronged approach: effective chemical precipitation (CaCl₂ + NaOH) to remove fluoride scaling precursors, coagulation/flocculation (PAC + PAM) for photoresist and TSS removal, and optimized MBR operation using robust 0.1 μm PVDF flat-sheet membranes with high aeration rates (0.3–0.5 m³/m²·h) for continuous membrane scouring. What is the typical CAPEX for an integrated circuit wastewater treatment plant? Capital expenditures (CAPEX) for an MBR + chemical pretreatment plant range from $5M for a 50 m³/day facility to $50M for a 5,000 m³/day plant. ZLD add-ons can increase this by an additional $3M–$20M. What are the operational costs (OPEX) for treating IC wastewater? Operational expenditures (OPEX) typically range from $0.80–$2.50/m³, covering energy, chemical reagents, and membrane replacement. ZLD systems can increase OPEX by approximately 40% due to higher energy consumption. Is zero-liquid discharge (ZLD) necessary for all semiconductor fabs? ZLD is not always necessary but is increasingly adopted due to stringent environmental regulations, water scarcity, and corporate sustainability goals. The decision depends on local regulatory risks, freshwater availability, and the potential for water reuse in semiconductor manufacturing, which can offer significant ROI. How effective is fluoride removal using chemical precipitation? Chemical precipitation with CaCl₂ and NaOH at a 1:1 molar ratio of Ca:F can reduce fluoride concentrations from 500 mg/L to less than 5 mg/L, achieving over 99% removal efficiency and ensuring compliance with discharge limits.
