Why High-Salinity PCB Wastewater Demands Specialized Treatment
PCB manufacturing processes, from etching and plating to rinsing, inherently generate wastewater laden with high concentrations of Total Dissolved Solids (TDS), typically ranging from 3,000–15,000 mg/L. This effluent also contains significant levels of organic pollutants, such as COD (Chemical Oxygen Demand) at 50–500 mg/L, and critical heavy metals like copper (Cu²⁺), nickel (Ni²⁺), and chromium (Cr), often present at 10–100 mg/L. These constituents far exceed stringent global discharge limits. For instance, China's GB 39731-2020 standard mandates <50 mg/L COD and <0.5 mg/L Cu, while the EU's Industrial Emissions Directive 2010/75/EU sets limits as low as <10 mg/L Cu. Failure to meet these standards carries severe financial and operational consequences. A prominent PCB plant in Guangdong, for example, faced fines totaling $250,000 for exceeding copper discharge limits. This punitive action, coupled with the escalating costs of conventional disposal, prompted their adoption of a Zero Liquid Discharge (ZLD) system, which subsequently reduced their disposal expenses by 65% and enabled 98% water reuse. Untreated high-salinity discharge poses substantial environmental risks, including rapid membrane fouling in municipal wastewater treatment plants (WWTPs), leading to costly operational disruptions. it can cause soil salinization, rendering land infertile, and contaminate groundwater resources, impacting public health and ecosystems.
| Pollutant/Parameter | Typical PCB Wastewater Range | Regulatory Limits (Example: China GB 39731-2020) | Environmental Impact of Non-Compliance |
|---|---|---|---|
| Total Dissolved Solids (TDS) | 3,000–15,000 mg/L | N/A (Specific limits vary by region, but high TDS impacts reuse) | Soil salinization, groundwater contamination, interference with biological treatment |
| Chemical Oxygen Demand (COD) | 50–500 mg/L | <50 mg/L | Oxygen depletion in receiving waters, harm to aquatic life |
| Copper (Cu²⁺) | 10–100 mg/L | <0.5 mg/L | Toxicity to aquatic organisms, human health risks |
| Nickel (Ni²⁺) | 10–100 mg/L | <1.0 mg/L | Toxicity to aquatic organisms, potential carcinogen |
| pH | 2–12 (highly variable) | 6–9 | Disruption of aquatic ecosystems, corrosion of infrastructure |
Engineering Specs: Treatment Technologies for High-Salinity PCB Wastewater
Effective treatment of high-salinity PCB wastewater necessitates a multi-stage approach, beginning with robust pretreatment to remove suspended solids and heavy metals, thereby protecting downstream membrane systems. Dissolved Air Flotation (DAF) units, such as the ZSQ series DAF systems for PCB wastewater pretreatment, are highly effective, achieving 95–98% Total Suspended Solids (TSS) removal at operating pressures of 4–6 bar. Chemical precipitation, typically conducted at a pH of 9–11, can remove 90–95% of dissolved heavy metals. Following these steps, multimedia filtration is crucial to reduce the Silt Density Index (SDI) to below 3, a prerequisite for reverse osmosis (RO) system longevity. Membrane technologies form the backbone of high-salinity wastewater treatment. RO systems offer superior TDS removal, typically achieving 98% reduction at flux rates of 15–25 L/m²·h and operating pressures of 55–65 bar. Nanofiltration (NF) provides a less intensive alternative, removing around 90% of TDS at higher flux rates (20–30 L/m²·h) and lower pressures (10–20 bar). Electrodialysis (ED) can also be employed for TDS removal, with efficiencies of 80–90% and energy consumption of 0.5–1.5 kWh/m³. Emerging technologies are also gaining traction. Forward Osmosis (FO) offers potential for high water recovery (up to 80%) with lower energy consumption (0.5–1.0 kWh/m³), particularly useful for highly concentrated brines, although it requires a draw solution. Membrane Distillation (MD) can achieve near-complete TDS removal (99%) but typically has higher energy demands (1.5–3.0 kWh/m³). Electrodialysis Reversal (EDR) offers enhanced fouling resistance and can achieve 95% TDS removal with energy consumption of 0.7–1.2 kWh/m³. Sludge generated from these processes requires dewatering; plate-and-frame filter presses, like the Zhongsheng 9-plate-frame-filter-press.html, can achieve 30–40% dry solids at 2–4 bar pressure, while centrifuges typically yield 20–30% dry solids at 3,000–4,000 RPM. For a typical influent of 10,000 mg/L TDS, RO recovery rates are often optimized at 75% to manage scaling potential from compounds like calcium sulfate (CaSO₄).
| Technology | Primary Function | Salinity Tolerance (TDS mg/L) | Typical Removal Efficiency | Operating Pressure (bar) | Flux Rate (L/m²·h) | Energy Consumption (kWh/m³) | Key Considerations |
|---|---|---|---|---|---|---|---|
| DAF | TSS & Oil Removal | N/A | 95–98% TSS | 4–6 | N/A | ~0.5–1.0 | Requires chemical coagulants/flocculants |
| Chemical Precipitation | Heavy Metal Removal | N/A | 90–95% Heavy Metals | N/A (pH adjustment) | N/A | Low (pH adjustment) | pH-dependent, generates metal hydroxide sludge |
| Multimedia Filtration | Suspended Solids & SDI Reduction | N/A | >98% TSS | 2–4 | N/A | Low | Precursor to RO/NF |
| Reverse Osmosis (RO) | TDS & Dissolved Solids Removal | Up to 50,000+ (with pretreatment) | 98% TDS | 55–65 | 15–25 | 2.0–4.0 | High pressure, susceptible to fouling/scaling, requires RO systems for high-salinity PCB wastewater ZLD |
| Nanofiltration (NF) | Multivalent Ion & Moderate TDS Removal | Up to 20,000 | 90% TDS | 10–20 | 20–30 | 1.5–3.0 | Lower pressure than RO, good for divalent ions |
| Forward Osmosis (FO) | Water Concentration | >20,000 | 80% Water Recovery | N/A (osmotic pressure) | 5–15 | 0.5–1.0 | Requires draw solution, lower flux than RO |
| Membrane Distillation (MD) | High Salinity & Volatile Compound Removal | >100,000 | 99% TDS | N/A (thermal gradient) | 1–5 | 1.5–3.0 | Energy-intensive (heat source required) |
| Electrodialysis Reversal (EDR) | TDS & Salt Removal | Up to 50,000 | 95% TDS | 5–20 | 20–40 | 0.7–1.2 | Good for brackish water, can be less effective for non-ionic organics |
| Plate-and-Frame Filter Press | Sludge Dewatering | N/A | 30–40% Dry Solids | 2–4 | N/A | Low (mechanical) | Generates filter cake |
Zero Liquid Discharge (ZLD) Systems: Process Flow, CAPEX, and OPEX Breakdown
Achieving Zero Liquid Discharge (ZLD) for high-salinity PCB wastewater is a comprehensive strategy that integrates multiple treatment stages to maximize water recovery and minimize waste. A typical ZLD process flow begins with advanced pretreatment, often combining DAF for solids and oil removal with chemical precipitation for heavy metals. This is followed by RO or NF systems, designed to recover 75–85% of the influent water, concentrating the remaining contaminants into a brine stream. This concentrated brine then proceeds to a brine concentrator, which further increases the recovery rate to 90–95%, leaving behind a highly concentrated liquid. The final stage is typically an evaporative crystallizer, which solidifies the remaining salts and contaminants, producing a dry solid waste suitable for disposal. This approach ensures virtually all water is recovered, significantly reducing the volume of liquid waste requiring costly off-site disposal. For a facility processing 100 m³/h, the Capital Expenditure (CAPEX) for a ZLD system can range from $1.2 million to $2.5 million. This includes substantial investments in RO units ($500–$800k), crystallizers ($400–$700k), and DAF systems ($150–$300k). The Operational Expenditure (OPEX) typically falls between $0.80 and $1.50 per cubic meter of treated water. This OPEX comprises chemical costs ($0.30–$0.50/m³ for coagulants, flocculants, and antiscalants), energy consumption ($0.20–$0.40/m³ for pumps and membranes), membrane replacement ($0.10–$0.20/m³), and labor ($0.10–$0.20/m³). Despite the initial investment, ZLD systems offer compelling Return on Investment (ROI). Plants discharging over 500 m³ per day can expect payback periods of 3–5 years, driven by savings from reduced disposal fees (which can be $0.50–$2.00/m³) and the cost-effectiveness of water reuse ($0.20–$0.50/m³). A PCB manufacturer in Jiangsu, for instance, transitioned from a disposal cost of $1.80/m³ to just $0.50/m³ with their ZLD system, achieving 95% water recovery and a 3-year payback period.
| System Component | Estimated CAPEX (for 100 m³/h ZLD System) | Estimated OPEX ($/m³) | Key Function |
|---|---|---|---|
| DAF System | $150,000 – $300,000 | $0.10 – $0.20 | TSS, oil, and suspended solids removal |
| Chemical Dosing & Precipitation | $50,000 – $100,000 | $0.30 – $0.50 (chemicals) | Heavy metal removal, pH adjustment |
| RO/NF System | $500,000 – $800,000 | $0.30 – $0.50 (energy, membrane replacement) | TDS reduction, water recovery (75–85%) |
| Brine Concentrator | $200,000 – $400,000 | $0.10 – $0.20 (energy) | Further water recovery (up to 95%) |
| Evaporative Crystallizer | $400,000 – $700,000 | $0.10 – $0.20 (energy, solids handling) | Solidification of residual salts |
| Ancillary Equipment & Installation | $100,000 – $300,000 | N/A | Piping, tanks, controls, civil works |
| Total System (Approximate) | $1,200,000 – $2,500,000 | $0.80 – $1.50 | Zero Liquid Discharge |
Selecting the Right Equipment: Decision Framework for PCB Plants
Choosing the optimal treatment strategy and equipment for high-salinity PCB wastewater requires a structured approach, balancing technical efficacy with economic viability. The process begins with a thorough characterization of the wastewater. This involves detailed laboratory testing to quantify TDS levels, COD concentrations, specific heavy metals (using techniques like Inductively Coupled Plasma - Optical Emission Spectrometry or ICP-OES), and pH variations. Concurrently, define clear treatment goals: strict discharge compliance, water reuse for process operations, or full Zero Liquid Discharge (ZLD). This step is critical as it dictates the required removal efficiencies and recovery rates. Next, evaluate the technology fit based on the wastewater characteristics and treatment objectives. For instance, RO systems are typically suitable for TDS levels up to 15,000 mg/L, while Forward Osmosis (FO) may be considered for influent exceeding 20,000 mg/L. Chemical precipitation is essential if copper concentrations surpass 50 mg/L. Following technology selection, pilot testing of shortlisted equipment is paramount. A 3-month trial for RO/NF systems, for example, can accurately assess fouling rates and optimal operating parameters under site-specific conditions. Finally, compare vendor proposals using a weighted scoring matrix. Assign weights to key criteria such as CAPEX (30%), OPEX (30%), removal efficiency (20%), footprint (10%), and demonstrated compliance history (10%). This systematic evaluation ensures that the selected solution aligns with both technical requirements and long-term operational and financial objectives. For automated chemical dosing, consider an automatic-chemical-dosing-system.html to ensure consistent and precise application.
| Step | Action | Key Considerations | Deliverables |
|---|---|---|---|
| 1 | Wastewater Characterization | TDS, COD, Heavy Metals (Cu, Ni, Cr), pH, Flow Rate | Comprehensive Lab Report, Process Flow Diagrams (PFDs) |
| 2 | Define Treatment Goals & Budget | Discharge Compliance, Water Reuse Target, ZLD, CAPEX vs. OPEX Trade-offs | Treatment Objectives Document, Budget Allocation |
| 3 | Technology Evaluation | Salinity Tolerance, Removal Efficiency, Scalability, Energy Needs, Chemical Consumption | Shortlisted Technology Options |
| 4 | Pilot Testing | Performance Verification, Fouling Assessment, Operational Stability, Real-world Data Collection | Pilot Test Report, Optimized Operating Parameters |
| 5 | Vendor Selection | CAPEX, OPEX, Technical Support, Warranty, References, Weighted Scoring Matrix | Selected Equipment Vendor and Proposal |
Compliance Checklist: Meeting Global PCB Wastewater Standards
Adherence to global PCB wastewater discharge standards is non-negotiable for operational continuity and environmental responsibility. In China, compliance with GB 39731-2020 is mandatory, setting strict limits such as COD <50 mg/L, Cu <0.5 mg/L, and Ni <1.0 mg/L, with a pH range of 6–9. This standard also mandates online monitoring for COD, pH, and flow rate. The EU's Industrial Emissions Directive 2010/75/EU requires adherence to Best Available Techniques (BAT) and imposes stringent limits, for example, Cu <10 mg/L, Ni <2.0 mg/L, and Cr <0.5 mg/L. In the United States, facilities must comply with EPA Effluent Guidelines, such as 40 CFR Part 469 for electroplating, which specify limits like Cu <2.7 mg/L and Ni <3.98 mg/L, and necessitate obtaining National Pollutant Discharge Elimination System (NPDES) permits. Maintaining compliance requires meticulous documentation, including daily logs for critical parameters like pH, TDS, and heavy metals, supplemented by quarterly laboratory reports and annual third-party audits, especially for ZLD systems. Common compliance pitfalls include inadequate pretreatment, which leads to rapid RO membrane fouling and reduced efficiency; inconsistent chemical dosing, resulting in pH fluctuations that can compromise metal removal; and a lack of redundancy in critical systems, such as backup pumps for DAF units, which can cause unexpected downtime and lead to discharge violations. Understanding global PCB wastewater discharge standards is the first step toward achieving compliance.
Frequently Asked Questions
What is the typical salinity range for PCB wastewater, and how does it affect treatment?
PCB wastewater typically exhibits high salinity, with TDS levels ranging from 3,000–15,000 mg/L. This high salinity significantly impacts treatment by reducing the recovery rates of membrane processes like RO, increasing the risk of scaling and fouling, and demanding more robust pretreatment to protect sensitive equipment.
How much does a ZLD system for PCB wastewater cost?
The CAPEX for a ZLD system for PCB wastewater can range from $1.2 million to $2.5 million for a capacity of 100 m³/h. The OPEX is estimated at $0.80–$1.50/m³, with payback periods typically between 3–5 years for plants with substantial discharge volumes.
What are the best pretreatment methods for high-salinity PCB wastewater?
The most effective pretreatment methods include Dissolved Air Flotation (DAF) for removing suspended solids and oils, chemical precipitation for targeting heavy metals, and multimedia filtration to reduce the Silt Density Index (SDI) to below 3, thereby protecting downstream membrane systems.
Can Forward Osmosis (FO) replace RO for high-salinity PCB wastewater?
FO is a viable technology for extremely high salinities (over 20,000 mg/L TDS) or for concentrating challenging brines. However, it generally has lower flux rates than RO and requires a draw solution, which adds complexity. FO is often used in conjunction with RO or as a tertiary concentration step in ZLD systems rather than a complete replacement for RO.
How often should RO membranes be replaced in a ZLD system?
RO membrane lifespan in a ZLD system for PCB wastewater typically ranges from 3–5 years. This duration is highly dependent on the effectiveness of pretreatment, the frequency and quality of membrane cleaning, and the specific operating conditions. Proper maintenance and cleaning protocols can significantly extend membrane life.

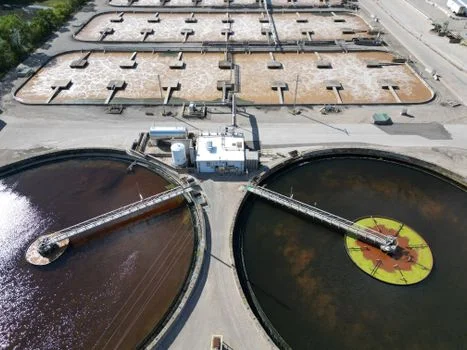

Recommended Equipment for This Application
