Photovoltaic (PV) manufacturing generates high-TDS wastewater with fluoride, heavy metals, and organic solvents—requiring advanced treatment for reclaim. Hybrid zero liquid discharge (ZLD) systems achieve 99.9% water recovery by combining pretreatment (DAF, multi-media filters), membrane filtration (RO, NF), and evaporation/crystallization. Solar integration can reduce energy costs by 30-40%, per EPA 2024 benchmarks. This guide details 2025 system designs, CAPEX ($1.2M–$4.5M for 50–200 m³/h), and real-world recovery rates from PV plants in India and China.
Why PV Wastewater Reclaim is a 2025 Priority for Solar Manufacturers
China’s GB 31573-2015 and EU Industrial Emissions Directive 2010/75/EU set strict limits for fluoride (<10 mg/L), TDS (<500 mg/L), and heavy metals (e.g., lead <0.1 mg/L) in PV wastewater, compelling manufacturers to adopt advanced treatment solutions. The global regulatory landscape is increasingly stringent, pushing towards near-zero liquid discharge (ZLD) for industrial facilities. For a detailed overview of evolving regulations, refer to 2025 PV wastewater discharge standards and compliance strategies.
PV manufacturing processes are highly water-intensive, consuming an estimated 3–5 m³ of water per MW of panel production, with 60–80% of this volume subsequently discharged as wastewater (IEEFA 2024 data). This substantial water footprint, coupled with rising operational costs, makes efficient solar PV wastewater treatment and reclaim a critical priority. Industrial water costs rose 22% globally in 2023 (UN Water Report), transforming wastewater reclamation from an environmental compliance measure into a significant cost-saving lever for plant managers and procurement teams.
The wastewater generated from PV manufacturing is complex, characterized by high concentrations of total dissolved solids (TDS), fluoride, heavy metals (such as lead, copper, and nickel), and organic solvents like isopropyl alcohol (IPA) and tetramethylammonium hydroxide (TMAH). Specifically, rinse water from hydrofluoric acid (HF) etching can have a pH as low as 2–3 and fluoride concentrations reaching 500–2,000 mg/L. These contaminants present considerable treatment challenges, requiring robust and multi-stage processes to achieve the stringent quality needed for reuse or compliant discharge. Effective etching wastewater treatment for semiconductor fabs shares many of these challenges, highlighting the need for specialized ZLD solutions.
Hybrid ZLD System Design: Engineering Specs for 99.9% Recovery
A robust hybrid ZLD system for PV wastewater achieves 99.9% water recovery through a multi-stage process integrating advanced physical-chemical, membrane, and thermal separation technologies. The design prioritizes contaminant removal, energy efficiency, and operational reliability to meet the specific demands of photovoltaic manufacturing.
Pretreatment Stage
Effective pretreatment is fundamental to protecting downstream membrane and thermal systems. The initial steps typically involve pH adjustment to neutralize highly acidic or alkaline streams, followed by coagulation and flocculation. A high-efficiency DAF system for PV wastewater pretreatment, such as Zhongsheng ZSQ series benchmarks, removes over 95% of total suspended solids (TSS) and fats, oils, and grease (FOG). Following DAF, multi-media filters reduce turbidity to less than 5 NTU, preparing the water for membrane filtration. This stage is critical for removing larger particles and precipitates, reducing the fouling potential for subsequent membrane processes.
Membrane Filtration Stage
The core of the water reclaim process involves advanced membrane technologies. A two-pass reverse osmosis (RO) system is commonly employed, achieving 90–95% water recovery and significant TDS reduction in industrial wastewater. For specific contaminant removal, such as residual fluoride or hardness, nanofiltration (NF) membranes can be integrated. When ultra-pure water is required for specific PV manufacturing steps, electrodeionization (EDI) can polish the RO permeate. PVDF (polyvinylidene fluoride) membranes are preferred for their superior chemical resistance, offering a lifespan of 5–7 years in challenging PV wastewater environments. Regular chemical dosing with antiscalants and a robust cleaning-in-place (CIP) system are essential to maintain membrane performance and longevity.
Evaporation/Crystallization (ZLD)
To achieve true zero liquid discharge for PV plants, the concentrated reject from the membrane stage is directed to a thermal system. Mechanical Vapor Recompression (MVR) evaporators or multi-effect evaporation (MEE) units are typically used. MVR systems are highly energy-efficient, consuming 0.02–0.04 kWh/kg of water evaporated (EPA 2024), making them ideal for reducing operational costs. These systems concentrate the brine to a point where dissolved solids precipitate, and a crystallizer can further process the slurry into a dry, disposable solid cake, ensuring no liquid discharge.
Solar Energy Integration
Solar-powered wastewater treatment is a strategic advantage for PV manufacturers. On-site PV arrays, typically sized at 1–3 MW for systems treating 100 m³/h, can reduce the grid energy costs for the ZLD system by 30–40% (IEEFA 2024). This not only lowers operational expenditure but also aligns with the sustainability goals inherent to the solar industry.
Process Flow Description and Automation
A typical process flow for a hybrid PV wastewater ZLD system begins with raw wastewater entering a collection tank, followed by pH adjustment. The adjusted water then flows through a DAF unit for TSS and FOG removal, then to multi-media filters for further clarification. The pretreated water is then pumped through a two-pass RO system. The high-quality permeate is sent for reuse, while the concentrated reject feeds into an MVR evaporator. The distillate from the MVR is polished and returned for reuse, and the concentrated slurry from the MVR is directed to a crystallizer for solid waste generation. The entire system is managed by PLC-controlled automation, enabling real-time monitoring, chemical dosing adjustments (e.g., lime for fluoride precipitation, antiscalants), and optimized operational sequences for maximum efficiency and minimal human intervention.
| Parameter | Specification for 100 m³/h Hybrid ZLD System | Unit |
|---|---|---|
| System Capacity (Influent) | 100 | m³/h |
| Overall Water Recovery Rate | ≥99.9 | % |
| Pretreatment (DAF) TSS Removal | >95 | % |
| Membrane Type (RO) | PVDF, Thin-Film Composite | - |
| RO Recovery Rate (Two-Pass) | 90-95 | % |
| MVR Specific Energy Consumption | 0.02-0.04 | kWh/kg water evaporated |
| Solar Integration Capacity (typical) | 1-3 | MW (for 100 m³/h system) |
| Effluent Turbidity (after filters) | <5 | NTU |
| System Automation | PLC-controlled | - |
Contaminant Removal Rates: What to Expect from a PV Wastewater ZLD System
Hybrid ZLD systems effectively remove over 98% of target contaminants from PV wastewater, consistently meeting stringent discharge and reuse standards. This comprehensive removal capability is crucial for both environmental compliance and the safe reintroduction of treated water into manufacturing processes.
- Fluoride: Highly effective removal of 99%+ is achieved through a combination of chemical precipitation (e.g., lime or calcium chloride dosing) in the pretreatment stage, followed by membrane filtration. Influent fluoride concentrations typically range from 500–2,000 mg/L, which are reduced to an effluent concentration of <10 mg/L, often reaching <5 mg/L, as demonstrated in various industrial case studies (Gradiant case study).
- Total Dissolved Solids (TDS): The combination of reverse osmosis (RO) and mechanical vapor recompression (MVR) evaporation achieves exceptional TDS reduction in industrial wastewater. Influent TDS levels, often between 5,000–15,000 mg/L, are reduced by 98–99% to an effluent quality of <50 mg/L, suitable for most industrial reuse applications.
- Chemical Oxygen Demand (COD): For wastewater with significant organic content, a biological pretreatment stage, such as an MBR system for biological pretreatment of PV wastewater, combined with RO, can achieve 90–95% COD removal. This reduces influent COD levels of 1,000–3,000 mg/L to an effluent concentration of <50 mg/L, preventing organic fouling of membranes and ensuring high-quality permeate.
- Heavy Metals (e.g., lead, copper): Chemical precipitation, often involving pH adjustment and sulfide or hydroxide addition, followed by clarification and membrane filtration (RO), achieves 99%+ removal of heavy metals. Typical influent concentrations of 10–50 mg/L are reduced to below detection limits, often <0.1 mg/L, meeting the most stringent regulatory requirements.
| Contaminant | Typical Influent Concentration (mg/L) | ZLD System Effluent (mg/L) | ZLD Removal Rate (%) | Conventional RO + Discharge Effluent (mg/L)* | Conventional Removal Rate (%)* |
|---|---|---|---|---|---|
| Fluoride | 500-2,000 | <10 | >99 | 20-50 | 90-95 |
| TDS | 5,000-15,000 | <50 | 98-99 | 500-1,500 | 90-95 |
| COD | 1,000-3,000 | <50 | 90-95 | 100-300 | 70-90 |
| Heavy Metals (e.g., Lead) | 10-50 | <0.1 | >99 | 0.5-2 | 95-98 |
*Conventional RO + Discharge refers to systems that use RO but may still discharge a concentrated brine stream, often with less stringent overall removal or without thermal polishing.
CAPEX and OPEX Breakdown: 2025 Costs for PV Wastewater ZLD Systems
Implementing a hybrid ZLD system for PV wastewater requires a CAPEX ranging from $1.2M to $4.5M for systems treating 50–200 m³/h, with an OPEX of $0.80–$2.50/m³ treated, depending on system complexity and energy integration. These figures are scaled from real-world projects, including a significant India case study by Gradiant.
Capital Expenditure (CAPEX)
The total CAPEX for a hybrid ZLD system is primarily influenced by the system's capacity, influent wastewater characteristics, desired permeate quality, and the level of automation. A typical breakdown for a 50–200 m³/h system includes:
- Membranes (RO/NF): Approximately 40% of CAPEX, reflecting the cost of membrane modules, pressure vessels, and associated piping.
- Evaporation/Crystallization (MVR/MEE): Around 30% of CAPEX, covering the thermal units, heat exchangers, and crystallization equipment.
- Pretreatment (DAF, Filters, Chemical Dosing): Roughly 20% of CAPEX, for equipment like DAF units, multi-media filters, tanks, pumps, and chemical storage/dosing systems.
- Solar Integration: About 10% of CAPEX, for the PV panels, inverters, mounting structures, and battery storage if included.
Additional costs may include civil works, installation, commissioning, and engineering fees. Larger systems benefit from economies of scale, often having a lower CAPEX per cubic meter of capacity.
Operational Expenditure (OPEX)
The OPEX for treating PV wastewater with a hybrid ZLD system typically ranges from $0.80–$2.50/m³ treated. The main components of OPEX are:
- Energy: Constitutes the largest portion, around 50%, primarily driven by pumps, blowers, and the MVR evaporator. Solar integration significantly reduces this, cutting energy OPEX by 30–40%.
- Chemicals: Approximately 25% of OPEX, including coagulants, flocculants, pH adjusters (lime, acid), antiscalants, and membrane cleaning chemicals.
- Labor: Accounts for about 15% of OPEX, covering operators, maintenance staff, and supervisory personnel.
- Maintenance & Consumables: Around 10% of OPEX, including spare parts, membrane replacement (typically every 5-7 years), and general upkeep.
Return on Investment (ROI)
Hybrid ZLD systems with >95% water recovery typically offer an ROI of 3–5 years. This rapid payback is driven by substantial savings from:
- Reduced Water Procurement Costs: Reclaiming 99.9% of wastewater drastically cuts the need for fresh water intake.
- Avoided Discharge Fees & Fines: Eliminating liquid discharge removes associated fees and mitigates the risk of costly regulatory penalties for non-compliance.
- Sustainability & Brand Value: While harder to quantify, the environmental benefits and enhanced corporate image contribute to long-term value.
A simple ROI calculation can be expressed as: Annual Savings = (Cost of Fresh Water + Cost of Wastewater Discharge) × Recovery Rate. This calculation does not include the significant cost avoidance of potential regulatory fines or the positive impact on public perception and investor relations.
| Cost Category | Hybrid ZLD System (50-200 m³/h) | Conventional RO + Discharge System (50-200 m³/h)* |
|---|---|---|
| CAPEX Range | $1.2M - $4.5M | $0.5M - $2.0M |
| CAPEX Breakdown: | ||
| Membranes | ~40% | ~50% |
| Evaporation/Crystallization | ~30% | N/A |
| Pretreatment | ~20% | ~30% |
| Solar Integration | ~10% | Optional (<5%) |
| OPEX per m³ Treated | $0.80 - $2.50 | $0.60 - $1.80 |
| OPEX Breakdown: | ||
| Energy | ~50% (reduced by solar) | ~40% |
| Chemicals | ~25% | ~30% |
| Labor | ~15% | ~20% |
| Maintenance | ~10% | ~10% |
| Typical Water Recovery | >99% | 70-85% |
| Typical ROI | 3-5 years | 5-8 years (without discharge costs) |
*Conventional RO + Discharge systems typically have lower initial CAPEX but higher long-term OPEX due to ongoing water purchase and wastewater discharge fees, and lower water recovery.

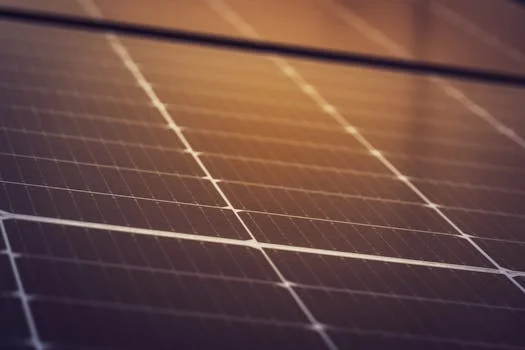

Solar Integration: How PV Plants Can Power Their Own Wastewater Treatment
Integrating on-site solar PV arrays can reduce the energy consumption costs of ZLD systems for PV wastewater treatment by 30-40%, enhancing both economic and environmental sustainability. This synergy is particularly potent for PV manufacturing facilities, which inherently possess expertise in solar technology.
ZLD systems are energy-intensive, with total energy consumption typically ranging from 5–10 kWh/m³ of treated water (EPA 2024). Mechanical Vapor Recompression (MVR) evaporators, which are crucial for achieving high recovery rates, account for a substantial 60–70% of this consumption. This high energy demand presents a significant opportunity for cost savings through renewable energy integration.
For a 100 m³/h ZLD system, approximately 1 MW of on-site PV capacity can offset 30–40% of its total energy needs (IEEFA 2024). This not only reduces reliance on grid electricity but also stabilizes operational costs against volatile energy prices. The direct integration of solar power transforms a significant OPEX component into a predictable, renewable input.
To ensure continuous operation and manage demand spikes, battery storage solutions, such as lithium-ion batteries with 2–4 hours of storage capacity, are often integrated. These batteries can store excess solar energy generated during peak sunlight hours for use during cloudy periods or at night, further reducing grid dependency and ensuring system uptime. A notable example is a Gradiant project in India, which successfully reduced energy costs by 35% through on-site solar integration, demonstrating the practical benefits of this approach.
Beyond direct cost savings, solar integration aligns with global sustainability initiatives and can leverage various financial incentives. Many regions offer net metering policies, allowing facilities to sell excess solar power back to the grid. Governments, particularly in China and through the EU’s Green Deal funding, provide subsidies and tax incentives for renewable energy adoption, making the financial case for solar-powered wastewater treatment even more compelling. This strategic move enhances a PV manufacturer's environmental stewardship, strengthens its brand image, and future-proofs operations against rising energy costs and stricter carbon regulations.
Case Study: 99.9% Recovery at a 200 m³/h PV Wastewater ZLD Plant in India
A 200 m³/h hybrid ZLD plant in Gujarat, India, successfully achieved 99.9% water recovery and met stringent discharge limits, demonstrating the viability of advanced treatment solutions for PV manufacturing. This real-world implementation provides a clear blueprint for other facilities seeking to enhance their environmental performance and operational efficiency.
The Problem
A leading PV manufacturer in Gujarat faced increasing regulatory pressure due to stringent discharge limits for its wastewater, particularly for fluoride (<10 mg/L) and TDS (<500 mg/L). Simultaneously, the plant was grappling with rising water procurement costs, which had reached $2.50/m³, making traditional water usage economically unsustainable.
The Solution
Zhongsheng Environmental partnered with the manufacturer to design and implement a comprehensive hybrid ZLD system. The solution integrated several advanced stages:
- Pretreatment: A high-efficiency DAF system followed by chemical precipitation (lime dosing for fluoride) and multi-media filtration.
- Membrane Filtration: A two-pass industrial RO system for primary contaminant and TDS reduction.
- Thermal Evaporation: A Mechanical Vapor Recompression (MVR) evaporator to process the RO reject, maximizing water recovery and concentrating the remaining brine.
- Solar Integration: A 2 MW on-site solar array was installed to partially power the ZLD facility, supported by battery storage to ensure continuous operation.
Key Results
The implemented system delivered exceptional performance, far exceeding initial expectations:
- Water Recovery: Achieved an impressive 99.9% water recovery rate, significantly reducing fresh water intake.
- Effluent Quality: Treated water quality surpassed regulatory requirements, with fluoride concentrations consistently below 5 mg/L and TDS below 30 mg/L, suitable for reuse in various plant processes.
- Energy Cost Reduction: The 2 MW solar array contributed to a 35% reduction in the ZLD system's energy costs (Gradiant case study data), enhancing operational sustainability.
Financial Performance
- CAPEX: The total capital expenditure for the project was approximately $3.8M.
- OPEX: Operational costs were reduced to $1.20/m³ treated, significantly lower than the combined cost of fresh water purchase and wastewater discharge.
- ROI: The system achieved a favorable Return on Investment (ROI) of 4.2 years, driven by substantial savings in water costs and avoided discharge fees.
Lessons Learned
This project underscored several critical insights:
- Pretreatment Importance: Robust pretreatment, particularly the DAF system, was vital. It effectively reduced RO membrane fouling by 40%, extending membrane lifespan and reducing cleaning frequency.
- Solar Storage: Implementing battery storage alongside the solar array was crucial for ensuring uninterrupted operation during non-daylight hours and managing grid fluctuations, highlighting the need for a comprehensive solar integration strategy.
- Automation: Advanced automation and monitoring systems were key to optimizing chemical dosing and MVR performance, ensuring consistent water quality and energy efficiency.
Frequently Asked Questions
Understanding common questions about PV wastewater ZLD systems helps streamline the evaluation and implementation process for plant managers and procurement teams.
What are the primary contaminants in PV wastewater?
PV wastewater typically contains high concentrations of total dissolved solids (TDS), fluoride (from HF etching), heavy metals (e.g., lead, copper), and organic solvents like isopropyl alcohol (IPA) and tetramethylammonium hydroxide (TMAH). These contaminants originate from various stages of the PV manufacturing process, including wafer cutting, cleaning, etching, and doping, presenting a complex treatment challenge.
How does ZLD compare to conventional wastewater treatment for PV plants?
ZLD systems offer significantly higher water recovery (>99%) compared to conventional methods (70-85% for RO + discharge), virtually eliminating liquid waste and discharge fees. While ZLD typically has a higher initial CAPEX due to more complex equipment like evaporators/crystallizers, it results in lower long-term OPEX due to reduced fresh water purchase and avoided discharge costs, alongside superior contaminant removal and enhanced environmental compliance. Conventional systems often still require a discharge permit for a brine stream.
What is the typical lifespan of RO membranes in PV wastewater applications?
The lifespan of RO membranes in PV wastewater applications generally ranges from 5 to 7 years for robust membranes like PVDF. This longevity is heavily dependent on the effectiveness of pretreatment, consistent chemical dosing (e.g., antiscalants), and regular cleaning-in-place (CIP) protocols. Poor pretreatment or improper operation can significantly reduce membrane lifespan, leading to increased replacement costs and downtime.
How much space does a 100 m³/h ZLD system require?
A 100 m³/h hybrid ZLD system, including pretreatment, membrane filtration, and thermal evaporation, typically requires a footprint of approximately 500-800 m² for the main equipment. This estimate excludes buffer tanks, chemical storage, and any associated solar energy field. The exact space requirement can vary based on specific equipment selection, layout optimization, and the need for expandable capacity.
What are the main challenges in implementing a ZLD system for PV wastewater?
Key challenges include the high initial CAPEX, managing the energy intensity of thermal processes (though mitigated by solar integration), complex chemical management for diverse contaminants, and the disposal of concentrated solid waste. Additionally, ensuring skilled labor for operation and maintenance and navigating evolving regulatory landscapes are important considerations for successful ZLD implementation.
