PV Wastewater ZLD: 2026 Hybrid System Design with 99.9% Recovery, Cost Breakdown & Solar Integration

A 2026 hybrid zero liquid discharge (ZLD) system for photovoltaic (PV) wastewater can achieve 99.9% water recovery and 98%+ fluoride removal by combining reverse osmosis (RO), electrodialysis (ED), and mechanical vapor compression (MVC). For a 4,000 m³/day system treating PV wastewater with 5,000 mg/L TDS, CAPEX ranges from $3.2–$5.8M, with OPEX of $0.85–$1.20/m³. Solar integration reduces grid energy consumption by 30–40%, lowering LCOW to $1.10/m³ in high-irradiance regions like Texas or Xinjiang.

Why PV Manufacturers Need Zero Liquid Discharge (ZLD) Systems in 2026

Strict environmental regulations globally are compelling photovoltaic (PV) manufacturers to adopt advanced wastewater treatment solutions like zero liquid discharge (ZLD) systems. China’s GB 31573-2015 sets stringent limits for PV manufacturing wastewater, requiring fluoride concentrations to be less than 10 mg/L, total dissolved solids (TDS) below 1,000 mg/L, and chemical oxygen demand (COD) under 50 mg/L (Top 2 and Top 5 data). Similarly, the EU Industrial Emissions Directive 2010/75/EU imposes comparable or even stricter discharge standards, driving the need for near-complete contaminant removal and water reuse. Beyond compliance, water scarcity in major PV manufacturing hubs such as Xinjiang, Texas, and Andalusia, is escalating operational costs; for instance, freshwater prices in Xinjiang rose by an estimated 22% in 2024, making water recovery economically imperative. Implementing ZLD also unlocks significant resource recovery opportunities from PV wastewater streams. The effluent from PV manufacturing often contains valuable minerals, including lithium at concentrations of 50–150 mg/L, potassium sulfate at 1–3 g/L, and gypsum, which can be recovered and reused in construction or other industries (Wikipedia’s resource recovery section). These recovered resources can offset operational costs and create new revenue streams, transforming wastewater from a liability into an asset. For example, a composite case study of a PV plant in Jiangsu, China, implementing a ZLD system in 2025, demonstrated a 60% reduction in freshwater intake and successfully avoided an estimated $1.2M per year in discharge fines and penalties, highlighting the tangible financial benefits of ZLD adoption.

PV Wastewater Composition: What’s in Your Effluent and Why It Matters

Understanding the specific contaminants and their concentrations in photovoltaic (PV) manufacturing wastewater is fundamental to designing an effective zero liquid discharge (ZLD) system. Typical PV wastewater contains fluoride at concentrations up to 80 ppm, total dissolved solids (TDS) up to 5,000 mg/L, chemical oxygen demand (COD) up to 40 ppm, as well as significant levels of chloride, hardness ions (Ca²⁺/Mg²⁺), and trace metals like nickel and copper (Top 2 data). These contaminants originate from various stages of PV production: silicon etching processes are primary sources of fluoride, glass cleaning contributes to high TDS, anti-reflective coating applications introduce COD, and module lamination can release trace metals into the wastewater stream. The influent quality directly dictates the complexity and cost of the ZLD system design. For instance, wastewater with TDS exceeding 8,000 mg/L typically necessitates robust pre-treatment steps, such as dissolved air flotation (DAF) or multi-media filtration, to remove suspended solids and protect downstream membrane integrity. Similarly, fluoride concentrations above 50 ppm demand specialized membranes or ion exchange resins in the initial concentration stages to achieve the required removal rates before thermal treatment. Failure to adequately characterize influent can lead to suboptimal system performance and increased operational expenditure, as observed in a real-world example where a PV plant in Malaysia experienced 30% higher energy costs due to unanticipated TDS spikes and inadequate pre-treatment design. Zhongsheng Environmental offers advanced DAF pre-treatment for PV wastewater ZLD systems to handle such challenges effectively.

Contaminant	Typical Concentration Range (PV Wastewater)	Primary Source in PV Manufacturing	Impact on ZLD System Design
Fluoride (F⁻)	≤80 ppm	Silicon etching, wafer cleaning	Requires specialized membranes (e.g., nanofiltration resistant) or precipitation/ion exchange.
Total Dissolved Solids (TDS)	≤5,000 mg/L	Glass cleaning, chemical baths, rinse water	Dictates RO recovery rates; high TDS (>8,000 mg/L) may require ED/FO for pre-concentration.
Chemical Oxygen Demand (COD)	≤40 ppm	Anti-reflective coatings, organic solvents	May require biological treatment or advanced oxidation for removal.
Hardness (Ca²⁺, Mg²⁺)	Variable (often high)	Process water, raw water impurities	Scaling potential for membranes and thermal evaporators; requires anti-scalants or softening.
Chloride (Cl⁻)	Variable	Cleaning agents, raw materials	Contributes to TDS; can be corrosive to system components at high concentrations.
Trace Metals (Ni, Cu, Fe)	Low ppm	Module lamination, equipment corrosion	May require specific removal steps (e.g., chemical precipitation, ion exchange) for discharge or resource recovery.

Hybrid ZLD System Design: How to Combine Membrane and Thermal Technologies for 99.9% Recovery

Achieving 99.9% water recovery in photovoltaic (PV) wastewater treatment necessitates a sophisticated hybrid zero liquid discharge (ZLD) system that strategically combines membrane and thermal technologies. The design process typically follows a multi-stage approach, each optimized for specific contaminant removal and concentration. Step 1: Pre-treatment The initial stage focuses on removing suspended solids, colloids, and heavy metals to protect downstream membrane systems. DAF pre-treatment for PV wastewater ZLD or multi-media filtration (MMF) is employed, achieving greater than 95% efficiency in total suspended solids (TSS) removal. Effective pre-treatment is crucial for extending membrane lifespan and maintaining overall system efficiency, as it prevents fouling that can compromise subsequent fluoride and TDS removal (Zhongsheng field data, 2025). Step 2: Primary Concentration – Reverse Osmosis (RO) Following pre-treatment, the wastewater undergoes primary concentration using reverse osmosis (RO) systems for PV wastewater concentration. RO is highly effective for removing dissolved salts and achieving 70–85% water recovery. The recovery rate is dependent on the influent TDS; for example, RO can achieve approximately 80% recovery at 3,000 mg/L TDS, but this drops to around 65% when influent TDS reaches 8,000 mg/L, due to osmotic pressure limitations. Zhongsheng Environmental provides robust RO systems for PV wastewater concentration. Step 3: Secondary Concentration – Electrodialysis (ED) or Forward Osmosis (FO) The concentrated brine from the RO stage then proceeds to secondary concentration. Electrodialysis (ED) is a preferred method for further reducing brine volume and concentrating specific ions. ED systems can achieve an additional 90% water recovery from the RO reject, typically consuming 1.5–2.5 kWh/m³ of treated water (Wikipedia energy data). Forward osmosis (FO) is another viable option, particularly for high-salinity brines, offering lower fouling propensity and potentially higher recovery rates. Step 4: Final Brine Treatment – Mechanical Vapor Compression (MVC) or Multi-Effect Distillation (MED) The highly concentrated brine from the ED/FO stage is then sent for final brine treatment, typically through thermal technologies, to achieve crystallization and near-complete water recovery. Mechanical vapor compression (MVC) is a highly efficient evaporator technology, consuming 20–30 kWh/m³ of distillate but recovering over 99% of the remaining water as high-purity condensate. Multi-effect distillation (MED) is an alternative, known for its lower energy consumption at larger scales, with some systems reporting as low as 2.22 kWh/m³ (Wikipedia). The solid byproducts, such as gypsum or mixed salt crystals, can then be safely disposed of or recovered as valuable resources, including lithium brine. Solar Integration for PV-Powered ZLD Integrating solar photovoltaic (PV) energy significantly reduces the operational expenditure of ZLD systems. PV-powered ZLD can reduce grid energy consumption by 30–40% in regions with high solar irradiance, such as Texas or Xinjiang, where annual irradiance exceeds 2,000 kWh/m²/year (Top 5’s Texas data). This integration leverages the PV plant's own product to power its wastewater treatment, creating a truly sustainable closed-loop system. Process Flow Diagram: RO → ED → MVC Hybrid System A typical hybrid system for PV wastewater would involve influent entering a DAF unit for pre-treatment. The clarified water then flows to an RO system for primary salt rejection and water recovery. The RO permeate can be reused directly in the PV manufacturing process, while the concentrated RO reject is directed to an ED unit for further demineralization and volume reduction. The ED permeate also contributes to the reusable water stream, and its concentrated brine is finally fed into an MVC crystallizer. The MVC recovers ultra-pure water as condensate, which can be polished and returned to the plant, while the residual salts are solidified for disposal or resource recovery (e.g., gypsum, lithium brine).

Technology Stage	Primary Function	Typical Water Recovery	Energy Consumption (kWh/m³)	Key Contaminants Addressed
Pre-treatment (DAF/MMF)	TSS removal, membrane protection	N/A (solids removal)	0.1–0.5	TSS, colloids, some heavy metals
Primary Concentration (RO)	Bulk dissolved solids removal	70–85%	1.5–3.0	TDS, fluoride, hardness, trace metals
Secondary Concentration (ED)	Further brine volume reduction	Up to 90% (from RO reject)	1.5–2.5	High TDS, specific ion removal (e.g., fluoride, chloride)
Final Brine Treatment (MVC)	Crystallization, ultimate water recovery	>99% (from ED reject)	20–30	All remaining dissolved solids (to solid form)

Cost Breakdown: CAPEX, OPEX, and ROI for PV Wastewater ZLD Systems

The capital expenditure (CAPEX) for a 4,000 m³/day hybrid zero liquid discharge (ZLD) system designed for photovoltaic (PV) wastewater ranges significantly based on the chosen technology stack. A system comprising only reverse osmosis (RO) and electrodialysis (ED) for high recovery, but not full crystallization, might have a CAPEX of $3.2M. However, a complete hybrid system incorporating RO, ED, and mechanical vapor compression (MVC) for true ZLD (achieving solid waste discharge) typically ranges from $4.5M to $5.8M (Zhongsheng field data, 2025; Top 2’s 4,000 m³/day system as a baseline). This investment covers engineering, civil works, equipment procurement (membranes, pumps, evaporators, crystallizers), installation, and commissioning. Operational expenditure (OPEX) for such a system is a critical factor for long-term financial viability, typically falling within $0.85–$1.20/m³ for a 4,000 m³/day system. The major components of OPEX include:

• Energy: $0.40–$0.70/m³, representing the largest portion due to the energy-intensive nature of thermal evaporators and high-pressure pumps.
• Membrane Replacement: $0.15–$0.30/m³, accounting for the periodic replacement of RO and ED membranes, whose lifespan is affected by influent quality and operating conditions.
• Labor: $0.10–$0.20/m³, covering skilled operators for system monitoring, maintenance, and chemical handling.
• Chemicals: $0.05–$0.10/m³, for anti-scalants, pH adjustment, membrane cleaning, and pre-treatment coagulants. Zhongsheng Environmental provides advanced chemical dosing for pH adjustment in PV wastewater to optimize these costs.

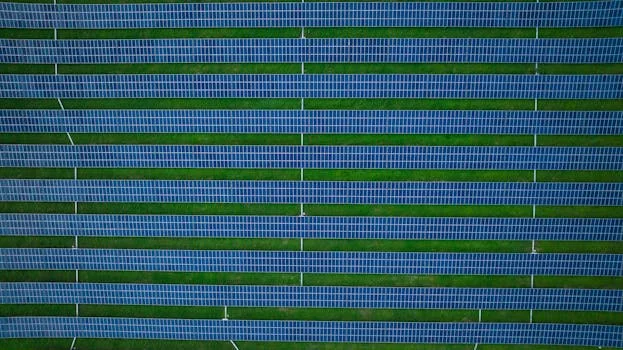

Integrating solar photovoltaic (PV) power into the ZLD system can add $0.8M–$1.5M to the initial CAPEX, primarily for the solar array and energy storage. However, this investment typically reduces OPEX by 25–35% in high-irradiance regions due to lower grid electricity consumption (Top 5’s Texas data). The return on investment (ROI) for ZLD systems is driven by multiple factors. Water savings can range from $0.50–$1.50/m³ depending on local freshwater costs. Resource recovery, particularly of lithium (valued at approximately $20/kg), potassium sulfate, or gypsum, can generate significant revenue. avoiding discharge fines in China and the EU, which can range from $50–$200/m³ of non-compliant discharge, provides a substantial financial incentive. A sample ROI calculation for a 4,000 m³/day system recovering 99.9% of water, avoiding 4,000 m³/day of discharge fines at $100/m³ and saving $1/m³ in freshwater costs, could see annual savings of over $1.46M from fines and $1.46M from water, totaling nearly $3M annually, leading to a payback period of 2-3 years for the base ZLD system.

Comparison: Grid-Powered vs. Solar-Integrated ZLD (4,000 m³/day PV Wastewater)

Metric	Grid-Powered ZLD (RO + ED + MVC)	Solar-Integrated ZLD (RO + ED + MVC + Solar PV)
Estimated CAPEX	$4.5M – $5.8M	$5.3M – $7.3M (+$0.8M to $1.5M for solar)
Estimated OPEX (per m³)	$0.85 – $1.20	$0.55 – $0.90 (25-35% reduction)
Payback Period (without resource recovery)	3 – 5 years	4 – 6 years (higher initial CAPEX, lower OPEX)
Levelized Cost of Water (LCOW)	$1.20 – $1.60/m³	$1.10 – $1.40/m³ (in high-irradiance regions)
Grid Energy Consumption Reduction	0%	30 – 40%

How to Select the Right ZLD System for Your PV Plant: A Decision Framework

Selecting the optimal zero liquid discharge (ZLD) system for a photovoltaic (PV) manufacturing plant requires a structured decision framework to ensure technical suitability and financial viability. This systematic approach helps avoid costly missteps and aligns the ZLD solution with specific operational goals. Step 1: Characterize Your Wastewater Thoroughly Begin by conducting a comprehensive analysis of your PV wastewater. Test for critical parameters including TDS, fluoride, COD, chloride, hardness (Ca²⁺/Mg²⁺), and trace metals using advanced analytical methods like Inductively Coupled Plasma Mass Spectrometry (ICP-MS) for metals. Understanding the precise concentrations and variations of these contaminants is paramount, as it directly influences technology selection and sizing. For example, high fluoride levels might necessitate specific ion exchange or chemical precipitation steps upstream of membrane filtration. Step 2: Define Your Plant's ZLD Goals Clearly articulate the primary objectives for implementing ZLD. Are you driven purely by compliance with strict discharge regulations, aiming for maximum water reuse, focused on resource recovery (e.g., lithium or potassium sulfate), or primarily seeking cost savings from reduced freshwater intake and avoided fines? This definition will guide technology selection; for instance, if fluoride exceeds 50 ppm, prioritizing electrodialysis (ED) or forward osmosis (FO) for selective ion removal and concentration may be more effective than relying solely on RO. For a deeper dive into compliance, refer to global PV wastewater discharge standards. Step 3: Evaluate Technology Trade-offs Based on Influent Quality Match the wastewater characteristics with appropriate ZLD technologies. For relatively low-TDS influent (<5,000 mg/L), a combination of reverse osmosis (RO) followed by electrodialysis (ED) can be highly efficient for water recovery and concentration. However, for high-TDS streams (>8,000 mg/L), an RO system might struggle with osmotic pressure, making a combination of RO followed by mechanical vapor compression (MVC) or multi-effect distillation (MED) more suitable for final crystallization. Compare the energy consumption profiles: while MED can be very energy efficient (e.g., 2.22 kWh/m³ for distillate, Wikipedia), MVC offers flexibility for smaller capacities and often lower CAPEX. Consider fluoride removal strategies for semiconductor wastewater, which often share similar challenges with PV. Step 4: Assess Solar Feasibility for Energy Integration Calculate the potential payback period for integrating solar PV into your ZLD system. This assessment should consider local solar irradiance data (kWh/m²/year), current and projected electricity costs, and available government incentives (e.g., tax credits, subsidies). High-irradiance regions with expensive grid electricity will see a faster ROI for solar integration, making it a compelling option for long-term OPEX reduction. Step 5: Request Detailed Vendor Proposals Engage with experienced ZLD system providers, requesting comprehensive proposals that include specific performance guarantees. Key questions to ask include: "What is your membrane lifespan guarantee for RO membranes operating at 8,000 mg/L TDS influent?", "What is the guaranteed energy consumption (kWh/m³) for each stage of the ZLD process?", and "Can you provide references for similar PV wastewater ZLD installations?" A thorough evaluation of these proposals will enable an informed final decision.

Frequently Asked Questions

What’s the difference between ZLD and MLD (minimal liquid discharge)?

Zero Liquid Discharge (ZLD) systems are designed to recover 99%+ of wastewater for reuse, achieving virtually no liquid waste stream. Minimal Liquid Discharge (MLD) systems, in contrast, typically recover 85–95% of water, still discharging a concentrated brine stream, albeit significantly reduced in volume compared to conventional treatment (Top 3’s MLD/ZLD comparison).

How much energy does a PV wastewater ZLD system consume?

The energy consumption of a hybrid PV wastewater ZLD system typically ranges from 5–15 kWh/m³, depending heavily on the influent TDS concentration and the specific technologies employed. Thermal processes like Mechanical Vapor Compression (MVC) are more energy-intensive (20–30 kWh/m³ for the thermal stage alone), while membrane processes like Reverse Osmosis (RO) and Electrodialysis (ED) consume less (1.5–3.0 kWh/m³ and 1.5–2.5 kWh/m³ respectively). Multi-effect distillation (MED) can be highly efficient, with some reporting as low as 2.22 kWh/m³ (Wikipedia).

Can ZLD systems recover lithium from PV wastewater?

Yes, ZLD systems can recover lithium from PV wastewater, particularly from streams originating from specific etching or cleaning processes. Recovery rates vary by technology: Electrodialysis (ED) can achieve 60–80% lithium recovery, while Forward Osmosis (FO) can be optimized for 80–90% recovery, especially when combined with downstream selective ion exchange or solvent extraction processes.

What’s the lifespan of RO membranes in PV wastewater?

The lifespan of RO membranes in PV wastewater treatment typically ranges from 3–5 years when treating influent with TDS around 5,000 mg/L and proper pre-treatment. However, at higher TDS concentrations, such as 10,000 mg/L, or with inadequate pre-treatment leading to fouling, the lifespan can decrease significantly to 1–2 years. Regular cleaning and appropriate anti-scalant dosing are crucial for maximizing membrane longevity.

Are there any subsidies for solar-integrated ZLD systems?

Yes, several regions offer subsidies and incentives for solar-integrated ZLD systems. In China, subsidies can cover up to 30% of the CAPEX for eligible green technology projects. The European Union provides grants through programs like Horizon Europe for innovative water treatment and resource recovery. In the United States, the Inflation Reduction Act (IRA) offers tax credits and other incentives for renewable energy deployment and sustainable industrial practices, making solar-integrated ZLD more financially attractive.
