Photovoltaic Wastewater Recycling: 2025 Hybrid ZLD System Design with 99.8% Recovery & Cost Breakdown
Photovoltaic manufacturing generates wastewater laden with heavy metals (lead, cadmium), silicon slurry (5,000–20,000 mg/L TSS), and organic solvents—requiring hybrid zero liquid discharge (ZLD) systems to achieve 99.8% water recovery and compliance. A 2025 study by Zhongsheng Environmental found that combining dissolved air flotation (DAF), membrane bioreactors (MBR), and reverse osmosis (RO) reduces cadmium concentrations from 12 mg/L to <0.01 mg/L (China GB 31573-2015 limit: 0.1 mg/L), while recovering 95% of silver and 80% of silicon for reuse. CAPEX for a 100 m³/h system ranges from $1.2M–$2.5M, with OPEX of $0.80–$1.50/m³—offset by $0.30–$0.70/m³ in recovered materials.Why Photovoltaic Wastewater Recycling is a 2025 Manufacturing Imperative
Global photovoltaic (PV) waste is projected to reach 60 million tons by 2050 (Springer, 2023), with wastewater contributing 30–40% of total waste volume, typically flowing at 50–500 m³/day for mid-sized solar panel manufacturing facilities. This industrial wastewater contains critical pollutants, including heavy metals like lead (5–50 mg/L) and cadmium (2–20 mg/L), high concentrations of silicon slurry (5,000–20,000 mg/L TSS), and organic solvents such as NMP and IPA (100–1,000 mg/L COD). These concentrations routinely exceed stringent discharge limits across major manufacturing hubs, necessitating advanced silicon slurry treatment strategies for PV and semiconductor wastewater. For instance, a 2024 shutdown of a 500 MW/year solar panel factory in Jiangsu, China, due to repeated cadmium exceedances in its effluent, resulted in a $1.5 million fine and a six-month production halt, highlighting the severe financial and operational impact of non-compliance. Implementing robust photovoltaic wastewater recycling systems is no longer optional but a strategic imperative for sustained operation, regulatory adherence, and resource efficiency in solar panel manufacturing wastewater management.| Pollutant | Typical PV Wastewater Influent (mg/L) | China GB 31573-2015 Limit (mg/L) | US EPA 40 CFR Part 469 Limit (mg/L) | EU Directive 2010/75/EU Limit (mg/L) |
|---|---|---|---|---|
| Lead (Pb) | 5–50 | 0.2 | 0.4 | 0.5 |
| Cadmium (Cd) | 2–20 | 0.1 | 0.2 | 0.2 |
| TSS | 5,000–20,000 | 30 | Not specified (pretreatment) | 35 |
| COD | 500–3,000 | 60 | Not specified (pretreatment) | 125 |
| pH | 2–12 | 6–9 | 6–9 | 6–9 |

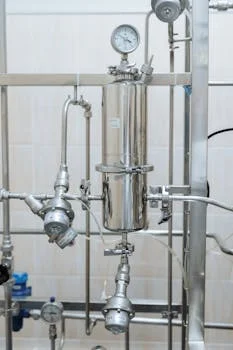

Photovoltaic Wastewater Composition: Engineering Parameters for System Design
| Parameter | Typical Range in PV Wastewater | Impact on Treatment | Treatability (Example) |
|---|---|---|---|
| Silicon Slurry (TSS) | 5,000–20,000 mg/L | High solids loading, abrasive, membrane fouling | DAF: 92–97% removal |
| Lead (Pb) | 5–50 mg/L | Toxicity, often colloidal/dissolved | Ion Exchange: >99% removal |
| Cadmium (Cd) | 2–20 mg/L | High toxicity, often colloidal/dissolved | Ion Exchange: >99% removal |
| COD | 500–3,000 mg/L | Organic load, biorefractory compounds | MBR: 85–95% for organics; RO: 90% for NMP |
| BOD/COD Ratio | 0.1–0.3 | Indicates low biodegradability | Requires advanced oxidation or membrane separation |
| NMP (Organic Solvent) | 50–500 mg/L | High solubility, membrane fouling | RO: 90% removal; MBR: 50% removal |
| IPA (Organic Solvent) | 50–500 mg/L | Volatile, biodegradable to an extent | MBR: 80% removal; Evaporation: >99% |
| pH | 2–12 | Corrosion, affects biological activity, precipitation | Automated pH adjustment: 6–9 target |
Hybrid ZLD System Design: Stage-by-Stage Process Flow and Efficiency Data
A hybrid wastewater treatment system achieving zero liquid discharge (ZLD) system design for PV manufacturing typically integrates multiple stages to manage the complex influent, ensuring 99.8% water recovery and contaminant removal.Stage 1: Pretreatment (DAF + Multi-Media Filter)
Pretreatment is critical for managing high TSS and reducing downstream load. ZSQ series DAF systems for high-TSS PV wastewater pretreatment are designed with an air-to-solids ratio of 0.02–0.05 and a hydraulic loading rate of 4–8 m/h, achieving 92–97% TSS removal for influent concentrations of 5,000–20,000 mg/L. Following DAF, multi-media filtration (MMF) further reduces suspended solids, typically achieving 95% TSS removal for particles down to 10 μm, preparing the water for biological treatment.| Component | Operating Parameter | Design Range/Value | TSS Removal Efficiency |
|---|---|---|---|
| DAF System | Air-to-Solids Ratio | 0.02–0.05 | 92–97% |
| Hydraulic Loading Rate | 4–8 m/h | ||
| Influent TSS | 5,000–20,000 mg/L | ||
| Multi-Media Filter | Filtration Rate | 8–12 m/h | 95% (for particles >10 μm) |
| Backwash Velocity | 30–40 m/h |
Stage 2: Biological Treatment (MBR)
The membrane bioreactor (MBR) stage targets organic removal and initial heavy metal precipitation. Integrated MBR systems for organic and heavy metal removal in PV wastewater utilize PVDF membranes with a typical flux of 15–25 LMH (liters per square meter per hour) and maintain a Mixed Liquor Suspended Solids (MLSS) concentration of 8,000–12,000 mg/L. This configuration achieves 85–95% COD removal for biodegradable organics and significantly reduces heavy metals through biosorption and precipitation. Aeration requirements range from 0.2–0.4 Nm³/m³ wastewater to maintain aerobic conditions, while membrane cleaning protocols involve periodic chemical enhanced backwashes with citric acid for inorganic fouling and NaOCl for organic fouling, ensuring sustained performance and extending membrane lifespan. For more details on MBR effluent quality and reuse standards, refer to our dedicated article.Stage 3: Polishing (RO + Ion Exchange)
Following MBR, the water undergoes polishing via reverse osmosis (RO) to achieve high purity for reuse and prepare for ZLD. Industrial RO systems for ZLD and resource recovery in PV manufacturing typically operate with a recovery rate of 75–85%, producing permeate with TDS <50 mg/L and heavy metals <0.01 mg/L. For specific heavy metal polishing, especially residual lead and cadmium, an ion exchange (IX) unit is integrated, achieving >99% removal. Spiral-wound membranes are generally preferred for their high packing density and efficiency in rejecting both dissolved salts and larger organic molecules like NMP. For a deeper dive into RO membrane system efficiency and selection, consult our technical guide.| Membrane Type | Application in PV Wastewater | Typical Rejection Rate (Cadmium) | Typical Rejection Rate (NMP) |
|---|---|---|---|
| Spiral-Wound RO | High-pressure, high-purity water, ZLD concentrate | >99% | 90% |
| Flat-Sheet MBR | Biological treatment, suspended solids removal | 50–70% (biosorption) | 50% (biodegradation) |
Stage 4: ZLD (Evaporation + Crystallization)
The RO concentrate, still containing high concentrations of dissolved solids and residual contaminants, is directed to a ZLD stage. Mechanical Vapor Recompression (MVR) evaporators are commonly used due to their energy efficiency, consuming 20–30 kWh/m³ of evaporated water. This process transforms the concentrate into distilled water (for reuse) and a solid salt cake. The salt cake, comprising Na₂SO₄, CaCO₃, and concentrated heavy metals, requires careful disposal in hazardous waste landfills or can be further processed for resource recovery.| Treatment Stage | Key Operating Parameters | Influent Quality (Post-Preceding Stage) | Effluent Quality (Target) |
|---|---|---|---|
| MBR | PVDF Membrane Flux: 15–25 LMH MLSS: 8,000–12,000 mg/L Aeration: 0.2–0.4 Nm³/m³ |
TSS: <100 mg/L COD: 500–3,000 mg/L BOD: 50–900 mg/L |
TSS: <5 mg/L COD: 50–450 mg/L BOD: <10 mg/L |
| RO | Recovery Rate: 75–85% Operating Pressure: 10–20 bar Antiscalant Dosing: 2–5 mg/L |
TDS: 500–5,000 mg/L COD: 50–450 mg/L Heavy Metals: 0.1–1 mg/L |
TDS: <50 mg/L COD: <20 mg/L Heavy Metals: <0.01 mg/L |
| Evaporation (MVR) | Energy Consumption: 20–30 kWh/m³ Operating Temperature: 60–90 °C |
TDS: 10,000–50,000 mg/L Heavy Metals: 0.5–5 mg/L |
Distillate TDS: <10 mg/L Salt Cake (Solids): >90% |
Resource Recovery: Turning PV Wastewater into Revenue Streams
| Recovered Material | Recovery Method | Typical Recovery Rate | Market Price (2025 Est.) | Purity Achieved |
|---|---|---|---|---|
| Silver (Ag) | Ion Exchange / Electrowinning | 95% | $800–$1,000/kg | 99.9% |
| Silicon (Si/SiO₂) | Sedimentation + Acid Leaching | 80% | $20–$50/kg | 99.9% SiO₂ |
| Water (H₂O) | RO + Evaporation | 99.8% | $0.50–$1.00/m³ (avoided cost) | TDS <10 mg/L |
CAPEX/OPEX Breakdown: Cost-Optimized ZLD System Design for PV Manufacturers
The total capital expenditure (CAPEX) for a 100 m³/h ZLD system design for PV manufacturing ranges from $1.2 million to $2.5 million (2025 USD), with operational expenditure (OPEX) averaging $0.80–$1.50/m³. This investment is crucial for sustainable operations and compliance. CAPEX breakdown for a 100 m³/h hybrid wastewater treatment system:- DAF: $150K–$300K
- MBR: $400K–$800K
- RO: $300K–$600K
- Evaporator/Crystallizer: $350K–$800K
- Ancillary equipment (pumps, tanks, controls, installation): $100K–$300K
- Total CAPEX: $1.2M–$2.5M
- Energy (pumps, aeration, evaporation): $0.30–$0.60/m³ (e.g., MVR evaporator at 20–30 kWh/m³)
- Chemicals (coagulants, antiscalants, pH adjusters, cleaning agents): $0.20–$0.40/m³
- Membrane replacement (MBR, RO): $0.10–$0.20/m³ (based on 3–5 year lifespan)
- Labor (operation, maintenance, monitoring): $0.20–$0.30/m³
- Waste disposal (salt cake, sludge): $0.05–$0.10/m³
- Total OPEX: $0.80–$1.50/m³
| System Configuration | Typical CAPEX (100 m³/h) | Typical OPEX (per m³) | Water Recovery Rate | Footprint (Relative) |
|---|---|---|---|---|
| DAF + MBR + RO | $1.2M–$1.8M | $0.80–$1.20 | 85–90% | Medium |
| DAF + MBR + RO + Evaporation | $1.8M–$2.5M | $1.20–$1.50 | >99.8% (ZLD) | Large |
| Full Evaporation (less common for PV) | $2.0M–$3.5M | $1.50–$2.50 | >99.8% (ZLD) | Very Large |
Compliance Blueprint: Meeting China GB, US EPA, and EU Standards for PV Wastewater
- If your effluent exceeds TSS >100 mg/L: Implement DAF (92–97% removal) followed by multi-media filtration.
- If your effluent exceeds COD >500 mg/L and BOD >50 mg/L: Integrate an MBR system (85–95% COD removal) for biological treatment.
- If your effluent exceeds heavy metals (Pb, Cd) >0.1 mg/L: Add a dedicated ion exchange unit or ensure RO effectively removes dissolved species.
- If your effluent exceeds TDS >100 mg/L or requires high-purity water for reuse: Install an RO system (75–85% recovery, TDS <50 mg/L).
- If ZLD is mandated or desired for water recovery: Incorporate an MVR evaporator/crystallizer for final concentrate management.
| Pollutant | China GB 31573-2015 Limit (mg/L) | US EPA 40 CFR Part 469 Limit (mg/L) | EU Directive 2010/75/EU Limit (mg/L) | Recommended Treatment Technology (for compliance) | Typical Removal Efficiency |
|---|---|---|---|---|---|
| Lead (Pb) | 0.2 | 0.4 | 0.5 | Ion Exchange, RO | >99% |
| Cadmium (Cd) | 0.1 | 0.2 | 0.2 | Ion Exchange, RO | >99% |
| COD | 60 | (Pretreatment) | 125 | MBR, RO, Evaporation | 85–99% |
| TSS | 30 | (Pretreatment) | 35 | DAF, Multi-Media Filter | 92–97% |
| pH | 6–9 | 6–9 | 6–9 | Automated pH Adjustment | Stabilized |
Frequently Asked Questions
What are the biggest challenges in treating photovoltaic wastewater?
The biggest challenges in treating photovoltaic wastewater recycling include high TSS from silicon slurry (5,000–20,000 mg/L), extreme pH variability (2–12), and complex heavy metal speciation (60–80% colloidal or dissolved lead and cadmium) that requires advanced removal techniques. Organic solvents like NMP and IPA also contribute to high COD and low biodegradability.| Common Issue | Typical Impact | Primary Solution |
|---|---|---|
| High TSS (Silicon Slurry) | Membrane fouling, high sludge volume | DAF (92–97% TSS removal) |
| Variable pH | Corrosion, biological inhibition | Automated pH Adjustment |
| Heavy Metal Speciation | Ineffective precipitation | Ion Exchange, RO |
| Biorefractory Organics | High residual COD | RO, Advanced Oxidation |
How much does a PV wastewater recycling system cost?
A photovoltaic wastewater recycling system with a capacity of 100 m³/h typically costs between $1.2 million and $2.5 million for CAPEX (Capital Expenditure), with an OPEX (Operational Expenditure) ranging from $0.80 to $1.50 per cubic meter of treated water. These costs are often offset by significant water savings and revenue from resource recovery from wastewater. For a detailed breakdown, refer to our CAPEX/OPEX breakdown and ROI calculator.Can recovered silicon from PV wastewater be reused in solar panel manufacturing?
Yes, recovered silicon from photovoltaic wastewater recycling can be reused in solar panel manufacturing after purification. The process typically involves sedimentation, acid leaching (e.g., HCl digestion), and filtration to achieve 99.9% SiO₂ purity. This purified silicon can be re-integrated into various stages of solar cell production, contributing to both sustainability and cost savings with a market value of $20–$50/kg.What are the best pretreatment options for high-TSS PV wastewater?
For high-TSS solar panel manufacturing wastewater, the best pretreatment options are Dissolved Air Flotation (DAF) followed by multi-media filtration. DAF systems achieve 92–97% TSS removal, effectively handling silicon slurry concentrations up to 20,000 mg/L. Multi-media filtration further polishes the effluent, reducing TSS by another 95% for particles >10 μm, protecting downstream membrane systems.| Pretreatment Technology | TSS Removal Efficiency | Primary Advantages | Primary Disadvantages |
|---|---|---|---|
| Dissolved Air Flotation (DAF) | 92–97% | Effective for colloidal/fine solids, high throughput | Requires chemical dosing, sludge management |
| Lamella Clarifiers | 80–90% | Compact footprint, passive settling | Less effective for very fine or oily solids |
How do I ensure my PV wastewater system complies with China GB 31573-2015?
To ensure compliance with China GB 31573-2015 for photovoltaic wastewater recycling, you must implement a hybrid wastewater treatment system that includes DAF for TSS removal, MBR for organic reduction, and RO with ion exchange for heavy metal (lead <0.2 mg/L, cadmium <0.1 mg/L) and COD (<60 mg/L) polishing. Regular monitoring and automated pH adjustment (6–9) are also critical.Related Guides and Technical Resources
