In 2025, GaN semiconductor fabs face strict wastewater discharge limits under China’s GB 31573-2015 (e.g., gallium ≤ 5 mg/L, fluoride ≤ 10 mg/L) and the US EPA’s 40 CFR Part 469 (e.g., fluoride ≤ 20 mg/L, copper ≤ 1.3 mg/L). Hybrid treatment systems combining chemical precipitation (for gallium removal), membrane bioreactors (MBR for organics), and reverse osmosis (RO for TDS reduction) achieve 99%+ compliance. For example, a 50 m³/h system in Shanghai reduced gallium from 45 mg/L to <0.5 mg/L at a 3-year ROI of 18%.
Why GaN Wastewater Discharge Standards Are Tighter Than Silicon Fabs
GaN semiconductor wastewater presents unique challenges that necessitate significantly stricter discharge standards compared to traditional silicon fab effluents due to its distinct chemical composition and the environmental risks of gallium. The etching and cleaning processes in GaN production generate effluent characterized by high concentrations of gallium (Ga³⁺), fluoride (F⁻), ammonia-nitrogen (NH₃-N), and total dissolved solids (TDS).
Typical influent concentrations from GaN etching wastewater range from 30–100 mg/L for gallium and 200–800 mg/L for fluoride, alongside elevated levels of NH₃-N and TDS (Zhongsheng Environmental field data, 2024). Gallium, while not as widely recognized as heavy metals like lead or mercury, poses significant environmental risks due to its potential for bioaccumulation in aquatic life. The US EPA’s 2024 draft aquatic life criteria for gallium suggest a chronic exposure limit as low as 0.05 mg/L, highlighting its emerging regulatory importance.
Comparing GaN wastewater to silicon fab effluent reveals stark differences. GaN processes, often utilizing aggressive etchants such as HF/HNO₃ blends, typically result in 3–5 times higher fluoride concentrations and 2–3 times higher TDS levels than those found in silicon manufacturing. This necessitates more robust and specialized hybrid treatment systems for metal-laden semiconductor wastewater. Industry reports indicate that in 2023, a significant percentage of GaN fabs in regions like Jiangsu struggled with gallium exceedances, a far higher rate than silicon fabs, underscoring the unique compliance hurdles for GaN facilities (Zhongsheng Environmental analysis, 2024).
| Parameter | Typical Concentration Range (mg/L) | Notes |
|---|---|---|
| Gallium (Ga³⁺) | 30 – 100 | From GaN etching |
| Fluoride (F⁻) | 200 – 800 | From HF etchants |
| Ammonia-Nitrogen (NH₃-N) | 50 – 150 | From nitrogen-containing compounds |
| Total Dissolved Solids (TDS) | 1,000 – 3,000 | High due to aggressive etchants |
| Chemical Oxygen Demand (COD) | 100 – 300 | From organic additives |
| pH | 2 – 4 | Highly acidic |
China GB 31573-2015 vs US EPA 40 CFR Part 469: GaN-Specific Discharge Limits
Direct comparison of China’s GB 31573-2015 and the US EPA’s 40 CFR Part 469 reveals critical differences in GaN-specific wastewater discharge standards, particularly for gallium, fluoride, and total dissolved solids. Understanding these discrepancies is vital for semiconductor fab managers operating or planning facilities in both regions.
| Parameter | China GB 31573-2015 Limit (mg/L, unless specified) | US EPA 40 CFR Part 469 Limit (mg/L, unless specified) | Notes |
|---|---|---|---|
| pH | 6–9 | 6–9 | Standard range |
| COD | 80 | No explicit federal limit (often locally regulated) | China: Tier 1 standard |
| BOD₅ | 20 | No explicit federal limit (often locally regulated) | China: Tier 1 standard |
| TSS | 30 | No explicit federal limit (often locally regulated) | China: Tier 1 standard |
| Ammonia-Nitrogen (NH₃-N) | 8 (seasonal variations apply) | No explicit federal limit (often locally regulated) | China: Stricter in sensitive areas |
| Fluoride (F⁻) | 10 | 20 | US limit is higher |
| Gallium (Ga) | 5 | Regulated under 'Total Metals' (2.07) or state-specific | China has explicit limit; US is indirect |
| Copper (Cu) | 0.5 | 1.3 | US limit is higher |
| Arsenic (As) | 0.1 | No explicit federal limit (often locally regulated) | China has explicit limit |
| Total Dissolved Solids (TDS) | No explicit national limit (often provincially regulated) | No explicit federal limit (often locally regulated) | Highly variable by region |
A key discrepancy lies in the regulation of gallium wastewater treatment. China’s GB 31573-2015 explicitly sets a gallium limit of 5 mg/L for direct discharges. In contrast, the US EPA does not have an explicit federal limit for gallium, regulating it implicitly under broader 'total metals' limits (e.g., 2.07 mg/L for 40 CFR 469 Subpart B). This necessitates careful review of state and local permits in the US, which may impose specific gallium limits, such as California's 0.1 mg/L for aquatic toxicity.
Enforcement also differs significantly. China's Ministry of Ecology and Environment (MEE) implements a "double-random" inspection policy (random selection of facilities and random selection of inspectors) often resulting in 2–4 unannounced inspections per year (MEE 2024 policy). The US EPA's National Pollutant Discharge Elimination System (NPDES) program relies on self-monitoring reports, supplemented by agency audits and inspections (per EPA guidelines). This difference impacts compliance strategies, with Chinese fabs requiring constant operational readiness.
Permit variations further complicate the landscape. US EPA's 40 CFR 403 establishes categorical pretreatment standards for indirect dischargers to Publicly Owned Treatment Works (POTWs), requiring facilities to meet specific limits before discharge. China, however, mandates direct discharge permits for most industrial facilities, including fabs, with stringent national and often stricter provincial limits (e.g., Jiangsu's gallium limit is 3 mg/L, stricter than the national 5 mg/L).
Hybrid Treatment System Design for GaN Wastewater: Process Flow & Removal Efficiencies
An optimized hybrid treatment system integrating chemical precipitation, membrane bioreactors (MBR), and reverse osmosis (RO) is essential for GaN wastewater to consistently achieve both China GB and US EPA discharge limits. This multi-stage approach addresses the complex contaminant profile of GaN effluent effectively.
The typical process flow for GaN wastewater treatment includes:
- Equalization Tank: Raw GaN wastewater, highly acidic (pH 2-4), is collected and pH-adjusted to 8–9. This initial pH adjustment is critical for optimizing downstream gallium precipitation.
- Chemical Precipitation: Following equalization, calcium hydroxide (Ca(OH)₂) and sodium sulfide (Na₂S) are added. Ca(OH)₂ facilitates the formation of insoluble gallium hydroxide (Ga(OH)₃) and precipitates fluoride as calcium fluoride (CaF₂). Na₂S can be used as a polishing step for residual heavy metals. Optimal gallium precipitation pH is 8.5–9.0 (engineering best practices).
- Membrane Bioreactor (MBR): The effluent from precipitation, now with reduced metals and fluoride, enters an MBR system for GaN wastewater COD/NH₃-N removal. MBRs effectively remove biochemical oxygen demand (BOD₅), chemical oxygen demand (COD), and ammonia-nitrogen through biological degradation and membrane separation. Typical MBR hydraulic retention time (HRT) for semiconductor wastewater is 8–12 hours.
- Reverse Osmosis (RO): For stringent TDS reduction and water reuse, the MBR permeate is fed into an RO system for GaN wastewater TDS reduction and reuse. RO membranes reject up to 99% of dissolved salts, producing high-quality permeate suitable for industrial reuse or ultra-low discharge. Typical RO recovery rates for this application range from 75–85%.
- Sludge Dewatering: The concentrated sludge from chemical precipitation and MBR is sent to a filter press for Ga(OH)₃ sludge dewatering, reducing its volume and facilitating disposal.
| Parameter | Influent (mg/L) | Post-Precipitation (mg/L) | Post-MBR (mg/L) | Post-RO (mg/L) | Overall % Removal |
|---|---|---|---|---|---|
| Gallium (Ga) | 50 | 0.5 – 1.0 | 0.5 – 1.0 | <0.1 | >99% |
| Fluoride (F⁻) | 500 | 10 – 20 | 10 – 20 | <1.0 | >98% |
| Ammonia-Nitrogen (NH₃-N) | 100 | 90 – 100 | <5 | <0.5 | >99.5% |
| COD | 250 | 150 – 200 | <20 | <5 | >98% |
| TSS | 150 | <50 | <5 | <1 | >99% |
| TDS | 2000 | 1800 – 1900 | 1700 – 1800 | <100 | >95% |
This hybrid approach demonstrates robust performance. For instance, a 2024 GaN fab in Texas successfully reduced gallium concentrations from 62 mg/L to 0.4 mg/L using a similar system, achieving 100% permit compliance with their NPDES discharge limits (EPA NPDES permit database).
ZLD vs Conventional Treatment: Cost Breakdown & ROI Calculator for GaN Fabs
Choosing between Zero Liquid Discharge (ZLD) and conventional wastewater treatment systems for GaN fabs involves a detailed financial analysis of CAPEX, OPEX, and long-term ROI, driven by compliance goals and water reuse potential. While conventional systems offer lower initial capital expenditure, ZLD systems provide significant long-term benefits, especially for facilities facing strict discharge limits or water scarcity.
| Metric | Conventional Treatment (Precipitation + MBR + Clarifier) | Hybrid ZLD System (Precipitation + MBR + RO + Evaporator/Crystallizer) | Notes |
|---|---|---|---|
| System Size (m³/h) | 50 | 50 | Representative flow rate |
| CAPEX (Capital Expenditure) | $1,200,000 | $2,800,000 | ZLD includes advanced RO and evaporator/crystallizer |
| Annual OPEX (Operational Expenditure) | $120,000 | $250,000 | ZLD has higher energy costs for RO and thermal processes |
| Water Reuse % | 0-10% (non-process reuse) | >95% | ZLD enables high-purity water for process reuse |
| Gallium Compliance % | 95-98% (with proper operation) | >99.9% (near-zero discharge) | ZLD provides ultimate compliance buffer |
| 5-Year ROI | Not directly applicable (cost center) | 18-25% (with water reuse & fine avoidance) | Calculated based on savings and avoided costs |
ZLD systems, which typically incorporate advanced technologies like high-recovery RO systems followed by evaporators or crystallizers, offer substantial advantages. These include over 95% water recovery, eliminating the need for discharge permits (or greatly simplifying them), and future-proofing facilities against increasingly stringent environmental regulations, such as China’s projected 2027 gallium target of 2 mg/L. Further details on these systems can be found in our article on hybrid ZLD system design for GaN wastewater reuse.
An ROI calculator demonstrates the long-term value: for a 50 m³/h system, ZLD pays back in approximately 4.2 years if water reuse saves $0.80/m³ and avoids $50,000/year in permit fines or surcharges. Beyond direct CAPEX and OPEX, hidden costs must be factored in. Sludge disposal is a significant expense; gallium hydroxide (Ga(OH)₃) sludge is classified as hazardous waste (China: HW49; US: D008 for gallium), incurring disposal fees often exceeding $300/ton. Membrane replacement for RO systems, typically every 3–5 years, can also add substantial costs, with each module potentially costing $20,000.

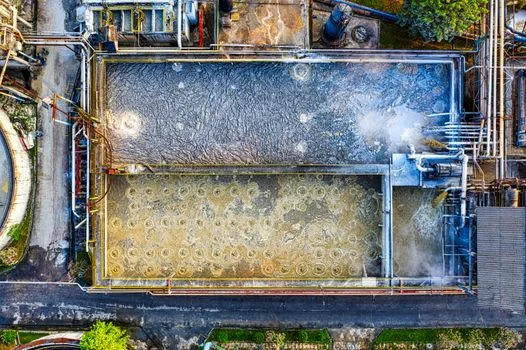

Permit Compliance Checklist: 7 Steps to Avoid GaN Wastewater Violations
Ensuring continuous compliance with stringent GaN wastewater discharge standards requires a proactive, multi-step permit compliance checklist that addresses local regulations, monitoring, and operational best practices. Fab managers must implement robust strategies to avoid costly violations in both Chinese and US jurisdictions.
- Verify Local Limits: Always confirm that national standards (e.g., China’s GB 31573-2015, US EPA 40 CFR Part 469) are not superseded by stricter provincial, state, or municipal regulations. For example, Jiangsu province enforces a gallium limit of 3 mg/L, which is tighter than the national 5 mg/L.
- Install Real-time Monitoring: Implement continuous online monitoring systems for critical parameters such as pH, flow rate, and key pollutants. Online XRF analyzers can provide real-time gallium concentrations, while ion-selective electrodes (ISE) are effective for fluoride monitoring.
- Conduct Quarterly Third-Party Lab Tests: Supplement internal monitoring with independent, accredited laboratory analyses for all regulated parameters on a quarterly basis. This provides an unbiased verification of compliance, often a requirement for direct dischargers (Levi Strauss Global Effluent Guidelines, 2019).
- Document Pretreatment Steps: For facilities discharging to a Publicly Owned Treatment Work (POTW) in the US, meticulously document all pretreatment steps to demonstrate compliance with 40 CFR 403.5. In China, MEE Decree 2015 No. 31 outlines similar requirements for indirect discharges.
- Train Operators on pH Adjustment: Proper pH control is paramount for gallium wastewater treatment. Train operators rigorously on maintaining the optimal pH range of 8.5–9.0 for efficient gallium hydroxide (Ga(OH)₃) formation and precipitation. Gallium precipitation efficiency significantly drops if the pH falls below 8.0.
- Store Sludge as Hazardous Waste: All Ga(OH)₃-laden sludge must be handled and stored as hazardous waste. In China, it is classified under HW49 (other hazardous wastes), while in the US, it typically falls under D008 (toxicity characteristic for heavy metals). Ensure proper labeling, containment, and licensed disposal.
- Prepare for Unannounced Inspections: Given China’s "double-random" inspection policy, MEE conducts 2–4 unannounced site visits per year (MEE 2024 policy). Maintain comprehensive records, ensure all monitoring equipment is calibrated, and train staff on inspection protocols to ensure readiness.
Frequently Asked Questions
Addressing common inquiries about GaN wastewater discharge standards provides critical insights into regulatory specifics, effective treatment methods, and compliance strategies for semiconductor fabs.
Q: What is the China GB standard for gallium in wastewater?
A: China’s GB 31573-2015 sets a gallium limit of 5 mg/L for direct discharges from industrial facilities like GaN fabs. However, some provinces (e.g., Jiangsu) enforce stricter local limits, such as 3 mg/L. For indirect discharges to Publicly Owned Treatment Works (POTWs), the limit is typically 10 mg/L, as stipulated by MEE Decree 2015 No. 31.
Q: Does the US EPA regulate gallium in semiconductor wastewater?
A: The US EPA does not set an explicit federal gallium limit in semiconductor wastewater. Instead, gallium is regulated under broader categories like 40 CFR 469 Subpart B (total metals ≤ 2.07 mg/L) for semiconductor manufacturing. Specific states or local municipalities may impose additional, explicit limits; for instance, California has an aquatic toxicity limit for gallium at 0.1 mg/L.
Q: What’s the most cost-effective way to remove gallium from GaN wastewater?
A: Chemical precipitation with calcium hydroxide (Ca(OH)₂) at a controlled pH of 8.5–9.0 is the most cost-effective method for gallium removal from GaN wastewater. This process achieves over 99% removal efficiency, reducing gallium from influent concentrations of 50 mg/L to less than 0.5 mg/L, at an operational cost of approximately $0.30–$0.50/m³. Alternatives like ion exchange or electrocoagulation typically cost 3–5 times more (2024 EPA benchmarks).
Q: Can GaN wastewater be reused in fab processes?
A: Yes, GaN wastewater can be effectively reused in fab processes, but it requires advanced treatment, particularly through a reverse osmosis (RO) system to significantly reduce TDS below 100 mg/L and remove other contaminants. A 2024 case study in Taiwan demonstrated that 85% of treated GaN wastewater could be successfully reused for non-critical applications like cooling towers, resulting in water cost savings of approximately $0.45/m³ (SEMATECH Water Reuse Report).
Q: What happens if a GaN fab exceeds discharge limits in China?
A: Exceeding GaN wastewater discharge limits in China triggers severe penalties. Violations can result in substantial fines up to 1 million RMB (approximately $140,000 USD), mandatory production halts, and orders for immediate system upgrades. In 2023, for example, 12 GaN fabs in Guangdong province faced fines and rectification orders for gallium exceedances, as reported by the MEE (MEE 2024 report).
