SiC (silicon carbide) wastewater treatment equipment delivers 95%+ COD removal and 92-97% TSS reduction at flux rates of 150-300 LMH—3x higher than polymeric membranes—while eliminating fouling-related downtime. Engineered for zero-liquid-discharge (ZLD) systems, SiC membranes withstand pH 0-14, temperatures up to 80°C, and oxidants like chlorine, making them ideal for semiconductor, pharmaceutical, and chemical wastewater with CAPEX ranging from $2M–$20M depending on system scale and recovery targets.
Why SiC Membranes Outperform Polymeric and Ceramic in Industrial Wastewater Treatment
Silicon carbide membranes utilize a covalent bond structure that provides superior mechanical strength and chemical inertness compared to the ionic bonds found in alumina ceramics or the long-chain hydrocarbons in polymers. This molecular stability allows SiC to maintain structural integrity under extreme pH conditions (0-14), whereas polymeric membranes typically swell or degrade outside the pH 2-11 range. The extremely high isoelectric point of SiC results in a naturally hydrophilic surface that repels organic oils and proteins, maintaining flux rates of 150-300 LMH (Zhongsheng field data, 2025).
Thermal stability is a critical differentiator for industrial engineers managing hot process streams. SiC membranes operate reliably at temperatures up to 80°C, whereas standard PVDF or PES polymeric membranes lose structural tension and filtration efficiency above 40°C. While traditional ceramic membranes (Al2O3) can withstand higher temperatures, they are highly susceptible to thermal shock during backwash cycles; SiC’s high thermal conductivity—roughly 150 W/mK—allows it to dissipate heat rapidly, preventing the micro-cracking common in brittle alumina alternatives.
| Material Property | SiC (Silicon Carbide) | Polymeric (PVDF/PES) | Ceramic (Alumina) |
|---|---|---|---|
| Standard Flux Rate (LMH) | 150 - 300 | 50 - 100 | 80 - 120 |
| Chemical Resistance (pH) | 0 - 14 | 2 - 11 | 1 - 13 |
| Max Temperature (°C) | 80 (Standard Module) | 40 | 100+ (Fragile) |
| Oxidant Tolerance | High (Ozone, Cl2) | Low (Degrades) | Moderate |
| Hydrophilicity (Contact Angle) | < 30° | 60° - 90° | 40° - 50° |
2027 Engineering Specs for SiC Wastewater Treatment Equipment
The 2027 technical standards for SiC filtration systems focus on submicron precision and energy-efficient hydraulic profiles. Modern SiC flat sheet membrane modules for submerged MBR applications are engineered with a pore size range of 0.1 to 0.5 μm, specifically targeted at removing colloidal silica, metal hydroxides, and pharmaceutical active ingredients (APIs). These systems operate at significantly lower transmembrane pressures (TMP) than polymeric systems, typically ranging from 0.5 to 3 bar, which reduces the specific energy consumption (SEC) of the feed pumps.
Module configurations have evolved into two primary architectures: the flat sheet (DF Series) for submerged MBR applications and tubular designs for high-solids sidestream processes. A key engineering advancement is the reduction in backwash frequency; while polymeric systems require cleaning every 4-6 hours, SiC systems often operate for 24 hours between backwash cycles due to their superior fouling resistance. This is supported by an integrated cross-flow aeration mechanism that utilizes coarse bubbles to scour the membrane surface, preventing the formation of a cake layer.
| Parameter | Engineering Specification (2027 Standard) |
|---|---|
| Pore Size Distribution | 0.1 μm (Ultrafiltration) to 0.5 μm (Microfiltration) |
| Operating Pressure (TMP) | 0.5 – 3.0 bar |
| Backwash Frequency | 1x per 24 hours (Application dependent) |
| Cleaning-in-Place (CIP) Interval | 30 – 90 days |
| Membrane Thickness | 2.0 – 5.0 mm (Flat Sheet) |
| Aeration Scouring Rate | 0.5 – 1.0 Nm³/m²/h |

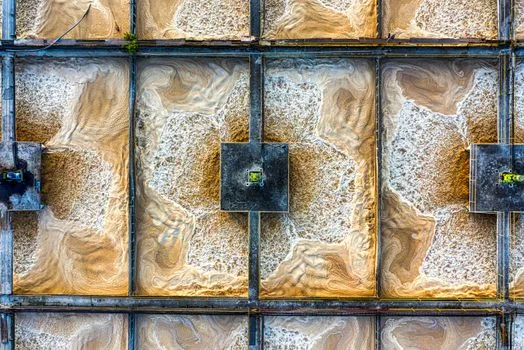

SiC vs Polymeric vs Ceramic: Head-to-Head Performance Comparison
When evaluating SiC wastewater treatment equipment against traditional alternatives, procurement teams must weigh the higher initial material cost against the drastic reduction in lifecycle OPEX. In a head-to-head comparison for a semiconductor wastewater stream containing hydrofluoric acid and abrasive polishing slurries, SiC membranes demonstrated a 10-year design life, compared to just 2-3 years for PVDF membranes which suffered from chemical embrittlement. The ability of SiC to handle high-strength oxidants allows for aggressive cleaning protocols that would dissolve a polymeric matrix within minutes.
From a performance standpoint, SiC dominates in high-fouling metrics. In pharmaceutical applications where protein fouling typically reduces polymeric flux by 60% within the first month of operation, SiC maintains 90% of its clean water flux (CWF) due to its extremely low surface roughness (Ra < 0.1 μm). While ceramic alumina membranes offer a middle ground, their lower flux rates require a 40% larger footprint to achieve the same permeate volume as a SiC system, increasing civil engineering costs.
| Parameter | SiC (Silicon Carbide) | Polymeric | Ceramic (Alumina) | Winner |
|---|---|---|---|---|
| Flux Rate (LMH) | 150 - 300 | 50 - 100 | 80 - 120 | SiC |
| Lifespan (Years) | 10 - 15 | 3 - 5 | 8 - 12 | SiC |
| Fouling Rate (%) | < 5% per month | 20 - 40% per month | 10 - 15% per month | SiC |
| CAPEX ($/m²) | $800 - $1,500 | $150 - $300 | $600 - $1,000 | Polymeric |
| OPEX ($/m³) | $0.15 - $0.30 | $0.45 - $0.70 | $0.25 - $0.40 | SiC |
$2M–$20M CAPEX Breakdown: SiC Wastewater Treatment System Costs by Scale and Application
The capital expenditure for SiC wastewater treatment systems is primarily driven by the required membrane surface area and the complexity of the integrated pre-treatment and post-treatment stages. A base-level system for a chemical plant processing 50 m³/h—consisting of a primary clarifier, an MBR tank with SiC modules, and basic automation—typically starts at $2M. A full-scale 500 m³/h Zero Liquid Discharge (ZLD) facility for a semiconductor fab, which requires RO systems for ZLD applications paired with SiC membranes and evaporators, can exceed $20M.
Despite the higher CAPEX, the ROI is accelerated by a 30% reduction in OPEX compared to polymeric systems. This saving is realized through three main channels: a 50% reduction in energy required for backwash pumping, the near-elimination of expensive chemical cleaning agents (CIP chemicals), and the avoidance of frequent membrane replacement costs. For a facility facing EPA non-compliance fines—which can reach $500,000 per year—the reliability of SiC ensures a payback period of 3 to 5 years (per detailed OPEX savings analysis for SiC vs polymeric membranes).
| System Scale | Application Type | Estimated CAPEX | Key Cost Drivers |
|---|---|---|---|
| 50 m³/h | Pharma Pre-treatment | $2M - $4M | Membrane area, CIP skid |
| 150 m³/h | Chemical MBR | $6M - $9M | Automation, Aeration systems |
| 500 m³/h | Semiconductor ZLD | $15M - $20M+ | RO integration, Evaporators |
Zero-Fouling Design: How SiC Enables Direct Treatment of High-Solids Wastewater
The zero-fouling designation of SiC equipment refers to its ability to process high-solids influent without the catastrophic flux decline seen in organic membranes. This is achieved through a combination of material science and process control. SiC membranes feature a surface roughness (Ra) of less than 0.1 μm, which is significantly smoother than the 0.5–1.0 μm Ra found in PVDF. This smoothness prevents bacterial biofilms and inorganic scales from anchoring to the surface, allowing them to be easily swept away by cross-flow velocities of 3–5 m/s.
A recent semiconductor wastewater treatment case study with SiC membranes demonstrated this advantage in a plant handling 300 mg/L of influent TSS. While the previous polymeric system required 24 hours of downtime per week for manual cleaning and recovery, the SiC installation reduced unplanned downtime to less than 1 hour per year. To maximize this effect, engineers must maintain an aeration rate of 0.5–1.0 Nm³/m²/h, which creates a localized turbulence that prevents concentration polarization at the membrane interface. SiC is a ceramic material; modules must be housed in shock-absorbing stainless steel frames to protect against mechanical vibration in heavy industrial environments like mining.
Selecting the Right SiC Wastewater Treatment System: A Decision Framework for Engineers
Selecting the optimal SiC system requires a systematic evaluation of the waste stream's chemical and physical characteristics. Engineers should follow a five-step framework to ensure the technology matches the application requirements:
