Wafer Fab TMAH Wastewater Treatment: 2025 Hybrid Process Design with 99.9% Removal & Cost Breakdown
Tetramethylammonium hydroxide (TMAH) is a toxic photoresist developer in semiconductor fabs, requiring >99% removal before discharge. Hybrid treatment systems combining Membrane Capacitive Deionization (MCDI) and Reverse Osmosis (RO) achieve 99.9% TMAH removal at 75–85% water recovery, per 2024 benchmarks. For fabs targeting zero liquid discharge (ZLD), adding chemical precipitation (pH 8.7–12.0) removes co-contaminants like fluorides and phosphates. CAPEX ranges from $1.2M–$4.5M for a 50–200 m³/h system, with OPEX of $0.80–$2.50/m³, depending on resin/membrane replacement cycles and energy costs.
Why TMAH Wastewater Treatment is a Critical Challenge for Semiconductor Fabs
TMAH is classified as a highly toxic substance, posing severe environmental and health risks at concentrations exceeding typical discharge limits. The oral LD50 for TMAH in rats is 25 mg/kg, and direct contact can cause severe skin burns, eye damage, and neurological distress, necessitating stringent handling and treatment protocols (EPA/REACH classifications). Regulatory frameworks globally mandate strict limits for TMAH discharge; for instance, China's GB 31573-2015 sets a limit of 5 mg/L for indirect discharge, while US EPA and EU directives often require concentrations below 1 mg/L for direct discharge to sensitive receiving waters. Beyond environmental compliance, TMAH significantly impacts fab operations by corroding sensitive membranes, fouling ion exchange resins, and increasing hazardous sludge disposal costs by 30–50% due to its classification as a hazardous waste (2023 fab cost reports). Leading semiconductor manufacturers are actively addressing this challenge; TSMC, for example, achieved a 90% reduction in TMAH concentration in its wastewater by 2023 through the implementation of specialized air-wash resin towers, which utilize air injection to enhance TMAH stripping and resin regeneration efficiency before the wastewater enters the main treatment stream (TSMC 2023 sustainability report). This proactive approach highlights the industry's recognition of TMAH as a major operational and environmental hurdle, driving demand for advanced and cost-effective treatment solutions.
TMAH Treatment Processes Compared: MCDI vs RO vs NF vs Hybrid Systems
wafer fab TMAH wastewater treatment - TMAH Treatment Processes Compared: MCDI vs RO vs NF vs Hybrid Systems
Membrane Capacitive Deionization (MCDI) demonstrates over 98% removal efficiency for TMA+ ions when operated at an optimal pH above 8, making it a highly effective initial treatment stage for TMAH wastewater. However, MCDI systems require frequent resin regeneration, typically every 2–4 hours, depending on influent TMAH concentration, and consume 0.5–1.2 kWh/m³ of energy (2024 MCDI benchmarks). Reverse Osmosis (RO) systems, often employed downstream, achieve 95%+ TMAH removal with water recovery rates around 75%, but are susceptible to scaling from co-contaminants like fluorides and silica, which can reduce membrane lifespan to 3–5 years (Dow Filmtec data). Nanofiltration (NF) is generally insufficient for effective TMAH removal, typically achieving less than 60% rejection, though it can be valuable for pre-treating wastewater to remove divalent ions such as Ca²⁺ and Mg²⁺, thereby protecting downstream RO membranes.
Hybrid systems, representing the most robust solution, integrate MCDI for targeted TMA+ removal, followed by RO for broader total dissolved solids (TDS) reduction, and often incorporate chemical precipitation for specific inorganic contaminants like fluorides and phosphates. A notable example is LFoundry's pilot plant, which separates wastewater into distinct streams (WW1 for TMAH, WW2/WW3 for fluorides, phosphates, nitrates) to optimize treatment efficiency, demonstrating the effectiveness of tailored hybrid approaches. For instance, Zhongsheng’s RO systems for semiconductor wastewater can be integrated seamlessly into these multi-stage processes to ensure high purity permeate.
A typical hybrid process flow for TMAH involves:
Pretreatment: Initial screening and filtration to remove suspended solids, followed by a dissolved air flotation (DAF) system or lamella clarifiers for further TSS and oil/grease removal.
pH Adjustment: Raising the pH to 8.5–9.5 to ensure TMAH is in its ionized TMA+ form, optimizing MCDI performance.
MCDI Unit: Selective removal of TMA+ ions. This stage typically involves multiple MCDI stacks operating in parallel or series, with automated regeneration cycles.
Secondary pH Adjustment: If chemical precipitation is required for other contaminants (e.g., fluorides), the pH is further adjusted to 8.7–12.0. This can be managed by a PLC-controlled chemical dosing for TMAH wastewater.
Chemical Precipitation: Addition of coagulants and flocculants to precipitate specific contaminants.
Secondary Clarification/Filtration: Removal of precipitated solids.
Reverse Osmosis (RO) Unit: Further removal of remaining TDS, including any residual TMAH and other dissolved organic/inorganic species, achieving high water recovery.
Post-treatment/Polishing: Depending on reuse requirements, further ion exchange or UV disinfection may be applied.
Process Type
TMAH Removal Efficiency
Water Recovery Rate
Key Advantages
Key Disadvantages
Typical Energy Consumption (kWh/m³)
MCDI
98%+ (TMA+)
80-90%
High selectivity for TMA+, low chemical usage
Frequent resin regeneration, sensitive to pH
0.5-1.2
RO
95%+
75-85%
Broad TDS removal, high quality permeate
Prone to scaling/fouling, moderate energy use
1.5-3.0
NF
<60%
60-70%
Good for divalent ions, lower pressure than RO
Insufficient for TMAH, limited rejection capabilities
0.8-1.5
Hybrid (MCDI+RO+Chem Precip)
99.9%
75-90%
Comprehensive removal, high water recovery, ZLD capable
Higher CAPEX/OPEX, complex operation
2.0-4.0
Designing a Hybrid TMAH Treatment System: Process Parameters and Engineering Specs
Effective pretreatment is paramount for protecting downstream membrane and resin systems, with a target of reducing total suspended solids (TSS) to below 50 mg/L in the influent stream. This is typically achieved using Zhongsheng’s DAF systems for TMAH pretreatment or lamella clarifiers, which efficiently remove particulates, oils, and greases (2024 fab pretreatment benchmarks). pH optimization is a critical factor for TMAH removal efficiency; MCDI units perform optimally within a pH range of 8.5–9.5, where TMAH is predominantly in its ionized TMA+ form. Conversely, chemical precipitation for co-contaminants like fluorides and phosphates often requires a higher pH range of 8.7–12.0 to ensure effective insolubilization and removal (LFoundry pilot data).
For TMA+ removal, strong base anion exchange resins, such as Amberlite IRA-400, are specifically chosen for their high affinity and capacity. These resins typically have a lifespan of 2–3 years, with regeneration cycles occurring every 2–4 hours using a 4% NaOH solution to desorb the captured TMA+ ions. For the RO stage, thin-film composite (TFC) RO membranes, exemplified by Dow Filmtec BW30-400, are preferred for their high TMAH rejection rates and robustness, operating efficiently at pressures between 15–25 bar (2024 membrane specs). To mitigate scaling and fouling, which are common challenges in RO systems, continuous injection of antiscalants (e.g., polyacrylic acid) is essential, complemented by regular backwashing protocols for the MCDI units and periodic chemical cleaning for RO membranes.
Regulatory Compliance: Global TMAH Discharge Limits and Treatment Requirements

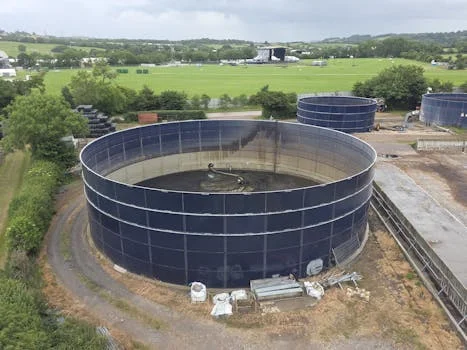

wafer fab TMAH wastewater treatment - Regulatory Compliance: Global TMAH Discharge Limits and Treatment Requirements
Meeting global regulatory standards for TMAH discharge is non-negotiable for semiconductor fabs, with limits varying significantly by region. In China, the GB 31573-2015 standard specifies a TMAH limit of 5 mg/L for indirect discharge into municipal wastewater treatment plants, while the stricter GB 31570-2015 mandates less than 1 mg/L for direct discharge into surface water. The US Environmental Protection Agency (EPA) regulates semiconductor manufacturing effluent under 40 CFR Part 469, where TMAH is typically controlled indirectly through broader organic nitrogen limits, generally requiring concentrations below 10 mg/L. The European Union's Industrial Emissions Directive (2010/75/EU) and REACH regulations classify TMAH as a Substance of Very High Concern (SVHC), imposing stringent controls and often requiring best available techniques (BAT) to minimize its release. Taiwan’s Environmental Protection Administration (EPA) sets a specific TMAH discharge limit of 3 mg/L for semiconductor fabs (2024 TSMC sustainability reports). For fabs operating in regions with the strictest regulations, such as those mandated by China’s 14th Five-Year Plan for new facilities, Zero Liquid Discharge (ZLD) is becoming a mandatory requirement. Hybrid TMAH treatment systems are specifically engineered to achieve over 99% water recovery, enabling fabs to meet ZLD mandates by treating and reusing almost all process wastewater, significantly reducing environmental impact and reliance on fresh water sources.
Cost Breakdown: CAPEX, OPEX, and ROI for TMAH Wastewater Treatment Systems
The capital expenditure (CAPEX) for a hybrid TMAH wastewater treatment system, designed for flow rates ranging from 50–200 m³/h, typically falls between $1.2M and $4.5M. This investment covers the integrated components of MCDI, RO, chemical dosing, and automation. A detailed breakdown reveals that MCDI units account for $400K–$1.2M, RO systems for $500K–$2M, and the automated chemical dosing systems for $100K–$300K. Operational expenditure (OPEX) for treating TMAH wastewater ranges from $0.80–$2.50/m³ of treated water. This includes significant contributions from energy consumption ($0.30–$0.80/m³), resin replacement for MCDI units ($0.20–$0.50/m³), membrane replacement for RO systems ($0.10–$0.30/m³), and labor costs ($0.20–$0.50/m³).
The return on investment (ROI) for such systems is typically achieved within 3–5 years for fabs generating over 100 m³/h of TMAH wastewater. This rapid payback is primarily driven by substantial savings from water reuse, which can amount to $2–$5/m³ by reducing reliance on fresh water intake, and by avoiding regulatory fines for non-compliance, which can range from $50K–$200K per year. A real-world example from TSMC’s 2023 cost report detailed a $3.2M CAPEX for a 150 m³/h hybrid system, with an OPEX of $1.10/m³ and an impressive 4-year payback period, underscoring the economic viability of advanced TMAH treatment. Further insights into ZLD and water reclaim strategies for semiconductor fabs, including HF wastewater treatment costs and ZLD strategies, are available for comprehensive financial planning.
Cost Category
Sub-Category
Typical Range (50-200 m³/h system)
Notes
CAPEX
Total System Cost
$1.2M – $4.5M
MCDI + RO + Chemical Dosing + Automation
MCDI Units
$400K – $1.2M
Includes MCDI stacks, power supplies, control system
RO System
$500K – $2M
Includes RO skids, pumps, membranes, CIP system
Chemical Dosing & Automation
$100K – $300K
Includes tanks, pumps, sensors, PLC/SCADA
OPEX (per m³ treated)
Total OPEX
$0.80 – $2.50/m³
Depends on influent quality, recovery, energy rates
Energy Consumption
$0.30 – $0.80/m³
Pumps for RO, MCDI operation, heaters
Resin Replacement (MCDI)
$0.20 – $0.50/m³
Based on resin lifespan and regeneration cycles
Membrane Replacement (RO)
$0.10 – $0.30/m³
Based on membrane lifespan (3-5 years)
Labor & Maintenance
$0.20 – $0.50/m³
Operator time, routine maintenance, spare parts
ROI Drivers
Water Reuse Savings
$2 – $5/m³
Reduced freshwater intake costs
Avoided Fines
$50K – $200K/year
For non-compliance with discharge limits
Troubleshooting Common TMAH Treatment Challenges
wafer fab TMAH wastewater treatment - Troubleshooting Common TMAH Treatment Challenges
Membrane fouling is a prevalent issue in RO systems treating TMAH wastewater, primarily caused by the accumulation of silica and fluoride scale, which reduces permeate flux and increases operating pressure. To mitigate this, continuous antiscalant dosing (e.g., polyacrylic acid) is crucial, alongside regular clean-in-place (CIP) cycles using a 30-minute citric acid solution, as recommended by 2024 Dow Filmtec guidelines. Resin saturation in MCDI units manifests as TMA+ breakthrough, typically occurring after 2–4 hours of operation, depending on the influent TMAH concentration. Effective regeneration with a 4% NaOH solution is vital; this process typically involves backwashing, chemical injection, slow rinse, and fast rinse stages, taking 30–60 minutes to restore resin capacity. pH instability can significantly reduce MCDI efficiency because TMA+ removal is highly dependent on the solution's alkalinity. This issue is best addressed through automated chemical dosing systems, such as Zhongsheng’s PLC-controlled chemical dosing for TMAH wastewater, which can maintain pH within a tight range of ±0.2 using real-time feedback loops. Finally, sludge disposal from chemical precipitation stages is a critical consideration; TMAH-containing sludge is often classified as hazardous waste (e.g., EPA D002), incurring disposal costs ranging from $500–$1,200/ton, highlighting the importance of sludge volume minimization strategies (2024 waste management reports).
How to Select the Right TMAH Treatment System for Your Fab
Selecting the optimal TMAH wastewater treatment system hinges on a comprehensive evaluation of fab size, budget constraints, and regulatory compliance requirements. For small fabs, typically generating less than 50 m³/h of TMAH wastewater, a streamlined system combining MCDI with chemical precipitation offers a cost-effective solution, with CAPEX ranging from $800K–$1.5M and OPEX around $1.20–$2.00/m³. Medium-sized fabs, with flow rates between 50–150 m³/h, benefit most from a hybrid MCDI + RO system, balancing high removal efficiency with reasonable costs (CAPEX $1.5M–$3M, OPEX $0.90–$1.50/m³). Large fabs, exceeding 150 m³/h, often require the most advanced hybrid systems incorporating MCDI + RO + ZLD technologies, reflecting a higher CAPEX of $3M–$6M and OPEX of $1.50–$2.50/m³ due to the complexity of achieving near-total water recovery.
Compliance-driven selection is paramount; fabs operating in regions with stringent ZLD mandates, such as China and parts of the EU, must prioritize systems capable of 99%+ water recovery. Conversely, fabs in regions like the US, where direct discharge after RO treatment might be permissible, can opt for less complex RO-only or MCDI+RO systems, balancing environmental responsibility with capital investment. Future-proofing is also a key consideration; modular system designs allow fabs to scale their treatment capacity by adding additional MCDI or RO skids as production demands grow, ensuring long-term adaptability without extensive overhauls.
Fab Size (Flow Rate)
Recommended System Type
Typical CAPEX Range
Typical OPEX Range (per m³)
Key Benefits
Small (<50 m³/h)
MCDI + Chemical Precipitation
$800K – $1.5M
$1.20 – $2.00
Cost-effective, good TMA+ removal, handles specific inorganics
Medium (50–150 m³/h)
Hybrid MCDI + RO
$1.5M – $3M
$0.90 – $1.50
High TMAH removal (>99%), moderate water recovery, robust
Large (>150 m³/h)
Hybrid MCDI + RO + ZLD
$3M – $6M
$1.50 – $2.50
99.9% TMAH removal, 99%+ water recovery, meets ZLD mandates
Compliance-Driven (China/EU)
Hybrid MCDI + RO + ZLD
Higher end of range
Higher end of range
Ensures compliance with strict ZLD and environmental directives
What is the most cost-effective TMAH removal process for a 100 m³/h fab?
A Hybrid MCDI + RO system offers the best balance of CAPEX ($2M–$2.5M) and OPEX ($1.00–$1.50/m³) for a 100 m³/h fab, delivering over 99% TMAH removal efficiency. This combination provides robust treatment while optimizing operational costs.
How often do MCDI resins need regeneration?
MCDI resins typically require regeneration every 2–4 hours for TMAH wastewater, depending on the influent TMAH concentration (which can range from 50–500 mg/L). Regeneration uses a 4% NaOH solution and usually takes 30–60 minutes per cycle to restore the resin's capacity.
Can RO membranes recover TMAH for reuse? Yes, but with caveats. While RO permeate generally contains less than 1 mg/L TMAH, making it suitable for non-critical fab processes like cooling towers or general utility water, it is typically not pure enough for direct reuse in critical photoresist development without further polishing. For high-purity applications, an additional ion exchange step or advanced oxidation may be required. For more on water reclaim, see our article on ZLD and water reclaim strategies for semiconductor fabs.
What are the discharge limits for TMAH in China?
In China, the discharge limits for TMAH are 5 mg/L for indirect discharge into municipal wastewater treatment plants (per GB 31573-2015) and a stricter 1 mg/L for direct discharge to surface water (per GB 31570-2015). China’s 14th Five-Year Plan mandates Zero Liquid Discharge (ZLD) for new semiconductor fabs. For additional information on related wastewater streams, explore ammonia-nitrogen treatment solutions for semiconductor fabs.
How does pH affect TMAH removal efficiency?
pH significantly impacts TMAH removal. MCDI performs best at pH 8.5–9.5, where TMAH is predominantly ionized as TMA+, allowing for efficient capture by anion exchange resins. Chemical precipitation processes, often used for co-contaminants like fluorides and phosphates, typically require a higher pH range of 8.7–12.0 to achieve optimal removal, as evidenced by LFoundry pilot data.
