Etching Wastewater in Semiconductor Fabs: Contaminant Profile and Regulatory Challenges

Etching processes generate 30–50% of a semiconductor fab’s total wastewater volume, characterized by high concentrations of tetramethylammonium hydroxide (TMAH) ranging from 50–500 mg/L and hydrofluoric acid (HF) between 100–1,000 mg/L. According to 2024 SEMATECH benchmarks, these streams also contain significant organic loads from chelates like EDTA and NTA (20–200 mg/L) and dissolved metals such as copper and nickel (5–50 mg/L). Etching wastewater is highly corrosive and biologically inhibitory, necessitating a multi-stage engineering approach to prevent equipment failure and regulatory non-compliance.

Global discharge standards for semiconductor manufacturing have tightened significantly, focusing on specific toxic ions and persistent organic pollutants. For instance, China’s GB 8978-2022 standard limits TMAH to less than 0.5 mg/L, while the EU Industrial Emissions Directive imposes a strict HF limit of 1 mg/L. These regulations often exceed the capabilities of traditional precipitation-based systems, which struggle to break down chelates that keep metals in solution. Failure to comply can lead to financial penalties; a 2024 fab in Taiwan was fined $1.2M after a failure in the biological treatment stage led to a TMAH exceedance, highlighting the need for redundant, high-efficiency oxidation steps.

EHS managers face significant challenges due to chelate interference. Chelating agents like EDTA form stable complexes with copper and nickel, preventing them from precipitating as hydroxides even at high pH levels. TMAH is inherently resistant to conventional activated sludge processes, requiring specialized TMAH-specific treatment strategies for semiconductor fabs to achieve the 99%+ degradation rates required for discharge.

Hybrid Process Design for Etching Wastewater: UV Oxidation, DAF, and MBR in Series

High-efficiency chelate degradation in etching wastewater requires a UV oxidation dose of at least 1,000 mJ/cm² at a 254 nm wavelength to achieve 99% degradation of EDTA and NTA. This hybrid process design addresses the unique chemical complexity of etching streams by sequencing advanced oxidation, physical separation, and membrane filtration. The engineering blueprint begins with an acidification stage, where PLC-controlled chemical dosing for pH adjustment and coagulation brings the stream to a pH of 3–4, optimizing the subsequent oxidation of organic ligands.

Step 1: UV-Advanced Oxidation (AOP). The UV reactor serves as the primary stage for breaking organometallic complexes. Using high-intensity low-pressure lamps, the system generates hydroxyl radicals that strip chelates from metal ions. For a 10 m³/hr flow rate, a 1 m³ reactor volume is typically required to maintain adequate residence time. This step is critical because it releases metals for downstream removal and reduces the biological toxicity of the stream.

Step 2: Dissolved Air Flotation (DAF). Following oxidation, the ZSQ series DAF system for etching wastewater pretreatment removes precipitated metals and suspended solids. By injecting microbubbles (30–50 μm) at a surface loading rate of 5–8 m/hr, the system achieves 95% TSS removal. A dosing of 5–10 mg/L of Polyaluminum Chloride (PAC) is typically required to ensure robust flocculation of the released metal hydroxides.

Step 3: Membrane Bioreactor (MBR). For the removal of residual COD and TMAH, DF series MBR modules for TMAH and COD polishing are utilized. These modules operate at a flux of 10–20 LMH with a 0.1 μm pore size, providing a total barrier to suspended biomass. The MBR environment allows for the cultivation of specialized nitrifying bacteria that can metabolize TMAH into ammonia and subsequently into nitrogen gas. To prevent fouling, a 1% citric acid Clean-In-Place (CIP) protocol is recommended every 30 days.

Step 4: Reverse Osmosis (RO) Reclaim. The final stage involves RO systems for water reclaim in ZLD applications. Achieving 90% water recovery requires high-pressure membranes capable of handling permeate TDS <50 mg/L. For a 500 m³/day system, approximately 100 m² of membrane area is required to sustain performance against the high osmotic pressure of concentrated etching salts. Common design mistakes include underestimating the silica concentration in etching streams, which can cause irreversible RO membrane scaling if not addressed during the DAF or softening stage.

Treatment Technology Comparison: UV vs. Electrochemical vs. Biological for Etching Streams

UV oxidation provides 99% chelate removal efficiency, making it the superior choice for streams where metal discharge limits are below 0.5 mg/L. However, selecting the right technology mix depends on the specific contaminant concentrations and the desired recovery of raw materials. While UV is effective for organics, electrochemical systems are often preferred for high-concentration copper streams where metal recovery can offset operational costs. Biological systems, while having the lowest OPEX, are generally insufficient as a standalone solution due to their inability to handle high fluoride concentrations or complex chelates.

The hybrid approach (UV + DAF + MBR) is the industry standard for modern fabs because it addresses the limitations of individual technologies. UV struggles with high turbidity (greater than 50 NTU), which is why the DAF system is essential for removing solids before the water reaches the MBR or RO stages. Conversely, biological systems require long retention times (12–24 hours) and are sensitive to the shock loads of HF or TMAH common in etching batch dumps. By using UV as a pretreatment, the organic molecules are partially oxidized, making them more "bio-available" for the MBR stage, which significantly reduces the required footprint of the bioreactors.

Zero Liquid Discharge (ZLD) for Etching Wastewater: Cost Breakdown and ROI Calculator

Implementation of ZLD for a 500 m³/day etching stream requires a CAPEX investment between $2.5M and $4M, depending on the concentration of dissolved solids and the degree of automation required. ZLD systems are designed to eliminate all liquid waste, converting contaminants into solid cakes for disposal or recovery. This process is highly energy-intensive, with Mechanical Vapor Recompression (MVR) evaporation accounting for nearly 60% of the total system cost. For fabs operating in water-stressed regions like Arizona or parts of China, ZLD is often a regulatory mandate rather than a voluntary sustainability goal.

The OPEX for a ZLD system typically ranges from $0.80 to $1.20 per cubic meter treated. Energy is the primary driver, followed by chemical consumption for pH stabilization and membrane cleaning. However, the return on investment (ROI) is bolstered by three factors: water savings, metal recovery, and the avoidance of regulatory fines. In a 2024 case study, an Arizona-based fab reduced its freshwater intake by 85% and recovered $200,000 annually in high-purity copper, leading to a payback period of approximately 4.5 years on a $3.2M investment. Detailed ZLD process design for advanced semiconductor wastewater shows that maximizing RO recovery before the evaporation stage is the most effective way to lower total OPEX.

To calculate ROI, engineers should use the following framework: ROI = (Annual Water Savings + Annual Metal Recovery + Avoided Fines) / (Total CAPEX + Annual OPEX). For many fabs, the "Avoided Fines" variable is the most significant, as local environmental bureaus in China and Taiwan have implemented "zero-tolerance" policies for TMAH exceedances, where a single incident can result in plant-wide shutdowns costing millions in lost production time.

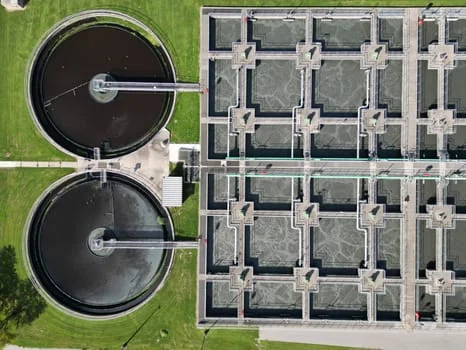

Compliance Blueprint: Meeting China GB, EU, and EPA Standards for Etching Wastewater

Compliance with China’s GB 8978-2022 requires daily composite sampling and online monitoring of TMAH to ensure levels remain below 0.5
