Sand Filter Water Treatment Industrial Process Flow
Industrial sand filtration passes pretreated water through a graded sand bed, then gravel and an underdrain. Slow units run at 0.1–0.3 m³/m²/h and use a schmutzdecke. Rapid units run at 5–15 m³/m²/h after flocculation and wash every 24–48 hours or at 1.5–2.5 m head loss. Upflow units run at 10–20 m³/m²/h.
Place the sand bed where the solids actually are. Gross debris and oil belong upstream. Soluble organics belong downstream in a biological stage. Most plants we size for food or dye waste fail when the sand unit is asked to do both jobs.
Use this order on an industrial train:
- Equalize and screen. Take out rags and grit before any sand cell.
- Strip bulk solids first. If TSS > 500 mg/L, turbidity is above 500 NTU, or FOG is present, add flotation or a clarifier.
- Coagulate only the rapid path. Alum or polyaluminum chloride builds flocs the fast bed can hold.
- Filter on the matching rate. Slow duty stays near 0.1–0.3 m³/m²/h. Rapid duty stays at 5–15 m³/m²/h. Upflow duty sits at 10–20 m³/m²/h.
- Wash and return. Rapid wash water is 2–5% of treated volume. Settle it before recycle.
- Polish only if the next unit needs it. Membranes and cartridges see particles down to 10μm more safely after sand, not instead of it.
Sand media serves three industrial contaminant profiles:
- Food Processing: Sand filters remove organic debris and large proteins, protecting downstream membranes from rapid fouling.
- Microelectronics: In ultrapure water (UPW) loops, sand filters remove particles down to 10μm and extend sub-micron cartridge life.
- Textiles and Dyeing: Lower particulate load improves later chemical oxidation or biological dye treatment.
High-turbidity trains often pair coagulation with filtration in one footprint. Many plants use JY series all-in-one water purification systems with sand filtration to hold compliance while shrinking floor space.
What Is Sand Filter Water Treatment for Industrial Plants?
Sand filtration is depth filtration: removal occurs through the bed, not only at the surface. Grains of about 0.15–0.45 mm capture particles greater than 10μm by mechanical straining and interception. Straining traps particles larger than pore spaces. Interception occurs when a particle on a streamline contacts a grain and adheres.
Chemical adsorption then captures finer colloids. Sand surfaces usually carry a negative charge. Positively charged heavy-metal ions or organic colloids attach by electrostatic force. Efficiency rises when coagulants in rapid systems compress the particle double layer and improve zeta-potential control.
Plant sizing and the grain-scale story should stay in separate notes. For the detailed working mechanism of sand filter of purified water system, read the principle page, then come back here for flow, rate, and wash decisions.
In slow sand filters, biological predation drives pathogen and organics removal. Over the first weeks, a schmutzdecke forms on the top 20–30 mm. That biofilm of bacteria, fungi, protozoa, and rotifers consumes biodegradable matter and pathogens. This guide credits that layer with 90–99% of biological purification capacity.
According to Wikipedia's slow sand filter overview, the Schmutzdecke is formed in the first 10–20 days of operation, and the surface biofilm is the layer that provides the effective purification in potable water treatment. The same source reports 90–99% bacterial cell count reduction from an exemplary slow sand filter, which matches the bottom of this guide's pathogen band.
UK practice quoted in that overview gives slow sand bed depths of 0.3 to 0.6 metres built from 0.2 to 0.4 mm sand, with a typical loading rate of 200–400 litres (0.20–0.40 m³) per square metre per hour and a throughput of 0.25 m/h. That 0.20–0.40 m³/m²/h band overlaps the 0.1–0.3 m³/m²/h in this guide's table, so specify the lower band when raw turbidity swings.
A typical cross-section shows schmutzdecke, then a 0.6–1.2 m sand bed, then gravel that keeps sand out of the underdrain. Disinfection stays a separate barrier where pathogen limits are strict: sand alone is a solids and turbidity step in an industrial train unless a permit grants it log credit.

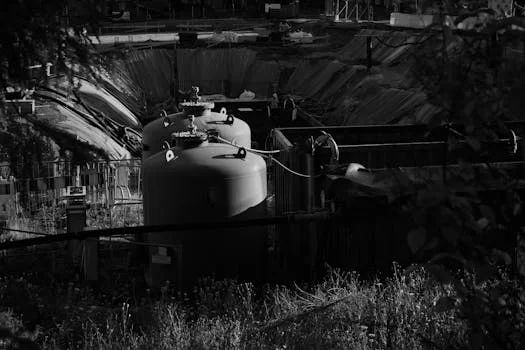

Sand Filter Types Compared: Engineering Specs for Slow, Rapid, and Upflow Systems
Rapid sand filters run at 5–15 m³/m²/h, about 50 times faster than slow sand units. High throughput suits large industrial flows in small footprints. The speed requires flocculants such as alum or polyaluminum chloride so fine solids form flocs the sand can trap. Most plants we size for a steady industrial flow run rapid cells at the lower end of 5–15 m³/m²/h, not at the ceiling.
According to a water-operator math text (LibreTexts, Filtration Rates), slow sand rates span 0.015–0.15 gpm/ft² and rapid sand spans 2.0–10 gpm/ft². La. Admin. Code tit. 51, § XII-177, amended in 2022, states that typical filtration rates for rapid gravity filters range from 2 to 4 gpm/sqft. The upper half of the 5–15 m³/m²/h band therefore needs pilot data before anyone treats it as a drinking-water rate.
Slow sand filters favor low-energy, chemical-free duty. They need more area, yet they deliver strong effluent quality with little mechanical work at decentralized sites. Upflow filters feed from the bottom so coarse base sand takes the heaviest solids first. That layout suits high turbidity but needs backwash every 6–12 hours to limit bed expansion and breakthrough.
| Parameter | Slow Sand Filter | Rapid Sand Filter | Upflow Sand Filter |
|---|---|---|---|
| Flow Rate (m³/m²/h) | 0.1 – 0.3 | 5 – 15 | 10 – 20 |
| Bed Depth (m) | 0.6 – 1.2 | 0.6 – 0.9 | 0.8 – 1.5 |
| TSS Removal Efficiency | 95 – 99% | 85 – 95% | 80 – 90% |
| Chemical Requirement | None | Flocculants Required | Optional |
| Cleaning Method | Manual Scraping | Automated Backwash | Continuous/Backwash |
When effluent clarity must rise further, a Multi-Media Filter for Water Treatment stacks anthracite and garnet with sand for deeper capture and longer runs between cleaning cycles.
industrial sand filter design parameters awwa m37
Industrial sand filter design in the AWWA M37 column below sets effective size (d10) at 0.35–0.55 mm and keeps the uniformity coefficient under 1.5. The d10 is the sieve size that passes 10% of the sand. Cu equals d60/d10. Higher Cu lets fines pack voids, raise clogging rate, and shorten filter runs (data from Shaw Resources).
Which AWWA M37 media limits should you lock first?
Lock d10 at 0.35–0.55 mm and Cu < 1.5 before you size laterals or wash pumps. Louisiana's 2022 drinking-water rule is close, but not identical.
Rapid sand there uses an effective size of 0.45–0.55 mm and a uniformity coefficient not greater than 1.65, with a total bed depth of not less than 24 inches and generally not more than 30 inches (La. Admin. Code tit. 51, § XII-177). Cu < 1.5 is stricter than 1.65, so the table still satisfies that ceiling.
A potable guard filter should not use the 0.35 mm end of the d10 band. Industrial wastewater that is not under that code can stay on 0.35–0.55 mm if a pilot holds turbidity.
Slow sand in the same code uses an effective size between 0.15 mm and 0.30 mm and a uniformity coefficient that shall not exceed 2.5, with filter sand placed on graded gravel layers for a minimum depth of 30 inches. This guide still replenishes when bed depth falls below 0.6 m, which is the safer shop rule.
The nominal slow rate in that code is 45–150 gallons per day per square foot of sand area, stated as 1.8–6.1 m/day. The comparison table's 0.1–0.3 m³/m²/h overlaps that band, so most industrial slow-duty cells sit inside both.
Backwash water typically uses 2–5% of treated volume on rapid sand systems. Operators trigger wash on a 24–48 hour timer or when head loss hits about 1.5–2.5 m. Slow sand maintenance is manual: scrape the top 1–2 cm every 1–3 months, then replenish when bed depth falls below 0.6 m.
| Design Specification | Standard Requirement (AWWA M37) | Impact on Performance |
|---|---|---|
| Effective Size (d10) | 0.35 – 0.55 mm | Determines minimum particle size trapped. |
| Uniformity Coefficient (Cu) | < 1.5 | Lower Cu prevents premature clogging. |
| Underdrain Type | Lateral or Block Type | Ensures even distribution of backwash air/water. |
| Freeboard Height | 40 – 50% of bed depth | Allows for bed expansion during backwash. |
| Backwash Velocity | 15 – 25 m/h | Must be high enough to fluidize but not lose media. |
Influent above 500 NTU blinds sand beds almost at once. Install DAF systems for pre-treatment of high-turbidity water to strip bulk solids and oils before the sand stage. That 500 NTU break is an industrial blinding limit, not a drinking-water raw-water cap.
sand filter backwash rate for industrial wastewater
Sand filter backwash on a rapid industrial cell in this guide uses 2–5% of treated volume at 15–25 m/h. Operators call the wash every 24–48 hours or when head loss reaches 1.5–2.5 m. A wash below 15 m/h often fails to fluidize silica sand and leaves mud balls. A wash above 25 m/h starts to carry media to the troughs.
What backwash rate should industrial wastewater use?
Use 15–25 m/h when you are inside this guide's band, then check the rate against the expansion rule that drinking-water codes apply. La. Admin. Code tit. 51, § XII-177, amended in 2022, requires the minimum rate necessary to provide a 50 percent expansion of the filter bed, with a minimum of 15 gpm/sqft.
The same section allows a reduced rate of 10 gpm/sqft (24 m/hr) for full-depth anthracite media. With air scour through the underdrain, the code sets air flow at 3–5 scfm per square foot of filter area (0.9–1.5 m³/min/m²), followed by a fluidization wash that restratifies the media.
According to LibreTexts (Filtration Rates), backwash runs last 5–20 minutes at 8–25 gpm/ft², depending on the pre-filtered water. The low end of that gpm span matches this guide's band. Most plants we size for oily textile waste sit near 15 minutes and lose sand when the rate is left at the top of the span overnight.

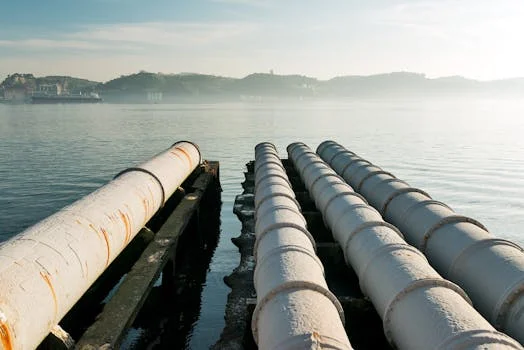

Sand Filters vs. Alternative Pretreatment Methods: A Cost-Benefit Comparison
Sand filters remain a low-capital choice for TSS when land is available. Industrial sand filters cut Total Suspended Solids (TSS) by up to 95% at Capital Expenditure (CAPEX) 60–80% lower than Dissolved Air Flotation (DAF) for equal flow (data from Shaw Resources). A textile plant in Bangladesh cut effluent TSS from 800 mg/L to less than 50 mg/L with series slow sand filters, avoiding local discharge fines (per World Bank 2023 report). That result was a solids cut on a train the beds could accept, not a reason to feed raw 800 mg/L straight onto one cell.
Operational Expenditure (OPEX) runs about $0.01–$0.05 per cubic meter, mainly for backwash energy and occasional media. DAF OPEX is about $0.05–$0.15 per cubic meter from continuous chemicals and air saturation power (per Shaw Resources). DAF still removes Fats, Oils, and Grease (FOG) far better. FOG can blind sand within hours.
Versus high-efficiency sedimentation or lamella clarifiers, the main trade-off is footprint. A slow sand filter needs 10–20 times more area than a rapid sand filter or lamella unit for the same volume. Teams must balance low maintenance and chemical-free duty against land cost and automation. DAF systems that complement sand filters for high-turbidity water help decide when a hybrid train is cheaper for a given effluent profile.
| Technology | CAPEX ($/m³/h) | OPEX ($/m³) | TSS Removal | Footprint |
|---|---|---|---|---|
| Sand Filter | $50 – $200 | $0.01 – $0.05 | 85 – 99% | Large |
| DAF System | $200 – $500 | $0.05 – $0.15 | 90 – 98% | Small |
| Multimedia Filter | $100 – $300 | $0.02 – $0.06 | 95 – 99% | Medium |
| Lamella Clarifier | $150 – $350 | $0.03 – $0.08 | 80 – 90% | Small |
Can Sand Filters Support Water Efficiency Goals Similar to UK Data-Centre Abstraction Limits?
Water efficiency here means less wasted filtrate and lower wash demand, not a new licence pathway. Rapid sand backwash already consumes only 2–5% of treated volume when velocity stays in the 15–25 m/h band. Keeping Cu < 1.5 and head-loss setpoints near 1.5–2.5 m reduces needless wash cycles. Those controls cut OPEX toward the $0.01–$0.05/m³ band reported for sand filters.
Jumping every wash to the code's 15 gpm/sqft expansion minimum without a solids trigger will spend that saving.
How Does Sand Filtration Compare With an MBBR Process Flow Diagram?
An MBBR process flow diagram places biofilm carriers in an aerated reactor for dissolved organics after solids are controlled. Sand filters sit upstream or as polishers for TSS and turbidity, not as a substitute for attached-growth BOD removal. Pairing order matters: solids first, then biological oxidation, then final clarification if needed. Most plants we size for a retrofit put the sand cell on the MBBR influent, not in place of the carriers.
Facilities weighing biological upgrades can compare sand filters to MBR systems for secondary treatment when membrane bioreactors enter the ROI case. Sand still handles particulate load. MBR or MBBR stages address soluble organics the media bed does not remove.
Operational Challenges and Solutions for Industrial Sand Filters
Clogging is the most common failure when influent TSS exceeds 500 mg/L or Cu exceeds 1.5. Upstream sedimentation is the first fix. If clogging continues, check backwash flow. Rates below 15 m/h often fail to fluidize the bed and form mud balls.
On a permit that requires 50 percent bed expansion, a wash below the code's 15 gpm/sqft minimum leaves the bed only partly fluidized, so mud balls are the expected result, not a surprise.
Biofilm overgrowth hits warm or nutrient-rich streams such as food wastewater. Schmutzdecke helps slow sand units, yet unchecked biofilm in rapid filters can cut flow 30–50% and turn anaerobic with odors. Periodic shock chlorination in the wash cycle, or air scour before the water wash, breaks that biomass. Keep wash velocity at or below 25 m/h when you are in this guide's band, and check the media level each cycle to limit sand loss.
Underdrain laterals have to spread both filtrate and wash water evenly across the cell. Freeboard in the table, 40–50% of bed depth, is the room the expanded bed needs. A wash trough set too low carries media out even when the rate sits inside 15–25 m/h.
How to Select the Right Sand Filter System for Your Industrial Application
Start with influent analysis. High oils or TSS above 500 mg/L will fail a standalone sand filter. A textile plant with high load should place a rapid sand filter after a DAF unit. A food plant seeking chemical-free final polish may choose slow sand instead.
Most plants we size for a tight plot pick rapid sand only after the FOG number is already low.
Drinking-water rules and industrial waste vessels are not the same object. La. Admin. Code tit. 51, § XII-177 caps pressure filters at 6 gpm/sqft except where manufacturer performance data are accepted. That cap is a potable-water rule. For waste trains, read pressure sand filter wastewater treatment before you copy the ceiling into a steel-vessel spec.
Use this selection frame:
- Characterize Influent: Measure TSS, turbidity, and FOG. If TSS > 500 mg/L, use rapid sand with DAF pre-treatment.
- Analyze Space Constraints: If footprint is tight, favor rapid sand filters or high-efficiency sedimentation tanks.
- Assess Maintenance Capacity: Confirm whether staff can scrape slow filters or need PLC backwash on rapid filters.
- Review Regulatory Goals: If 99%+ pathogen removal is required without chemicals, slow sand filters are the reference option.
- Lock media: Set d10 and Cu < 1.5, then narrow d10 to 0.45–0.55 mm if the cell is a potable guard filter.
- Lock the wash: State whether the duty is 15–25 m/h with air scour or the 15 gpm/sqft expansion minimum. Buy the pump for the higher duty if the permit is unclear.
To place these units in a full plant layout, review how sand filters integrate into full water purification systems. Advanced process control and SCADA can trend head loss, wash intervals, and filtrate turbidity so energy and media life stay inside the design envelope.
Who This Is For / Who Should Look Elsewhere / Next Step
Who this is for: Plant engineers specifying TSS and turbidity pretreatment for food, textile, municipal, or UPW guard stages. They need Cu < 1.5 media and a known backwash duty, either 15–25 m/h or the code's 15 gpm/sqft expansion minimum.
Who should look elsewhere: Sites with FOG-rich water or influent above 500 NTU, and no upstream DAF or sedimentation, should not rely on sand alone. A project that needs soluble BOD removal should look at MBBR or MBR, not a deeper sand bed.
Next step: Match slow versus rapid duty to flow, footprint, and chemical limits. Size freeboard at 40–50% of bed depth. Set the wash from both the 15–25 m/h band and the 15 gpm/sqft expansion minimum. For a media schedule tied to measured TSS and turbidity, request a sand-filter sizing review.
Frequently Asked Questions
What is the typical lifespan of sand in a filter?
In industrial settings, sand lasts 5–10 years in slow sand filters and 3–5 years in rapid sand filters. Media replacement costs typically range from $50–$100/m³ depending on the required gradation and purity. Most plants we size for textile duty hit the short end of that life when washes run every 24–48 hours. Slow beds last longer because only the top 1–2 cm is scraped, so log the media height after each wash.
Can sand filters remove heavy metals?
Yes, sand filters can remove heavy metals like arsenic and chromium via adsorption, but efficiency is generally limited to 30–70%. To achieve >90% removal, specialized media or pre-oxidation is required. Negatively charged sand binds positive metal ions better than it binds neutral colloids. Most plants we size for a metals limit treat the bed as a solids step only, and add pre-oxidation or a specialty medium if 30–70% removal misses the permit.
How often should sand filters be backwashed?
Rapid sand filters usually require backwashing every 24–48 hours. Slow sand filters do not backwash; instead, the top layer is manually scraped every 1–3 months (per AWWA M37 standards). Trigger a rapid wash earlier if head loss hits 1.5–2.5 m, and wash upflow units on dirty feed every 6–12 hours. Keep the wash at 2–5% of treated volume when the rate stays in the design band, because a fixed timer without a head-loss trip wastes filtrate.
What is the difference between sand filters and multimedia filters?
Multimedia filters use multiple layers (for example, anthracite, sand, and garnet) to provide graduated filtration. Those layers reach 95% TSS removal compared with the 85–90% typically seen in single-media sand filters, though they cost 20–30% more. The coarse top layer stores more solids, so run length grows at the same load. Most plants we size for membrane pretreatment pick multimedia when a single sand bed blinds before the 24–48 hour mark.
Are sand filters suitable for high-turbidity water?
No, water with turbidity exceeding 500 NTU will cause rapid surface blinding. Pre-treatment via sedimentation or DAF is mandatory to maintain operational efficiency in high-turbidity applications. The same break point shows up as TSS above 500 mg/L. Most plants we size for dye or food waste put flotation or a clarifier ahead of the sand, because a bed that sees 500 NTU without that step stops on the surface.
